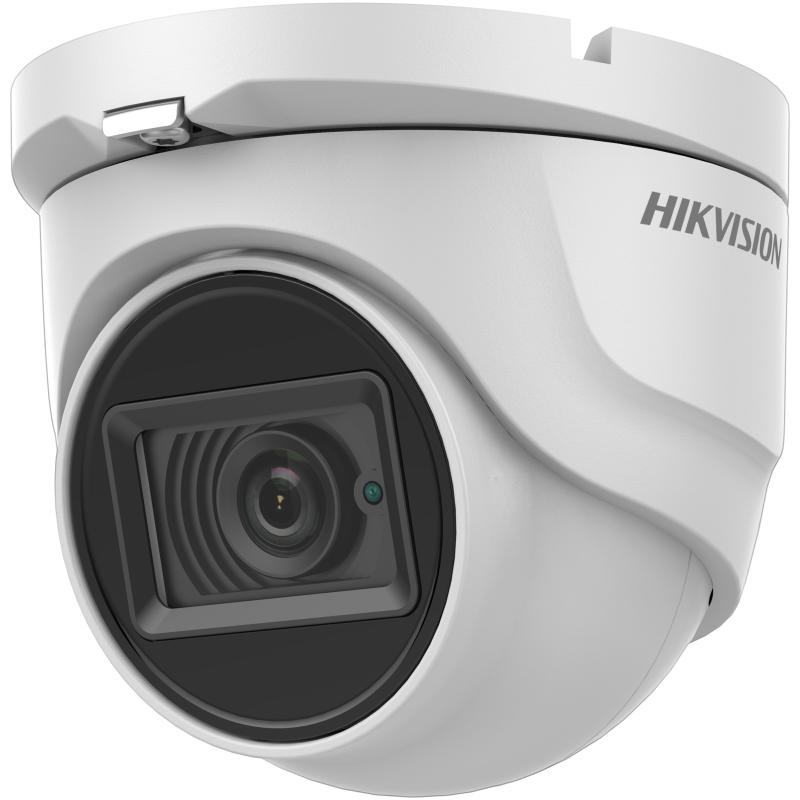

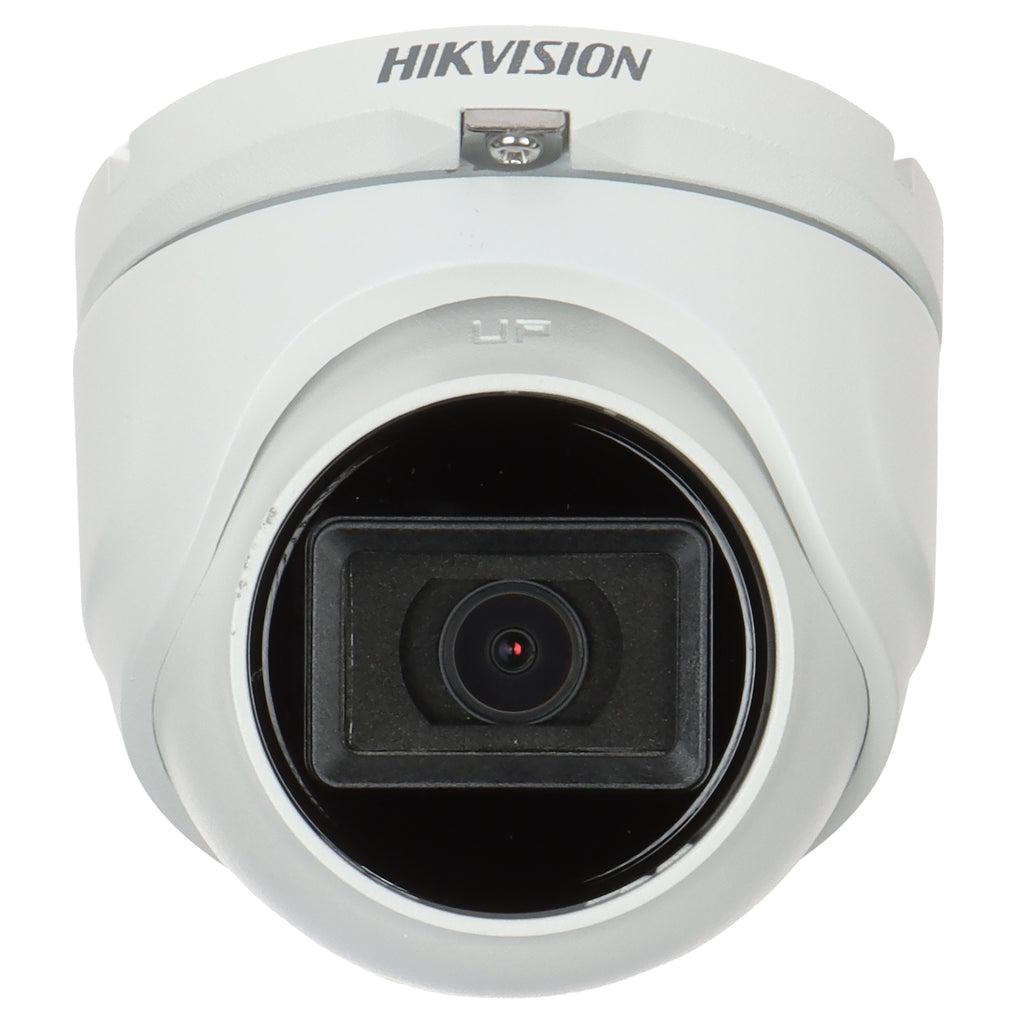

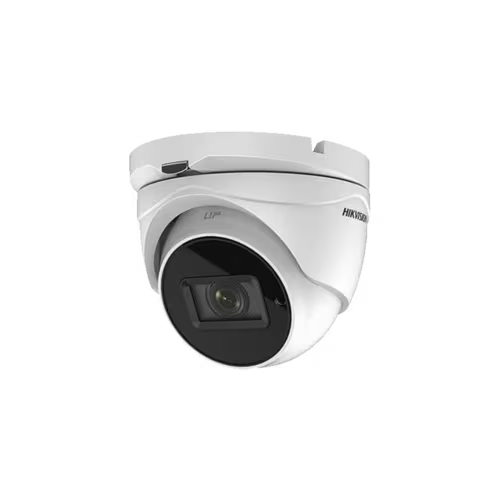

The Hikvision DS-2CE76H8T-ITMF 5MP Turret Camera delivers high-resolution 2560 × 1944 imaging with advanced EXIR 2.0 infrared technology, ensuring clear day and night surveillance up to 30 metres. Designed for professional CCTV installations, it features true 130 dB WDR, 4-in-1 video output compatibility, and a durable IP67-rated metal housing, making it ideal for both residential and commercial security applications.
What’s Included in the Box

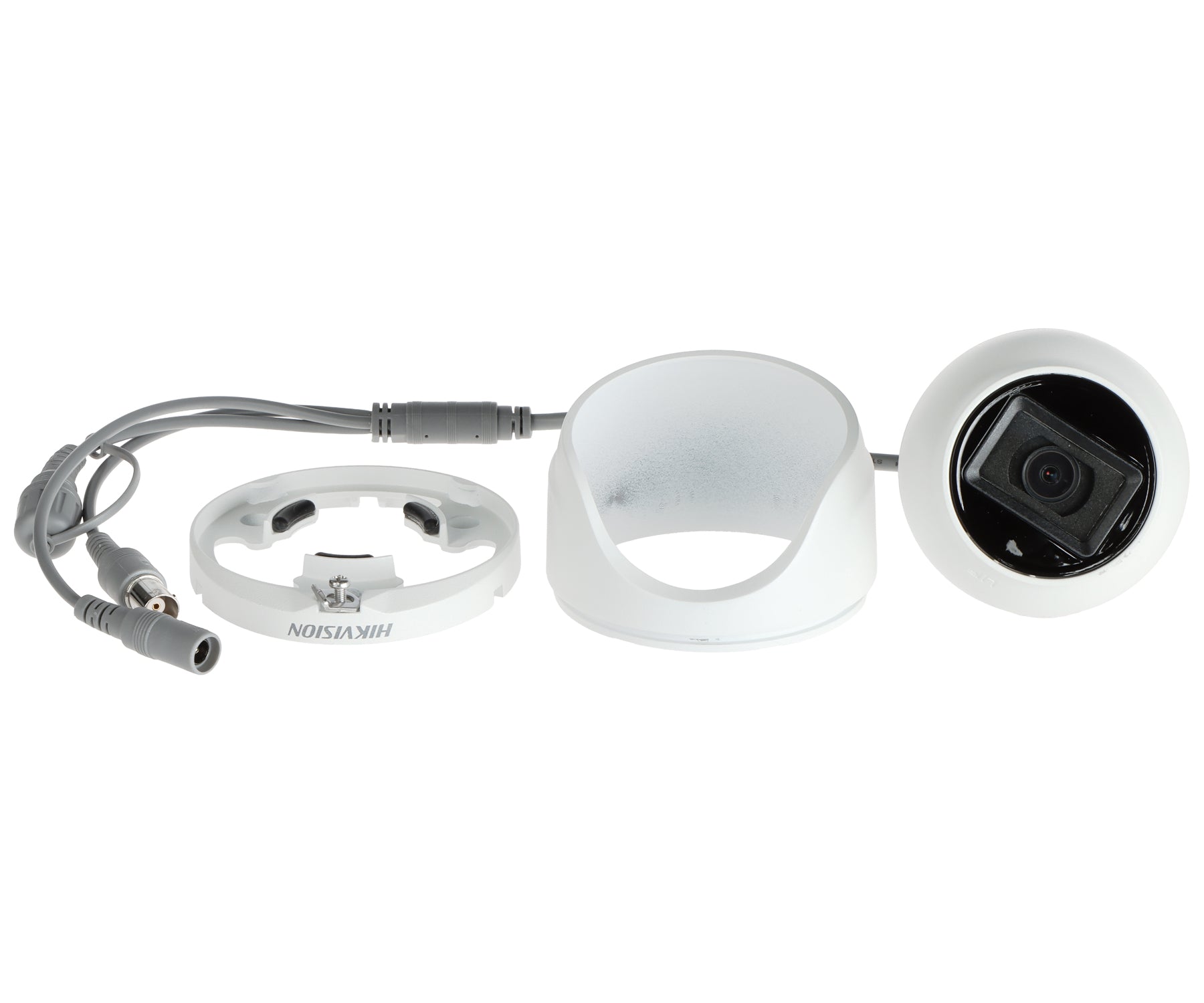

- 1 × Hikvision DS-2CE76H8T-ITMF Turret Camera
- Mounting screws and installation accessories
- Quick installation guide
Main Features
- 5MP high-performance CMOS sensor
- 2560 × 1944 resolution for sharp image clarity
- Fixed lens options: 2.8mm, 3.6mm, 6mm
- EXIR 2.0 infrared technology with up to 30m night vision
- True 130 dB WDR for balanced exposure
- 4-in-1 video output (TVI / AHD / CVI / CVBS)
- IP67 weatherproof metal housing
- Up-the-coax control (HIKVISION-C protocol)
- OSD menu with advanced image adjustments
Detailed Specifications
Camera
-
Image Sensor: 5MP progressive scan CMOS
-
Resolution: 2560 (H) × 1944 (V)
-
Minimum Illumination:
- Colour: 0.003 Lux @(F1.2, AGC ON)
- 0 Lux with IR
-
Shutter Speed:
- PAL: 1/25 s to 1/50,000 s
- NTSC: 1/30 s to 1/50,000 s
Lens
-
Options: 2.8mm / 3.6mm / 6mm fixed lens
-
Field of View:
- 98° (2.8mm)
- 78° (3.6mm)
- 48° (6mm)
-
Lens Mount: M12
Video Output
-
Formats: TVI / AHD / CVI / CVBS (switchable)
-
Frame Rates:
- 5MP @ 20fps
- 4MP @ 25/30fps
- 2MP @ 25/30fps
Image Features
- True WDR: ≥130 dB
- 3D DNR (Noise Reduction): Level 1–9
- BLC (Backlight Compensation): Yes
- Day/Night Modes: Auto / Colour / B&W
- Privacy Mask: 4 zones
- Motion Detection: 4 zones
Infrared
-
IR Range: Up to 30 metres
-
Technology: EXIR 2.0 with Smart IR
Interface
- 1 × HD analog output
- Switchable output button
General
-
Material: Metal
-
Protection: IP67 weatherproof
-
Operating Temperature: -40°C to 60°C
-
Power Supply: 12V DC ±25%
-
Power Consumption: Max. 5.8W
-

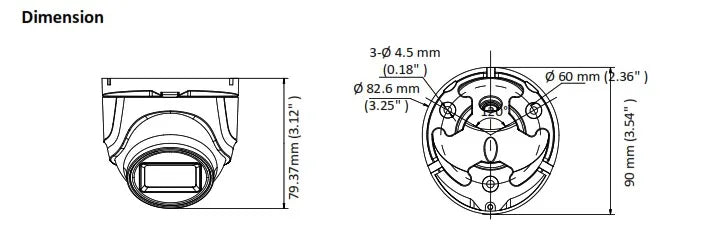

Dimensions: 90 mm × 79.37 mm
-
Weight: Approx. 300g
Optional Accessories
- Wall Mount: DS-1272ZJ-110-TRS
- Pole Mount: DS-1275ZJ-SUS
- Corner Mount: DS-1276ZJ-SUS
- Junction Box: DS-1280ZJ-XS
Warranty Information
- Manufacturer-backed warranty
- Supported through authorised Hikvision distributors
- Built for long-term reliability in demanding environments
About the Brand – Hikvision
Hikvision is a world-leading provider of video surveillance products and solutions, known for cutting-edge imaging technology, durability, and trusted performance across global security markets.
SKU
DS-2CE76H8T-ITMF
Practical Use Scenarios
- Residential home security systems
- Retail store surveillance and loss prevention
- Warehouse and industrial monitoring
- Office building perimeter security
- Outdoor installations requiring weatherproof cameras
Datasheets / Downloads
Excellence for the Australian and New Zealand Market
This Hikvision camera is sourced from authorised distributors and is optimised for Australian and New Zealand conditions. It meets local installation standards and supports professional-grade CCTV deployments. Customers benefit from genuine products, reliable warranty handling, and direct support from official brand channels.
FAQs
Q1: What resolution does the DS-2CE76H8T-ITMF support?
The DS-2CE76H8T-ITMF provides 5MP resolution at 2560 × 1944 for high-quality surveillance footage.
Q2: Does the DS-2CE76H8T-ITMF support night vision?
Yes, the DS-2CE76H8T-ITMF features EXIR 2.0 infrared with up to 30m night vision.
Q3: What video formats are supported by the DS-2CE76H8T-ITMF?
The DS-2CE76H8T-ITMF supports TVI, AHD, CVI, and CVBS outputs.
Q4: Is the DS-2CE76H8T-ITMF suitable for outdoor use?
Yes, the DS-2CE76H8T-ITMF has an IP67 rating, making it suitable for outdoor environments.
Q5: What lens options are available for the DS-2CE76H8T-ITMF?
The DS-2CE76H8T-ITMF is available with 2.8mm, 3.6mm, and 6mm fixed lenses.
Q6: Does the DS-2CE76H8T-ITMF support wide dynamic range?
Yes, the DS-2CE76H8T-ITMF includes true 130 dB WDR for balanced image exposure.
Q7: What is the power requirement for the DS-2CE76H8T-ITMF?
The DS-2CE76H8T-ITMF operates on 12V DC with a maximum consumption of 5.8W.
