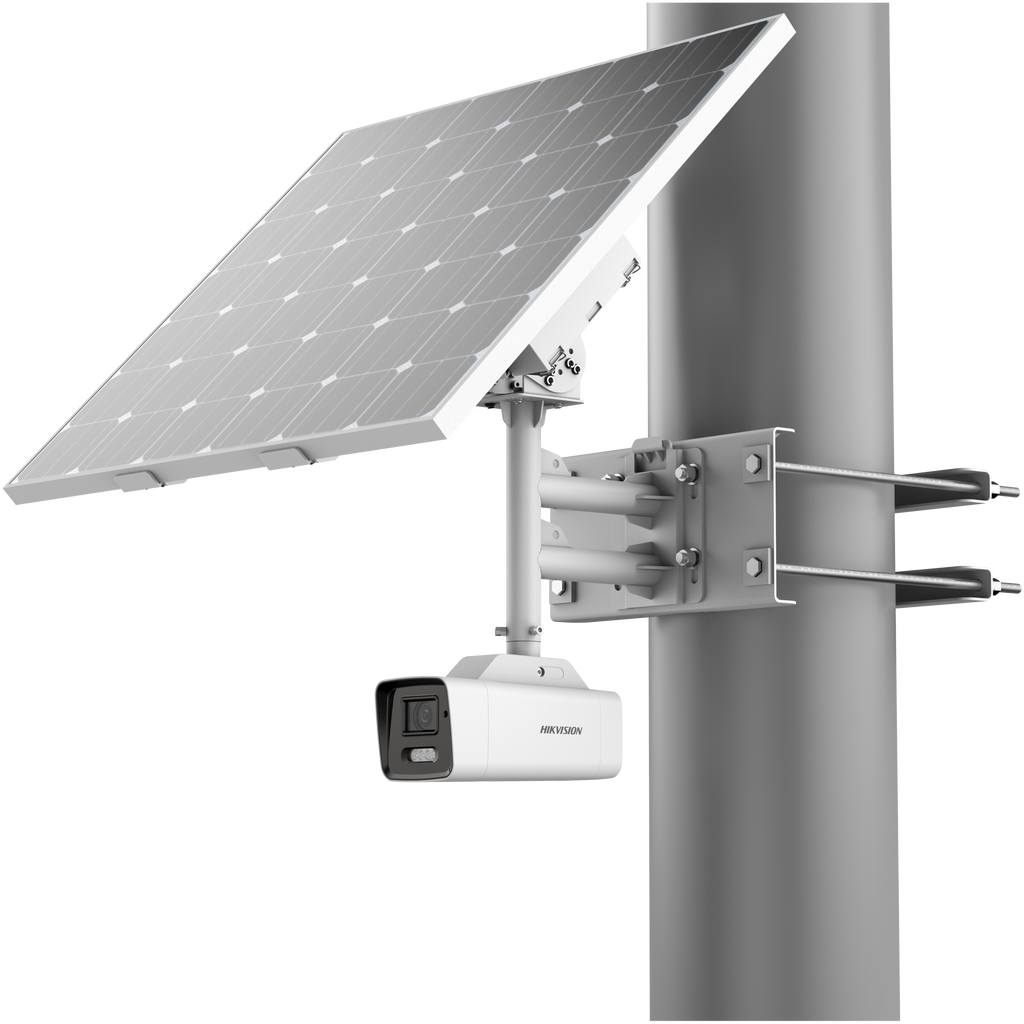

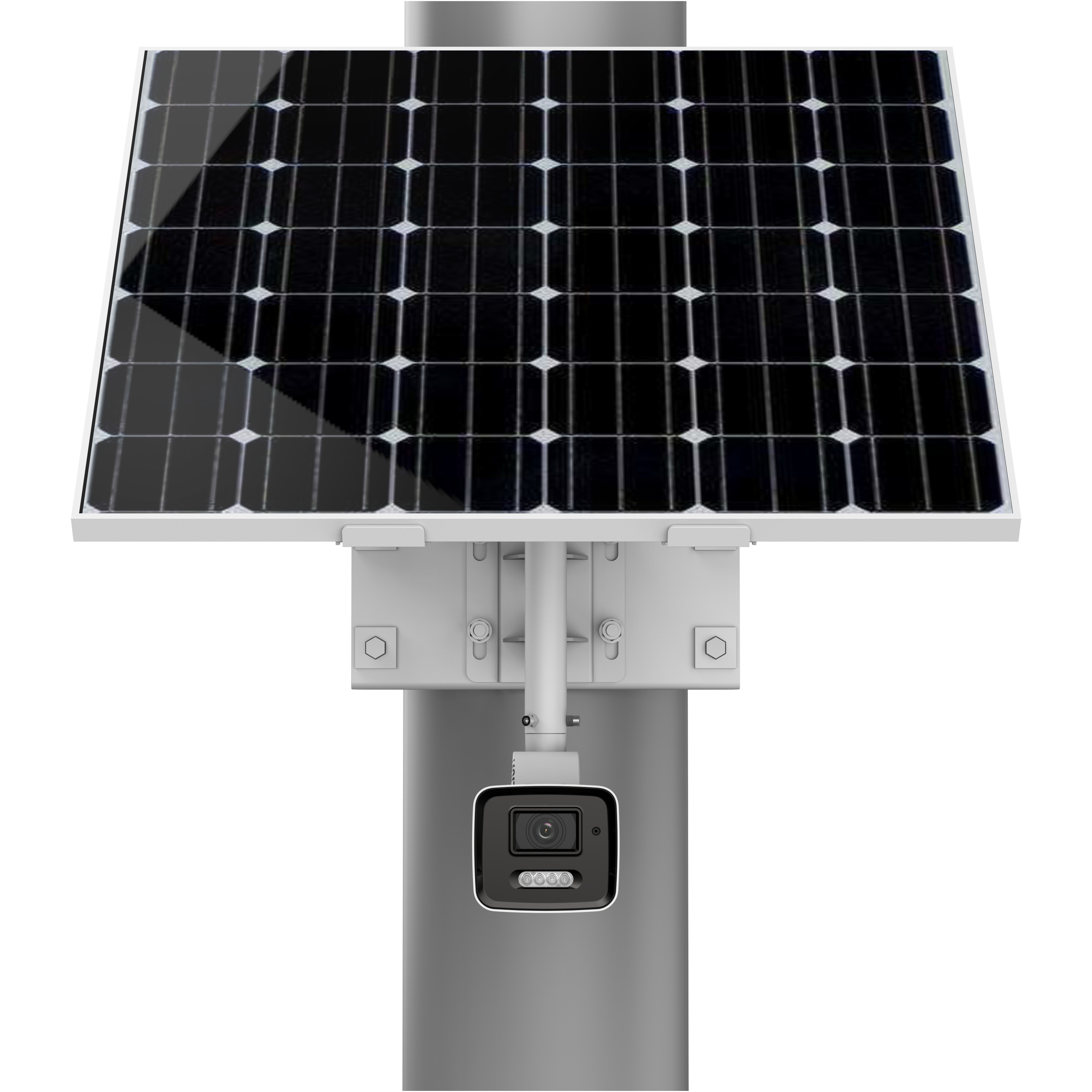

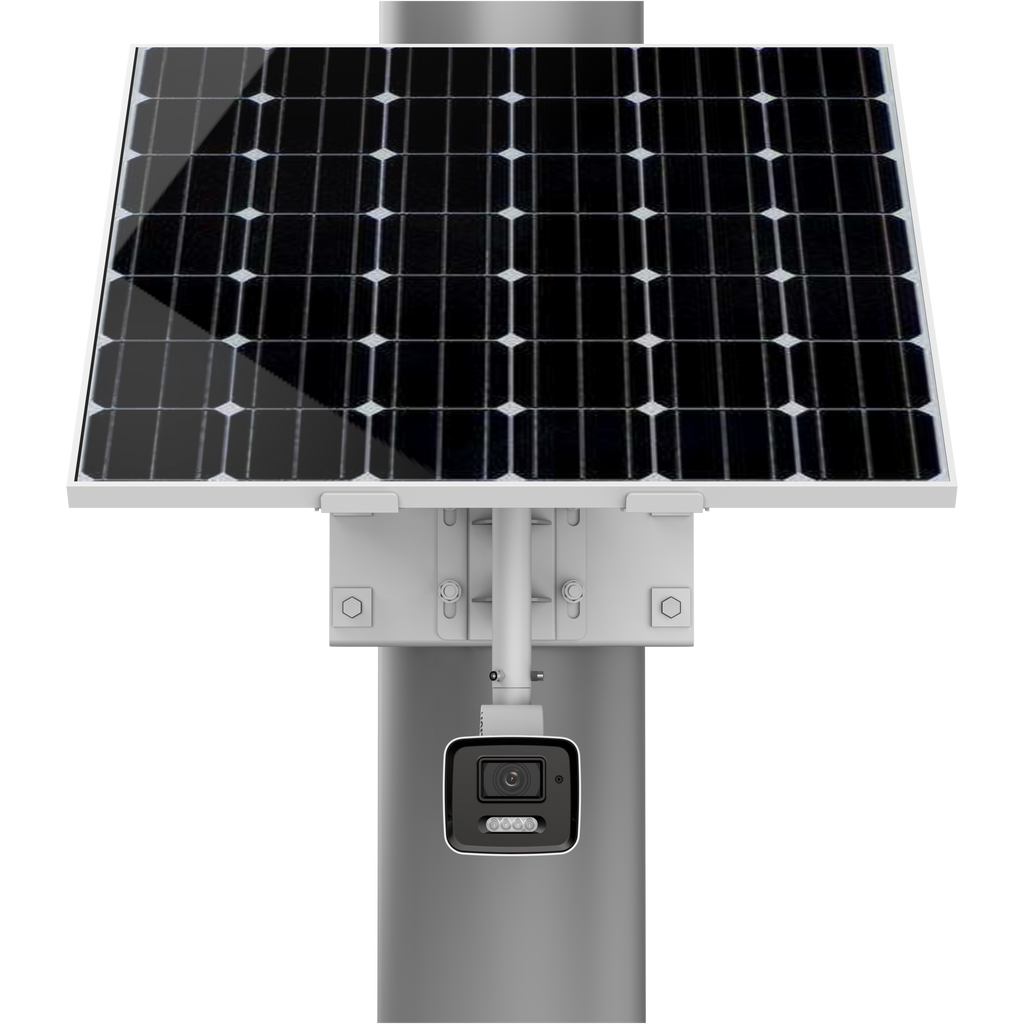

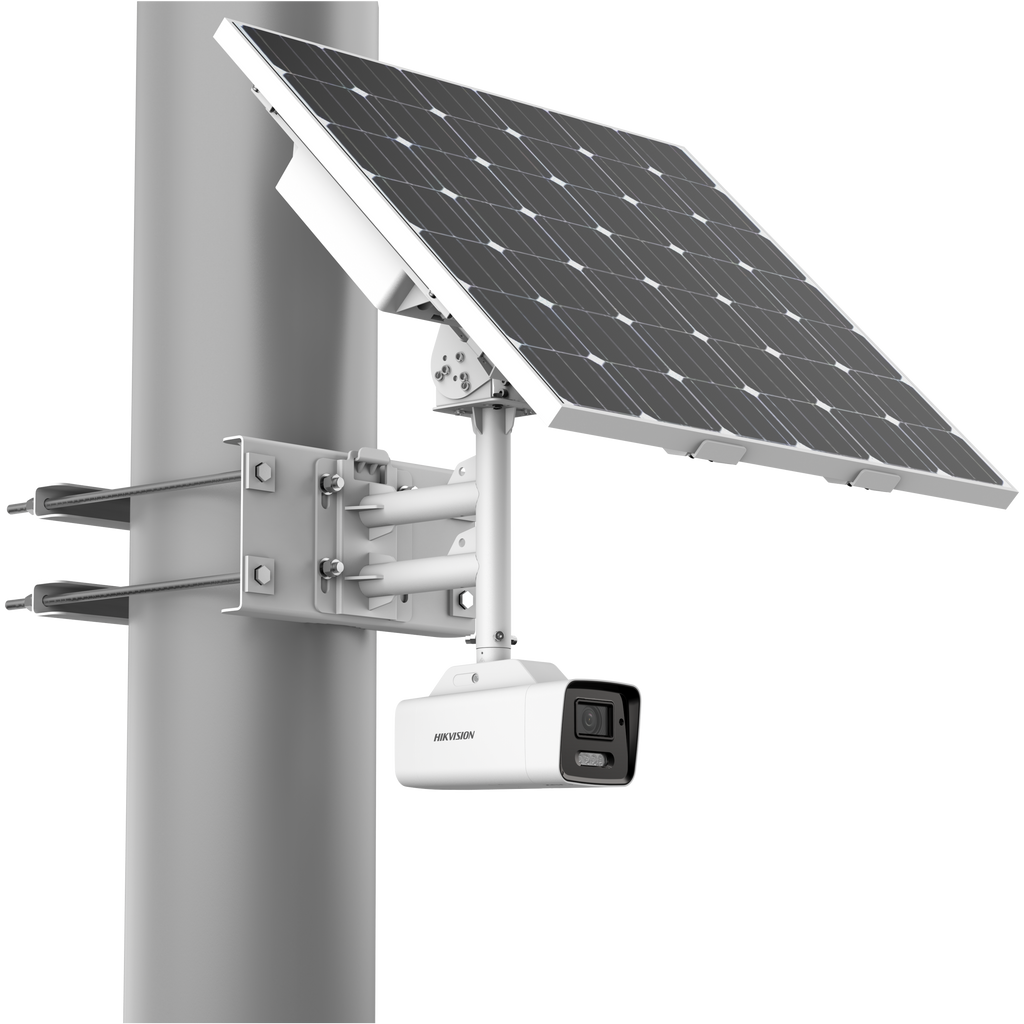

The Hikvision DS-2XS6A87G1-LS/C36S80 is a fully integrated solar-powered 4K surveillance solution designed for remote and rugged environments where traditional infrastructure is unavailable. Equipped with ColorVu technology, an 80W solar panel, and a 360Wh lithium battery, this kit enables autonomous 24/7 monitoring in any condition.

Capturing vivid 8MP (3840 × 2160) resolution footage at low light levels (as little as 0.0005 Lux), this camera excels in delivering full-color video day and night. Powered by deep learning AcuSense analytics, it focuses on human and vehicle detection, filtering out false alarms for accurate, actionable security.

The camera features 4G LTE connectivity, a 64 GB eMMC onboard storage module, support for up to 256 GB microSD, and robust event-triggered features like motion detection, scene change, face detection, and smart alarms. IP67 weatherproofing and wide-area illumination (up to 30m) make it ideal for critical infrastructure, agricultural monitoring, construction sites, and emergency deployments.

What's Included in the Box

• 1 × DS-2XS6A87G1-LS/C36S80 4K ColorVu Camera

• 1 × Integrated 80W Solar Panel

• 4 × Rechargeable 90Wh Lithium Batteries (360Wh total)

• 1 × Mounting Bracket Set

• 1 × 64 GB Built-in eMMC Storage

• 1 × Waterproof Cable Gland

• 1 × Reset Tool and Documentation

Key Features

• 4K Ultra HD Imaging (3840 × 2160 @ 15 fps) with 1/1.2" CMOS sensor

• 24/7 ColorVu Technology with F1.0 super-aperture and white light

• Smart Detection via AcuSense AI – focuses on humans and vehicles

• Fully Solar-Powered – includes 80W panel and 360Wh lithium battery

• Built-in 64GB eMMC Storage, plus microSD slot (up to 256GB)

• 4G LTE Mobile Connectivity – supports global bands with Micro SIM

• 130 dB True WDR – captures clear images in challenging lighting

• 30 m Smart White Light Illumination for full-color night monitoring

• Rugged Metal Housing – wind resistant up to 40 m/s

• Low Power Consumption – standby: 53 mW; average: 2W

• IP67 Weatherproof Rated – for long-term outdoor deployment

Detailed Specifications

Camera Module

• Image Sensor: 1/1.2" Progressive Scan CMOS

• Resolution: 3840 × 2160 (8MP)

• Minimum Illumination: 0.0005 Lux (F1.0), 0 Lux with white light

• Shutter Speed: 1 s to 1/100,000 s

• Lens: 2.8 mm or 4 mm fixed

  • 2.8 mm FOV: H 101.6°, V 52.4°, D 124°

  • 4 mm FOV: H 88.0°, V 47.0°, D 104.3°

• DORI Distance (2.8 mm): Detect 96 m, Identify 9.5 m

Illumination

• Supplement Light: White Light

• Range: Up to 30 m

• Smart Illumination Modes: Yes

Video Compression

• Main Stream: H.265 (up to 15 fps @ 4K)

• Sub & Third Stream: H.264/H.265/MJPEG

• Bitrate: 32 Kbps – 16 Mbps

• ROI: 4 programmable regions

Audio

• Compression: G.711, G.722.1, MP2L2, MP3, AAC-LC

• Input/Output: 1 line in, 1 line out

• Noise Filtering: Yes

Networking & Storage

• 4G Communication: LTE-TDD/FDD, WCDMA, GSM

• SIM Slot: Micro SIM

• Internal Storage: 64 GB eMMC

• External Storage: Up to 256 GB microSD

• Remote Access: Hik-Connect, Hik-Central

• Network Protocols: HTTPS, RTSP, SNMP, FTP, WebSocket, etc.

• Users: Up to 32 concurrent

AI and Event Detection

• Human & Vehicle Classification

• Smart Events: Line crossing, intrusion, face detection, object removal

• Event Actions: Trigger recording, light, sound alarms, FTP upload

Power & Solar System

• Battery: 4 × 90 Wh lithium (total 360 Wh)

• Solar Panel: 80W

• Power Output: 12 VDC, max. 1000 mA

• Charging Temp: -20°C to 45°C

• Discharging Temp: -20°C to 60°C

• Battery Runtime:

  • Performance mode: 5 days

  • Proactive mode: 8 days

  • Standby: 80 days

• Battery Life: >500 cycles

Housing & Environmental

• Material: Metal housing and bracket

• Protection Rating: IP67

• Operating Temp: -20 °C to 60 °C

• Wind Resistance: Up to 40 m/s

• Dimensions (Assembled): 882.6 × 706.3 × 760 mm

• Weight: 30.2 kg (net), 36.3 kg (with packaging)

Certifications

• EMC: CE, FCC, IC, RCM (AS/NZS CISPR 32:2015)

• Safety: CB, CE-LVD, LOA

• RF: CE-RED, FCC ID, IC ID, MIC

• Environmental: RoHS, WEEE, Reach

Warranty Information

This product includes a 2-year manufacturer warranty. Hikvision’s authorized representatives in Australia and New Zealand provide full local support and service for all warranty and technical issues related to this model.

Brand Overview

Hikvision is globally recognized for innovation in AI-powered video surveillance and edge security technology. Their product range spans robust solutions for urban, industrial, and remote monitoring applications—trusted by government, corporate, and critical infrastructure sectors in over 150 countries.

SKU

DS-2XS6A87G1-LS/C36S80

Practical Use Scenarios

• Agricultural Fields & Livestock Monitoring – Off-grid 24/7 coverage with AI alerts

• Utility & Pipeline Surveillance – Monitor remote energy or water infrastructure

• Construction & Civil Projects – Temporary and mobile monitoring without cabling

• Public Events & Temporary Installations – Rapid deployment with live viewing

• Forest Fire & Wildlife Monitoring – Use solar + AI to detect presence and movement in protected areas

Datasheets & Downloadable Resources

• Data Sheet

  Quick Start Guide

  User Manual

Excellence for the Australian and New Zealand Market

The DS-2XS6A87G1-LS/C36S80 is expertly engineered for the unique needs of remote, rural, and harsh-environment deployments in Australia and New Zealand:

• RCM-certified for compliance with AS/NZS standards

• 4G bands support major mobile networks across ANZ

• IP67-rated for extreme weather, wind resistance up to 40 m/s

• Optimized for solar-only operation, reducing infrastructure costs

• Warranty and support provided by Hikvision-authorized local distributors

• Deployable across agricultural, industrial, and emergency sectors with confidence

FAQs (DS-2XS6A87G1-LS/C36S80)

Q1: Can the DS-2XS6A87G1-LS/C36S80 operate entirely off-grid?
Yes, the DS-2XS6A87G1-LS/C36S80 is powered by an 80W solar panel and a 360Wh lithium battery, enabling complete off-grid operation in remote or rural areas.

Q2: What kind of SIM card does the DS-2XS6A87G1-LS/C36S80 support?
The DS-2XS6A87G1-LS/C36S80 supports Micro SIM cards and works with 4G LTE networks across various global frequency bands.

Q3: How much video storage does the DS-2XS6A87G1-LS/C36S80 offer?
It includes 64 GB of built-in eMMC storage and supports an additional 256 GB via microSD card for local recording.

Q4: Is the DS-2XS6A87G1-LS/C36S80 suitable for Australian weather conditions?
Absolutely. The DS-2XS6A87G1-LS/C36S80 is IP67-rated and RCM-certified, making it ideal for Australia's extreme weather and environmental conditions.

Q5: How long will the DS-2XS6A87G1-LS/C36S80 run on battery during cloudy days?
Depending on the mode, the DS-2XS6A87G1-LS/C36S80 can run for up to 8 days (Proactive mode) and up to 80 days in Standby mode without solar input.
