Description
The Hikvision DS-D5022FN00 21.5 inch FHD borderless monitor delivers crisp 1920 × 1080 resolution, ultra-wide 178° viewing angles, and a sleek ultra-thin design. Featuring HDMI and VGA connectivity, low blue light eye care technology, and VESA mounting support, this reliable monitor is ideal for office, commercial, and everyday business applications.
Product Description
The Hikvision DS-D5022FN00 is a sleek and practical 21.5 inch Full HD monitor designed to deliver consistent performance for professional and everyday use. With its ultra-thin body and three-sided borderless design, it offers a modern aesthetic suitable for office desks, reception counters, and commercial environments.
Equipped with an 8-bit LVDS Full HD display and 178° wide viewing angles, this monitor ensures clear and consistent visuals from virtually any perspective. The inclusion of 3D noise reduction enhances image clarity, while the low blue light design helps reduce eye strain during extended use.
With HDMI and VGA inputs, the DS-D5022FN00 provides flexible connectivity for a wide range of devices. Its VESA 75 × 75 mm compatibility allows for easy wall mounting, making it a versatile display solution for both desktop and mounted installations.
What’s Included in the Box
- Monitor × 1
- Base component × 1
- Power adapter (12 V, 2.0 A) × 1
- HDMI cable (1.5 m) × 1
- User manual × 1
Main Features
- 21.5 inch Full HD display with 1920 × 1080 resolution
- Ultra-thin body with three-sided borderless design
- 178° ultra-wide viewing angle for consistent visuals
- 3D noise reduction for improved image clarity
- Low blue light technology for eye comfort
- HDMI and VGA dual interface connectivity
- 8-bit colour display with natural colour reproduction
- VESA 75 mm × 75 mm wall mount compatibility
- Reliable operation rated for 7 × 16 hours usage
- Slim and lightweight design suitable for various environments
Detailed Specifications
Display
- Screen Size: 21.5 inch
- Active Display Area: 478.656 mm × 260.280 mm
- Resolution: 1920 × 1080 @ 60 Hz
- Backlight: E-LED
- Pixel Pitch: 0.0831 mm (H) × 0.241 mm (V)
- Brightness: 250 cd/m²
- Viewing Angle: 178° (H) / 178° (V)
- Colour Depth: 8 bit
- Contrast Ratio: 3000:1
- Response Time: 6.5 ms
- Refresh Rate: 60 Hz
- Haze: 25%, 3H
- Reliability: 7 × 16 H
- Colour Gamut: 72% NTSC
Interface
- Video Input: HDMI 1.4 × 1, VGA × 1
- Audio Output: None
- Data Transmission Interface: None
- Control Interface: None
Physical Interfaces
- HDMI: HDMI 1.4 digital input
- VGA: Analog signal input
- Power: DC 12V, 2.0A
Power
- Power Supply: DC 12V, 2.0A
- Power Consumption: ≤ 24 W
- Standby Consumption: ≤ 0.5 W
Working Environment
- Operating Temperature: 0°C to 40°C
- Operating Humidity: 10% to 90% RH (Non-condensing)
- Storage Temperature: -20°C to 60°C
- Storage Humidity: 0% to 90% RH
General
- Casing Material: Plastic
- VESA Mount: 75 mm × 75 mm (4 × M4 × 6 mm)

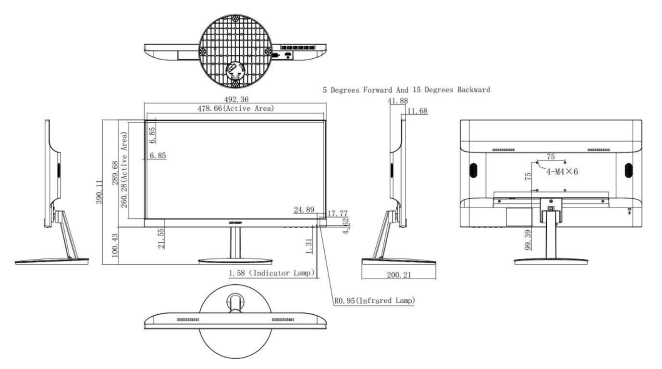

- Bezel Width: 6.85 mm (top/left/right), 21.55 mm (bottom)
Dimensions & Weight
- Product Dimensions: 492.4 × 390.1 × 200.2 mm
- Package Dimensions: 599 × 393 × 109 mm
- Net Weight: 2.08 ± 0.5 kg
- Gross Weight: 3.4 ± 0.5 kg
Warranty Information
2 year Warranty.
Brief Brand Description
Hikvision is the manufacturer of the DS-D5022FN00 monitor and is known for producing display and electronic products designed for professional and commercial applications. Product specifications may vary slightly depending on region and distribution.
Practical Use Scenarios
The Hikvision DS-D5022FN00 is ideal for:
- Office workstations requiring reliable Full HD displays
- Reception and front desk environments with modern aesthetics
- Retail and commercial display setups
- Security monitoring stations with consistent performance needs
- Educational or administrative environments
- Multi-monitor setups thanks to its slim borderless design
- Wall-mounted installations using VESA compatibility
Datasheets or Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hikvision DS-D5022FN00 is suitable for deployment across Australian and New Zealand environments where reliable, energy-efficient, and space-saving display solutions are required.
Based on the provided information:
- Designed for professional and commercial usage scenarios
- Operates within standard environmental ranges suitable for AU/NZ conditions
- Includes universal DC power adapter (12V, 2.0A)
- No specific certifications or compliance markings were listed in the provided data
- Warranty, compliance, and certification details should be confirmed through authorised Hikvision distributors
This ensures buyers can make informed decisions aligned with local operational requirements and standards.
FAQs
Q1. What is the screen size of the Hikvision DS-D5022FN00?
A. The Hikvision DS-D5022FN00 features a 21.5 inch display.
Q2. What resolution does the Hikvision DS-D5022FN00 support?
A. The Hikvision DS-D5022FN00 supports Full HD resolution at 1920 × 1080 @ 60 Hz.
Q3. Does the Hikvision DS-D5022FN00 have a borderless design?
A. Yes, the Hikvision DS-D5022FN00 has a three-sided ultra-thin borderless design.
Q4. What connectivity options are available on the Hikvision DS-D5022FN00?
A. The Hikvision DS-D5022FN00 includes HDMI and VGA input interfaces.
Q5. Does the Hikvision DS-D5022FN00 include built-in speakers?
A. No, the Hikvision DS-D5022FN00 does not include built-in speakers.
Q6. What is the refresh rate of the Hikvision DS-D5022FN00?
A. The Hikvision DS-D5022FN00 has a refresh rate of 60 Hz.
Q7. Is the Hikvision DS-D5022FN00 suitable for wall mounting?
A. Yes, the Hikvision DS-D5022FN00 supports VESA 75 mm × 75 mm wall mounting.
Q8. Does the Hikvision DS-D5022FN00 have eye care features?
A. Yes, the Hikvision DS-D5022FN00 includes a low blue light design to help reduce eye strain.
Q9. What is the brightness level of the Hikvision DS-D5022FN00?
A. The Hikvision DS-D5022FN00 has a brightness of 250 cd/m².
Q10. What is included in the box with the Hikvision DS-D5022FN00?
A. The Hikvision DS-D5022FN00 includes the monitor, base, power adapter, HDMI cable, and manuals.
Q11. What is the contrast ratio of the Hikvision DS-D5022FN00?
A. The Hikvision DS-D5022FN00 features a contrast ratio of 3000:1.
Q12. What is the product code for the Hikvision DS-D5022FN00?
A. The product code for the Hikvision DS-D5022FN00 is DS-D5022FN00.
