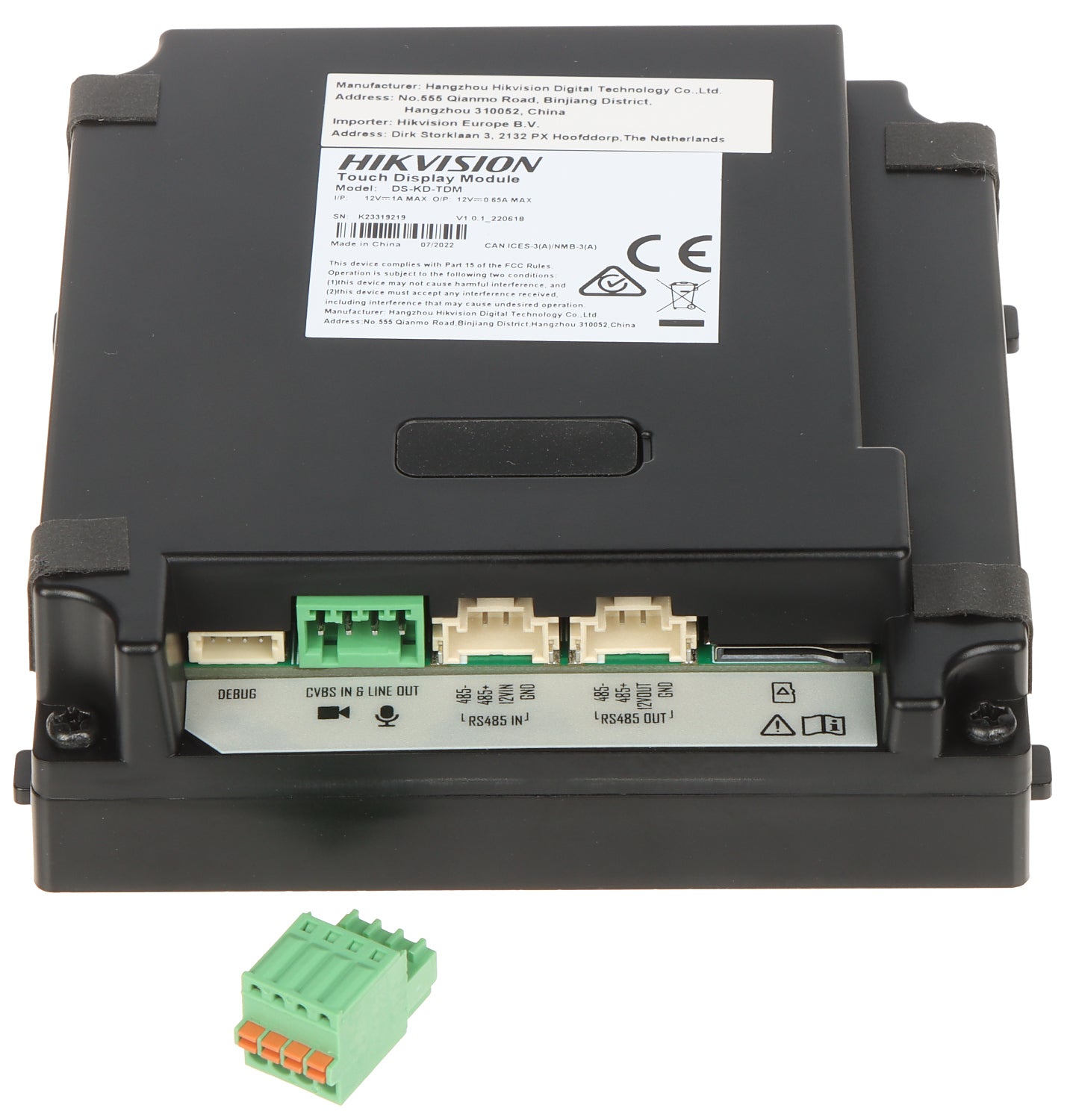

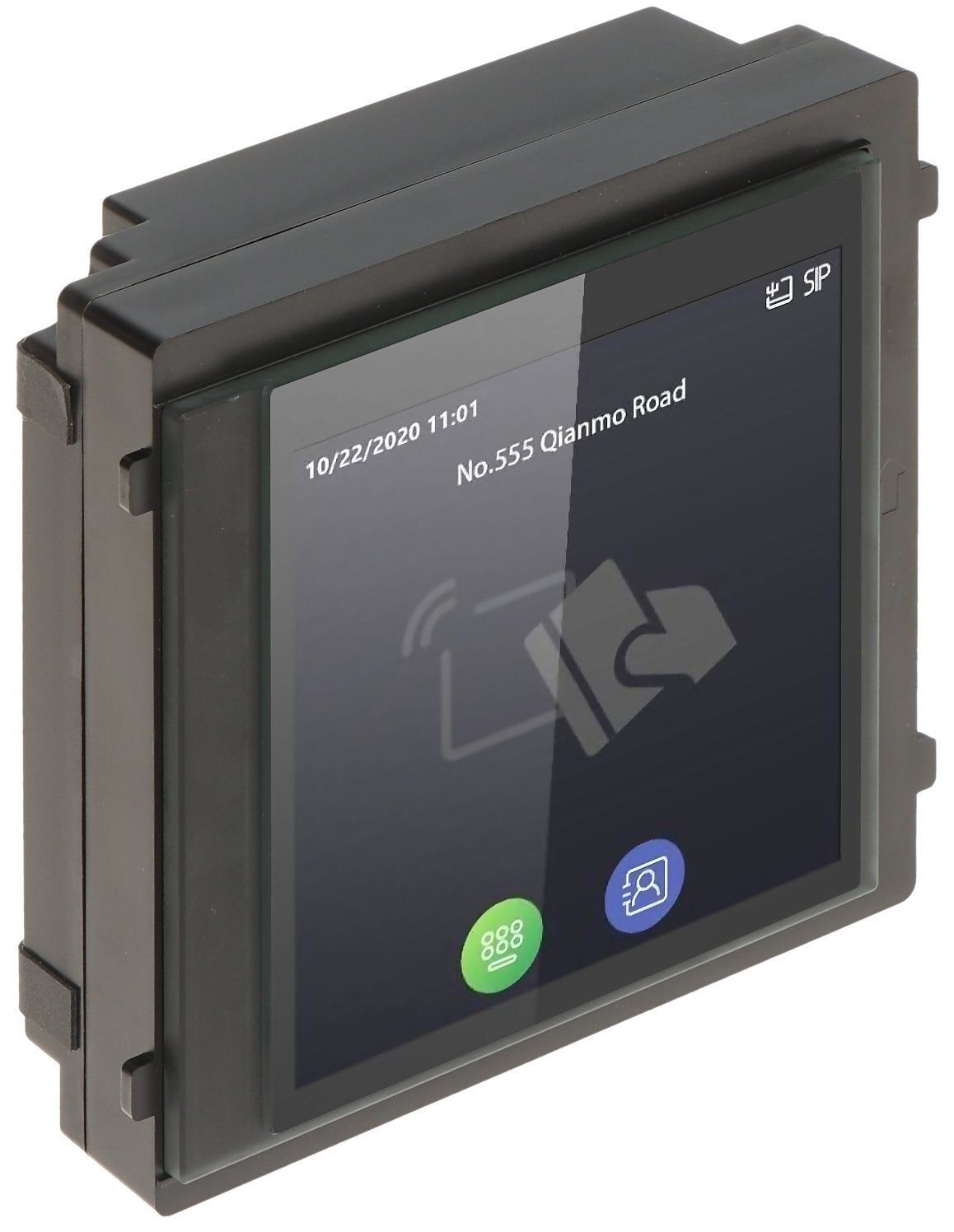

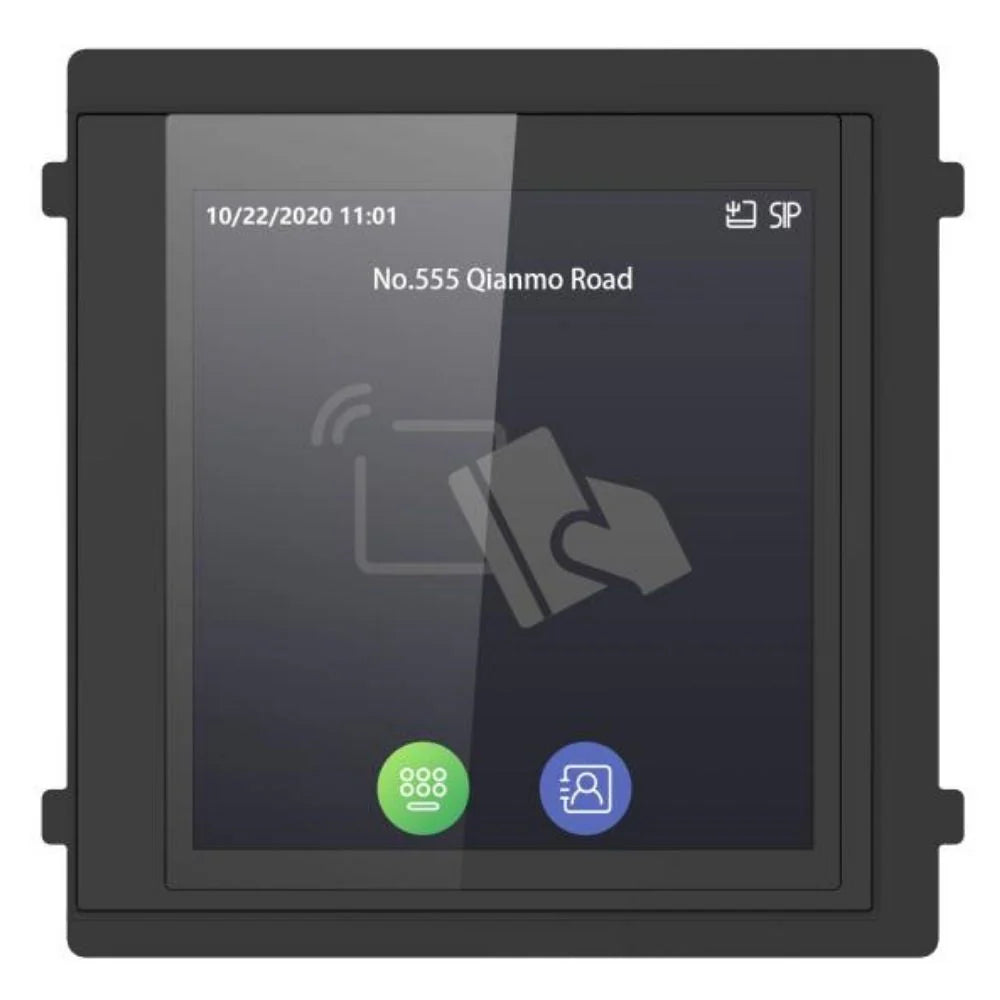

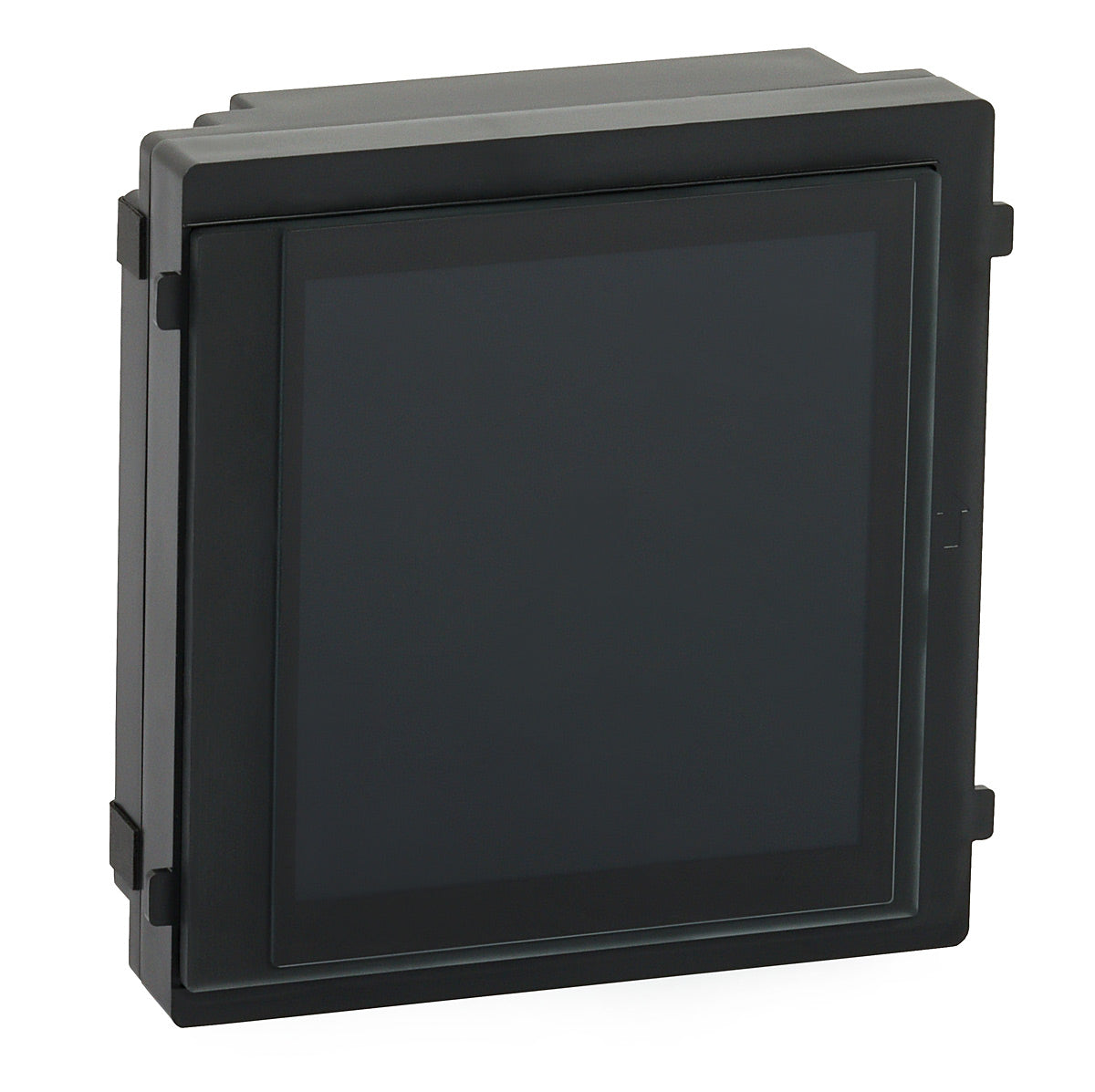

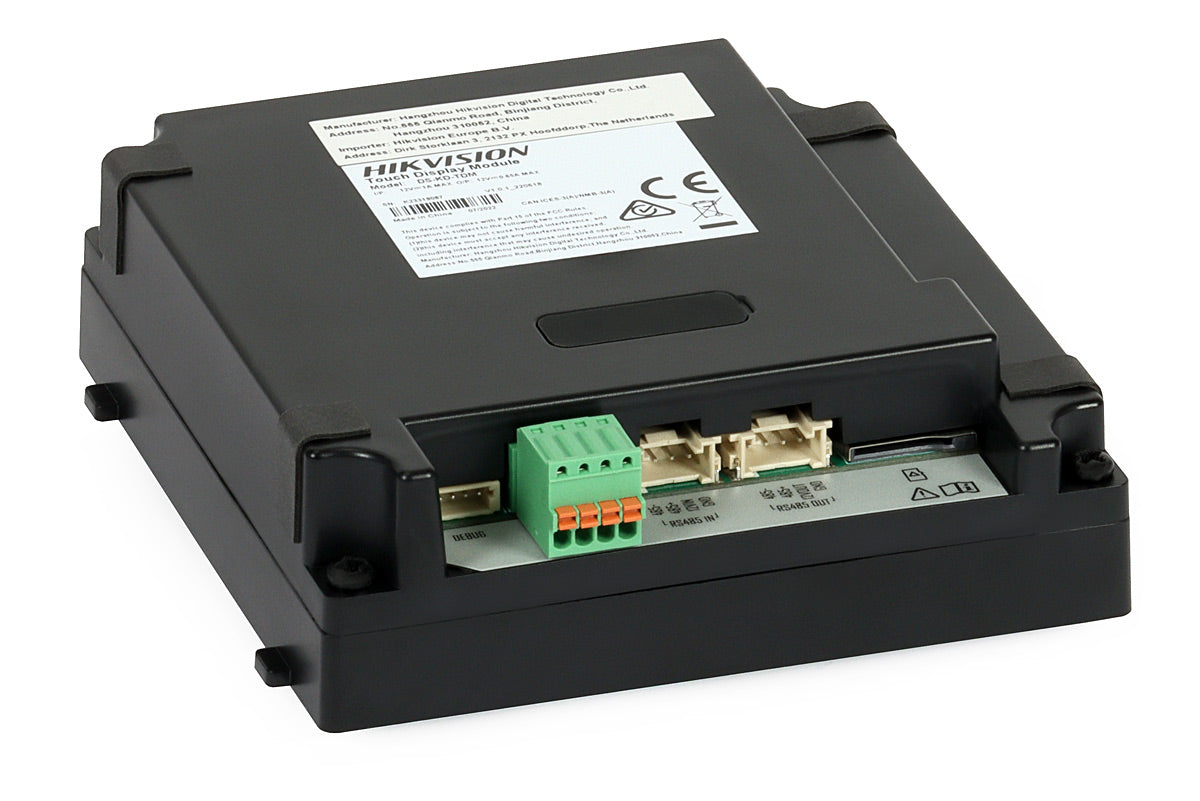

The Hikvision DS-KD-TDM is a modular touch display module designed for integration with Hikvision's KD8 Series Pro Modular Door Stations. Featuring a 4-inch IPS touch screen and an integrated M1 card reader, this module offers a versatile interface for secure access control and visitor management. Its robust design, compliant with IP65 and IK08 standards, ensures durability in various environments.

What's Included
Key Features
-
4-Inch IPS Touch Screen – Provides a clear and responsive interface for users
-
Integrated M1 Card Reader – Supports 13.56 MHz frequency with a 2 cm reading distance
-
Multiple Access Methods – Supports dial number display, PIN code entry, and card unlock
-
Contact List & Advertisement Display – Stores up to 2000 contacts and supports visual ads
-
Durable Design – Rated IP65 for weather resistance and IK08 for impact protection
-
Multilingual Interface – Supports a wide range of languages for accessibility
Technical Specifications
-
Product Code: DS-KD-TDM
-
Operating System: Linux
-
ROM: 32 MB
-
RAM: 128 MB
-
Display: 4-inch IPS touch screen, 480 x 480 resolution
-
Audio Output: Buzzer
-
Wireless Network: AP mode only
-
Card Reading Frequency: 13.56 MHz
-
Card Reading Distance: 2 cm
-
Card Type: Mifare (M1) card
-
TF Card Slot: Reserved
-
DIP Switch: 8 bits
-
Cascade Interface: 2
-
Installation Options: Surface or flush mounting
-
Protection Level: IP65, IK08
-
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
-
Operating Humidity: 10% to 95% (non-condensing)
-
Dimensions: 100 mm × 100 mm × 35 mm (3.94" × 3.94" × 1.38")
-
Power Supply: 12 VDC, supplied by main module
-
Power Consumption: ≤ 10 W
-
Languages Supported: English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek
Warranty Information
Hikvision offers a standard limited warranty on the DS-KD-TDM module, covering manufacturing defects under normal usage conditions. Refer to the original documentation for full terms.
About the Brand
Hikvision is a global leader in security technology, known for delivering cutting-edge surveillance and access control solutions. The company focuses on reliability, innovation, and excellence, making its products trusted in residential, commercial, and institutional environments worldwide.
SKU
DS-KD-TDM
Practical Use Scenarios
-
Apartment Complexes – Enhance tenant security and communication through controlled access
-
Business Centers – Manage visitor interactions and employee access points efficiently
-
Educational Institutions – Provide safe access management in school and university campuses
-
Healthcare Facilities – Control staff and visitor entry to restricted medical areas
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The Hikvision DS-KD-TDM module is tailored to meet regional compliance standards in Australia and New Zealand. Built to endure local environmental conditions, it is distributed exclusively via authorized representatives, ensuring genuine quality and reliable after-sales support. Warranty services and technical assistance are managed locally, delivering peace of mind to customers across ANZ.
Frequently Asked Questions (FAQs)
Q1: Is the Hikvision DS-KD-TDM module (DS-KD-TDM) compatible with all Hikvision modular door stations?
A1: The DS-KD-TDM is specifically designed for use with Hikvision’s KD8 Series Pro Modular Door Stations.
Q2: How many contacts can be stored on the DS-KD-TDM (DS-KD-TDM)?
A2: It supports up to 2000 contacts in its internal memory.
Q3: What languages are supported by the DS-KD-TDM (DS-KD-TDM)?
A3: The device supports multiple languages including English, French, Spanish, German, Russian, Arabic, and more.
Q4: How is the DS-KD-TDM (DS-KD-TDM) powered?
A4: It is powered by the main module via a 12 VDC connection.
Q5: What type of access cards does the DS-KD-TDM (DS-KD-TDM) support?
A5: The built-in card reader supports Mifare (M1) cards operating at 13.56 MHz with a 2 cm range
