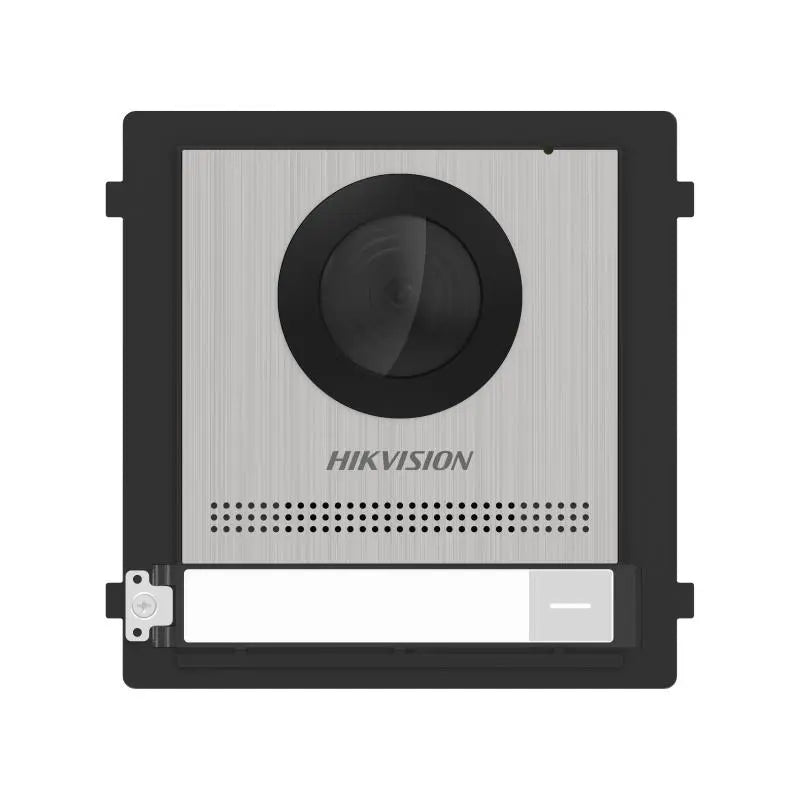

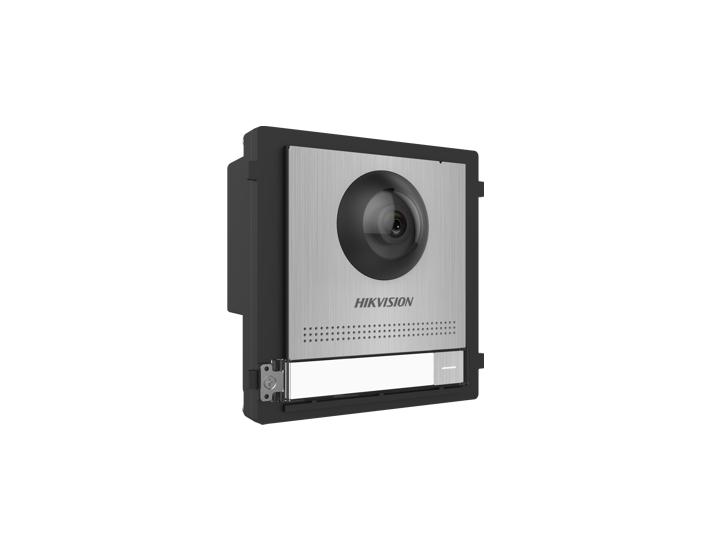

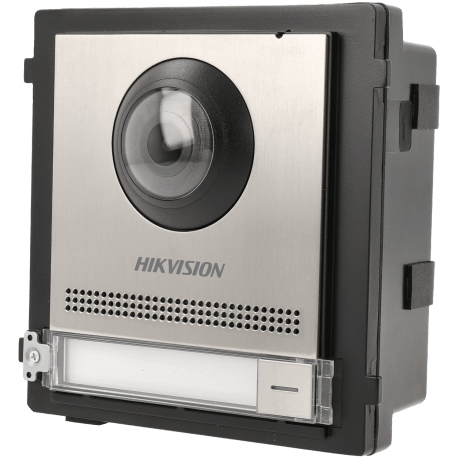

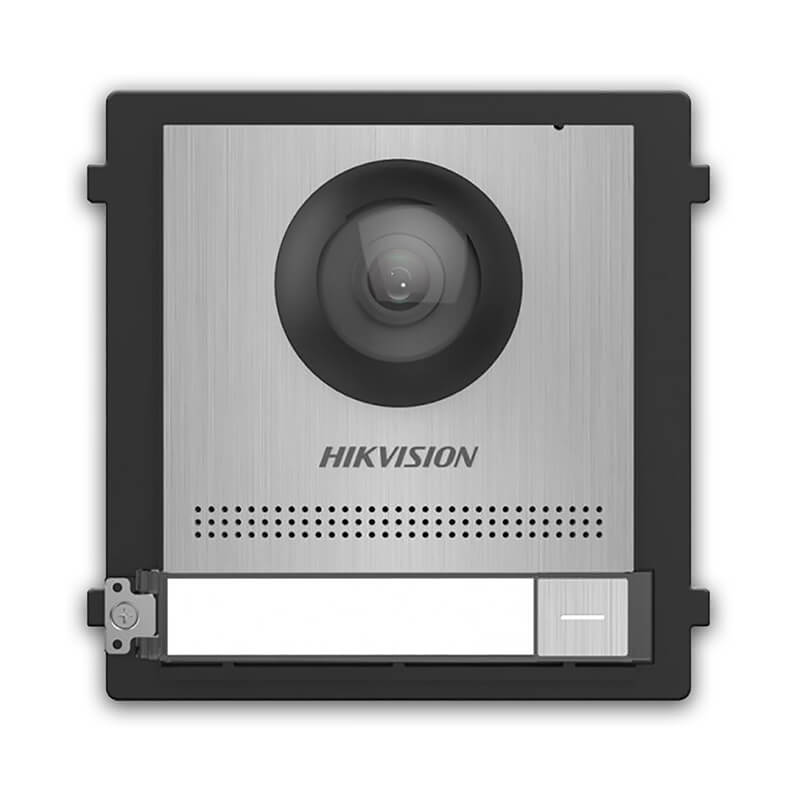

The Hikvision DS-KD8003Y-IME2/S is a modular 2-wire main unit designed for scalable, high-performance video intercom systems. It features a 2MP fisheye camera with IR supplement lighting, delivering wide-angle surveillance and enhanced visibility in low-light conditions. With two-lock control, support for up to 500 indoor stations, and connectivity for 16 sub door stations, this unit is ideal for larger multi-unit buildings and complex security environments. Its stainless steel housing and IP65 protection rating ensure long-lasting outdoor performance.

What's Included

• 1 x Hikvision DS-KD8003Y-IME2/S Main Unit

• Installation Guide

• Mounting Accessories (bracket sold separately)

Key Features

• 2MP HD Camera – Fisheye lens with 146° horizontal and 82° vertical field of view

• IR Supplement Light – Delivers superior visibility in dark conditions

• Two-Lock Control – Dual relay outputs for managing electronic locks

• Web-Based Configuration – Easily configure the unit through a web interface

• Modular System – Expandable with up to 16 sub door stations

• Tamper Alarm – Sends alerts in case of unauthorized interference

• IP65 Protection – Built for outdoor durability against dust and water

• Power Output for Locks – Supplies 12 VDC, 500 mA directly from the unit

Technical Specifications

• Product Code: DS-KD8003Y-IME2/S

• Operating System: Embedded Linux

• ROM: 32 MB

• RAM: 256 MB

• Processor: Embedded Processor

• Camera Resolution: 2MP

• Field of View: Horizontal 146°, Vertical 82°

• Video Compression: H.264

• Audio Input: Built-in omnidirectional microphone

• Audio Output: Built-in loudspeaker

• Audio Codec: G.711 U, G.711 A

• Audio Bitrate: 64 Kbps

• Audio Features: Noise suppression and echo cancellation, adjustable volume

• User Capacity: 2000 users

• Indoor Station Capacity: Up to 500

• Sub Door Station Capacity: Up to 16

• Alarm Inputs: 4 (default: 2 exit buttons, 2 door contacts)

• RS-485 Interface: 1 (for sub module communication)

• Lock Control: 2 relays (30 VDC, 2 A max)

• Power Output: 12 VDC, 500 mA for lock devices

• Power Supply: Powered via KAD704Y or KAD706Y distributor

• Two-Wire IP Interface: 1

• Installation Method: Surface or flush mounting

• Protection Rating: IP65

• Operating Temperature: -40°C to 60°C (-40°F to 140°F)

• Humidity Range: 10% to 90% (non-condensing)

• Dimensions: 100 mm × 98 mm × 42 mm

• Weight: 422.8 g

• Supported Languages: English, French, Portuguese, Brazilian Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak

Warranty Information

The DS-KD8003Y-IME2/S includes a standard manufacturer warranty covering defects in materials and workmanship. For detailed terms, please consult Hikvision’s official warranty documentation provided with the product.

About the Brand

Hikvision is a globally trusted provider of intelligent video surveillance and security solutions. Known for innovation and reliability, Hikvision products are widely used in residential, commercial, industrial, and government applications around the world.

SKU

DS-KD8003Y-IME2/S

Practical Use Scenarios

• Apartment Buildings – Seamless communication and access control for large residential properties

• Office Complexes – Secure entry monitoring for business facilities

• Educational Campuses – Enhance safety at main gates and internal checkpoints

• Medical Facilities – Ensure controlled access to sensitive or restricted hospital areas

Datasheets & Resources

Excellence for the Australian and New Zealand Market

The DS-KD8003Y-IME2/S is tailored to meet stringent standards in Australia and New Zealand. With its weatherproof IP65 rating, wide temperature tolerance, and support for localized languages, it is engineered for harsh environments and versatile deployment. Products are sourced through authorized Hikvision channels and supported with direct access to local warranty and technical services.

Frequently Asked Questions (FAQs)

Q1: How many sub door stations can be connected to the DS-KD8003Y-IME2/S (DS-KD8003Y-IME2/S)?
A1: You can connect up to 16 sub door stations to this main unit.

Q2: What power source is required for the DS-KD8003Y-IME2/S (DS-KD8003Y-IME2/S)?
A2: It is powered by a Hikvision KAD704Y or KAD706Y two-wire video/audio distributor.

Q3: Can the DS-KD8003Y-IME2/S (DS-KD8003Y-IME2/S) control two locks?
A3: Yes, it has dual lock relays for independent control of two doors or gates.

Q4: Is the DS-KD8003Y-IME2/S (DS-KD8003Y-IME2/S) suitable for outdoor installation?
A4: Yes, it has an IP65 protection rating, making it ideal for outdoor use.

Q5: Does the DS-KD8003Y-IME2/S (DS-KD8003Y-IME2/S) support multilingual configuration?
A5: Yes, it supports over 20 languages, including English, Spanish, French, Russian, and more.
