The Hikvision DS-KH9510-WTE1(B) is a premium IP indoor station engineered for advanced video intercom and smart device integration. Featuring a 10.1-inch colorful IPS touchscreen, built-in Android 10.1 OS, and Hik-Connect pre-installed, it allows seamless control of your entire Hikvision ecosystem. This powerful indoor unit is ideal for modern residential and commercial intercom solutions, providing crisp video communication, multi-device connectivity, and third-party app integration in a single wall-mounted terminal.
Product Description
Built to elevate your intercom and surveillance experience, the DS-KH9510-WTE1(B) combines intelligent control and premium display in one device. Designed with installers and end-users in mind, it features a user-friendly Android interface and supports third-party applications to extend functionality beyond basic monitoring.
Perfect for use with Hikvision door stations, NVRs, IP cameras, and other security devices, the unit supports up to 16 linked indoor extensions, 17 doorphones, and 16 IP cameras. The device is ideal for large homes, commercial buildings, or multi-tenant environments, offering centralized control from a sleek and intuitive interface.
Compatible with -
What’s Included in the Box
Main Features
-

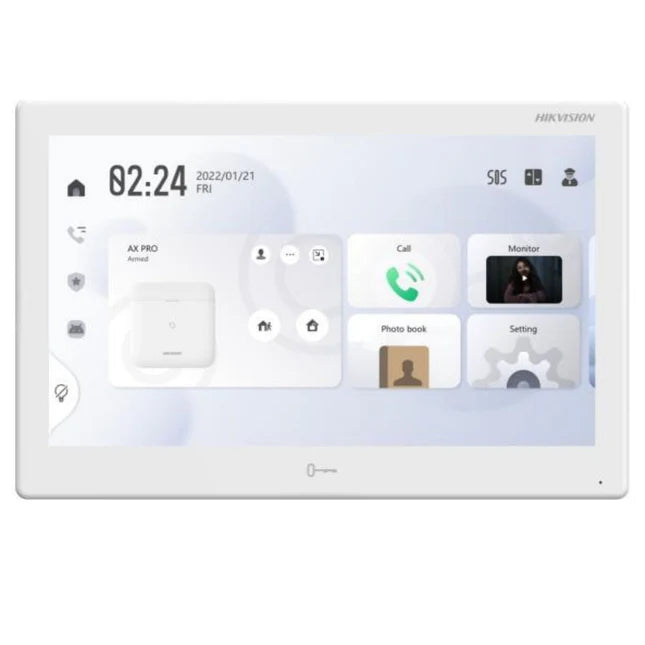

🖥 10.1” IPS Touchscreen: Capacitive display with 1024 × 600 resolution for vivid visuals
-
⚙️ Built-in Android 10.1 OS: Supports third-party app installation and customization
-
📱 Hik-Connect Pre-installed: Centralized management of all Hikvision devices
-
🔈 Superior Audio: Echo cancellation, noise suppression, and adjustable volume
-
🎥 Video Compression: H.265 and H.264 for efficient video transmission
-
🔌 Network Ready: Built-in PoE, RJ-45 interface, TF card support up to 128 GB
-
🔐 8 Alarm Inputs & Lock Control: Integration with external sensors and door strikes
-
🌐 Supports TCP/IP, SIP, RTSP Protocols: For stable and scalable integration
-
🌡️ Wide Operating Range: Functional from -10 °C to 50 °C
Detailed Specifications
| Category |
Details |
| Model |
DS-KH9510-WTE1(B) |
| Display |
10.1" IPS, 1024 × 600, Capacitive Touch |
| Operating System |
Android 10.1 |
| Memory |
2 GB RAM, 8 GB ROM |
| Audio |
Built-in mic & speaker, Echo cancellation, G722.1, OPUS, AAC, G711 |
| Video Compression |
H.265, H.264 |
| Network Interface |
RJ-45 10/100 Mbps, IEEE802.3af PoE |
| Wireless |
Wi-Fi 2.4 GHz (802.11b/g/n) |
| Card Slot |
TF card (up to 128 GB) |
| Alarm Input/Output |
8 Inputs, 1 Output |
| Lock Control |
1 relay (Max. 30VDC, 0.3A), 1 logic-level control |
| Installation |
Surface Mount |

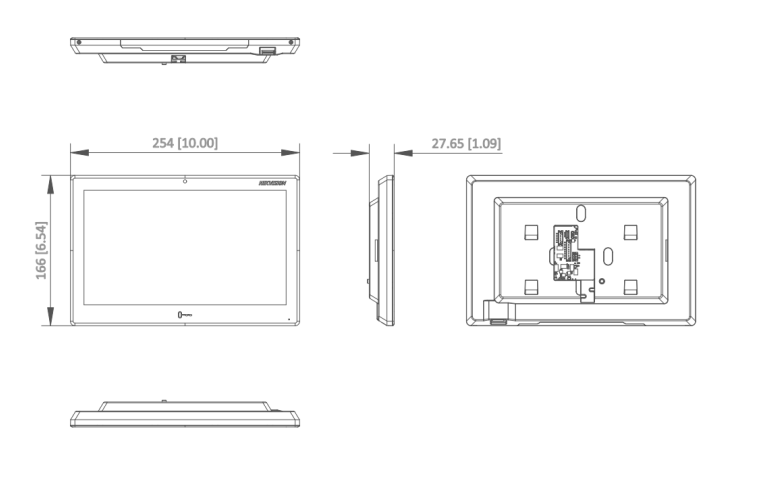

| Dimensions (W × H × D) |
254 × 166 × 26.65 mm |
| Weight |
Net: 875 g / Gross: 1060 g |
| Power |
12V DC / PoE, ≤12 W |
| Languages Supported |
Multilingual – including English, Arabic, Spanish, German, French, Russian, Chinese, and more |
Warranty Information
The Hikvision DS-KH9510-WTE1(B) includes a standard manufacturer’s warranty, ensuring coverage for product defects. Support and service are accessible via authorized Hikvision distributors and technical support channels.
About Hikvision
Hikvision is a world-renowned leader in video surveillance and security technology. Known for their innovation, quality, and comprehensive product range, Hikvision delivers cutting-edge solutions for residential, commercial, and industrial sectors, integrating AI-powered analytics, smart intercoms, and network management tools.
SKU
DS-KH9510-WTE1(B)
Practical Use Scenarios
-
🏢 Commercial Buildings: Centralized control of multiple entry points and security devices
-
🏘 Luxury Apartments or Villas: Full-featured indoor monitoring with video door station integration
-
🏫 Educational Institutions: Real-time communication and monitoring at access points
-
🏬 Retail Security: Combine with cameras and alarms for smart security control
-
🏗 Multi-tenant Developments: Seamless integration of door entry and communication systems
Datasheets & Resources
Datasheet
Excellence for the Australian and New Zealand Market
The Hikvision DS-KH9510-WTE1(B) indoor station is fully suitable for the demands of Australian and New Zealand residential and commercial installations. It offers superior indoor video intercom functionality while complying with relevant regional standards and voltage compatibility.
✔ Supports PoE and 12VDC for regional infrastructure
✔ Meets operational standards across varied temperature and humidity ranges
✔ Backed by official Hikvision warranty and ANZ-based technical support
✔ Distributed through authorized ANZ Hikvision representatives
FAQs – Hikvision DS-KH9510-WTE1(B)
Q1: Can I install third-party Android apps on the DS-KH9510-WTE1(B)?
Yes, the device supports Android 10.1 and allows third-party app installation for extended functionality.
Q2: Does the DS-KH9510-WTE1(B) support PoE power?
Yes, the unit supports IEEE802.3af standard PoE, making installation simpler and cleaner.
Q3: What Hikvision devices can the DS-KH9510-WTE1(B) manage?
The indoor station can connect with up to 17 doorphones, 16 IP cameras, and 16 indoor extensions, offering broad compatibility within the Hikvision ecosystem.
Q4: Is the DS-KH9510-WTE1(B) suitable for use in Australia and New Zealand?
Absolutely. The device supports standard voltage and power configurations used in ANZ and is offered through local Hikvision distributors.
Q5: How much storage does the DS-KH9510-WTE1(B) support for media and notifications?
It supports a TF card up to 128 GB, storing 200 messages, 200 images, and 200 alarm records.
