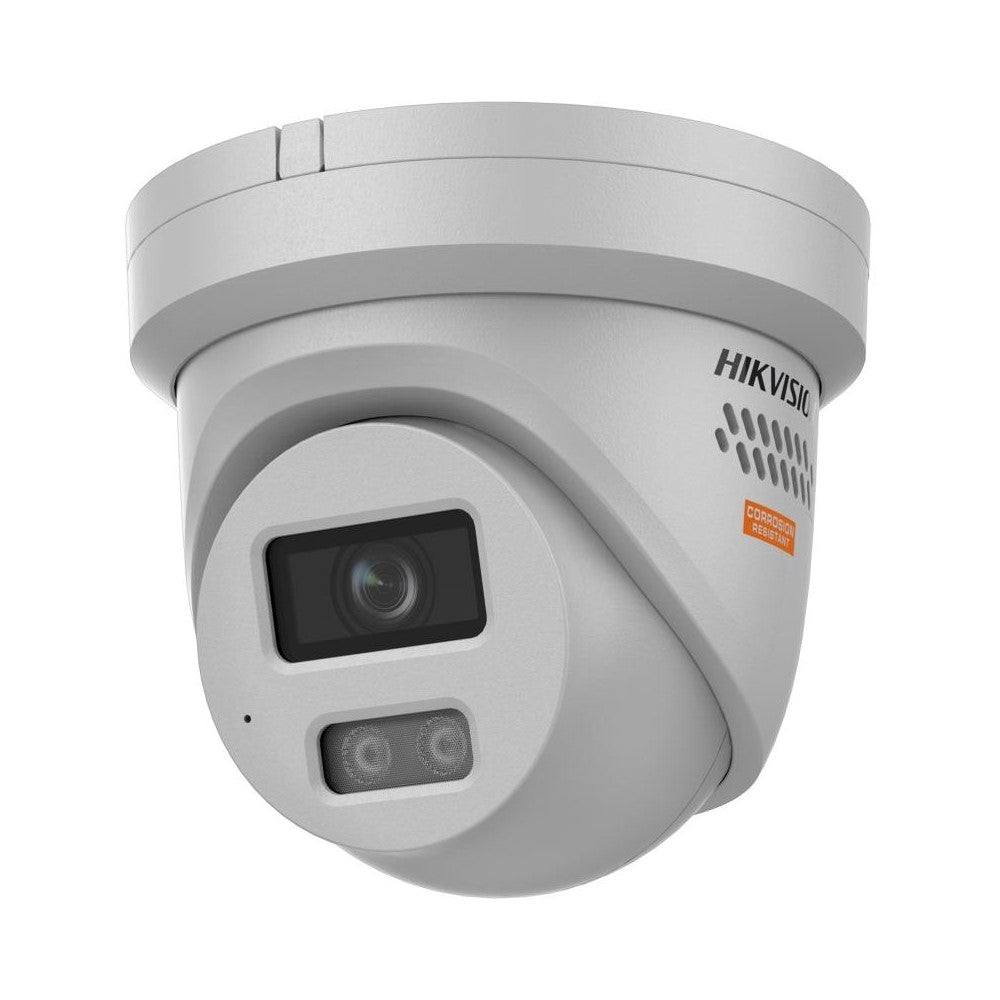

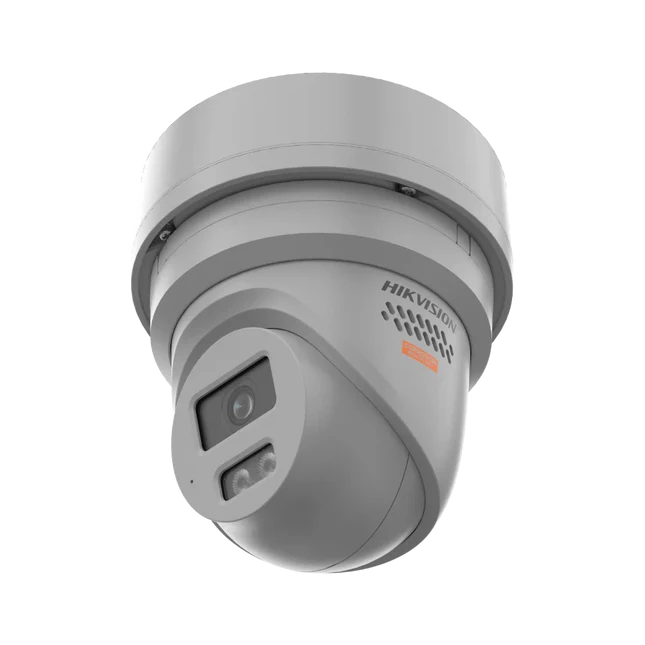

The Hikvision HIK-2XC3386HLSL2 8MP Anti-Corrosion Turret Camera is a professional 4K security camera engineered for harsh coastal, marine, chemical and industrial environments, combining a corrosion-resistant polymer housing, IP68 weather protection, 2.8mm wide-angle coverage, Smart Hybrid/Dual-Light imaging, deep-learning human and vehicle detection, two-way audio support, and active deterrence features for high-performance surveillance in demanding Australian and New Zealand installations.

Built for sites where standard camera housings may deteriorate, this Hikvision anti-corrosion turret camera uses a durable polymer body and is rated for NEMA 4X and C5 anti-corrosion protection, making it suitable for coastlines, docks, chemical plants and other corrosive environments. Hikvision’s datasheet identifies this product family as having top-level anti-corrosion protection and confirms IP68 dust and water resistance plus IK10 impact protection.

The camera delivers 8MP / 3840 × 2160 resolution from a 1/1.8" progressive scan CMOS sensor, with 120 dB WDR, H.265+ compression, IR and white-light illumination up to 30m, and deep-learning-based classification for people and vehicles. The supplied 2.8mm lens provides a wide 108.8° horizontal field of view, making it ideal for broad area monitoring in exposed outdoor and industrial sites.

What’s Included in the Box

• 1 × Hikvision 8MP Anti-Corrosion Fixed Turret Camera, 2.8mm

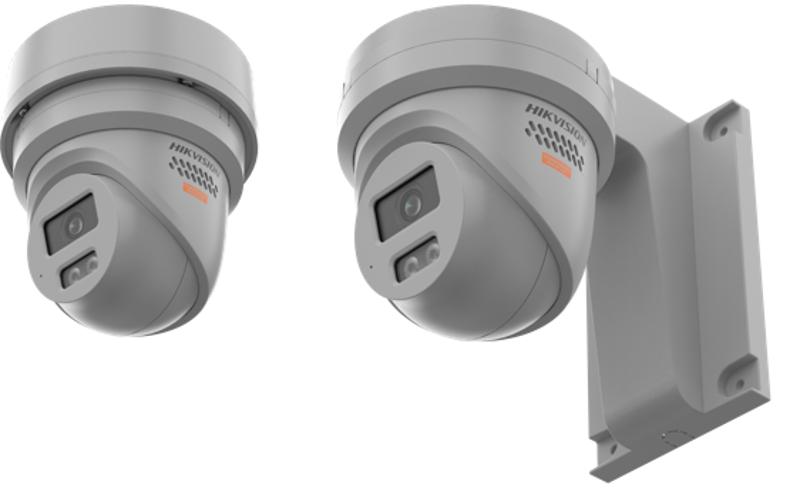

• 1 × Included junction/accessory base: DS-1280ZJ-DM55(B)-428CPY, as listed in the Hikvision datasheet
• Installation accessories and documentation as supplied by the manufacturer

Main Features

• 8MP Ultra HD image quality with up to 3840 × 2160 resolution
• Composite polymer anti-corrosion housing for harsh environments
• NEMA 4X and C5 anti-corrosion protection
• IP68 water and dust resistance for severe outdoor exposure
• IK10 impact protection
• 2.8mm fixed lens with wide 108.8° horizontal viewing angle
• Smart Hybrid / Smart Dual-Light technology with IR and white light
• Up to 30m supplement light range
• 120 dB WDR for improved visibility in strong backlight
• H.265+ video compression to reduce bandwidth and storage demand
• Deep-learning human and vehicle classification
• Perimeter protection including line crossing, intrusion, region entrance and region exit detection
• Audio and alarm interface support on compatible “S” variants
• Built-in microphone support on compatible “U” variants
• ONVIF Profile S, G and T support for wider system integration
• HEOP support for Hikvision Embedded Open Platform and compatible third-party applications

Detailed Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS
• Maximum Resolution: 3840 × 2160
• Minimum Illumination: Colour 0.002 Lux @ F1.2, AGC on; 0 Lux with light
• Day/Night: IR cut filter
• Shutter Speed: 1/3s to 1/100,000s

Lens

• Lens Type: Fixed focal lens
• Focal Length: 2.8mm
• Field of View: 108.8° horizontal, 56.4° vertical, 134.3° diagonal
• Aperture: F1.0
• Lens Mount: M16
• DORI, 2.8mm: Detect 89.2m, Observe 35.4m, Recognise 17.8m, Identify 8.9m

Illumination

• Supplement Light: IR and white light
• Range: Up to 30m
• IR Wavelength: 850nm

Video

• Main Stream: Up to 20fps at 50Hz or 24fps at 60Hz, depending on resolution
• Compression: H.264, H.264+, H.265, H.265+
• Bit Rate: 32 Kbps to 16 Mbps
• WDR: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR, distortion correction
• Privacy Mask: 8 programmable polygon masks

Network and Integration

• Ethernet: 1 × RJ45 10/100M self-adaptive Ethernet port
• API: ONVIF Profile S, Profile G, Profile T, ISAPI, SDK, ISUP
• Simultaneous Live View: Up to 20 channels
• Client Support: iVMS-4200, Hik-Connect, Hik-Central
• Network Storage: NAS via NFS or SMB/CIFS, with ANR support

Smart Analytics

• Human and vehicle classification based on deep learning
• Line crossing detection
• Intrusion detection
• Region entrance detection
• Region exiting detection
• Face capture support
• People counting and queue management functions supported by the platform

Power and Build

• Power: 12 VDC ±25% or PoE IEEE 802.3af Class 3
• Maximum Power Consumption: 9W via 12 VDC; 9.5W via PoE
• Material: Polymer
• Dimensions: 138.63 × 138.63 × 132.74mm
• Weight: Approx. 670g
• Operating Conditions: -30°C to 60°C, humidity 95% or less, non-condensing

Approvals and Protection

• EMC: Includes RCM AS/NZS CISPR 32:2015
• Protection: IP68, IK10
• Anti-Corrosion: NEMA 4X, C5
• Safety: CB IEC 62368-1 and CE-LVD EN 62368-1 references listed in the Hikvision datasheet

Practical Use Scenarios

The HIK-2XC3386HLSL2 is ideal for surveillance environments exposed to salt, moisture, chemical vapour, high humidity or industrial contamination. Suitable applications include:

• Coastal homes, resorts and commercial buildings
• Marinas, docks, ports and boatyards
• Chemical plants and processing facilities
• Food processing and washdown-prone environments
• Warehouses and logistics yards near coastal zones
• Industrial compounds requiring wide-angle 4K monitoring
• Outdoor perimeter security with human and vehicle detection
• Sites needing visual deterrence through light, audio and alarm integration

Warranty Information

Warranty is handled through authorised Hikvision supply channels and direct communication with the brand or authorised distributor. Warranty terms may vary by region, supplier and project arrangement, so the final warranty period should be confirmed at the time of purchase or quotation.

SKU

HIK-2XC3386HLSL2

Brand Description

Hikvision is a globally recognised video surveillance and security technology manufacturer, offering a broad range of IP cameras, recording systems, analytics platforms and specialised security products for commercial, industrial and infrastructure applications.

Datasheets and Downloadable Resources

• Manufacturer Datasheet: DS-2XC3386G0H-LI(S)(U) (PA) Polymer 8MP Anti-Corrosion Fixed Turret datasheet
• Manufacturer Product Information: Hikvision Anti-Corrosion Series product page
• Recommended Resource Note: Add the official PDF datasheet to the product page as a downloadable file for installers, consultants and procurement teams.

Excellence for the Australian and New Zealand Market

The Hikvision HIK-2XC3386HLSL2 is well suited to Australian and New Zealand conditions, especially coastal, high-humidity and industrial locations where corrosion resistance is critical. The Hikvision datasheet lists RCM compliance to AS/NZS CISPR 32:2015, supporting suitability for the Australian and New Zealand regulatory environment.

This product should be sourced only through authorised Hikvision representatives or approved distribution partners to ensure genuine supply, correct regional support and proper warranty handling. Certifications should always be matched to the product category; NDSS approval is not relevant to this CCTV/security camera product and is therefore not claimed.

FAQs

Q1: What is the HIK-2XC3386HLSL2 used for?
The HIK-2XC3386HLSL2 is used for high-resolution outdoor CCTV surveillance in harsh environments such as coastal areas, docks, marine facilities, chemical plants, warehouses and industrial sites.

Q2: Is the HIK-2XC3386HLSL2 suitable for coastal installations?
Yes. The HIK-2XC3386HLSL2 is designed for corrosive environments and is associated with NEMA 4X and C5 anti-corrosion protection, making it suitable for coastal and marine-style applications.

Q3: What resolution does the HIK-2XC3386HLSL2 provide?
The HIK-2XC3386HLSL2 provides 8MP Ultra HD imaging with a maximum resolution of 3840 × 2160.

Q4: Does the HIK-2XC3386HLSL2 support human and vehicle detection?
Yes. The HIK-2XC3386HLSL2 supports deep-learning-based human and vehicle classification for more accurate event detection.

Q5: What lens does the HIK-2XC3386HLSL2 include?
The HIK-2XC3386HLSL2 listed here includes a 2.8mm fixed lens, offering a wide 108.8° horizontal field of view.

Q6: Is the HIK-2XC3386HLSL2 waterproof?
The HIK-2XC3386HLSL2 product family is rated IP68, providing strong resistance against dust and water ingress for demanding outdoor installations.

Q7: Does the HIK-2XC3386HLSL2 support PoE?
Yes. The HIK-2XC3386HLSL2 supports PoE via IEEE 802.3af Class 3, allowing power and data through a single network cable.

Q8: Is the HIK-2XC3386HLSL2 suitable for Australian and New Zealand projects?
Yes. The HIK-2XC3386HLSL2 is suitable for many Australian and New Zealand surveillance projects, particularly where anti-corrosion performance, 4K imaging and RCM-listed compliance are important.

Q9: Does the HIK-2XC3386HLSL2 support H.265+ compression?
Yes. The HIK-2XC3386HLSL2 supports H.265+ compression to help reduce network bandwidth and storage requirements.

Q10: Where should the HIK-2XC3386HLSL2 be installed?
The HIK-2XC3386HLSL2 should be installed in locations requiring durable 8MP surveillance, such as coastal perimeters, exposed industrial areas, loading docks, chemical facilities and outdoor commercial sites.
