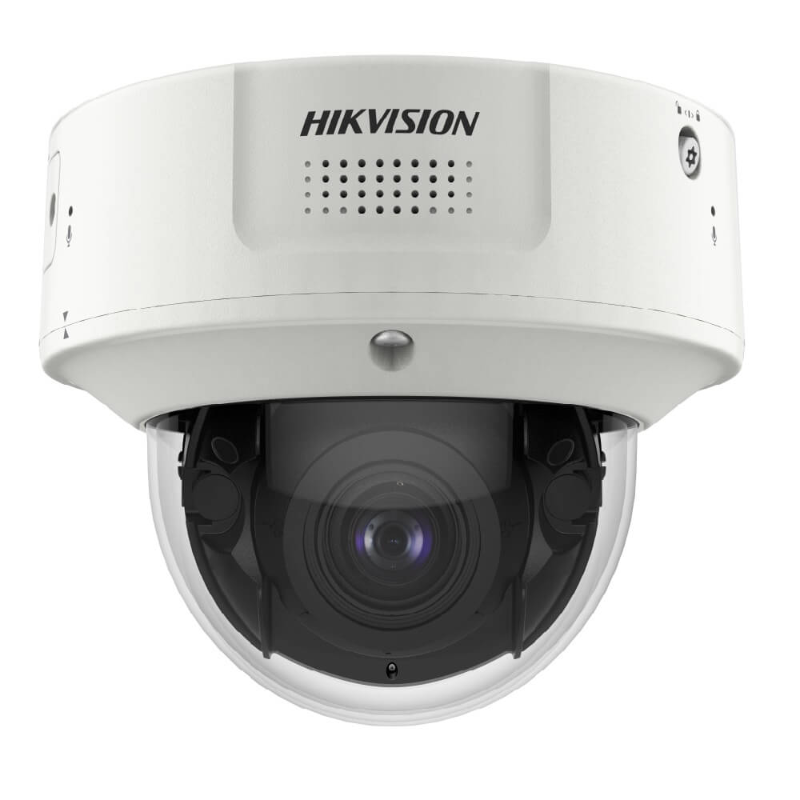

Secure demanding indoor and outdoor sites with the Hikvision iDS-2CD7146G2-IZ(H)S(Y) 4MP DeepinView Moto Varifocal Dome Camera, built for crisp identification-grade imaging and advanced deep-learning analytics. Featuring 4MP (2688 × 1520) resolution, DarkFighter 2.0 ultra-low-light performance, ShotN for clear capture of fast-moving humans and vehicles, and 150 dB AWDR, this professional dome delivers reliable results in entrances, lobbies, warehouses, car parks, campuses, and harsh lighting conditions—while H.265+ helps reduce bandwidth and storage requirements.

Product Description

The iDS-2CD7146G2-IZ(H)S(Y) is a DeepinView dome designed for high-performance security monitoring and intelligent analytics. Powered by embedded deep learning, it supports advanced functions including face capture, perimeter protection (line crossing, intrusion, region entrance/exit), multi-target-type detection (face/human body/vehicle), and operational insights such as queue management, regional people counting, heat mapping, on/off duty detection, and PPE detection (hard hat & reflective clothing).

For audio security and deterrence, it includes built-in dual microphones and a speaker for real-time audio. Designed for tough environments, it is IP67 weather resistant and IK10 vandal resistant, with optional NEMA 4X corrosion resistance on “-Y” models. High frame-rate support (up to 4MP@60fps and 2MP@120fps in monitoring mode) helps maintain clarity where motion is a challenge.

Model notes from your spec:

• -H = built-in heater (extended cold-start operation)

• -Y = moderate anti-corrosion protection (NEMA 4X)

• Optional -1T variants include built-in 1TB SSD edge storage

What’s Included in the Box

• 1 × Hikvision iDS-2CD7146G2-IZ(H)S(Y) 4MP DeepinView Moto Varifocal Dome Camera,

  2.8 - 12mm lens

Main Features

• 4MP high-quality imaging (2688 × 1520)

• DarkFighter 2.0 for excellent low-light performance

• ShotN technology for clearer capture of humans/vehicles at different speeds

• 150 dB AWDR for strong backlight and headlight-heavy scenes

• H.265+ compression to save bandwidth and storage

• 5 video streams for flexible VMS/NVR profiles

• IP67 + IK10 for outdoor durability and vandal resistance

• High frame rate: up to 4MP@60fps, 2MP@120fps (monitoring mode)

• Built-in dual mic + speaker for real-time audio security

• Built-in G-sensor for vibration detection

• Built-in power meter for historical power statistics

• Optional 1TB SSD edge storage (model dependent)

• Optional NEMA 4X corrosion resistance (-Y models)

Detailed Specifications

Camera

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Max Resolution: 2688 × 1520

• Min. Illumination:

  • Color: 0.0005 Lux (F1.2, AGC ON)

  • B/W: 0.0001 Lux (F1.2, AGC ON)

  • 0 Lux with IR

• Shutter: 1 s to 1/100,000 s

• Day/Night: IR cut filter, blue glass module (reduced ghosting)

• Angle Adjustment: Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355°

Lens (Motorised Varifocal)

• Lens Options: 2.8–12mm or 8–32mm

• Focus: Auto / Semi-auto / Manual

• Iris: P-iris

• Aperture:

  • 2.8–12mm: F1.38 to F2.53

  • 8–32mm: F1.7 to F1.73

IR Illumination

• IR Wavelength: 850 nm

• Range:

  • 2.8–12mm: up to 40 m

  • 8–32mm: up to 60 m

• Smart Supplement Light: Yes

Video

• Streams: Up to 5

• Compression (varies by stream): H.265+/H.265/H.264+/H.264, plus MJPEG on select streams

• Bit Rate: 32 Kbps to 8 Mbps

• ROI: 4 fixed regions per stream

• Target Cropping: Yes

• e-PTZ: Patrol and Auto Tracking settings

• Frame Rate (Monitoring Mode): up to 50/60 fps @ 2688×1520; up to 100/120 fps @ 1920×1080 (region-dependent)

Audio

• Built-in Microphones: Yes (dual mic)

• Built-in Speaker: Yes (max 1.5 W, up to 98 dB, approx. 10 m range)

• Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Environment Noise Filtering: Yes

Network & Security

• Ethernet: 1 × RJ45 10/100/1000 Mbps

• ONVIF: Profile S/G/T/M; ISAPI/SDK/ISUP/OTAP

• Users: Up to 32; 3 levels (admin/operator/user)

• Security: HTTPS encryption, 802.1X, audit log, TLS 1.2/1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256 (per your spec)

Storage & I/O

• On-board Storage: microSD/SDHC/SDXC up to 1 TB

• Optional SSD: -1T models include built-in 1TB SSD

• Alarm I/O: 2 inputs, 2 outputs

• Audio I/O: 1 in / 1 out (3.5 mm)

• RS-485: Yes

• Power Output: 12 VDC max 100 mA

Protection & Build

• Ingress Protection: IP67

• Vandal Resistance: IK10

• Anti-Corrosion: -Y models NEMA 4X (optional)

• Operating Conditions:

  • With -H: -40°C to 65°C

  • Without -H: -30°C to 65°C

• Material: Base metal / cover metal

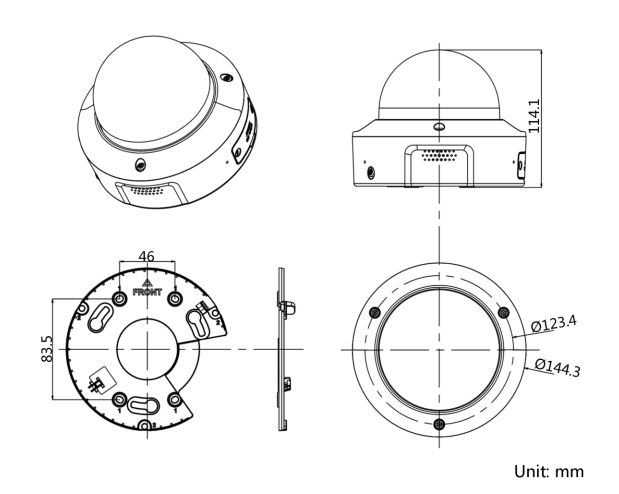

• Dimensions: Ø 144.3 mm × 114.1 mm

• Weight: Approx. 970 g

Warranty Information

3 year Manufacturer warranty applies.

Brand Description

Hikvision develops security products following a security-by-design approach, incorporating terminal, data, application, network security, and privacy protection measures throughout the product development lifecycle, in compliance with applicable local laws and regulations.

SKU Field

• Product Code / Model: iDS-2CD7146G2-IZ(H)S(Y)

Practical Use Scenarios

• Retail entrances and checkout areas: face capture + queue insights

• Warehouses and loading docks: people/vehicle detection + perimeter events

• Offices and campuses: intrusion/line-crossing with reduced false alarms

• Industrial sites: PPE detection (hard hat/reflective clothing) in defined zones

• Car parks and building perimeters: strong backlight handling via 150 dB WDR

• High-traffic areas: high frame-rate monitoring mode for motion clarity

Datasheets & Resources

• Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This DeepinView dome is well suited to ANZ commercial and industrial deployments where variable lighting, outdoor exposure, and vandal resistance are key. With IP67/IK10 durability, advanced H.265+ compression, and enterprise network security features, it supports efficient long-term operation in local network environments.

For ANZ projects, always validate privacy requirements, cybersecurity policies, and sector-specific procurement rules. Where corrosion resistance is needed (coastal/industrial exposure), select the -Y variant for moderate anti-corrosion protection.

FAQs

Q1: What resolution does the Hikvision iDS-2CD7146G2-IZ(H)S(Y) camera record at?
The Hikvision iDS-2CD7146G2-IZ(H)S(Y) provides up to 4MP resolution at 2688 × 1520.

Q2: Does the Hikvision iDS-2CD7146G2-IZ(H)S(Y) support low-light colour imaging?
Yes, the Hikvision iDS-2CD7146G2-IZ(H)S(Y) uses DarkFighter 2.0 technology for excellent low-light performance.

Q3: What is ShotN on the Hikvision iDS-2CD7146G2-IZ(H)S(Y) used for?
ShotN on the Hikvision iDS-2CD7146G2-IZ(H)S(Y) helps capture humans and vehicles moving at different speeds more clearly.

Q4: Is the Hikvision iDS-2CD7146G2-IZ(H)S(Y) suitable for outdoor installations?
Yes, the Hikvision iDS-2CD7146G2-IZ(H)S(Y) is IP67 weather resistant and IK10 vandal resistant.

Q5: Does the Hikvision iDS-2CD7146G2-IZ(H)S(Y) have built-in audio?
Yes, the Hikvision iDS-2CD7146G2-IZ(H)S(Y) includes built-in dual microphones and a speaker for real-time audio security.

Q6: What lens options are available for the Hikvision iDS-2CD7146G2-IZ(H)S(Y)?
The Hikvision iDS-2CD7146G2-IZ(H)S(Y) supports motorised varifocal lens options of 2.8–12mm or 8–32mm.

Q7: What does the “-H” option mean on the Hikvision iDS-2CD7146G2-IZ(H)S(Y)?
On the Hikvision iDS-2CD7146G2-IZ(H)S(Y), “-H” indicates a built-in heater for extended low-temperature operation.

Q8: What does the “-Y” option mean on the Hikvision iDS-2CD7146G2-IZ(H)S(Y)?
On the Hikvision iDS-2CD7146G2-IZ(H)S(Y), “-Y” indicates moderate anti-corrosion protection (NEMA 4X optional anti-corrosion configuration).

Q9: Does the Hikvision iDS-2CD7146G2-IZ(H)S(Y) support edge storage?
Yes, the Hikvision iDS-2CD7146G2-IZ(H)S(Y) supports microSD storage up to 1TB, and select “-1T” variants include a built-in 1TB SSD
