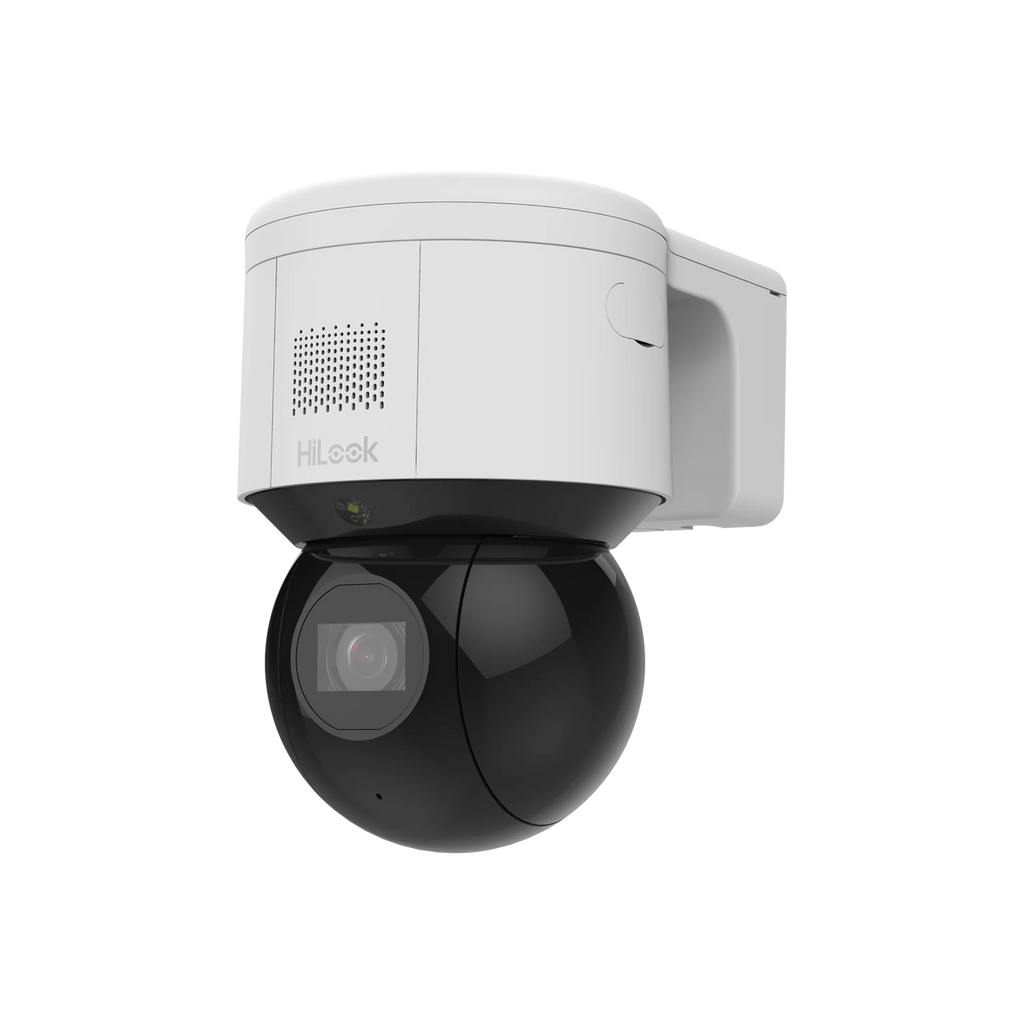

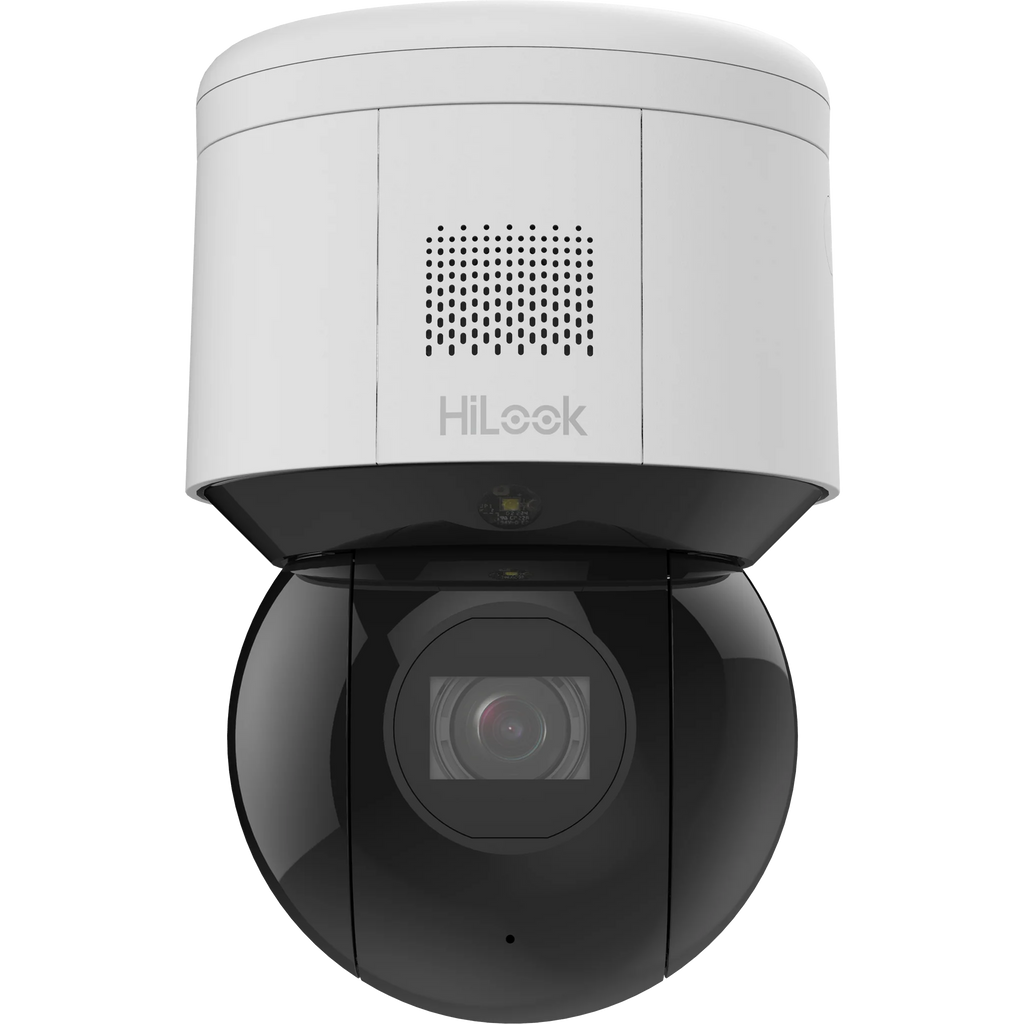

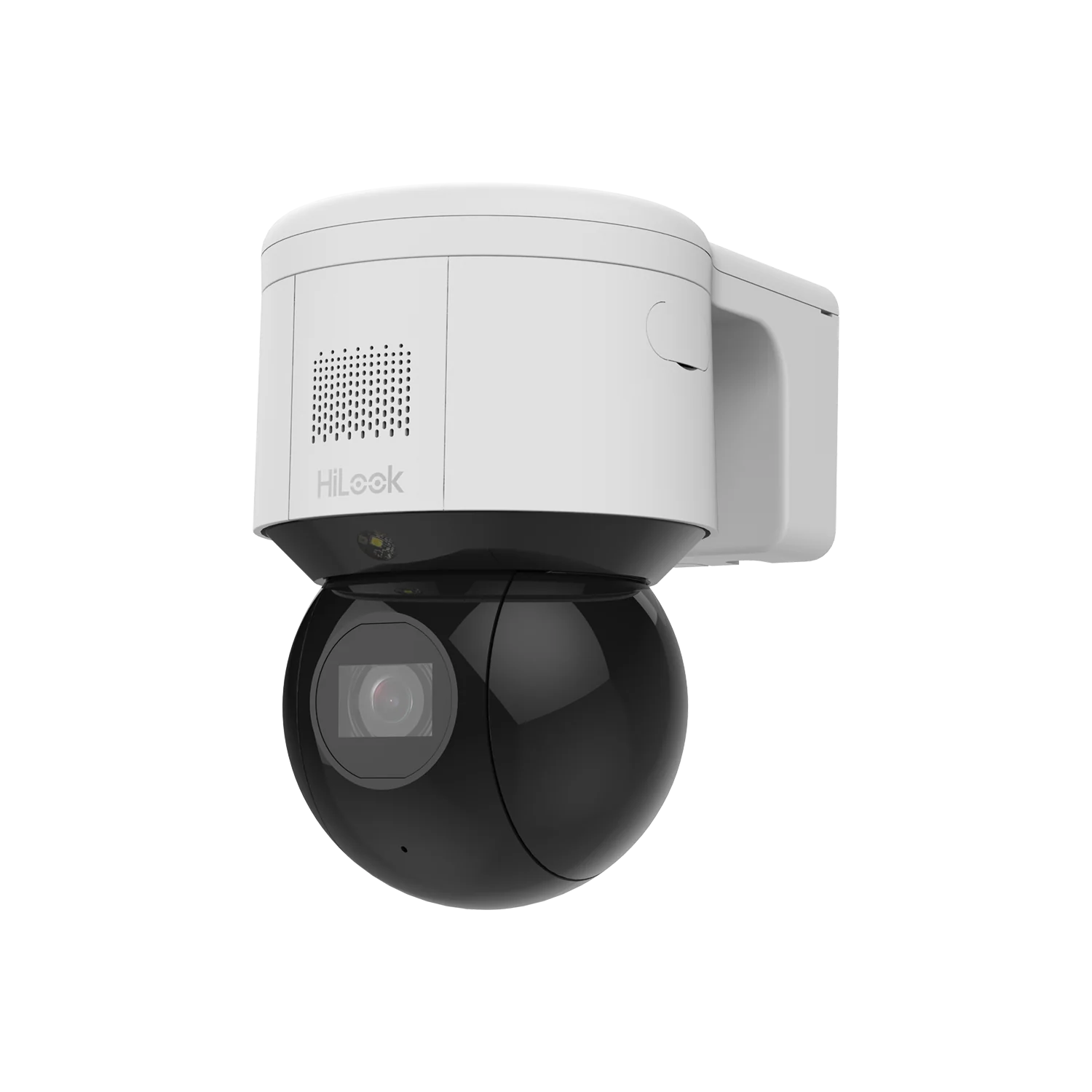

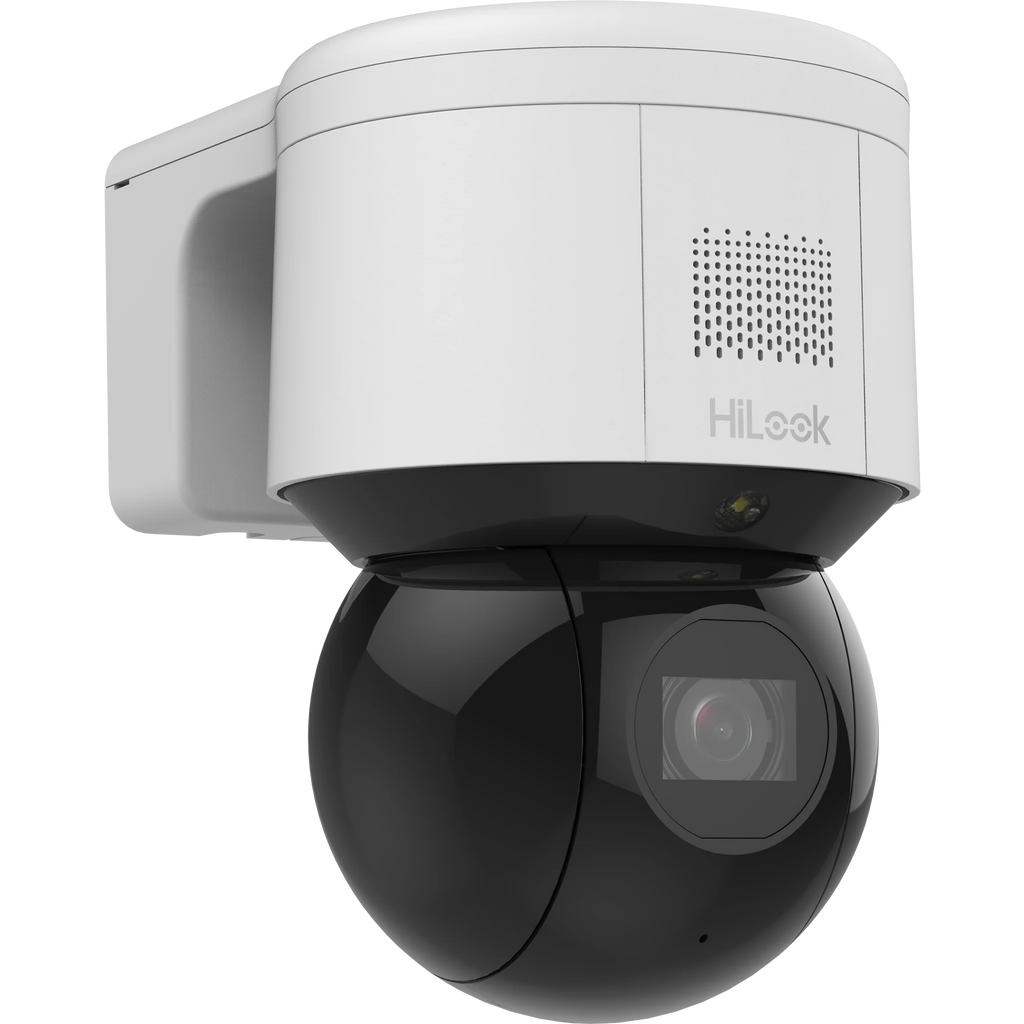

The HiLook PTZ-N3404LIU/SL is a powerful 4 MP PTZ network camera engineered for advanced surveillance with enhanced image clarity, intelligent detection, and robust pan-tilt-zoom capabilities. Designed to deliver precision and control, this camera features auto-tracking, human and vehicle classification, and 4× optical zoom, making it ideal for monitoring wide areas like parking lots, public spaces, warehouses, and retail environments. With red and blue flashing lights, a built-in speaker and microphone, and smart alerts, this camera ensures rapid incident response. Built to withstand the elements, it comes with IP66-rated protection and lightning surge resistance, making it a dependable security solution in harsh Australian and New Zealand outdoor environments.

What’s in the Box

• 1x HiLook PTZ-N3404LIU/SL 4MP Network PTZ Camera

• Mounting accessories

• Quick start guide

• Warranty documentation

Main Features

• 4 MP resolution for crystal-clear imaging (2560 × 1440)

• 4× optical zoom and 16× digital zoom for detailed close-ups

• Auto-tracking with intelligent analysis to follow moving objects

• Human and Vehicle Detection for accurate threat identification

• Two-way audio with built-in microphone and speaker

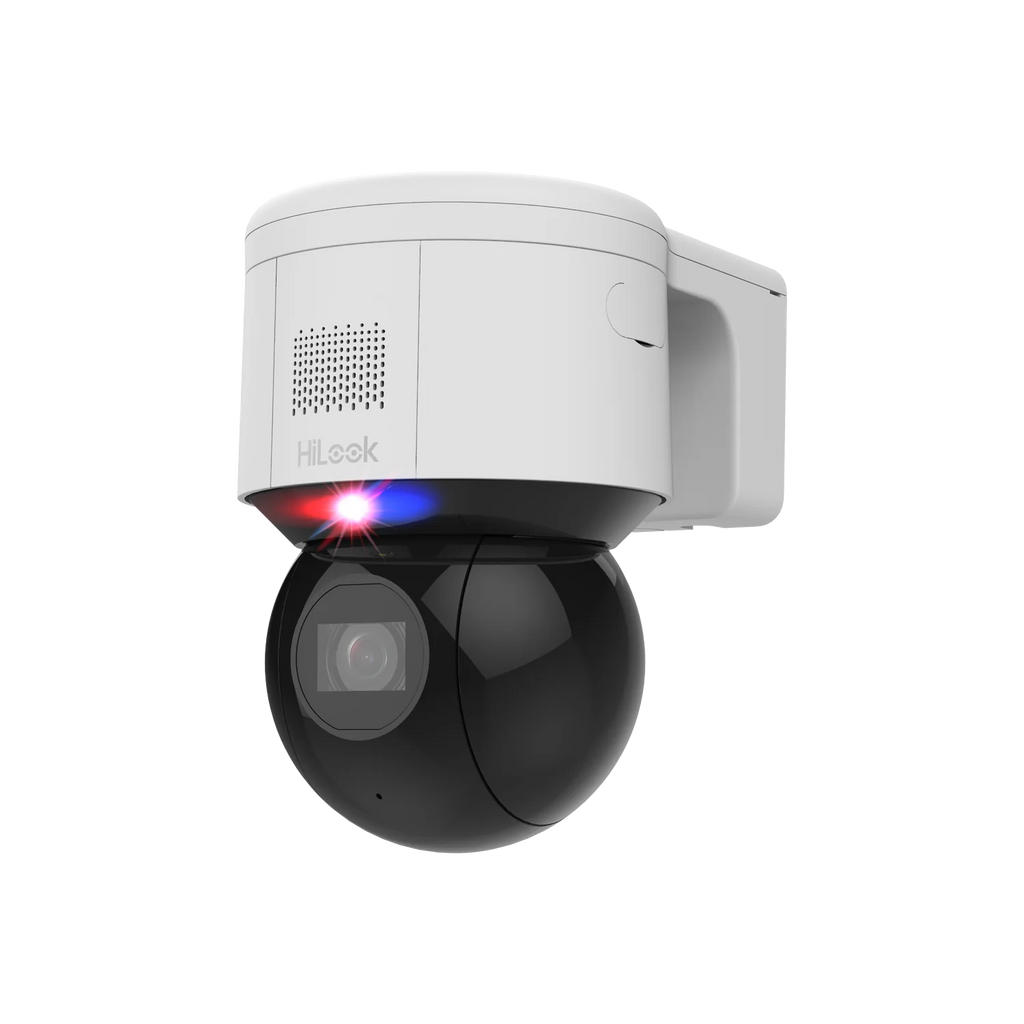

• Red & blue flashing warning lights for visual alerts

• 120 dB True WDR to manage challenging lighting conditions

• Up to 50 m IR distance for excellent night vision

• IP66 weather resistance with surge and lightning protection

• H.265+ video compression reduces bandwidth and storage needs

• Built-in microSD card slot, supports up to 256 GB

Detailed Specifications

Camera:

• Image Sensor: 1/2.8" progressive scan CMOS

• Max. Resolution: 2560 × 1440

• Min. Illumination: 0.005 Lux (Color), 0.001 Lux (B/W), 0 Lux with IR

• Day/Night: IR cut filter

Lens & Zoom:

• Focal Length: 2.8 mm – 12 mm

• Optical Zoom: 4×

• Digital Zoom: 16×

• FOV: H: 96.7°–31.6°, V: 51.1°–17.7°, D: 115.1°–36.3°

• Zoom Speed: Approx. 2s

PTZ Functionality:

• Pan Range: 0° to 350°

• Tilt Range: 0° to 90°

• Speed: Pan up to 60°/s, Tilt up to 50°/s

• Presets: 300

• 8 Patrol Scans (32 presets each)

• Auto Tracking: Supported

• 3D Positioning & PTZ Status Display

Video & Compression:

• Main Stream: Up to 30fps @ 4MP

• Compression: H.265+/H.265/H.264+/H.264/MJPEG

• ROI: 8 configurable regions per stream

Audio:

• Compression: G.711, G.722, G.726, MP2L2, PCM

• 1x Line-in, 1x Line-out

• Built-in mic & speaker (Max SPL: 100 dB at 10 cm)

Smart Features:

• Face detection, Intrusion & Line Crossing Detection

• Region Entry/Exit, Object Removal, Audio Exception

• Smart linkage: Auto tracking, Flashing lights, FTP/email notifications

Storage & Networking:

• Onboard Storage: MicroSD/SDHC/SDXC up to 256 GB

• Network Protocols: IPv4/6, HTTP/HTTPS, FTP, RTSP, etc.

• Simultaneous Live Views: Up to 20

Protection & Build:

• IP66 Rated, TVS 6000V lightning & surge protection

• Operating Temperature: -30°C to 65°C

• Material: ADC12 + PC

• Dimensions: 179.3 × 120.5 × 182 mm

• Weight: 1.125 kg

Warranty Information

The product is backed by a 3-year limited warranty provided by the authorized Australian distributor. All warranty claims are facilitated directly with the brand's official support for fast, local resolution.

Brand Description

HiLook by Hikvision is a globally trusted brand that offers cost-effective, high-performance video surveillance products. Designed for ease of use and reliability, HiLook solutions are ideal for SMBs, retail, and residential installations, without compromising quality.

SKU: PTZ-N3404LIU/SL

Practical Use Scenarios

• Parking Lot Monitoring: Auto-tracking vehicles and triggering alerts for unauthorized movement

• Retail Security: Deterring theft with flashing lights and two-way audio warnings

• Warehouse Surveillance: Zoom-in on aisles or restricted areas for detailed inspections

• Perimeter Protection: Detect and classify intrusions at boundaries

• Public Space Monitoring: Face detection and area scanning with high clarity

Datasheets & Downloadable Resources

• Download Full Product Datasheet (PDF)

Excellence for the Australian and New Zealand Market

This product has been fully tailored to meet Australian and New Zealand security standards, with RCM compliance, robust IP66 ingress protection, and lightning/surge resistance essential for local conditions. Sourced exclusively through authorized distributors, it guarantees authenticity and local warranty support. Designed with features like auto-tracking and WDR optimized for diverse lighting, it performs exceptionally well in residential, retail, and commercial environments across Australia and New Zealand.

FAQs – PTZ-N3404LIU/SL

Q1: Does the PTZ-N3404LIU/SL support smart motion detection?
A1: Yes, the PTZ-N3404LIU/SL supports advanced smart motion detection including human and vehicle classification for more accurate alerts.

Q2: Can I use the PTZ-N3404LIU/SL with my existing NVR system?
A2: The PTZ-N3404LIU/SL is compatible with ONVIF-compliant and Hikvision/HiLook NVRs, making integration seamless.

Q3: What is the IR range of the PTZ-N3404LIU/SL?
A3: The camera supports infrared night vision up to 50 meters, providing excellent clarity even in low-light conditions.

Q4: Does the PTZ-N3404LIU/SL include audio capabilities?
A4: Yes, it includes both a built-in microphone and speaker for two-way audio functionality.

Q5: Is the PTZ-N3404LIU/SL suitable for outdoor installation in Australia and New Zealand?
A5: Absolutely. It is IP66-rated, with protection against rain, dust, and electrical surges, making it ideal for harsh outdoor conditions in ANZ regions.
