The HiLook PTZ-ND4404/SL#AUS TandemVu 4MP+4MP 4X PoE+ PTZ Network Camera delivers powerful dual-lens surveillance with simultaneous wide-area monitoring and detailed close-up tracking. Featuring 4MP resolution on both bullet and PTZ channels, DarkFighter low-light performance, 4× optical zoom, intelligent human & vehicle detection, and active red/blue strobe with audio alarm, this IP66-rated PoE+ camera is engineered for professional security installations across residential, commercial, and industrial environments.
Product Description

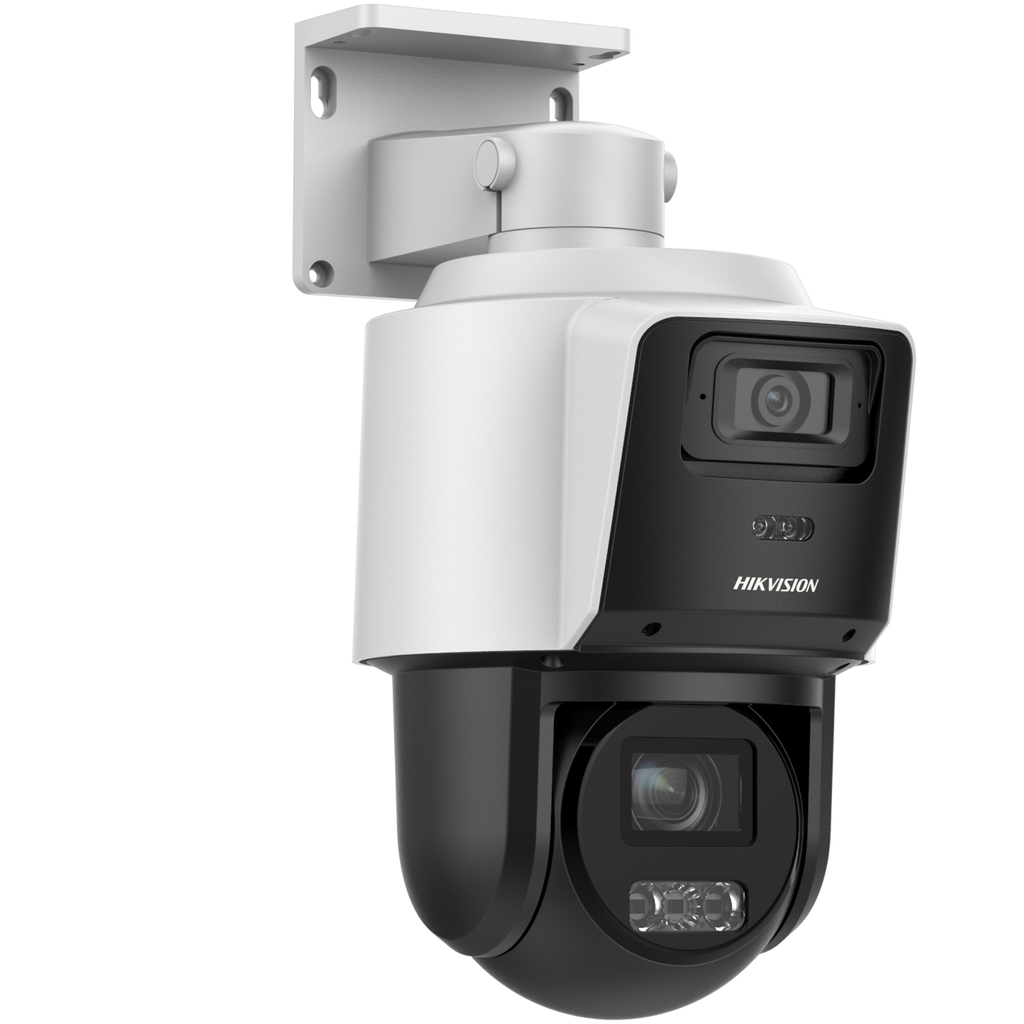

The PTZ-ND4404/SL#AUS combines a fixed 2.8mm bullet lens and a 4× optical zoom PTZ lens into a single intelligent surveillance solution. This TandemVu design enables the camera to capture a large area while simultaneously focusing on fine details, significantly enhancing situational awareness.
Powered by DarkFighter technology, the camera delivers exceptional performance in ultra-low-light conditions, with IR illumination up to 40 metres (PTZ channel) and hybrid IR/white light up to 30 metres (bullet channel). The integrated active red & blue strobe light and audio alarm provide visible and audible deterrence, helping prevent intrusions before escalation.
With support for Human and Vehicle Detection, 120 dB WDR, 3D DNR, defog, regional exposure and focus, plus ONVIF compatibility, this camera integrates seamlessly into professional IP surveillance systems.
What’s Included in the Box
Main Features
-
Dual-lens TandemVu design (4MP + 4MP)
-
4 × optical zoom (PTZ) + 16 × digital zoom
-
DarkFighter ultra-low-light technology
-
Active red & blue strobe warning light
-
Built-in microphone and speaker
-
Human and Vehicle Detection
-
120 dB Wide Dynamic Range (WDR)
-
3D DNR, BLC, HLC, Digital Defog
-
300 presets & 8 patrol scans
-
4× IR Network Speed Dome capability
-
IR range up to 40 m (PTZ) / 30 m (Bullet)
-
White light up to 30 m (Bullet)
-
MicroSD support up to 512GB
-
ONVIF Profile S, G, T compliant
-
IP66 weather protection
-
12V DC & PoE+ power support
Detailed Specifications
Camera & Imaging
-
Image Sensor: 1/2.8" Progressive Scan CMOS (Bullet & PTZ)
-
Max Resolution: 2560 × 1440 (4MP) per channel
-
Minimum Illumination:
-
Colour: 0.01 Lux
-
B/W: 0.005 Lux
-
0 Lux with IR
-
Shutter Speed: 1 s to 1/30,000 s
-
WDR: 120 dB
-
SNR: ≥ 52 dB
Lens
-
Bullet Lens: 2.8 mm (HFOV 114.9°)
-
PTZ Lens: 2.8 – 12 mm (4× optical zoom)
-
Aperture: F1.6 (Bullet), F1.5–F2.9 (PTZ)
-
Zoom Speed: Approx. 3.3 s
PTZ Functions
-
Pan Range: 0° – 350°
-
Tilt Range: -5° – 90° (PTZ)
-
Pan/Tilt Speed: 0.1° – 30°/s
-
Presets: 300
-
Patrols: 8 (32 presets each)
-
3D Positioning
-
Power-Off Memory
-
Preset Freezing
Video & Compression
-
Compression: H.265 / H.264 / MJPEG
-
Bitrate: 32 kbps – 16384 kbps
-
Triple-stream support
-
ROI (1 fixed region for main stream)
-
SVC support
Audio
-
Built-in microphone & speaker
-
Audio Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC
-
Noise filtering supported
Network & Storage
-
ONVIF (Profile S, G, T)
-
NAS (NFS, SMB/CIFS), ANR
-
MicroSD/SDHC/SDXC up to 512 GB
-
32 users / 6 simultaneous live views
-
Security: HTTPS, 802.1X, IP filtering
Event & Smart Detection
Environmental & Physical
-
IP66 rated
-
Surge & voltage transient protection
-
Operating Temperature: -30°C to 50°C
-

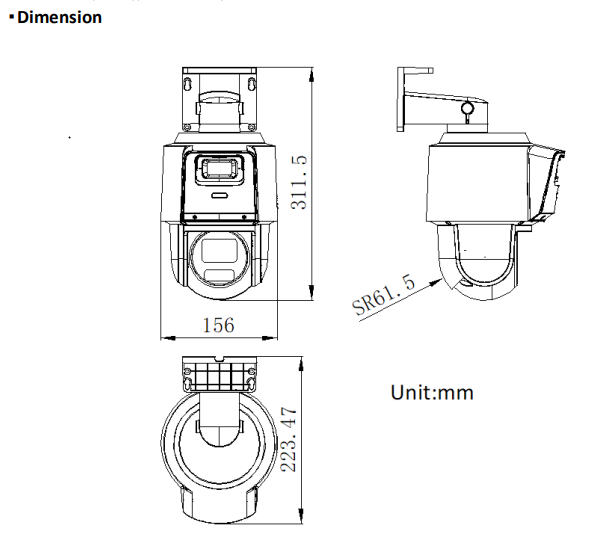

Dimensions: 311.5 × 223.5 × 156 mm
-
Weight: Approx. 1.37 kg
-
Power: 12V DC, Max 13.5W, PoE+
DORI Performance (Tele)
-
Detect: 156.5 m
-
Observe: 62.1 m
-
Recognise: 31.3 m
-
Identify: 15.7 m
Practical Use Scenarios
-
Commercial building perimeter monitoring
-
Warehouse & logistics facility security
-
Retail car park surveillance
-
School & campus monitoring
-
Industrial yard & construction site protection
-
Residential estate entrance monitoring
Warranty Information
-
Manufacturer warranty as per Australian supply channel
-
Warranty handled via authorised brand representatives
-
Technical support available through official distribution channels
Brand Description
HiLook is a value-focused video surveillance brand powered by Hikvision technology, delivering professional-grade security solutions designed for reliability, performance, and intelligent monitoring.
SKU
PTZ-ND4404/SL#AUS
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The PTZ-ND4404/SL#AUS is supplied through authorised Australian distribution channels and is optimised for the Australian and New Zealand market.
-
Complies with Australian electrical and safety requirements
-
IP66 rated for harsh outdoor conditions
-
Designed to withstand extreme temperature variations
-
Surge and transient protection included
-
Warranty managed locally through authorised representatives
-
Genuine Australian stock (HIK Australia channel)
This ensures peace of mind, full manufacturer support, and compliance with regional standards.
FAQs – HiLook PTZ-ND4404/SL#AUS
1. Does the PTZ-ND4404/SL#AUS support both wide-angle and zoomed monitoring simultaneously?
Yes. The PTZ-ND4404/SL#AUS uses a dual-lens TandemVu design that allows the bullet channel to monitor a wide area while the PTZ channel zooms in for detailed tracking.
2. What is the maximum zoom capability of the PTZ-ND4404/SL#AUS?
The PTZ-ND4404/SL#AUS provides 4× optical zoom and 16× digital zoom on the PTZ channel.
3. How far can the infrared illumination reach on the PTZ-ND4404/SL#AUS?
The PTZ-ND4404/SL#AUS supports up to 40 metres IR range on the PTZ channel and 30 metres on the bullet channel.
4. Does the PTZ-ND4404/SL#AUS include active deterrence features?
Yes. The PTZ-ND4404/SL#AUS includes an active red & blue strobe light and built-in speaker for audio alarms to warn intruders.
5. Is the PTZ-ND4404/SL#AUS suitable for outdoor installation?
Yes. The PTZ-ND4404/SL#AUS is IP66 rated, includes surge protection, and operates between -30°C and 50°C, making it ideal for outdoor environments in Australia and New Zealand.
6. What storage options are available on the PTZ-ND4404/SL#AUS?
The PTZ-ND4404/SL#AUS supports MicroSD/SDHC/SDXC cards up to 512GB and network storage via NAS.
7. Does the PTZ-ND4404/SL#AUS support intelligent detection features?
Yes. The PTZ-ND4404/SL#AUS supports Human and Vehicle Detection, Line Crossing Detection, and Intrusion Detection on both lenses simultaneously.
