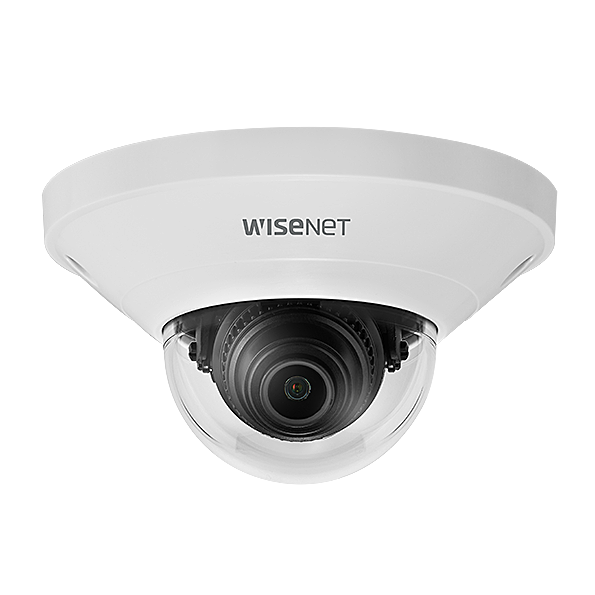

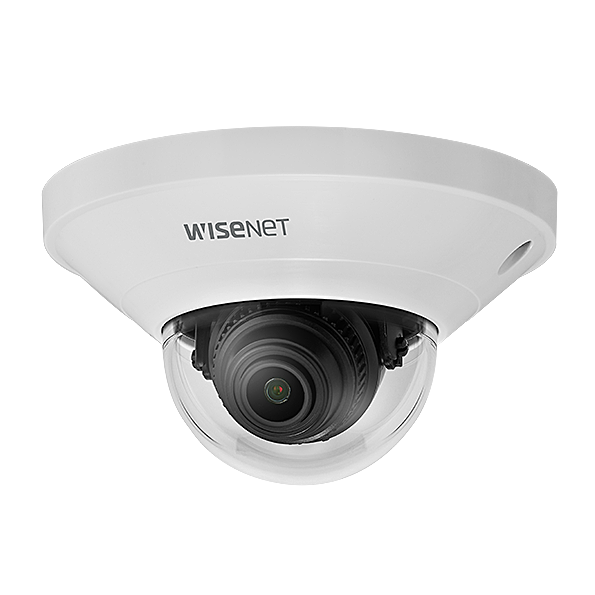

The HV-QND-8021 Hanwha Vision Wisenet Q Series 5MP Mini Dome Network Camera is a professional-grade indoor surveillance solution engineered to deliver exceptional image quality, reliable performance, and efficient video management. Featuring a high-resolution 5MP image sensor capable of capturing detailed video at up to 2592 × 1944 resolution, this compact mini dome camera is ideal for offices, retail stores, educational facilities, healthcare environments, hospitality venues, and commercial buildings.
Equipped with a 4mm fixed lens, the HV-QND-8021 provides a more focused field of view compared to wider-angle models, making it suitable for monitoring entrances, corridors, reception areas, and other locations where enhanced subject detail is required. Advanced features including H.265 compression, WiseStream II bandwidth optimisation, 120dB Wide Dynamic Range (WDR), HDMI output, Hallway View, and intelligent event detection ensure efficient operation and superior image clarity in challenging lighting environments. With support for edge storage and Power over Ethernet (PoE), the camera offers flexible deployment and simplified installation.
What's Included in the Box
Main Features
-
5MP CMOS image sensor
-
Maximum resolution of 2592 × 1944
-
4mm fixed lens
-
HDMI video output
-
Up to 30fps at 5MP resolution
-
H.265, H.264, and MJPEG compression
-
Multiple streaming support
-
True WDR 120dB
-
Hallway View support
-
WiseStream II bandwidth optimisation
-
Lens Distortion Correction (LDC)
-
Motion detection
-
Tampering detection
-
Defocus detection
-
Edge storage support up to 128GB
-
PoE powered installation
-
Compact indoor mini dome design
Detailed Specifications
| Specification |
Details |
| Product Code |
HV-QND-8021 |
| Camera Type |
Indoor Mini Dome Network Camera |
| Series |
Hanwha Vision Wisenet Q Series |
| Image Sensor |
5MP CMOS |
| Maximum Resolution |
2592 × 1944 |
| Lens |
4mm Fixed Lens |
| Minimum Illumination |
0.15 Lux (Colour) |
| Wide Dynamic Range |
120dB WDR |
| Maximum Frame Rate |
30fps @ 5MP |
| Video Compression |
H.265, H.264, MJPEG |
| Streaming |
Multiple Streaming Support |
| HDMI Output |
Yes |
| Hallway View |
Supported |
| Lens Distortion Correction |
Supported |
| WiseStream II |
Supported |
| Motion Detection |
Supported |
| Tampering Detection |
Supported |
| Defocus Detection |
Supported |
| Local Storage |
MicroSD / SDHC / SDXC up to 128GB |
| Network Interface |
RJ-45 Ethernet |
| Power Source |
PoE (Power over Ethernet) |
| Installation Type |
Indoor |
| Application |
Commercial and Professional Surveillance |
Warranty Information
-
Manufacturer Warranty Supported
-
Warranty support provided through authorised Hanwha Vision distribution channels.
-
Warranty claims are handled according to official Hanwha Vision warranty policies.
Brand Description
Hanwha Vision
Hanwha Vision is a globally trusted manufacturer of advanced video surveillance solutions, providing innovative security technologies for commercial, industrial, healthcare, education, government, and retail sectors. The Wisenet product portfolio is recognised worldwide for exceptional image quality, intelligent analytics, cybersecurity features, and long-term operational reliability.
SKU
HV-QND-8021
Practical Use Scenarios
Office Buildings
Retail Stores
Educational Facilities
-
Classroom and corridor surveillance
-
Administrative office monitoring
-
Campus security enhancement
Healthcare Environments
-
Reception and waiting area monitoring
-
Administrative office surveillance
-
Facility security management
Hospitality Venues
-
Hotel reception monitoring
-
Guest service area surveillance
-
Internal security operations
Commercial Buildings
Datasheets & Downloadable Resources
-
Product Datasheet Available
-
Installation Guide Available
-
User Manual Available
-
Firmware Updates Available
For the latest technical documentation, firmware releases, and software resources, refer to official Hanwha Vision support channels.
Excellence for the Australian and New Zealand Market
-
Optimised for professional surveillance deployments across Australia and New Zealand.
-
Supports PoE infrastructure commonly used throughout ANZ commercial security projects.
-
Genuine Hanwha Vision product sourced through authorised distribution networks.
-
Suitable for retail, healthcare, education, hospitality, office, and commercial applications.
-
Manufacturer-supported warranty service through authorised partners.
-
Designed for seamless integration into modern IP-based surveillance systems.
-
Trusted by security consultants, integrators, and installers across Australia and New Zealand.
FAQs
What is the maximum resolution of the HV-QND-8021?
The HV-QND-8021 provides up to 2592 × 1944 resolution, delivering detailed 5MP surveillance footage.
What lens is included with the HV-QND-8021?
The HV-QND-8021 features a 4mm fixed lens that provides a more focused field of view for detailed monitoring applications.
Does the HV-QND-8021 include HDMI output?
Yes. The HV-QND-8021 includes an integrated HDMI output for direct video display and system integration.
Does the HV-QND-8021 support H.265 compression?
Yes. The HV-QND-8021 supports H.265, H.264, and MJPEG compression formats for efficient bandwidth and storage utilisation.
What video analytics are available on the HV-QND-8021?
The HV-QND-8021 supports motion detection, tampering detection, and defocus detection features.
Does the HV-QND-8021 support onboard storage?
Yes. The HV-QND-8021 supports MicroSD, SDHC, and SDXC memory cards with capacities up to 128GB.
Is Hallway View supported on the HV-QND-8021?
Yes. The HV-QND-8021 includes Hallway View functionality for improved surveillance of corridors and narrow passageways.
Does the HV-QND-8021 support PoE?
Yes. The HV-QND-8021 supports Power over Ethernet (PoE), allowing power and data transmission through a single network cable.
What WDR performance does the HV-QND-8021 provide?
The HV-QND-8021 features 120dB Wide Dynamic Range (WDR) technology to improve image visibility in high-contrast lighting conditions.
Is the HV-QND-8021 suitable for professional indoor surveillance?
Yes. The HV-QND-8021 is designed for professional indoor applications including offices, schools, healthcare facilities, retail stores, hospitality venues, and commercial buildings.
