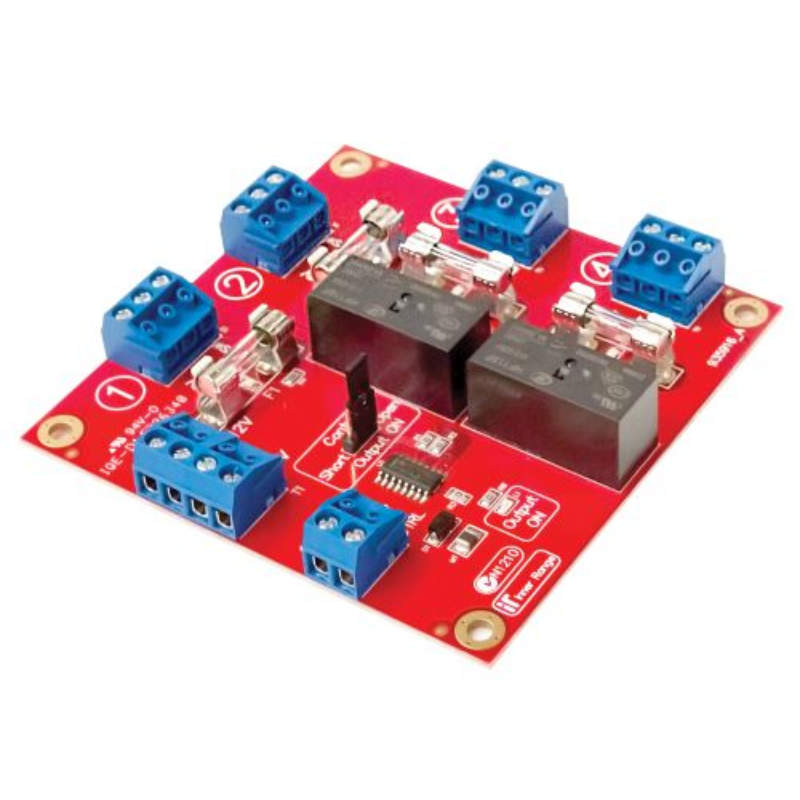

The Inner Range 4-Way Switched DC Power Hub & Fire Door Release Relay IR-995916 is a professional 1-input, 4-output DC power distribution and switching module designed for electronic door locks, access control systems and fire alarm interface applications. Featuring four individually fused outputs, switched and always-on power connections, configurable normally open/normally closed control inputs, 12–24V DC trigger compatibility and a monitoring feedback relay, this versatile power hub provides controlled power distribution for commercial, industrial and high-security installations across Australia and New Zealand.
Developed by Inner Range, the IR-995916 provides a practical way to distribute power from a central DC supply while allowing an external control system to disconnect selected device power under programmed conditions.
The module is particularly suited to access-controlled doors using fail-safe electronic locking devices that must release when the applicable fire alarm or emergency release system activates.
Each of its four separately fused output channels provides both a switched power connection and an unswitched, always-on connection. This allows the installer to select the appropriate supply behaviour for the connected locking device or auxiliary equipment.
A common control input accepts external signals from compatible fire alarm panels, access control systems or other supervisory equipment. The input can be configured to respond to normally open or normally closed dry contacts, or to supported 12V/24V DC control signals.
The module also includes a feedback relay with normally open and normally closed contacts, enabling a connected monitoring system to detect the commanded switching state of the outputs.
With dedicated fuse-failure indicators and flexible trigger options, the IR-995916 simplifies multi-door lock power arrangements and supports integration with properly engineered emergency door release systems.
Cables & Accessories| Inner Range
Main Features
-
Four-Way DC Power Distribution: Distributes a single DC power supply across four separately fused output channels.
-
Switched and Always-On Outputs: Each channel provides both controlled and continuous power connection options.
-
Fire Door Release Interface: Designed to support power disconnection to compatible fail-safe electronic locks during specified emergency conditions.
-
Individually Fused Outputs: Provides separate fuse protection for each of the four output circuits.
-
Fuse Failure Indicators: Visual indicators assist installers with identifying a blown fuse.
-
Normally Open and Normally Closed Trigger Options: Supports configurable dry-contact input signals.
-
12V/24V DC Control Signal Compatibility: Accepts supported voltage-based trigger signals from external systems.
-
Single Common Control Input: Provides a common trigger for switched output operation.
-
Feedback Relay: Offers normally open and normally closed contacts for status monitoring.
-
Flexible Lock Power Integration: Suitable for compatible magnetic locks, electric locking devices and other DC-powered equipment.
-
Independent of a Specific Controller Platform: Can interface with suitable external control systems through its documented electrical connections.
-
Professional Security Cabinet Installation: Suitable for installation as part of a correctly designed access control power arrangement.
-
Passive Power Switching and Distribution: Does not require application software or network programming.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Inner Range
|
|
Product name
|
4-Way Fire Door Release Relay & DC Power Hub
|
|
Alternative name
|
Switched DC Power Hub
|
|
SKU
|
IR-995916
|
|
Manufacturer part number
|
995916
|
|
Product category
|
DC Power Distribution / Fire Door Release Interface
|
|
Power supply arrangement
|
Common DC input
|
|
Power supply input connections
|
2 input connections from host supply
|
|
Number of output channels
|
4
|
|
Output protection
|
Individually fused
|
|
Output options per channel
|
Switched and Always-On
|
|
Control inputs
|
1 common control/trigger input
|
|
Dry-contact trigger modes
|
Normally Open or Normally Closed
|
|
Dry-contact reference
|
0V switching configuration
|
|
Voltage trigger support
|
12–24V DC
|
|
Voltage trigger threshold
|
2V, as specified in distributor documentation
|
|
Fuse status indication
|
Individual fuse-failure indicators
|
|
Feedback relay
|
Supported
|
|
Feedback contacts
|
Normally Open and Normally Closed
|
|
Primary application
|
Electronic lock power distribution and release
|
|
External controller support
|
Compatible fire alarm or access control control signals
|
|
Installation environment
|
Protected security equipment enclosure
|
|
Configuration method
|
Hardware input and connection configuration
|
|
Communication interface
|
Not required for basic operation
|
|
Standalone power supply included
|
No
|
The 12–24V DC specification relates to the control input signal. The exact supported main power input range, fuse ratings, per-channel load limits and feedback-contact ratings must be checked in the relevant Inner Range installation manual rather than inferred from the trigger voltage.
Modular Technology & Security Solutions
What's Included in the Box
- 1 × Inner Range 4-Way Switched DC Power Hub & Fire Door Release Relay – IR-995916.
Any manufacturer-supplied mounting or connection accessories should be confirmed with the supplier.
Not included: External DC power supply, backup batteries, electronic door locks, fire alarm controller, access control controller, cabling and enclosure unless separately specified.
Power Distribution and Switching Functions
The IR-995916 provides four output channels from one common supply, with both switched and unswitched terminals available at each channel.
Switched DC output connections
The switched connection on each channel is intended for devices whose power supply must be removed in response to the configured control input.
For example, a compatible fail-safe magnetic lock can be connected through the switched supply so that the control system can interrupt lock power during an approved fire-release condition.
Always-On DC output connections
Each channel also provides an unswitched connection for devices requiring continuous DC supply independent of the common switching command, subject to the power source and channel protection arrangements.
Common trigger input
The common control input allows a compatible external device to command the switched output state. Supported triggering options include normally open or normally closed dry contacts and 12–24V DC signals.
Feedback relay and fuse indication
The feedback relay provides an indication of the switched output state to compatible monitoring equipment. Individual fuse-failure indicators assist with fault identification.
The feedback relay should not be treated as proof that an individual lock has physically released. Separate door or lock position monitoring may be required for that purpose.
Practical Use Scenarios
Fire alarm and electronic lock integration
Interface compatible fire alarm system control signals with fail-safe door locking circuits so that lock power can be removed under designated emergency conditions.
Commercial office buildings
Distribute DC power to multiple access-controlled doors from a central supply while supporting common lock release operation.
Industrial and warehouse facilities
Provide fused power distribution for compatible door locking equipment in restricted or monitored areas.
Educational and healthcare facilities
Support professionally designed access control installations where emergency egress requirements must be coordinated with fire safety systems.
Multi-door access control installations
Simplify centralised power distribution for up to four separately fused output circuits.
Security system maintenance
Provide a dedicated power distribution interface with individual fuse-failure indication and feedback monitoring to support troubleshooting and servicing.
Installation and Safety Considerations
The Inner Range IR-995916 is designed to be integrated into a properly engineered DC power distribution and electronic door locking arrangement.
An installer must verify the supply voltage, available current, individual fuse ratings, connected lock requirements and total load before energising the module.
For fire-release applications, the external fire alarm system must be correctly interfaced so that the intended emergency release function operates under the required conditions.
Important: The IR-995916 is not a complete fire safety system, certified emergency exit solution or substitute for an approved emergency egress design. Its use must be assessed against the applicable building and fire safety requirements, including the operation of fail-safe locks, emergency release devices and power failure conditions.
Fire door release functionality must be tested during commissioning and as required by the applicable maintenance regime.
Warranty Information
The Inner Range 4-Way Switched DC Power Hub IR-995916 is subject to applicable manufacturer warranty conditions and statutory consumer guarantees in Australia and New Zealand.
The exact manufacturer warranty duration has not been independently confirmed. Warranty claims may be coordinated through the supplying distributor and Inner Range, subject to the applicable terms.
About Inner Range
Inner Range is an Australian security technology manufacturer specialising in electronic access control, intrusion detection, alarm communications and integrated security management.
Its product portfolio includes Integriti, Inception, security controllers, power supplies, expansion modules and professional installation accessories.
SKU and Product Identification
|
Field
|
Details
|
|
SKU
|
IR-995916
|
|
Manufacturer part number
|
995916
|
|
Brand
|
Inner Range
|
|
Product
|
4-Way Switched DC Power Hub & Fire Door Release Relay
|
|
Product type
|
Fused DC Power Distribution and Switching Module
|
|
Number of outputs
|
4
|
|
Trigger options
|
NO/NC Dry Contact or 12–24V DC Signal
|
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Inner Range 4-Way Switched DC Power Hub & Fire Door Release Relay IR-995916 provides a flexible solution for professional electronic access control and door power distribution installations throughout Australia and New Zealand.
Australian security technology: Manufactured for Inner Range, an Australian electronic security systems specialist.
Professional access control integration: Designed for distributing DC power to multiple electric locks and supporting externally controlled release functions.
Australian and New Zealand quality considerations: Installation must follow applicable standards and requirements for electronic locking, fire safety and emergency egress. The IR-995916 should not be represented as independently certified for every fire door or emergency exit application without project-specific verification.
Flexible system compatibility: Can work with suitable control signals from compatible fire alarm panels and other external controllers, subject to electrical and functional requirements.
Authorised brand sourcing: Genuine Inner Range products should be obtained through authorised manufacturer representatives or recognised distributors. Supplier authorisation should be confirmed before claiming exclusive sourcing.
Manufacturer warranty handling: Technical support and warranty assessment may be coordinated with Inner Range through the appropriate supply arrangements, subject to its warranty conditions.
Local project suitability: Useful for commercial buildings, industrial facilities and institutional access control installations requiring properly designed switched DC lock power distribution.
FAQs
1. What is the Inner Range 4-Way Switched DC Power Hub IR-995916 used for?
The IR-995916 distributes DC power across four separately fused output channels and allows an external control system to switch power to compatible electronic locking devices.
2. How many power outputs does the Inner Range IR-995916 provide?
The IR-995916 provides four individually fused output channels, each offering both switched and always-on DC power connection options.
3. Can the Inner Range IR-995916 be used for fire door release applications?
Yes. The IR-995916 is designed to support the controlled removal of power from compatible electronic locks when activated by an appropriately configured external fire alarm or emergency release system.
4. Does the Inner Range IR-995916 support both normally open and normally closed triggers?
Yes. The IR-995916 supports configurable normally open and normally closed dry-contact control inputs.
5. Can the Inner Range IR-995916 accept a 12V or 24V control signal?
Yes. The IR-995916 supports specified 12–24V DC control signals. This rating relates to the trigger interface, not necessarily the main power distribution input rating.
6. Are all four outputs on the Inner Range IR-995916 individually fused?
Yes. Each of the four output channels on the IR-995916 has separate fuse protection.
7. Does the Inner Range IR-995916 have fuse failure indicators?
Yes. The IR-995916 includes individual fuse-failure indicators to assist with identifying fuse-related faults.
8. What is the difference between switched and always-on outputs on the Inner Range IR-995916?
The switched connections on the IR-995916 can have their DC supply interrupted by the configured control input. The always-on connections remain connected to the supply independently of that switching command, provided input power and the applicable fuse are available.
9. Can the Inner Range IR-995916 power magnetic door locks?
The IR-995916 can distribute power to compatible DC magnetic locks, subject to their voltage and current requirements. Appropriate fail-safe operation and emergency release requirements must be confirmed.
10. Does the Inner Range IR-995916 include a feedback relay?
Yes. The IR-995916 includes a feedback relay with normally open and normally closed contacts for reporting the module's switched output state to compatible monitoring equipment.
11. Can the Inner Range IR-995916 connect to a fire alarm panel?
Yes. The IR-995916 can accept compatible dry-contact or DC voltage signals from an external fire alarm panel when installed as part of a properly designed fire-release interface.
12. Does the Inner Range IR-995916 include a power supply?
No. The IR-995916 is a DC distribution and switching hub that requires connection to an appropriate external DC supply.
13. Can the Inner Range IR-995916 control four doors independently?
The IR-995916 provides four separately fused channels, but the switched outputs share a common control input. It should not be described as providing four independently controlled door release commands.
14. Is the Inner Range IR-995916 compatible with Integriti access control installations?
Yes. The IR-995916 can be incorporated into compatible Integriti installations requiring the documented DC power distribution and external trigger functions.
15. Does the Inner Range IR-995916 require software programming?
The IR-995916 is primarily configured through its hardware input and connection arrangements. It does not require a standalone software application for basic power distribution and switching.
16. Can the Inner Range IR-995916 be used with an external access control system?
Yes. The IR-995916 can interface with other compatible control equipment supplying the required trigger signal, provided the installation meets the module's electrical specifications.
17. Does the Inner Range IR-995916 guarantee emergency exit compliance?
No. The IR-995916 is a component within a larger system. Emergency egress compliance depends on the complete installation, including locking hardware, fire alarm interfaces, release devices and applicable regulatory requirements.
18. Is the Inner Range IR-995916 suitable for Australian and New Zealand commercial buildings?
Yes. The IR-995916 is suitable for appropriately engineered access control installations in Australia and New Zealand, subject to applicable building, electrical and fire safety requirements.
