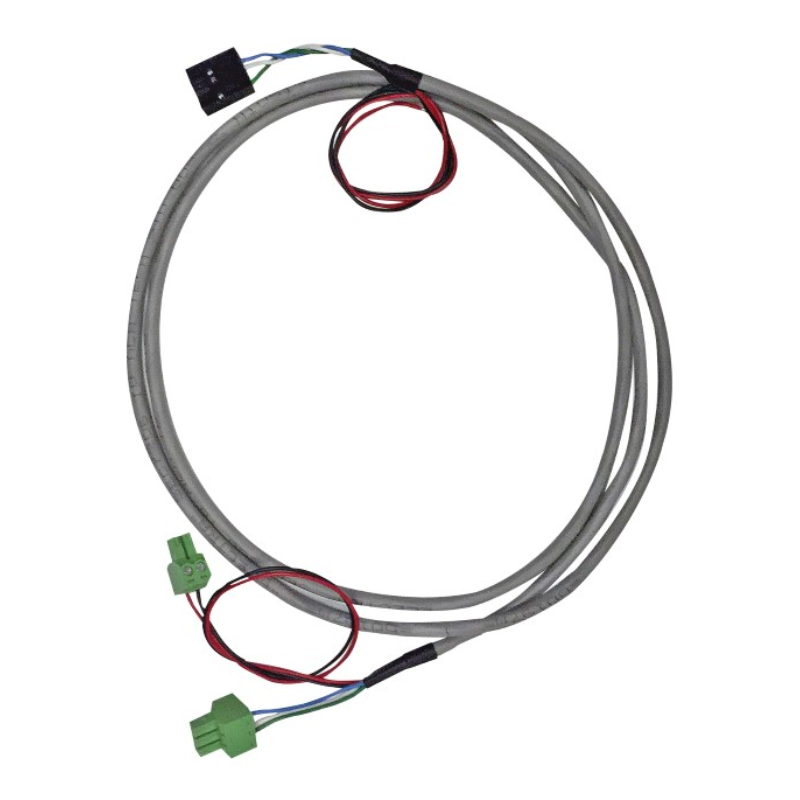

Professional Alarm Communicator Interface Cable | 10-Pin UART Connector | T4000 Serial Integration | Alarm Reporting & Remote Upload/Download
The Inner Range Integriti / Concept 4000 UART to Multipath T4000 Interface Cable IR-996796 is a professional 1.2-metre RS-232 serial communication cable designed to connect compatible Inner Range Integriti and Concept 4000 security controllers to Multipath T4000 alarm communicators. Featuring a dedicated 10-pin UART connector, 3-pin T4000 interface connector and separate red and black power connection leads, this specialised security cable supports alarm reporting and remote upload/download communications for commercial, industrial and high-security alarm installations throughout Australia and New Zealand.
Designed for Inner Range security equipment, the IR-996796 provides a purpose-built connection between a compatible controller's UART communication port and the serial interface of a Multipath T4000 security communicator.
The cable is suitable for supported Integriti UniBus RS-232 UART devices and compatible Concept 4000 controller UART interfaces, allowing security installers to establish the physical communication path required for supported Multipath alarm transmission and remote maintenance operations.
Its 1200mm length provides convenient routing between security equipment installed within the same cabinet or in closely positioned enclosures. The dedicated connector arrangement helps reduce the need for custom-made serial communication cables.
In addition to the data connection, the IR-996796 includes separate red and black flying leads intended for the T4000's external power connection arrangement. These leads must be connected to a suitable power source according to the communicator's installation requirements.
The IR-996796 is particularly useful for new T4000 installations, existing Concept 4000 security system upgrades, Integriti alarm reporting integration and replacement of damaged or missing UART communication leads.
Unlike the Port Zero interface cable IR-996795, the IR-996796 is designed for RS-232 UART connections and must be connected to the appropriate RS-232 terminals on the supported Multipath T4000 communicator.
Multipath IP| Inner Range
+2
Main Features
-
Dedicated UART to T4000 Connection: Links compatible Integriti or Concept 4000 UART interfaces to a supported Multipath T4000 communicator.
-
RS-232 Serial Communication: Designed for the controller's compatible RS-232 UART interface.
-
1.2-Metre Cable Length: Provides convenient cable routing between closely positioned security devices.
-
10-Pin UART Connector: Factory-fitted connector designed for compatible Concept 4000 and Integriti UART ports.
-
3-Pin T4000 Connector: Provides the dedicated communication connection for the T4000 interface.
-
Separate Power Leads: Red and black flying leads for the specified external power connection arrangement.
-
Alarm Reporting Support: Provides the physical serial link used for configured alarm transmission.
-
Remote Upload/Download Support: Enables supported remote communication functions through the connected communicator.
-
Integriti UniBus UART Compatibility: Suitable for compatible Inner Range Integriti RS-232 UART modules.
-
Concept 4000 UART Compatibility: Supports compatible Concept 4000 controller UART interfaces.
-
Purpose-Built Communication Lead: Reduces the need for custom wiring and connector assembly.
-
Suitable for Retrofit Projects: Useful when integrating Multipath communications with an existing supported security controller.
-
No Cable Programming Required: Passive connection accessory with no standalone software or firmware.
-
Professional Security Application: Designed for use by qualified electronic security installers.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Inner Range
|
|
Product name
|
Integriti / Concept 4000 UART to T4000 Interface Cable
|
|
Manufacturer designation
|
T4000 Integriti UART Interface Cable
|
|
SKU
|
IR-996796
|
|
Manufacturer part number
|
996796
|
|
Product type
|
Security alarm serial interface cable
|
|
Cable length
|
1200mm (1.2m)
|
|
Controller connection
|
10-pin UART header
|
|
Communicator connection
|
3-pin T4000 serial interface header
|
|
Additional connections
|
Red and black power flying leads
|
|
Communication standard
|
RS-232
|
|
Controller interface
|
Compatible UART serial port
|
|
Supported communication functions
|
Alarm reporting and upload/download
|
|
Integriti compatibility
|
Compatible UniBus RS-232 UART device
|
|
Concept compatibility
|
Supported Concept 4000 UART boards
|
|
Communicator compatibility
|
Compatible Multipath T4000 models
|
|
T4000 terminal connection
|
RS-232 / 232 serial terminals
|
|
External power supply
|
Required according to communicator specifications
|
|
Cable configuration
|
Wired serial data and power connection leads
|
|
Programming required
|
No programming of the cable
|
|
Typical installation
|
Protected security equipment cabinet
|
|
Main application
|
Security controller-to-communicator connection
|
Specifications sourced from the Inner Range manufacturer product listing, Australian distributor specifications and Multipath T4000 technical documentation.
Multipath IP| Inner Range
+2
What's Included in the Box
- 1 × Inner Range Integriti / Concept 4000 UART to Multipath T4000 Interface Cable – IR-996796, 1.2m, with factory-fitted UART and communicator connectors and red/black power leads.
The Integriti or Concept 4000 controller, RS-232 UART expansion hardware, Multipath T4000 communicator, external power supply and additional installation accessories are not included.
Interface Connection and Operation
The IR-996796 connects a supported Inner Range controller UART interface to a compatible Multipath T4000 communicator.
For supported firmware configurations, the T4000 Pro documentation recommends 115200 baud and also describes support for lower baud rates, with 8 data bits, no parity and 1 stop bit. Actual settings must match the controller, communicator model and firmware.
Practical Use Scenarios
Integriti alarm communicator installations
Establish a dedicated RS-232 connection between a compatible Integriti UniBus UART interface and a Multipath T4000 communicator for configured alarm communication.
Concept 4000 system upgrades
Connect supported legacy Concept 4000 security controllers to suitable Multipath T4000 equipment while retaining the existing controller.
Commercial office security
Support alarm reporting and compatible remote communication functions for professional security installations in offices, corporate premises and retail facilities.
Industrial and warehouse facilities
Integrate supported alarm controllers with Multipath communicators for security monitoring across industrial and logistics properties.
Communicator servicing and replacement
Replace a damaged or missing UART-to-T4000 interface cable during security system maintenance.
Monitored alarm infrastructure
Provide the serial connection required for supported T4000 alarm reporting and remote upload/download functions, subject to communicator configuration and monitoring service capabilities.
Compatibility and Installation Requirements
The IR-996796 UART Interface Cable is designed for supported Inner Range security controllers with compatible RS-232 UART communication interfaces.
|
Equipment
|
Compatibility
|
|
Integriti UniBus RS-232 UART
|
Supported
|
|
Concept 4000 UART interface
|
Supported
|
|
Concept 3000 UART interface
|
Supported configurations
|
|
Multipath T4000 communicator
|
Supported
|
|
Multipath T4000 PRO
|
Supported configurations
|
|
Multipath T4000 Lite
|
Verify model and serial functionality
|
|
Integriti Port Zero interface
|
Use IR-996795 instead
|
|
Inception USB interface
|
Use IR-996797 instead
|
Firmware compatibility must be checked. For example, T4000 Pro documentation identifies Integriti controller firmware V4.1.1 or later and compatible Concept 3000/4000 firmware configurations for supported serial communications.
Important installation notes: The IR-996796 uses RS-232 signalling and should be connected to the T4000's designated 232 serial terminals. Its power flying leads must connect to an appropriately rated supply following the manufacturer's wiring instructions. The cable itself is not a power supply or standalone communicator.
Professional installation and configuration by a qualified electronic security technician are recommended.
Warranty Information
The Inner Range IR-996796 UART Interface Cable is subject to applicable manufacturer warranty conditions and Australian and New Zealand statutory consumer guarantees.
The manufacturer's specific warranty duration has not been independently verified and should be confirmed with the supplier before publication.
Warranty enquiries and technical support may be coordinated with the authorised distributor or Inner Range, subject to the applicable supply arrangement and warranty terms.
About Inner Range
Inner Range is an Australian security technology manufacturer specialising in integrated access control, intrusion detection, alarm communication and electronic security management systems.
Its product portfolio includes Integriti, Inception, Multipath security communicators, access control modules, security keypads and installation accessories for professional security applications.
SKU and Product Identification
|
Field
|
Details
|
|
SKU
|
IR-996796
|
|
Manufacturer part number
|
996796
|
|
Brand
|
Inner Range
|
|
Product name
|
Integriti / Concept 4000 UART to T4000 Interface Cable
|
|
Manufacturer designation
|
T4000 Integriti UART Interface Cable
|
|
Cable length
|
1.2m
|
|
Interface type
|
RS-232 UART
|
|
Product category
|
Alarm Communication Interface Cables
|
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Inner Range Integriti / Concept 4000 UART to Multipath T4000 Interface Cable IR-996796 provides a dedicated security communication connection for compatible professional alarm installations throughout Australia and New Zealand.
Australian security technology: Designed for Inner Range security systems, developed by an Australian manufacturer of integrated security and access control equipment.
Professional alarm integration: Supports the connection of compatible security controllers to Multipath T4000 communicators for alarm reporting and remote communication applications.
Security system upgrade suitability: Useful for maintaining and modernising supported Integriti and Concept 4000 security installations without unnecessary replacement of compatible equipment.
Quality and compliance: Installation should follow Inner Range technical documentation and applicable Australian and New Zealand electrical and security requirements. Product-specific certification should be independently verified.
Authorised product sourcing: Genuine Inner Range equipment should be purchased through authorised brand representatives or recognised security distributors. Any exclusive-sourcing claim should be confirmed for the supplying business.
Manufacturer warranty coordination: Warranty and technical support enquiries may be directed through the authorised supply channel or Inner Range where the purchasing arrangement permits.
Local security applications: Suitable for commercial, industrial, institutional and professionally monitored security installations using compatible T4000 equipment.
FAQs
1. What is the Inner Range Integriti / Concept 4000 UART Interface Cable IR-996796 used for?
The IR-996796 connects a compatible Inner Range Integriti or Concept 4000 RS-232 UART interface to a Multipath T4000 communicator, supporting configured alarm reporting and remote upload/download communications.
2. What is the length of the Inner Range IR-996796 UART cable?
The IR-996796 is 1200mm (1.2 metres) long.
3. Is the Inner Range IR-996796 compatible with Integriti controllers?
Yes. The IR-996796 is designed for compatible Integriti systems equipped with a supported UniBus RS-232 UART device.
4. Can the Inner Range IR-996796 connect a Concept 4000 controller to a T4000 communicator?
Yes. The IR-996796 is designed for compatible Concept 4000 UART interfaces, subject to the required firmware and serial configuration.
5. Does the Inner Range IR-996796 use RS-232 communication?
Yes. The IR-996796 is an RS-232 UART interface cable that connects to the T4000 communicator's designated 232 serial terminals.
6. What connectors are fitted to the Inner Range IR-996796?
The IR-996796 includes a 10-pin connector for the compatible controller UART interface, a 3-pin communicator connector and separate red and black power leads.
7. Does the Inner Range IR-996796 support alarm reporting?
Yes. The IR-996796 provides the serial connection used for alarm reporting between supported Inner Range controllers and compatible Multipath T4000 communicators.
8. Can the Inner Range IR-996796 support remote upload and download?
Yes. The IR-996796 supports the physical communication link required for compatible remote upload/download operations through properly configured Multipath equipment.
9. What is the difference between the Inner Range IR-996796 and IR-996795?
The IR-996796 connects a compatible RS-232 UART interface to the T4000's 232 terminals. The IR-996795 is the Port Zero interface cable, normally intended for the designated TTL connection arrangement.
10. Can the Inner Range IR-996796 be used with a T4000 PRO communicator?
Yes. The IR-996796 is documented as an optional UART interface accessory for compatible Multipath T4000 PRO installations.
11. Is the Inner Range IR-996796 compatible with a T4000 Lite communicator?
The IR-996796 is listed as an associated accessory for certain T4000 Lite products. Compatibility with a specific Lite hardware revision and its available serial functions should be confirmed before purchase.
12. Does the Inner Range IR-996796 provide power to the T4000 communicator?
The IR-996796 incorporates red and black flying leads for the specified power connection. It does not generate power; the connected communicator requires an appropriately rated external supply.
13. Does the Inner Range IR-996796 require programming?
No. The IR-996796 is a passive communication cable. The connected controller and T4000 must be configured with compatible serial communication settings.
14. What serial communication settings are used with the Inner Range IR-996796?
The IR-996796 uses the RS-232 UART interface. Supported T4000 Pro documentation recommends 115200 baud with 8 data bits, no parity and 1 stop bit, although supported settings depend on firmware and controller configuration.
15. Can the Inner Range IR-996796 be used with an Inception controller?
The IR-996796 is specified for compatible Integriti and Concept UART connections. For supported Inception USB-to-T4000 applications, the IR-996797 is the documented interface cable.
16. Is the Inner Range IR-996796 a standard USB cable?
No. The IR-996796 is a dedicated RS-232 UART security communication cable with specialised connectors for compatible Inner Range and Multipath equipment.
17. Can the Inner Range IR-996796 be used to replace a damaged T4000 UART cable?
Yes. The IR-996796 is suitable as a replacement for the corresponding manufacturer-specified interface cable when the controller, communicator and installation configuration are compatible.
18. Is the Inner Range IR-996796 suitable for Australian and New Zealand security installations?
Yes. The IR-996796 is suitable for compatible professional Inner Range alarm communication installations in Australia and New Zealand, subject to applicable installation and equipment requirements.
