320 × 240 Colour LCD | 8 Dual-Colour Status LEDs | Built-In Temperature Sensor | Integriti RS-485 LAN

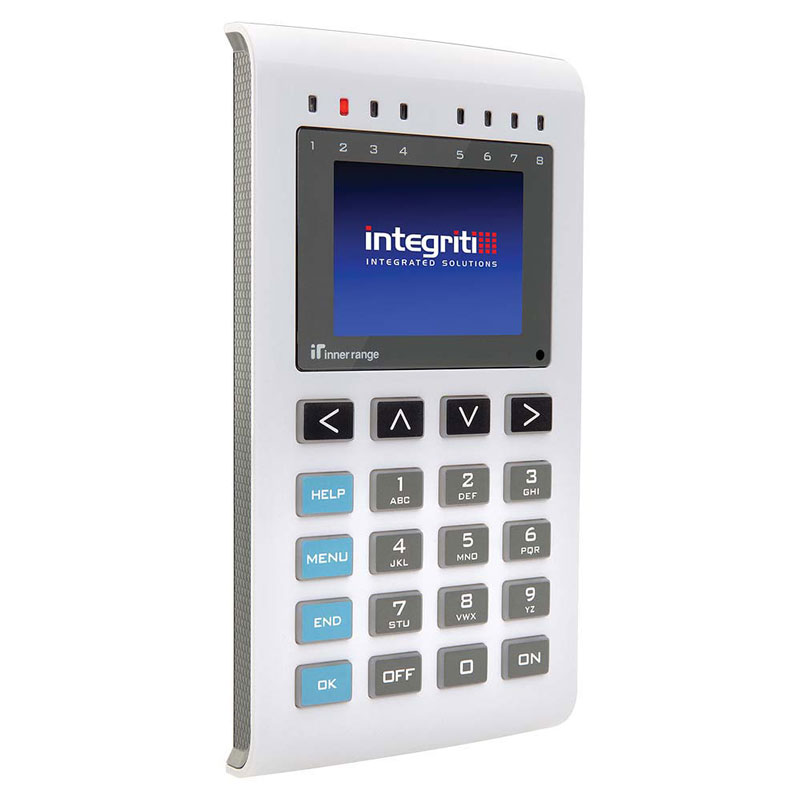

The Inner Range Integriti PrismaX Colour LCD Keypad IR-996400 is a premium security alarm and access control terminal featuring a full-colour 320 × 240 QVGA LCD display, intuitive icon-driven menus, eight dual-colour status LEDs and an integrated room temperature sensor. Designed exclusively for compatible Inner Range Integriti security systems, this sophisticated RS-485 keypad simplifies alarm management, area arming and disarming, door access, automation control and zone isolation for commercial, industrial and residential security installations throughout Australia and New Zealand.
Manufactured by Inner Range, the PrismaX combines elegant contemporary styling with powerful everyday security management functions.
Its high-resolution colour LCD screen presents system information through large, easy-to-read text and intuitive graphical menus. This enables authorised users to navigate security operations, acknowledge alarms, review events and manage configured doors without the complexity of traditional text-only security terminals.
The keypad features eight programmable dual-colour LED indicators that provide immediate visual feedback for security area states, access control activity and automation functions. Its light-sensitive auto-dimming technology automatically adjusts the display, keypad backlighting and LED brightness to suit surrounding lighting conditions.
An integrated temperature sensor displays the local room temperature and can be incorporated into supported Integriti building automation configurations, allowing the keypad to serve as both a security interface and a temperature information source.
For installations requiring enhanced user authentication, an optional plug-on Inner Range SIFER reader kit can be fitted. This enables compatible RFID credential identification, card-based access control and Card & PIN authentication for supported terminal and door functions.
The PrismaX is specifically designed as an end-user interface for Inner Range Integriti systems. It provides everyday security operations but does not support the full installer programming and commissioning menus available through the EliteX keypad.
User Interface| Inner Range
+1
Main Features
-
Full-Colour QVGA LCD Display: Sharp 320 × 240 resolution with large, readable text and graphical icons.
-
Intuitive Icon-Driven Menus: Simplifies navigation through security and access control functions.
-
Integriti System Compatibility: Designed exclusively for compatible Inner Range Integriti security systems.
-
Eight Dual-Colour Status LEDs: Configurable indicators for area status, intrusion alarms, access control and automation functions.
-
Integrated Temperature Sensor: Displays room temperature and supports configured building automation functions.
-
Automatic Brightness Adjustment: Light-sensitive auto-dimming for the LCD, keypad illumination and status indicators.
-
Backlit Rubberised Keys: Comfortable tactile operation with adjustable lighting.
-
Four Directional Navigation Keys: Convenient navigation through the colour graphical menu interface.
-
Security Area Management: Supports arming, disarming and monitoring authorised security areas.
-
Door Access Control: Allows authorised users to lock and unlock configured access-controlled doors.
-
Alarm and Event Management: Supports monitoring, acknowledgement and review of system alarms and events.
-
Zone Isolation: Enables permitted users to isolate configured security zones.
-
Automation Control: Provides access to supported Integriti building automation functions.
-
Programmable Panic and Duress Functions: Supports additional emergency security operations where configured.
-
Tamper-Monitored Housing: Helps detect unauthorised interference with the keypad enclosure.
-
Instant On-Screen Help: Provides contextual assistance through the keypad interface.
-
Integrated Digital Speaker: Provides audible feedback for supported terminal operations.
-
Optional SIFER Reader Upgrade: Enables contactless credential functions and Card & PIN authentication with separately available hardware.
-
Slimline Surface-Mount Design: Contemporary construction suited to professional installations.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Inner Range
|
|
Product name
|
Integriti PrismaX Colour LCD Keypad
|
|
Product series
|
PrismaX
|
|
SKU
|
IR-996400
|
|
Manufacturer part number
|
996400
|
|
Device type
|
Security alarm and access control keypad
|
|
Compatible platform
|
Inner Range Integriti only
|
|
Display technology
|
Full-colour LCD
|
|
Display resolution
|
320 × 240 pixels (QVGA)
|
|
User interface
|
Graphical, icon-driven menus
|
|
Navigation
|
Four directional arrow keys
|
|
Keypad
|
Backlit rubberised tactile keys
|
|
LED indicators
|
8 dual-colour, programmable
|
|
LED brightness
|
Automatic light-sensitive dimming
|
|
LCD brightness
|
Programmable and auto-dimming
|
|
Temperature sensor
|
Integrated room temperature sensor
|
|
Audio
|
8-bit digital sound speaker
|
|
Communication interface
|
Integriti RS-485 LAN
|
|
Maximum supported keypads
|
Up to 99 per compatible Integriti controller
|
|
Input voltage
|
11–14 V DC
|
|
Typical operating current
|
Less than 100 mA at 12 V DC
|
|
Peak operating current
|
270 mA
|
|
Peak current with optional SIFER PCB
|
300 mA
|
|
Housing dimensions
|
168 × 88 × 19 mm (H × W × D), per manufacturer catalogue
|
|
Operating temperature
|
0°C to +50°C
|
|
Relative humidity
|
15–85%, non-condensing
|
|
Tamper monitoring
|
Supported
|
|
Panic and duress functions
|
Programmable
|
|
SIFER reader support
|
Optional plug-on kit
|
|
Installation method
|
Surface mount
|
|
Intended environment
|
Protected indoor installation
|
Specifications from Inner Range's PrismaX product documentation and published technical datasheet. Distributor listings also show an alternative housing size of 152 × 90 × 18 mm; confirm dimensions for the supplied product revision before installation.
User Interface| Inner Range
+2
What's Included in the Box
-
1 × Inner Range Integriti PrismaX Colour LCD Keypad – IR-996400.
-
Manufacturer-supplied mounting and connection accessories, where included in the packaged product.
The optional SIFER reader kit, SIFER credentials, Integriti controller, external power supply and additional accessories are not included unless separately specified by the supplier.
Advanced Security and Control Features
Full-colour graphical security interface
The PrismaX keypad offers a graphical interface designed to make security system operation easier for authorised users.
Its colour screen presents menu icons, large text and system information, reducing reliance on complicated command sequences or cryptic abbreviations.
Common supported operations include arming and disarming security areas, unlocking doors, acknowledging alarms, reviewing activity and operating configured automation functions.
Eight dual-colour programmable LED indicators
The keypad incorporates eight dual-colour LEDs that can be programmed to display real-time system information.
Depending on system configuration, these indicators can represent armed or disarmed security areas, intrusion conditions, access control states and automation functions.
The automatic brightness adjustment also helps maintain indicator visibility under different ambient lighting conditions.
Integrated temperature monitoring
The PrismaX includes a built-in room temperature sensor that can display local temperature information directly on the keypad.
Where correctly configured, the temperature reading can also be used within the Integriti automation environment for supported building management functions.
Temperature Sensor Applications
Room Monitoring
View local temperature from the keypad
Automation Integration
Use temperature information in compatible configured functions
The temperature sensor is not a standalone thermostat or HVAC controller. Automation behaviour depends on the Integriti system configuration.
Optional SIFER reader integration
The PrismaX keypad can be enhanced with the separately available Inner Range SIFER Plug-On Reader Kit – 994721PCB&K.
With the reader kit fitted and correctly configured, supported capabilities include contactless card access control, Card & PIN authentication, card-only terminal login, and Card & PIN terminal login. The add-on also supports compatible 13.56 MHz cards using card serial number identification.
User Interface| Inner Range
Practical Use Scenarios
Commercial offices and corporate buildings
Provide employees and authorised personnel with a modern interface for managing security areas, alarms, restricted-access doors and supported automation functions.
Residential and luxury properties
Offer convenient security management using an elegant colour LCD keypad suitable for sophisticated residential Integriti installations.
Industrial warehouses and logistics facilities
Enable authorised staff to arm and disarm designated security areas, acknowledge alarms and review configured system conditions.
Educational institutions
Support controlled security management in administrative buildings, staff areas and other protected spaces.
Healthcare and professional facilities
Provide a straightforward security interface for authorised users responsible for monitored building areas and access-controlled doors.
Multi-area commercial properties
Use the eight programmable status indicators to display relevant security conditions and help personnel identify the status of configured areas.
Building automation installations
Combine alarm system interaction and room temperature information with supported Integriti automation functions.
Compatibility and Installation Requirements
The IR-996400 PrismaX Colour LCD Keypad is designed specifically for Inner Range Integriti security systems. Unlike the EliteX keypad, it is not advertised by the manufacturer as compatible with Inception.
The keypad connects directly to the Integriti RS-485 LAN and requires a suitable 11–14 V DC power supply.
A compatible Integriti controller can support up to 99 PrismaX keypads, subject to the system design, available power, communications architecture and controller configuration.
Installation should be undertaken by a qualified electronic security technician familiar with Integriti LAN cabling, device addressing, power budgets and terminal configuration.
For installers requiring access to the full Integriti installation and commissioning menus, the Inner Range EliteX Keypad IR-995400 is the more appropriate terminal.
Warranty Information
The Inner Range PrismaX Colour LCD Keypad IR-996400 is subject to applicable manufacturer warranty terms and Australian and New Zealand statutory consumer protections.
The exact manufacturer warranty duration has not been independently confirmed and should be verified with the authorised supplier.
Warranty requests and technical support can be coordinated through the appropriate distributor and Inner Range, subject to the applicable manufacturer procedures.
About Inner Range
Inner Range is an Australian security technology company specialising in professional electronic security, intrusion detection, integrated access control and building security management systems.
Its portfolio includes Integriti, Inception, SIFER smart readers, EliteX and PrismaX terminals, and a wide range of controller and expansion modules.
SKU and Product Identification
|
Field
|
Details
|
|
SKU
|
IR-996400
|
|
Manufacturer part number
|
996400
|
|
Brand
|
Inner Range
|
|
Product name
|
Integriti PrismaX Colour LCD Keypad
|
|
Display
|
Full-colour 320 × 240 QVGA LCD
|
|
Product category
|
Security Alarm and Access Control Terminal
|
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Inner Range Integriti PrismaX Colour LCD Keypad IR-996400 is a premium security interface suitable for professional electronic security installations across Australia and New Zealand.
Australian security technology: Developed by Inner Range, an Australian manufacturer specialising in integrated intrusion detection and access control solutions.
Designed for professional security installations: Combines clear graphical navigation, programmable area status indicators and advanced Integriti system functionality for managed properties.
Security and automation capabilities: Enables security area control, alarm monitoring, door operation and building automation interactions through compatible Integriti infrastructure.
Quality and compliance: Manufacturer catalogue documentation identifies electrical compliance markings and RoHS environmental conformity. Current product-specific certifications and project compliance requirements should be independently checked against the relevant documentation.
Authorised brand sourcing: Genuine Inner Range products should be purchased from authorised manufacturer representatives and recognised security distributors. Supplier authorisation and any exclusive-sourcing claims should be confirmed before publication.
Manufacturer warranty coordination: Warranty and technical support enquiries may be coordinated directly with Inner Range where the supplier arrangement permits, or through the relevant authorised distributor.
Suitable for Australian and New Zealand buildings: Well suited to commercial, residential, industrial and institutional installations requiring a modern, easy-to-use Integriti keypad.
FAQs
1. What is the Inner Range Integriti PrismaX Colour LCD Keypad IR-996400 used for?
The IR-996400 is a full-colour security control keypad designed for compatible Inner Range Integriti systems. It allows authorised users to manage security areas, monitor alarms, operate supported doors, isolate zones and control configured automation functions.
2. What display does the Inner Range PrismaX IR-996400 feature?
The IR-996400 features a full-colour 320 × 240 QVGA LCD display with large, easy-to-read text and an intuitive graphical menu interface.
3. Is the Inner Range PrismaX Keypad IR-996400 compatible with Integriti systems?
Yes. The IR-996400 is specifically designed for compatible Inner Range Integriti security systems and communicates through the Integriti RS-485 LAN.
4. Can the Inner Range PrismaX IR-996400 be used with Inception security systems?
No. The IR-996400 is specified by Inner Range as an Integriti-only keypad. The EliteX IR-995400 is an alternative for compatible Integriti and Inception systems.
5. How many status LEDs does the PrismaX Keypad IR-996400 have?
The IR-996400 features eight programmable dual-colour LED indicators that can display security area status and other configured alarm, access control or automation conditions.
6. Does the Inner Range PrismaX IR-996400 include a temperature sensor?
Yes. The IR-996400 includes an integrated room temperature sensor that can display local temperature and provide information for compatible Integriti building automation functions.
7. Can the Inner Range PrismaX Keypad IR-996400 arm and disarm security areas?
Yes. The IR-996400 allows authorised users to arm and disarm configured security areas through its graphical menu interface.
8. Does the Inner Range PrismaX IR-996400 support access-controlled door operation?
Yes. The IR-996400 enables authorised users to control supported door locking and unlocking functions through the connected Integriti system.
9. Can the Inner Range PrismaX IR-996400 acknowledge and review alarms?
Yes. The IR-996400 supports monitoring and acknowledgement of alarms and events, allowing authorised users to review relevant system activity.
10. Does the Inner Range PrismaX Keypad IR-996400 have automatic brightness adjustment?
Yes. The IR-996400 features light-sensitive auto-dimming for its colour LCD display, keypad backlighting and LED indicators.
11. Can the Inner Range PrismaX IR-996400 support Card & PIN authentication?
Yes. The IR-996400 can support Card & PIN access control and terminal login when fitted with the compatible optional SIFER Plug-On Reader Kit 994721PCB&K.
12. Does the Inner Range PrismaX IR-996400 have a built-in SIFER reader?
No. The standard IR-996400 does not include a SIFER reader. A compatible plug-on reader kit is available separately.
13. What power supply does the Inner Range PrismaX Keypad IR-996400 require?
The IR-996400 operates from an 11–14 V DC supply. Manufacturer specifications indicate typical current consumption below 100 mA at 12 V, with peak current reaching approximately 270 mA.
14. How many PrismaX IR-996400 keypads can connect to an Integriti controller?
Up to 99 IR-996400 keypads can be connected to a compatible Integriti controller according to manufacturer documentation, subject to the system's overall installation requirements.
15. What are the dimensions of the Inner Range PrismaX IR-996400?
The manufacturer catalogue lists the IR-996400 housing dimensions as 168 mm high, 88 mm wide and 19 mm deep. Some distributor documentation lists alternate dimensions, so the supplied hardware revision should be confirmed.
16. Is the Inner Range PrismaX IR-996400 suitable for indoor installation?
Yes. The IR-996400 is intended for suitable protected environments with operating temperatures from 0°C to +50°C and relative humidity of 15–85%, non-condensing.
17. Can the Inner Range PrismaX IR-996400 be used to program an Integriti system?
The IR-996400 is primarily an end-user keypad and supports user-facing system functions. For full installation and commissioning menu access, Inner Range recommends the EliteX keypad instead.
18. What is the difference between the Inner Range PrismaX IR-996400 and EliteX IR-995400?
The PrismaX IR-996400 features a full-colour graphical LCD interface and integrated temperature sensor, while the EliteX IR-995400 uses a two-line OLED display and supports extensive installer programming. The PrismaX is Integriti-only, whereas the EliteX supports compatible Integriti and Inception systems.
19. Does the Inner Range PrismaX IR-996400 support building automation?
Yes. The IR-996400 allows users to control configured automation functions and can supply local temperature information for supported Integriti automation applications.
20. Is the Inner Range PrismaX Colour LCD Keypad IR-996400 suitable for Australian and New Zealand security installations?
Yes. The IR-996400 is suitable for professionally installed Inner Range Integriti security systems in Australia and New Zealand, subject to system compatibility and applicable installation requirements.
