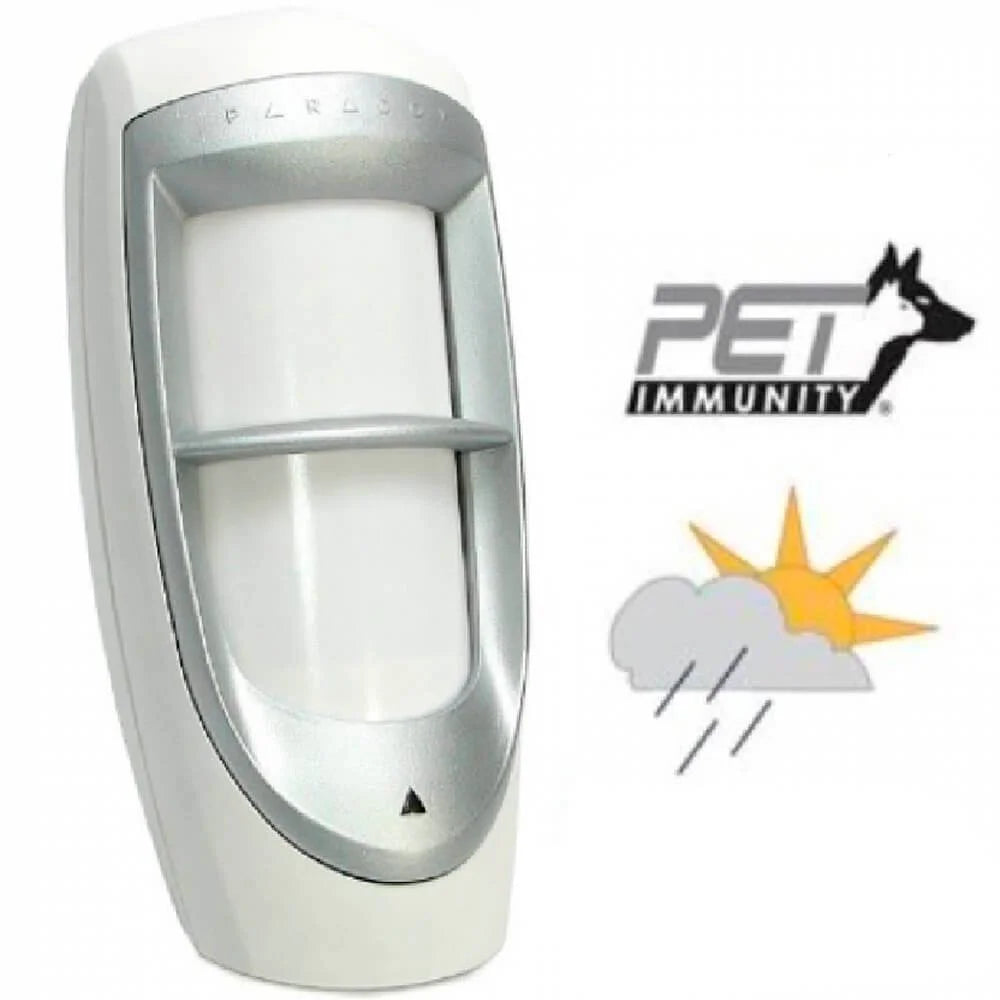

The Paradox PMD85 Wireless Outdoor Quad PIR Detector is a high-performance wireless motion sensor purpose-built for robust outdoor protection in residential, commercial, and industrial applications. Designed with dual-opposed PIR elements, the PMD85 ensures highly accurate detection while maintaining immunity to pets up to 40kg (90lbs)—ideal for larger animals and active outdoor environments.
Encased in a durable, impact-resistant housing with rubber gasket lining and UV-protected optics, the PMD85 is engineered for all-weather reliability. It operates effectively between -35°C to +50°C, making it suitable for use across Australia and New Zealand's varied climate zones. Its horizontal and vertical curtain beam configuration provides versatile detection coverage, including fences, balconies, and narrow pathways.
This model is compatible with EVO Bus systems and also supports relay mode, allowing for integration with a wide range of Paradox security panels. Multi-level sensitivity adjustment and the inclusion of Alive software ensure optimal battery conservation and real-time feedback, while wireless ranges up to 70m with RTX3 provide installation flexibility.
What’s in the Box
1 x Paradox PMD85 Wireless Outdoor Quad PIR Detector
1 x Outdoor Mounting Bracket
3 x AAA Batteries
Mounting Hardware
Quick Start Installation Guide
Main Features
Quad PIR Detection: Two dual-opposed sensors enhance motion detection precision
Pet Immunity: Immune to animals up to 40kg (90lbs)
Dual Curtain Beam Technology: Horizontal and vertical beams ideal for perimeter and wall protection
Weather-Resistant Casing:
IP54-rated
UV-protected lens
Rubber gasket seal for moisture and dust resistance
Operating Range: -35°C to +50°C
Wireless Range:
35m with MG6250
70m with MG5050 and RTX3
Alive Software: Maintains LED visibility in energy-saving mode without compromising battery life
Energy Efficiency: Enters a 3-minute energy save mode after two detections within five minutes
Multi-Level Sensitivity Adjustment: Customize detection response to environmental conditions
EVO Bus & Relay Compatible: Works seamlessly with both advanced and legacy Paradox systems
Specifications
Sensor Type: Dual-Element PIR x 2 (Quad Technology)
Detection Area: Horizontal and vertical curtain beams
Pet Immunity: Up to 40kg (90lbs)
Wireless Frequency: 433MHz
Power Supply: 3 x AAA alkaline batteries
Battery Life: Up to 3 years (typical usage)
Operating Temperature: -35°C to +50°C
RF Range:
35m with MG6250
70m with MG5050 or RTX3
Casing: UV-protected plastic with injected rubber gasket
IP Rating: IP54
Certifications: EN50131-2-2 Grade 2, Class IV
Warranty Information
The Paradox PMD85 is supported by a 1-year manufacturer’s warranty, ensuring reliable performance and protection against manufacturing defects under normal use.
About the Brand – Paradox Security Systems
Paradox Security Systems, based in Canada, has set global standards in the design and manufacture of advanced intrusion detection systems. Their product range blends innovation, durability, and ease of use, earning the trust of installers and end users alike. The PMD85 reflects Paradox’s commitment to high-quality outdoor motion detection.
SKU
PDX-PMD85
Practical Use Scenarios
Residential Outdoor Spaces: Driveways, patios, and side paths needing pet-friendly motion coverage
Balconies and Verandas: Vertical curtain beams ideal for multi-story access protection
Commercial Perimeters: Detects movement along fences, loading docks, and warehouses
Gated Communities or Farms: Versatile detection with high wireless range and pet tolerance
Excellence for the Australian and New Zealand Market
The Paradox PMD85 is built for superior performance in Australia and New Zealand, offering IP54 weatherproofing, pet immunity, and EN50131 Grade 2 certification. This detector is distributed exclusively via authorized regional suppliers, ensuring compliance with local standards and seamless integration into NDSS-compliant systems. Warranty support is handled directly by Paradox's official network, providing reliable after-sales service across the region.
Frequently Asked Questions (FAQs)
Q1: What pet weight is the PDX-PMD85 rated for? A1: The PMD85 (PDX-PMD85) is pet immune for animals up to 40kg (90lbs), suitable for most dogs, including large breeds.
Q2: What types of motion does the PDX-PMD85 detect? A2: The PMD85 uses dual curtain beam detection—horizontal and vertical—ideal for pathways, balcony doors, and narrow spaces.
Q3: Is the PDX-PMD85 suitable for outdoor use? A3: Absolutely. It is rated IP54 and includes UV protection, a rubber gasket, and operates effectively in temperatures from -35°C to +50°C.
Q4: What Paradox systems are compatible with the PDX-PMD85? A4: The PDX-PMD85 works with MG6250, MG5050, and RTX3, and can be configured for both EVO Bus (Combus) or relay-based systems.
Q5: How is battery life managed on the PDX-PMD85? A5: The detector features Alive software and an energy-save mode, extending battery life to up to 3 years under typical usage conditions.
