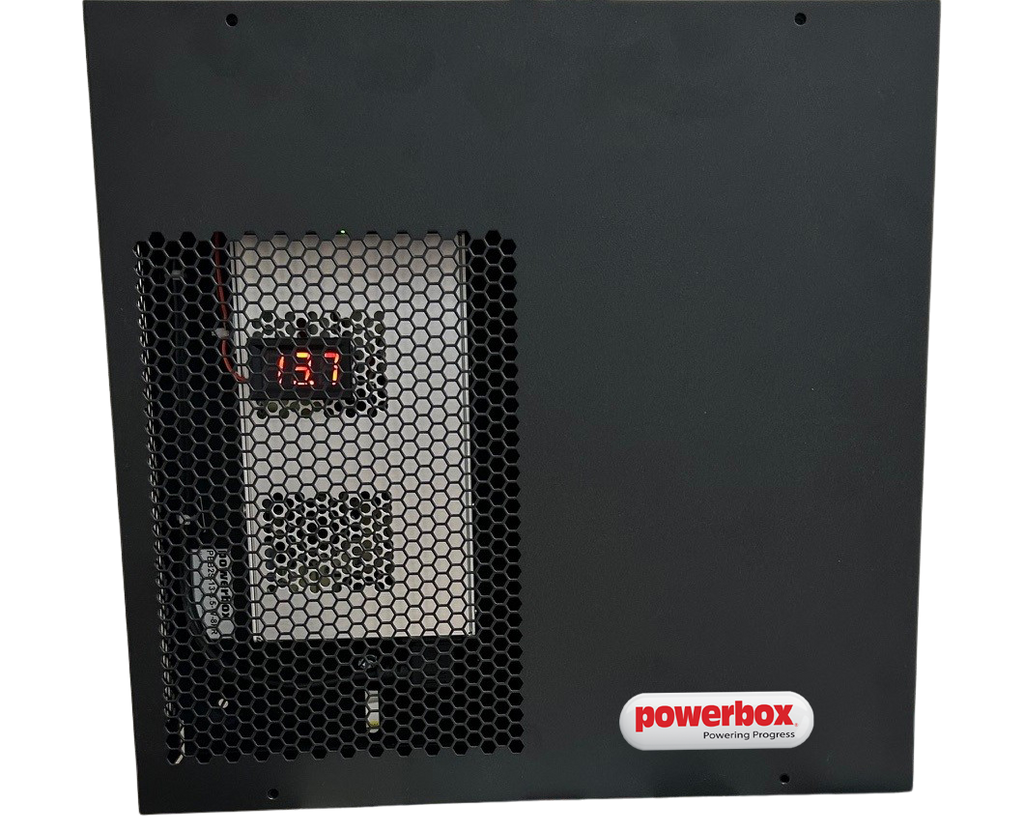

The Powerbox PBSC-123-8FRM Integrated Security Cabinet is a pre-configured, wall-mounted enclosure engineered for commercial and industrial security applications. Designed to deliver reliable 12VDC power with battery backup capabilities, it comes equipped with a high-performance 3.5A battery charger, an advanced 8-way selectable output power distribution module with Fire Trip functionality, and a digital voltmeter for monitoring system voltage without intrusion.

This unit simplifies installation through a pre-wired, interconnected configuration and features tamper-proof security, alarm monitoring, and dual GPO facilities for added versatility. Its durable, ventilated steel housing supports various battery sizes, ensuring compatibility with multiple use cases.

What’s in the Box

• 1 x Powerbox PBSC-123-8FRM Integrated Cabinet

• Pre-installed 12V 3.5A Battery Charger

• Fire Trip-enabled Power Distribution Module (8-way)

• Voltmeter

• Dual Tamper Switches (cover and back box)

• IEC mains plug & 2m lead

• GPO cut-out (for 2x GPOs)

Main Features

• Battery Charger Output: 13.8VDC, 3.5A

• Fire Trip Distribution Module: 8-way fused outputs (Fire/Standard selectable)

• Tamper Proof: Dual switches for cover and back box

• Voltmeter: Digital display inside front panel

• Alarm Monitoring: Mains fail and battery low alarms

• Mounting: Robust wall-mount with ventilated enclosure

• Cable Access: Side and rear cable entries

• Battery Compatibility: Supports multiple 12V battery sizes

• GPO Facility: Ready for up to 2 general purpose outlets

Detailed Specifications

• Dimensions: 375 x 362 x 111.5mm

• Input Voltage Range: 240VAC

• Output Voltage Range: 13.8VDC

• Output Current: 3.5A

• Fire Relay Coil Voltage: 12-24VDC

• Max Current: 8A (Standard & Fire Power)

• Self-Healing Fuse Outputs: 8 fused outputs

• Battery Support: 12V 7Ah / 12Ah / 17Ah or 2 x 7Ah

Warranty Information

• Warranty: 24 Months Manufacturer Warranty

Brand Description

Powerbox is a trusted Australian manufacturer renowned for delivering robust and intelligent power solutions tailored to industrial and security applications. Their integrated designs focus on quality, safety, and simplicity in deployment.

Practical Use Scenarios

• Security system backup power in commercial facilities

• Industrial alarm systems with fire trip monitoring

• Access control power support with tamper detection

• CCTV power distribution with redundant battery backup

Excellence for the Australian and New Zealand Market

• Fully compliant with Australian safety and electrical standards

• Designed with IP-rated enclosures suited for varied climate conditions

• Supported by Powerbox’s authorised representatives in Australia and New Zealand

• 24-month warranty with local support and parts availability

• Engineered for local infrastructure with high-quality components and compliance in mind

Datasheet & Resources

• PBSC-123-8FRM Full Datasheet (PDF)

FAQs – PBXPBSC-123-8FRM

Q1: What battery sizes can be used with PBXPBSC-123-8FRM?
A1 (PBXPBSC-123-8FRM): This unit supports 12V 7Ah, 12Ah, 17Ah, and dual 7Ah batteries.

Q2: Is the power distribution module fire trip-enabled?
A2 (PBXPBSC-123-8FRM): Yes, it includes an 8-way fire trip-selectable output module for enhanced fire monitoring integration.

Q3: Does the unit include tamper protection?
A3 (PBXPBSC-123-8FRM): Yes, it comes with two tamper switches (cover and back box) for added security.

Q4: Can I install this system myself or is professional installation required?
A4 (PBXPBSC-123-8FRM): While it is pre-configured for easy installation, professional installation is recommended for optimal safety and compliance.

Q5: What is the warranty period for the PBXPBSC-123-8FRM?
A5 (PBXPBSC-123-8FRM): It includes a 24-month manufacturer warranty.
