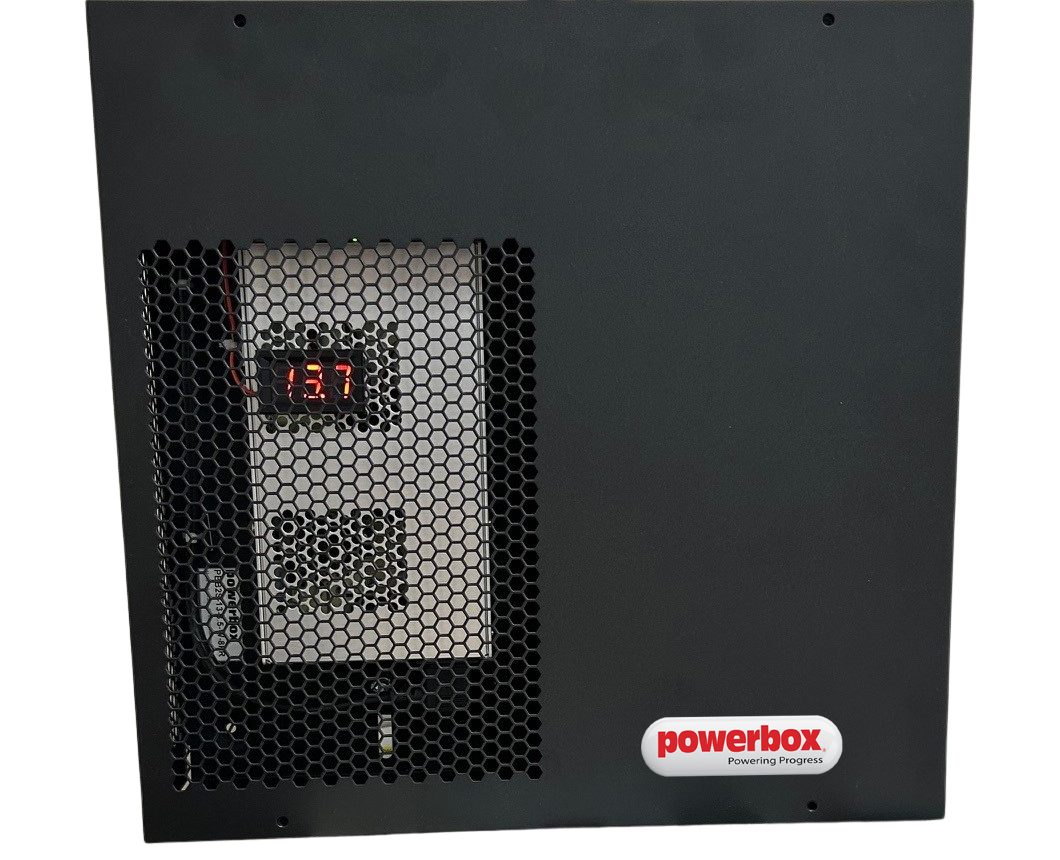

The Powerbox PBXPBSC-127-10DM is a wall-mounted integrated security cabinet designed to provide uninterrupted 12V DC power for critical commercial and industrial applications. Engineered for maximum reliability and ease of installation, this cabinet features a high-performance 7A battery charger, dual tamper-proof switches, pre-configured hardware, and a robust ventilated enclosure with rear and side cable access. Ideal for powering and safeguarding security systems, this solution includes an advanced Power Distribution Module (PDM) with 10 self-healing fused outputs, ensuring superior protection and simplified maintenance.
The integrated voltmeter located discreetly behind the front panel allows quick system voltage checks, while comprehensive alarm monitoring alerts users to mains failure or low battery events. Designed for flexibility, it supports multiple battery configurations and includes cutouts for two General Purpose Outlets (GPOs), making it adaptable to various operational needs.
What’s Included in the Box:
-
Powerbox PBXPBSC-127-10DM Security Cabinet
-
Built-in 12VDC 7A Battery Charger
-
Power Distribution Module with 10 self-healing fused outputs
-
IEC mains plug & 2m lead
-
Integrated digital voltmeter
-
Dual tamper switches (cover & back box)
-
Wall mounting hardware
Main Features:
-
Pre-configured and pre-wired for rapid deployment
-
Supports 12V DC output at 7A
-
10 self-healing fused output channels
-
Tamper-proof with dual tamper switches
-
Fire and standard power selectable outputs
-
Integrated system voltmeter
-
Mains fail and battery alarm monitoring
-
GPO cut-outs to support up to 2 outlets
-
Durable ventilated metal enclosure with multiple cable access points
Detailed Specifications:
-
Input Voltage Range: 240VAC
-
Output Voltage: 13.8VDC
-
Output Current: 7A
-
Input Current: 2.8A
-
Fused Outputs: 10 x self-healing
-
Mounting: Wall-mounted
-
Dimensions: 375 x 362 x 111.5mm
-
Battery Configurations Supported:
-
1 x 12V 7Ah
-
1 x 12V 12Ah
-
1 x 12V 17Ah
-
2 x 12V 7Ah
-
GPOs: Facility for 2
-
Enclosure: Ventilated, with 4 wall mounting points
-
Cable Access: Side and rear
-
Mains Connection: IEC mains plug (2m cable)
-
Warranty: 24 Months
Brand Description:
Powerbox is a trusted Australian brand specializing in innovative and durable power supply solutions for industrial and security sectors. With a focus on reliability and safety, Powerbox products are engineered to meet the stringent requirements of commercial installations.
SKU: PBXPBSC-127-10DM
Practical Use Scenarios:
-
Commercial security system backup power
-
Industrial access control systems
-
Integrated fire alarm power supplies
-
Surveillance systems in remote facilities
-
Battery-backed emergency communication systems
Datasheet / Downloadable Resources:
Download PBXPBSC-127-10DM Datasheet (PDF)
Excellence for the Australian and New Zealand Market:
The Powerbox PBXPBSC-127-10DM is crafted to meet Australian quality standards, ensuring compliance with safety and electrical regulations. It is exclusively sourced from authorized distributors and includes warranty handling directly with Powerbox, providing peace of mind for ANZ customers. Ideal for mission-critical applications, it supports local electrical infrastructure and installation practices.
SEO-Optimized FAQs (SKU: PBXPBSC-127-10DM):
Q1: What voltage does the PBXPBSC-127-10DM output?
A1: The PBXPBSC-127-10DM outputs a regulated 13.8V DC at 7A, ideal for security and access control systems.
Q2: Does the PBXPBSC-127-10DM come with pre-wiring?
A2: Yes, the PBXPBSC-127-10DM is fully pre-wired, significantly reducing installation time.
Q3: Can I mount the PBXPBSC-127-10DM on a wall?
A3: Absolutely, it is designed for wall mounting and includes all required hardware.
Q4: What battery sizes does the PBXPBSC-127-10DM support?
A4: The cabinet accommodates multiple battery types, including 7Ah, 12Ah, 17Ah, and two 7Ah combinations.
Q5: Is the PBXPBSC-127-10DM tamper-proof?
A5: Yes, it features dual tamper switches for the front cover and back box, enhancing security.
