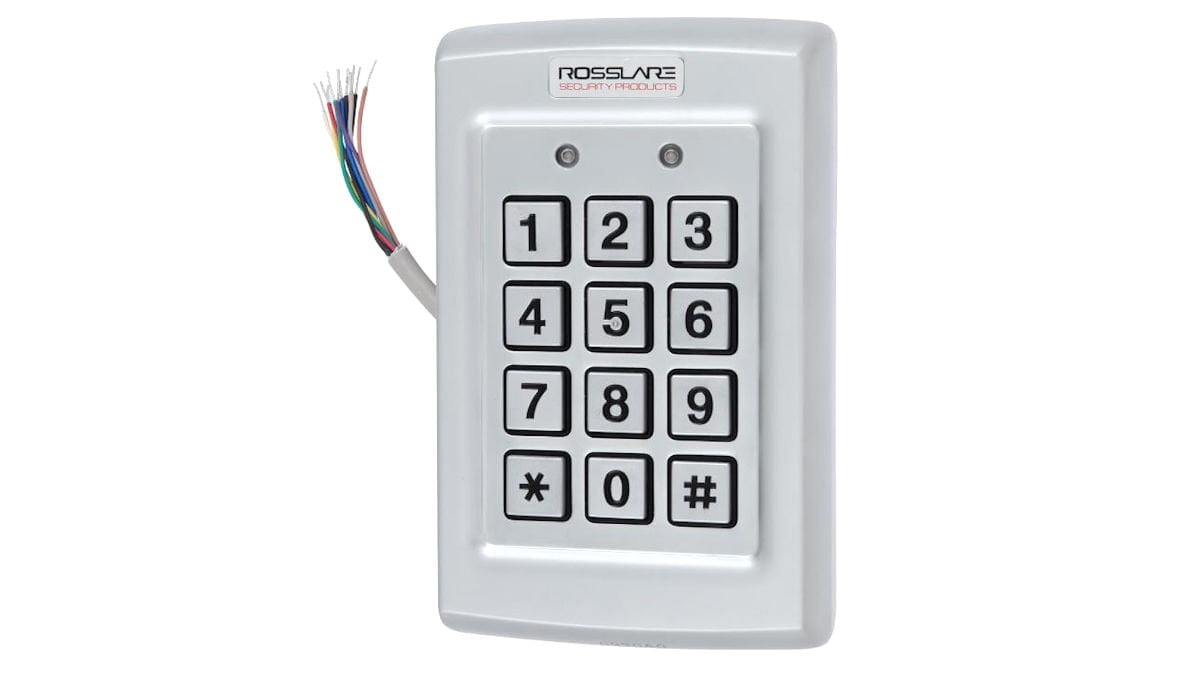

The Rosslare AC-Q41SB is a high-quality, vandal-resistant keypad and reader solution designed for secure and reliable access control. With its durable metal construction, backlit keys, and support for up to 500 users, it is ideal for residential, commercial, and industrial environments. Its advanced features, including optical tamper detection, an automatic internal heater, and multiple security levels, ensure dependable performance even in challenging conditions.

Key Features

User Capacity and Functionality

• 500-User Capacity: Supports up to 500 users with PIN credentials for secure access.
• Programmable PINs: Accommodates up to 8-digit PINs for enhanced security.
• Lockout Feature: Locks keypad after 3 consecutive incorrect PIN attempts to prevent unauthorized access.

Design and Durability

• Anti-Vandal Construction: Built with durable metal and smooth edges for high resistance to tampering or damage.
• Backlit Keypad: Blue backlit keys provide visibility in low-light environments, enhancing user convenience.
• Weather-Resistant: Operates reliably in all weather conditions, thanks to its rugged design and integrated heater for temperatures as low as -20˚C (-4˚F).

Security and Alarm Features

• Optical Tamper Detection: Detects and responds to tampering attempts for added security.
• Tri-Colored LEDs & Sounder: Provides visual and auditory feedback during programming and operation.
• Three Security Levels: Easily switch between security levels using special PIN codes.

Power and Connectivity

• Wide Power Input Range: Supports low voltage AC/DC input for flexible installation options.
• Auxiliary Input and Output: 10 programmable modes for added customization.
• 2 Amp Form C Relay: Compatible with fail-safe and fail-secure lock configurations, with inputs for Request-to-Exit (REX) and door monitoring.

Additional Features

• Doorbell Key: Dedicated key (‘*’) can trigger a doorbell when paired with Rosslare’s BL-D40 accessory.
• Memory Protection: Non-volatile memory ensures stored data remains intact even during power loss.

Professional-Grade Applications

• Optical Tamper Detection: Secures against unauthorized physical interference.
• Door Monitoring and Alerts: Supports modes such as door ajar, forced entry, and secure mode for real-time access management.

Specifications

• Capacity: 500 Users
• Keypad: Blue backlit metal keys, 8-digit PIN support
• Relay Output: 2 Amp Form C Lock Strike Relay
• Tamper Detection: Optical sensor
• Power Supply: Low voltage AC/DC
• Operating Temperature: -20˚C to +60˚C (-4˚F to +140˚F)
• Dimensions: Slim profile suitable for narrow installations
• Warranty: 60 months (5 years)

What’s in the Box

1. Rosslare AC-Q41SB Keypad Unit
2. Installation Manual
3. Mounting Accessories

Applications

• Residential Security: Secure access for gated homes or apartment buildings.
• Commercial Buildings: Suitable for offices, retail, and industrial facilities requiring robust access control.
• Outdoor Installations: Weather-resistant design makes it ideal for gates, parking areas, and entryways.

The Rosslare AC-Q41SB is a perfect blend of style, durability, and advanced functionality, making it a versatile access control solution for diverse environments.
