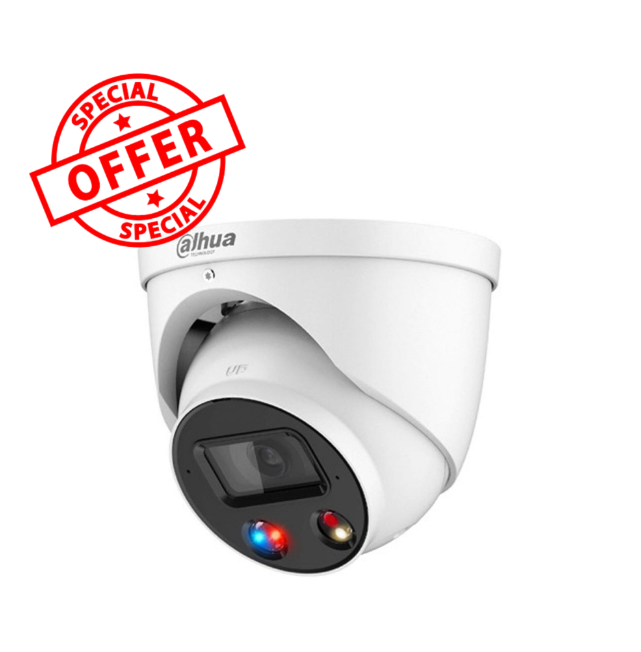

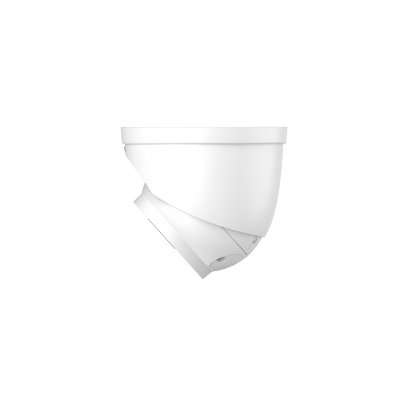

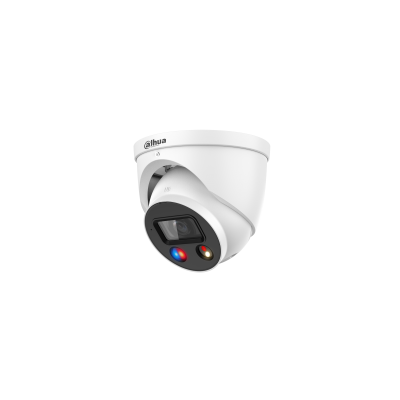

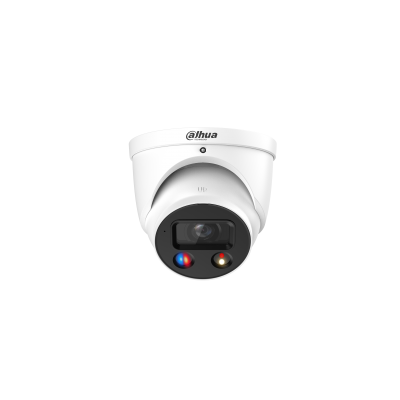

The Dahua IPC-HDW3449H-AS-PV is a next-generation 4MP fixed-focal eyeball network camera designed for intelligent perimeter surveillance and proactive threat deterrence. Featuring advanced AI analytics through the WizSense platform, this camera offers dual illumination (IR + warm light), active deterrence via sound and flashing red/blue lights, built-in mic and speaker for two-way talk, and top-tier video compression with Smart H.265+. Its rugged IP67-rated casing ensures dependable outdoor performance in harsh environments.

This model is part of the 3449-PV-S5 series and is ideal for applications that demand real-time intrusion alerts, face detection, people/vehicle classification, and visual deterrence capabilities.

What's in the Box

• 1 × Dahua IPC-HDW3449H-AS-PV Camera

• Mounting Template & Screws

• Quick Installation Guide

• Waterproof Ethernet Connector

• Optional Accessories (sold separately): Junction Box, Wall Mount Bracket

Key Features

• 4MP 1/2.7” CMOS Sensor – Delivers high-definition images in low-light scenes

• Smart Dual Illumination – Auto-switching IR and warm light for 30m visibility and colour at night

• Active Deterrence – Red and blue strobe lights + siren with customizable alerts

• AI-Powered Detection – Intrusion, tripwire, loitering, stay detection, face detection, SMD 4.0

• Built-in Mic and Speaker – Supports real-time two-way audio

• Edge Intelligence – Onboard AI with AcuPick, Smart Search, and AI Scene Self-Adaption (AI SSA)

• Flexible Video Streaming – Triple-streaming with AI H.265/H.264, Smart Codec, and MJPEG support

• Up to 512GB MicroSD Card Support – For reliable edge storage

• IP67-Rated – Weatherproof and dustproof metal casing for outdoor durability

• PoE & 12V DC – Flexible power installation

Detailed Specifications

Camera

• Sensor: 1/2.7" CMOS

• Resolution: Max. 2688 × 1520 (4MP)

• Min. Illumination: 0.003 lux (Color), 0.0003 lux (B/W), 0 lux (IR on)

• IR & Warm Light Distance: Up to 30m each

• Lens: Fixed 2.8mm or 3.6mm (M12)

• Field of View: 101° (2.8mm), 82° (3.6mm)

• Smart Illumination: Auto/manual switch between IR and warm light

AI & Video Analytics

• IVS: Intrusion, tripwire, stay/loitering detection

• Face Detection: Snapshot optimization, facial attribute filtering

• SMD 4.0: Smart Motion Detection with human/vehicle classification

• AcuPick: AI-powered target search

• AI SSA: Intelligent scene adaptation for image optimization

• Smart Search: Event-based playback with Smart NVR

Audio & Alarm

• Audio I/O: 1 in, 1 out (RCA)

• Built-in Mic & Speaker: Yes, for two-way talk

• Alarm I/O: 1 in, 1 out (wet contact)

• Siren & Light: Yes (Red & Blue lights, built-in speaker)

Video

• Compression: AI H.265/H.264, Smart Codec, MJPEG

• Frame Rate: Up to 30fps @ 4MP

• Bitrate: 3 kbps–16384 kbps

• WDR: 120 dB

• BLC, HLC, 3D NR, Defog, Privacy Masking: Supported

• Rotation: 0°/90°/180°/270°

• Streams: 3 simultaneously

Network & Storage

• Interface: 1 × RJ-45 (10/100 Base-T)

• Protocols: IPv4/6, HTTP, HTTPS, TCP, UDP, RTSP, NTP, SMTP, FTP, P2P, etc.

• ONVIF Profiles: S, G, T

• User Access: Up to 20 users (64 Mbps bandwidth)

• Storage: FTP, SFTP, NAS, MicroSD (up to 512GB)

Power & Environment

• Power: 12V DC / PoE (802.3af)

• Consumption: Max. 8.8W (with deterrence active)

• Operating Temp: –40°C to +60°C

• Ingress Protection: IP67

• Humidity: ≤95% RH

• Material: Metal Housing

• Dimensions: Ø122.0 × 110.9 mm

• Weight: 0.75 kg (net), 0.92 kg (gross)

Warranty

2-year warranty supported by Dahua-authorized Australian distributors. All warranty claims can be processed locally through certified service centers or installation partners.

Brand Description

Dahua Technology is a globally recognized leader in video surveillance and security solutions. Known for their innovations in AI, edge intelligence, and video analytics, Dahua products are used in over 180 countries, powering applications from smart cities to residential homes. Their WizSense product line brings high-end security features to everyday users.

SKU

IPC-HDW3449H-AS-PV

Practical Use Scenarios

• Residential Security: Deter porch theft and intruders with light/sound alerts

• Small Business Entrances: Monitor, detect loiterers, and communicate via two-way audio

• Parking Lots: Use dual illumination for 24/7 clear video and automatic alarm triggering

• Perimeter Surveillance: Protect fences, driveways, and storage yards with intelligent intrusion alerts

• Schools & Campuses: Monitor for unauthorized access with SMD 4.0 and face detection

Excellence for the Australian and New Zealand Market

• Fully tested to meet Australian RCM and CE standards

• Optimized for ANZ weather extremes with a wide temperature operating range and IP67 protection

• Available through official Dahua partners for verified authenticity and warranty coverage

• Backed by local warranty handling and support from authorized distributors

• Complies with NDIS-aligned installation practices where applicable

FAQs for IPC-HDW3449H-AS-PV

Q1: Does the IPC-HDW3449H-AS-PV support two-way audio communication?
Yes, the IPC-HDW3449H-AS-PV features built-in microphones and speakers for real-time two-way audio, ideal for live communication and active deterrence.

Q2: What is the illumination distance of the IPC-HDW3449H-AS-PV’s IR and warm light?
Both IR and warm light LEDs provide illumination up to 30 meters, allowing the camera to capture clear footage in complete darkness.

Q3: Can I use the IPC-HDW3449H-AS-PV with a MicroSD card for edge recording?
Yes, this model supports Micro SD cards up to 512GB, ideal for standalone storage without needing an NVR.

Q4: What smart detection features are included in the IPC-HDW3449H-AS-PV?
It includes tripwire, intrusion, stay and loitering detection, face detection, SMD 4.0, and intelligent audio and voltage anomaly detection.

Q5: Is the IPC-HDW3449H-AS-PV weatherproof for outdoor use in Australia?
Absolutely. With an IP67 rating and a wide operating temperature range of –40°C to +60°C, it’s fully suited for harsh Australian and New Zealand outdoor conditions.

Q6: Does the IPC-HDW3449H-AS-PV support PoE for power and data?
Yes, the camera supports Power over Ethernet (PoE), simplifying cabling by combining power and data transmission over a single Ethernet cable.

Q7: Is the IPC-HDW3449H-AS-PV compatible with third-party VMS systems?
Yes, it supports ONVIF (Profile S/G/T), RTSP, and other standard protocols for seamless integration with third-party systems like Milestone, Genetec, and others.
