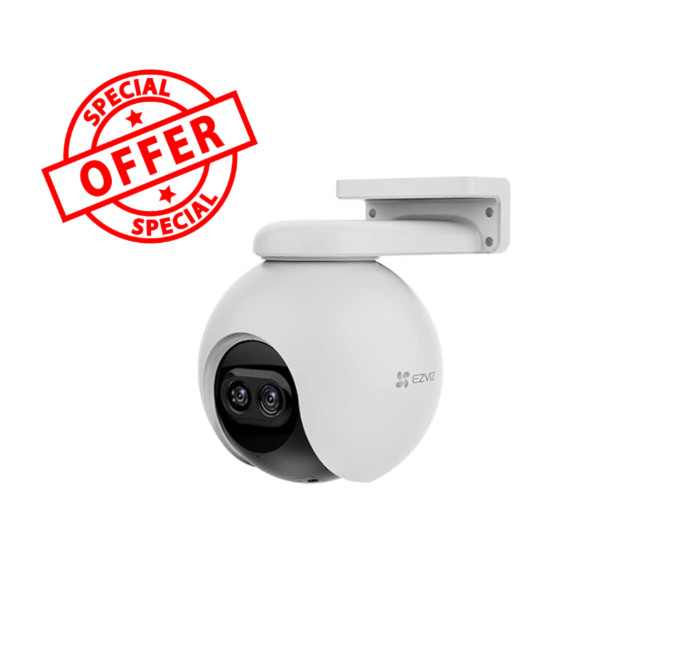

The EZVIZ C8PF (Model: CS-C8PF (1080P)) redefines outdoor surveillance with its unique dual-lens optical zoom design, delivering wide-angle and telephoto coverage simultaneously. Featuring AI-powered human shape detection, 8× hybrid zoom, and PT (Pan-Tilt) control, this smart camera covers every corner of your outdoor space with exceptional detail. The C8PF is engineered for 24/7 protection, built to endure harsh weather, and supports both cloud and local microSD storage up to 512GB. Whether monitoring home entrances, gardens, or commercial sites, this camera offers intelligent, reliable performance in all lighting and weather conditions.
What’s Included in the Box
Main Features
-
Dual-Lens System – 2.8 mm wide-angle + 12 mm telephoto lens for simultaneous panoramic and zoomed views
-
8× Hybrid Zoom – Combines optical and digital zoom for detailed remote monitoring
-
Pan & Tilt – 340° horizontal and 80° vertical rotation for full area coverage
-
AI Human Detection – Accurate motion detection that filters out irrelevant alerts
-
Full HD 1080p – Clear video resolution with 3D DNR and digital WDR for enhanced image quality
-
Black & White Night Vision – Up to 30 metres with IR LEDs
-
Weatherproof Housing – Built for tough outdoor conditions with a weather-resistant design
-
Local & Cloud Storage – Supports microSD cards up to 512GB and EZVIZ Cloud
-
Secure 2.4GHz Wi-Fi – Easy pairing with robust encryption protocols
-
Custom Alert Zones – Focus on the areas that matter most to you
-
Microphone Support – Captures environmental audio with video
Detailed Specifications
| Category |
Details |
| Model |
CS-C8PF (1080P) |
| Image Sensor |
Dual 1/2.7" Progressive Scan CMOS |
| Lenses |
2.8 mm (wide) + 12 mm (telephoto) @ F1.6 |
| PTZ Range |
Pan: 340°, Tilt: 80° |
| Minimum Illumination |
0.05 Lux @ (F1.6 AGC ON), 0 Lux with IR |
| IR Range |
Up to 30 metres |
| Max Resolution |
1920 × 1080 |
| Frame Rate |
Max. 15 fps, network adaptive |
| Video Compression |
H.265 / H.264 |
| Audio Support |
Microphone built-in |
| Smart Features |
AI Human Detection, Custom Alert Zones |
| Storage Options |
MicroSD card (up to 512GB), EZVIZ Cloud |
| Wi-Fi |
2.4 GHz, 802.11 b/g/n |
| Ethernet Port |
RJ45 10M/100M |
| Security Protocols |
WPA/WPA2, WPA-PSK/WPA2-PSK |
| Power Supply |
DC 12V / 1A |
| Power Consumption |
Max 12W |
| Operating Temp |
–30°C to +60°C |
| Weather Resistance |
Weatherproof design (outdoor rated) |
| Camera Dimensions |
154 × 116 × 164 mm |
| Weight |
Product: 578 g; Packaged: 938 g |
| Certifications |
UL, FCC, CE, WEEE, REACH, RoHS |
Warranty Information
-
EZVIZ Limited Warranty: 2 years
-
Covers manufacturing defects and normal hardware failure
-
Warranty support available through authorised Australian and New Zealand distribution partners
Brand Description
EZVIZ is a leading innovator in smart security technology, offering a wide range of home and commercial surveillance solutions. Known for its user-friendly designs and cloud-connected ecosystems, EZVIZ combines advanced imaging, AI-driven intelligence, and reliable durability to empower customers with peace of mind and real-time control over their property.
SKU
CS-C8PF-1080P
Practical Use Scenarios
-
Driveway Monitoring – Use 8× zoom to monitor approaching vehicles or visitors with precise clarity
-
Backyard Surveillance – Track movement across wide open areas with pan and tilt controls
-
Shopfront Security – Deter loiterers and monitor activity after hours with AI human detection
-
Perimeter Protection – Set custom zones to monitor gates, fences, and blind spots
-
Multi-View Coverage – Use dual-lens view to monitor both wide-angle overview and fine details
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
-
Fully certified for ANZ standards including UL, FCC, CE, WEEE, RoHS, and REACH
-
Designed to operate in extreme climates from –30°C to +60°C
-
Supports local microSD storage up to 512GB, ideal for data privacy preferences
-
Built to handle outdoor environmental stress, including rain, wind, and dust
-
Supported by local distributors and warranty partners for reliable service
FAQs
Q1: What is the zoom capability of the CS-C8PF-1080P camera?
The CS-C8PF-1080P features 8× hybrid zoom, combining optical and digital zoom for clearer, detailed views without distortion.
Q2: Does the CS-C8PF-1080P camera support night vision?
Yes, the CS-C8PF-1080P provides black & white infrared night vision up to 30 metres, ensuring visibility in complete darkness.
Q3: Is the CS-C8PF-1080P suitable for outdoor use in Australia and New Zealand?
Absolutely. The CS-C8PF-1080P is weather-resistant, built to withstand temperatures from –30°C to +60°C, perfect for all ANZ environments.
Q4: Can I use a microSD card with the CS-C8PF-1080P?
Yes, the CS-C8PF-1080P supports local storage with a microSD card up to 512GB, in addition to EZVIZ cloud storage options.
Q5: Does the CS-C8PF-1080P support Wi-Fi and Ethernet?
Yes, the CS-C8PF-1080P supports both 2.4 GHz Wi-Fi and a wired Ethernet connection for flexible installation.
