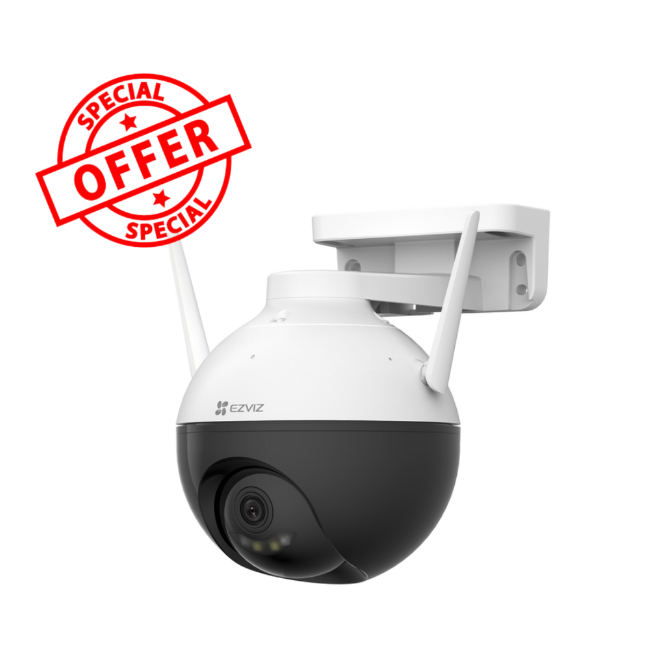

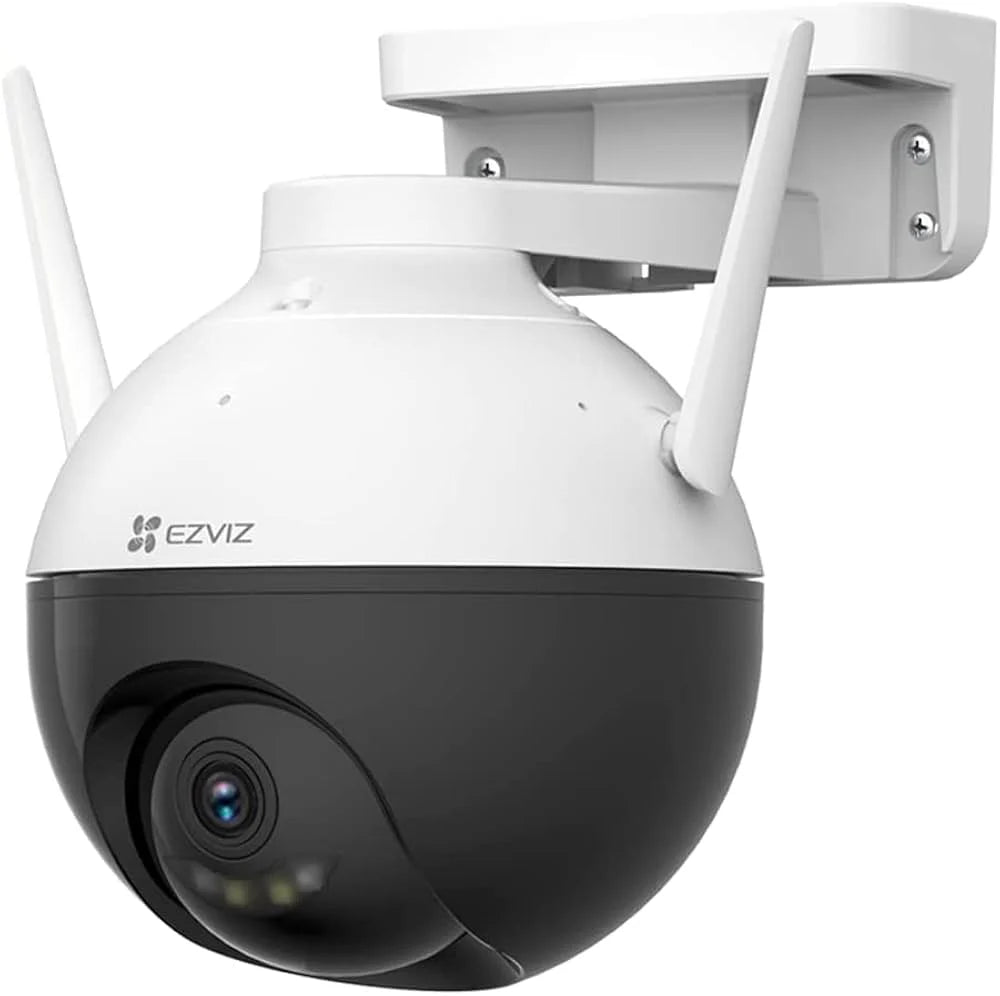

The EZVIZ CS-C8W (4MP, W1) is a feature-rich outdoor pan-tilt Wi-Fi security camera that delivers 2K Quad HD video, intelligent motion detection, and 360° area coverage to protect your home or business day and night. Engineered with AI-powered human detection, the C8W significantly reduces false alerts and ensures you’re only notified about important activity.

With support for pan (352°) and tilt (95°), this camera virtually eliminates blind spots. Whether monitoring large backyards, driveways, or side entrances, the C8W’s powerful 4MP image sensor and up to 30m night vision ensure crystal-clear coverage around the clock. Backed by EZVIZ Cloud and local MicroSD card storage (up to 256GB), this camera combines advanced security with user-friendly management via the EZVIZ App.DATASHEET

Key Features

• 2K Quad HD Resolution (2560 × 1440) with 30 fps recording

• Pan 352° / Tilt 95° – Full area coverage with no blind spots

• AI-Powered Human Detection – Smart filtering of irrelevant motion

• Two-Way Audio with built-in mic and speaker

• Black & White Night Vision – Up to 30m (98ft)

• Multiple Lens Options: 4mm & 6mm fixed lens (selectable angle)

• H.265 Compression – Saves bandwidth & storage

• Weatherproof Design – Reliable operation from –30°C to +60°C

• Wi-Fi & Ethernet – Dual network connectivity

• Supports MicroSD card (up to 256GB) & EZVIZ Cloud Storage

• Compatible with EZVIZ App for iOS & Android

What’s Included in the Box

• 1 × EZVIZ CS-C8W 4MP Pan-Tilt Wi-Fi Camera

• 1 × 1.5-Metre Power Adapter

• 1 × Screw Kit

• 1 × Waterproof Kit

• 1 × Drill Template

• 1 × Quick Start Guide

• 1 × Regulatory Information Leaflet

Technical Specifications

Model

• CS-C8W (4MP, W1)

Camera

• Sensor: 1/2.7” Progressive Scan CMOS

• Max Resolution: 2560 × 1440 (2K Quad HD)

• Lens Options:

  • 4mm @ F1.6 – 87° Horizontal / 105° Diagonal FOV

  • 6mm @ F1.6 – 55° Horizontal / 66° Diagonal FOV

• Pan/Tilt: Pan: 352°, Tilt: 95°

• Min. Illumination: 0.5 Lux (Color), 0 Lux with IR

• IR Night Vision: Up to 30 metres (black & white)

Video & Audio

• Compression: H.265 / H.264

• Frame Rate: Up to 30 fps (adaptive streaming)

• Bit Rate: Adaptive; Max: 2 Mbps

• Audio: Two-way talk with built-in microphone & speaker

Network

• Wireless: IEEE802.11 b/g/n, 2.4GHz

• Wired: RJ45 Ethernet Port (10M/100M)

• Pairing: AP mode pairing

• Protocols: EZVIZ Cloud Proprietary Protocols

• Security: WPA/WPA2, 64/128-bit WEP

Storage

• Local: Supports MicroSD card (up to 256 GB)

• Cloud: EZVIZ Cloud Storage (subscription optional)

Smart Functions

• AI-Powered Person Detection

• Customizable Alert Zones

• Motion Detection Alerts via App

• General Functions: Anti-Flicker, Heartbeat, Dual Stream, Watermark

Power & Build

• Power Supply: 12V DC / 1A

• Power Consumption: Max. 6W

• Operating Conditions: –30°C ~ 60°C, up to 95% humidity

• IP Rating: Weatherproof build

• Product Dimensions: 158 x 157 x 149 mm

• Packaging Dimensions: 197 x 185 x 205 mm

• Net Weight: 510 g

Certifications

• UL / FCC / CE / WEEE / REACH / RoHS / UKCA

Warranty Information

Backed by a 2-Year Warranty through EZVIZ’s official distributors in Australia and New Zealand, ensuring localized support and stress-free product service.

Brand Overview – EZVIZ

EZVIZ stands at the forefront of smart security technology, offering high-performance cameras and home automation solutions globally. The brand is known for delivering reliable, AI-enhanced, and privacy-focused surveillance products that integrate seamlessly with today’s connected lifestyle.

Practical Use Scenarios

• Wide-Area Coverage for large yards or driveways

• Outdoor Entrances & Side Gates with flexible viewing angles

• Backyard Surveillance with motion-triggered alerts

• Live Communication with Delivery Personnel or Guests

• Pet or Vehicle Monitoring from anywhere

Excellence for the Australian and New Zealand Market

• Designed to endure harsh ANZ weather (-30°C to +60°C)

• Complies with ANZ electrical and wireless safety standards

• Locally supported by EZVIZ-authorized partners for warranty and tech help

• Supports region-optimized Wi-Fi channels

• Encrypted cloud & local storage options meet regional data security requirements

FAQs – CS-C8W (4MP, W1)

Q: Does the CS-C8W (4MP, W1) provide full 360° coverage?
Yes, it offers 352° pan and 95° tilt, giving near-total area coverage.

Q: What resolution does CS-C8W (4MP, W1) record in?
It records in 2K Quad HD (2560 × 1440) for high-detail footage.

Q: Can the CS-C8W (4MP, W1) detect people?
Yes, it features AI-powered human shape detection to reduce false alerts.

Q: What kind of storage does the CS-C8W (4MP, W1) support?
It supports MicroSD cards up to 256GB and EZVIZ Cloud Storage (optional).

Q: Is CS-C8W (4MP, W1) suitable for outdoor use in Australia/NZ?
Absolutely – it features a weatherproof design rated for –30°C to +60°C.

Q: Can I talk through the camera?
Yes, it includes two-way audio so you can communicate remotely.
