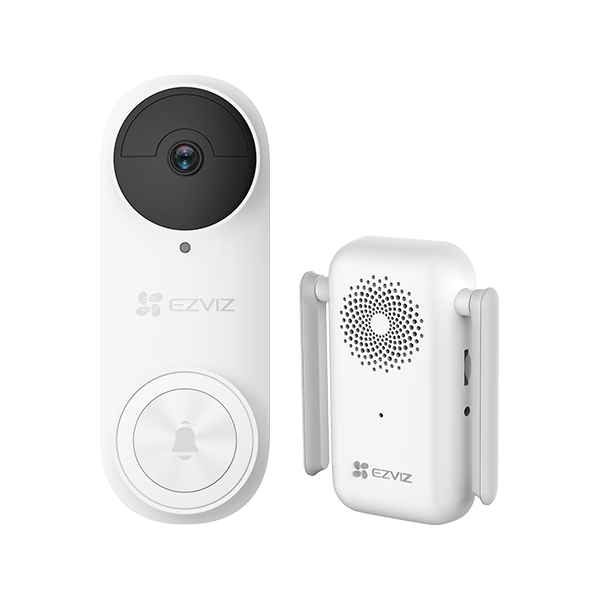

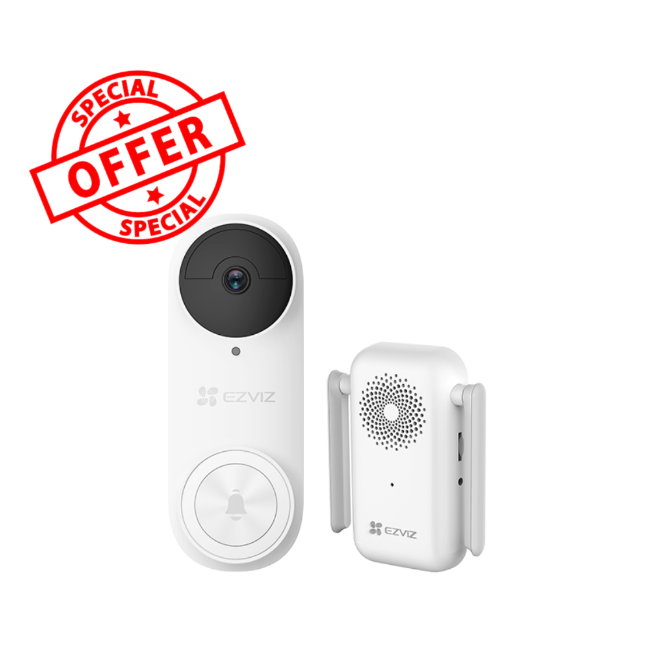

The EZVIZ DB2 Video Doorbell Kit (Model: CS-DB2-A0-2C3WPB) is a smart, wire-free front door security solution featuring 2K video resolution, intelligent motion detection, and easy installation. With its 5200mAh rechargeable battery, IP65 weather resistance, and built-in chime, the DB2 is engineered for convenience and performance. Ideal for homes and small businesses, this video doorbell provides real-time alerts, two-way communication, and smart motion recognition for safer, smarter monitoring.
What’s Included in the Box
-
DB2 2K Video Doorbell
-
Plug-in Chime
-
Standard and Angled Mounting Plates (2)
-
Screwdriver and Screw Kits (2)
-
Foam Stickers and Mounting Foam
-
Drill Template
-
Reset Pin
-
U-Shaped Wire and Connectors (3)
-
Power Cable
-
Quick Start Guide
-
Installation Guide
-
Regulatory Information Leaflet
Main Features
-
2K Resolution (2000 × 1504) – Captures crisp, clear footage of visitors at your door
-
Wide-Angle Lens – 176° diagonal field of view ensures maximum coverage
-
PIR Motion Detection – Human shape detection with up to 5 metres sensing range
-
Two-Way Audio – Built-in mic and speaker for real-time communication with visitors
-
Tamper Alarm – Sound and light alerts with smartphone notifications on unauthorized removal
-
Wi-Fi Connectivity – Stable 2.4 GHz Wi-Fi with secure encryption protocols
-
Smart Chime Included – Plug-in chime supports 20 ringtones with adjustable volume (up to 72 dB)
-
Rechargeable Battery – 5200mAh lithium battery offers long runtime between charges
-
Weatherproof Design – IP65-rated enclosure for year-round outdoor use
-
Local Storage Support – Save recordings to a microSD card (up to 256 GB, card not included)
Detailed Specifications
| Category |
Details |
| Model |
CS-DB2-A0-2C3WPB |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Resolution |
2000 × 1504 (2K) |
| Lens |
2.0 mm, F2.0, 176° Diagonal Field of View |
| Day/Night Mode |
IR-cut filter with automatic switching |
| Frame Rate |
Max 15 fps |
| DNR |
2D/3D Digital Noise Reduction |
| Video Compression |
H.265 / H.264 |
| Motion Detection |
PIR sensor with human shape detection, up to 5 m range |
| Audio Input |
Built-in high-sensitivity microphone |
| Audio Output |
Built-in high-power speaker |
| Two-Way Talk |
Supported |
| Tamper Alarm |
Sound and light alarm with smartphone alerts |
| Connectivity |
2.4 GHz Wi-Fi (802.11b/g/n), secured via WPA/WPA2 |
| Operating Temp |
–20°C to 50°C |
| Weather Resistance |
IP65 |
| Battery |
5200mAh rechargeable lithium battery |
| Power Supply |
DC 5V ±10%, 2A |
| Max Power Usage |
2W |
| Storage |
microSD card slot, supports up to 256 GB |
| Chime Dimensions |
100 × 55 × 35 mm |
| Doorbell Dimensions |
150 × 58 × 32 mm |
| Certifications |
UL, CE, FCC, REACH, WEEE, RoHS |
| Weight |
Doorbell: 241.35 g; Chime: 120 g |
Warranty Information
-
EZVIZ Standard Warranty: 2 years (region-dependent)
-
Covers manufacturing defects and hardware faults under normal usage conditions
-
Warranty service provided through EZVIZ’s authorised distribution and support network
Brand Description
EZVIZ, a brand under the Hikvision group, is globally recognised for its innovative smart home and security products. With a mission to “create a safe, convenient, and smart life for everyone,” EZVIZ products combine high-quality hardware with intuitive cloud-based technologies, offering seamless smart home integration and peace of mind.
SKU
CS-DB2-A0-2C3WPB
Practical Use Scenarios
-
Home Entrances – Receive instant notifications and speak to visitors with two-way audio
-
Apartment Complexes – Add wireless security without rewiring or complex installations
-
Offices and Reception Doors – Monitor front-door activity and deter unwanted access
-
Rental Properties – Easily removable and rechargeable, perfect for tenants or short-term stays
-
Senior Households – Allows family members to monitor and communicate with visitors remotely
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
-
Fully certified for use in ANZ, including CE, FCC, RoHS, REACH, and UL compliance
-
Supports microSD storage up to 256GB, compatible with local data storage preferences
-
IP65 rating ensures reliable operation in harsh ANZ outdoor conditions
-
Distributed through local, authorised channels for faster support and service turnaround
-
Designed for easy DIY installation, making it perfect for homeowners and renters in Australia and New Zealand
FAQs
Q1: Does the CS-DB2-A0-2C3WPB support cloud or local video storage?
Yes, the CS-DB2-A0-2C3WPB supports microSD cards up to 256GB for local storage, and cloud storage via EZVIZ Cloud services (subscription may be required).
Q2: How long does the CS-DB2-A0-2C3WPB battery last on a full charge?
The CS-DB2-A0-2C3WPB is powered by a 5200mAh lithium battery, offering several months of use on a single charge depending on usage frequency and settings.
Q3: Is the CS-DB2-A0-2C3WPB weatherproof and suitable for outdoor use?
Absolutely. The CS-DB2-A0-2C3WPB is IP65-rated, making it water-resistant and dust-tight for reliable operation in outdoor environments.
Q4: Can I communicate with visitors using the CS-DB2-A0-2C3WPB?
Yes, the CS-DB2-A0-2C3WPB supports two-way audio, allowing you to see, hear, and speak with visitors in real time through the EZVIZ app.
Q5: Does the CS-DB2-A0-2C3WPB include a doorbell chime?
Yes, the CS-DB2-A0-2C3WPB comes with a plug-in chime that supports 20 adjustable ringtones and operates at up to 72 dB.
