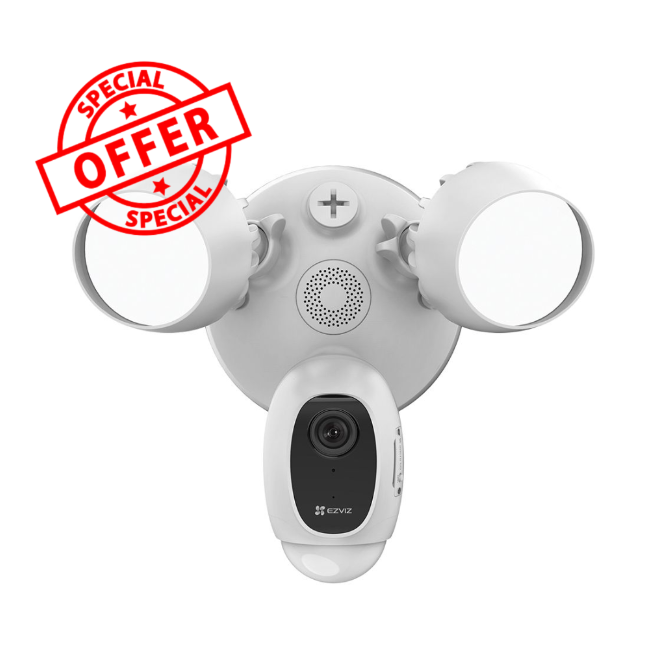

The EZVIZ LC1C (CS-LC1C-A0-1F2WPFRL) is a dual-purpose security solution that combines powerful 2000-lumen floodlighting with a Full HD smart camera. Designed to illuminate and monitor outdoor areas simultaneously, it delivers clear visuals, proactive motion alerts, and two-way audio for real-time communication. With a wide-angle lens, PIR sensor, night vision, and weatherproof IP65 housing, the LC1C is ideal for driveways, garages, backyards, and perimeter monitoring. Hardwired for reliable power and equipped with expandable local storage, the LC1C offers continuous, high-performance protection.
What’s Included in the Box
Main Features
-
Ultra-Bright 2000LM Floodlights – Activates automatically with motion for high-visibility deterrence
-
Full HD 1080p Video – Captures high-resolution footage with a wide 121° diagonal field of view
-
Smart PIR Detection – Detects motion up to 10 metres with 270° coverage
-
Advanced Night Vision – Clear images even in darkness up to 25 metres
-
Two-Way Audio – Built-in mic and speaker enable real-time conversations via the EZVIZ app
-
H.265 Video Compression – Saves storage and bandwidth without sacrificing quality
-
Local and Cloud Storage – Supports microSD cards up to 256GB and EZVIZ Cloud (region dependent)
-
IP65-Rated Weatherproofing – Built to endure Australian and New Zealand outdoor conditions
-
Hardwired Power – Operates on 100–240V AC for consistent uptime
-
Secure Wireless Connectivity – Dual-antenna 2.4GHz Wi-Fi for stable, extended-range connection
Detailed Specifications
| Category |
Details |
| Model |
CS-LC1C-A0-1F2WPFRL |
| Resolution |
1920 × 1080 (Full HD) |
| Lens Field of View |
H: 103° / V: 57° / D: 121° |
| Night Vision |
Up to 25 metres |
| Floodlight |
Dual SMD LEDs, 2000 Lumens ±10%, 3000K colour temp |
| Light Lifespan |
25,000 hours @B50L70 @Ta 25°C |
| PIR Motion Detection |
10 m detection range, 270° coverage |
| Audio |
Built-in microphone & speaker with noise suppression |
| Video Compression |
H.264 / H.265 |
| Frame Rate |
25fps (adaptive network transmission) |
| Wi-Fi Connectivity |
2.4GHz (802.11 b/g/n, dual antenna) |
| Storage Options |
MicroSD card up to 256GB; EZVIZ Cloud |
| Operating Temp |
–30°C to 50°C |
| Humidity |
0%–95% (non-condensing) |
| Ingress Protection |
IP65 (camera module) |
| Power Supply |
Hardwired AC 100–240V |
| Power Consumption |
≤35W |
| Dimensions |
268 × 186 × 185 mm |
| Weight |
1469 g (3.24 lbs) |
| Certifications |
UL, FCC, CE, WEEE, REACH, RoHS |
Warranty Information
-
2-Year Manufacturer Warranty
-
Covers product faults and manufacturing defects under standard usage
-
Local warranty support available through authorised ANZ distributors
Brand Description
EZVIZ, a global innovator in smart security products, delivers reliable, easy-to-use surveillance solutions. Backed by high-performance hardware, intuitive software, and strong encryption protocols, EZVIZ devices are designed to protect homes, businesses, and families worldwide with peace of mind.
SKU
CS-LC1C-A0-1F2WPFRL
Practical Use Scenarios
-
Driveway Security – Light and record any movement with motion-activated floodlights and PIR
-
Garage or Carport Monitoring – 24/7 Full HD surveillance with long-range IR night vision
-
Backyard Protection – Wide-angle camera with integrated lighting deters intruders
-
Perimeter Surveillance – Easily monitor fences, gates, and access points
-
Commercial or Farm Properties – Bright illumination and rugged design ensure reliable performance in all conditions
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
-
Compliant with ANZ electrical and product safety standards
-
Operates reliably in extreme weather conditions (–30°C to +50°C)
-
IP65-rated for outdoor durability against dust, rain, and wind
-
Distributed by authorised Australian and New Zealand suppliers
-
Supports local microSD storage for full user data control
-
Warranty and support handled locally for fast, reliable service
FAQs
Q1: How bright are the floodlights on the CS-LC1C-A0-1F2WPFRL?
The CS-LC1C-A0-1F2WPFRL features dual 2000-lumen floodlights, bright enough to illuminate large outdoor areas for safety and security.
Q2: What type of motion detection does the CS-LC1C-A0-1F2WPFRL use?
This model uses a PIR (Passive Infrared) sensor that detects human movement up to 10 metres, with a wide 270° detection range.
Q3: Can the CS-LC1C-A0-1F2WPFRL store footage locally?
Yes. It supports microSD cards up to 256GB, providing local recording options alongside optional cloud storage.
Q4: Is the CS-LC1C-A0-1F2WPFRL suitable for Australian outdoor conditions?
Absolutely. It is IP65-rated and operates in temperatures from –30°C to 50°C, making it ideal for varied climates in both Australia and New Zealand.
Q5: Does the CS-LC1C-A0-1F2WPFRL require wiring or can it run on battery?
The CS-LC1C-A0-1F2WPFRL is hardwired to 100–240V AC power, ensuring uninterrupted operation and consistent floodlight performance.
