The Hikvision CCTV Kit featuring 4x ColorVu Cameras, a 4-Channel NVR, and a 4TB HDD delivers high-performance surveillance with exceptional image clarity, intelligent monitoring features, and robust storage capacity. This advanced security system is designed for both indoor and outdoor applications, ensuring continuous and reliable surveillance in all lighting conditions.

Key Features

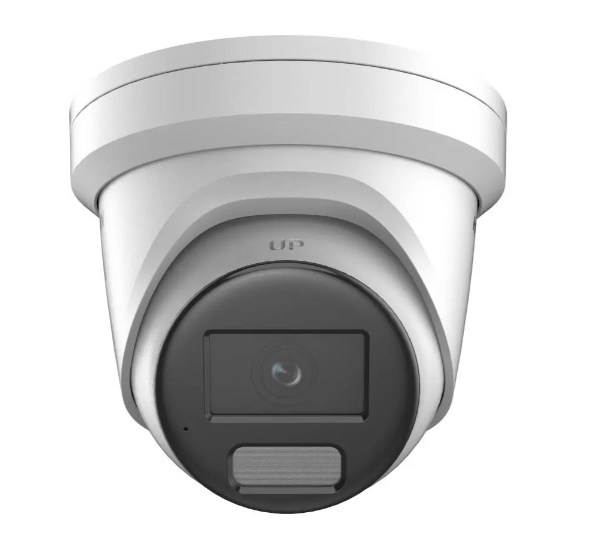

Hikvision DS-2CD2367G2H-LISU/SL - 6 MP Smart Hybrid Light ColorVu Fixed Turret Network Camera

• High-Resolution Imaging: 6 MP resolution (3200 × 1800) with ColorVu technology, ensuring vivid color images even in low-light conditions (0.0005 Lux sensitivity).

• Smart Hybrid Light: Integrates IR and white light illuminators with a 30-meter range, adapting automatically for optimal visibility.

• Wide Dynamic Range (WDR): 130 dB WDR technology provides enhanced image quality in backlit conditions.

• Deep Learning Algorithms: Advanced human and vehicle classification reduces false alarms.

• Real-Time Security: Includes two-way audio, active strobe light, and alarm system to deter intruders.

• On-Board Storage: Supports microSD cards up to 512 GB and NAS compatibility.

• Durability: IP67-rated for water and dust resistance; operates in temperatures from -30°C to 60°C (-22°F to 140°F).

Camera Specifications

• Image Sensor: 1/1.8" Progressive Scan CMOS

• Lens: Fixed focal lengths 2.8 mm (108.8° FOV) and 4 mm (93.3° FOV)

• Shutter Speed: 1/3 s to 1/100,000 s

• Supplemental Light: IR and white light, 30-meter range

• Video Compression: H.265+, H.265, H.264+, H.264

• Streaming: Up to three concurrent streams

• Audio: Built-in microphone and speaker, supports G.711, MP3, AAC-LC

• Security Features: HTTPS encryption, IP filtering, 802.1X authentication

• Power: 12 VDC / PoE (802.3af), max 10.5 W

• Dimensions: 138.3 mm × 115.4 mm, 820 g

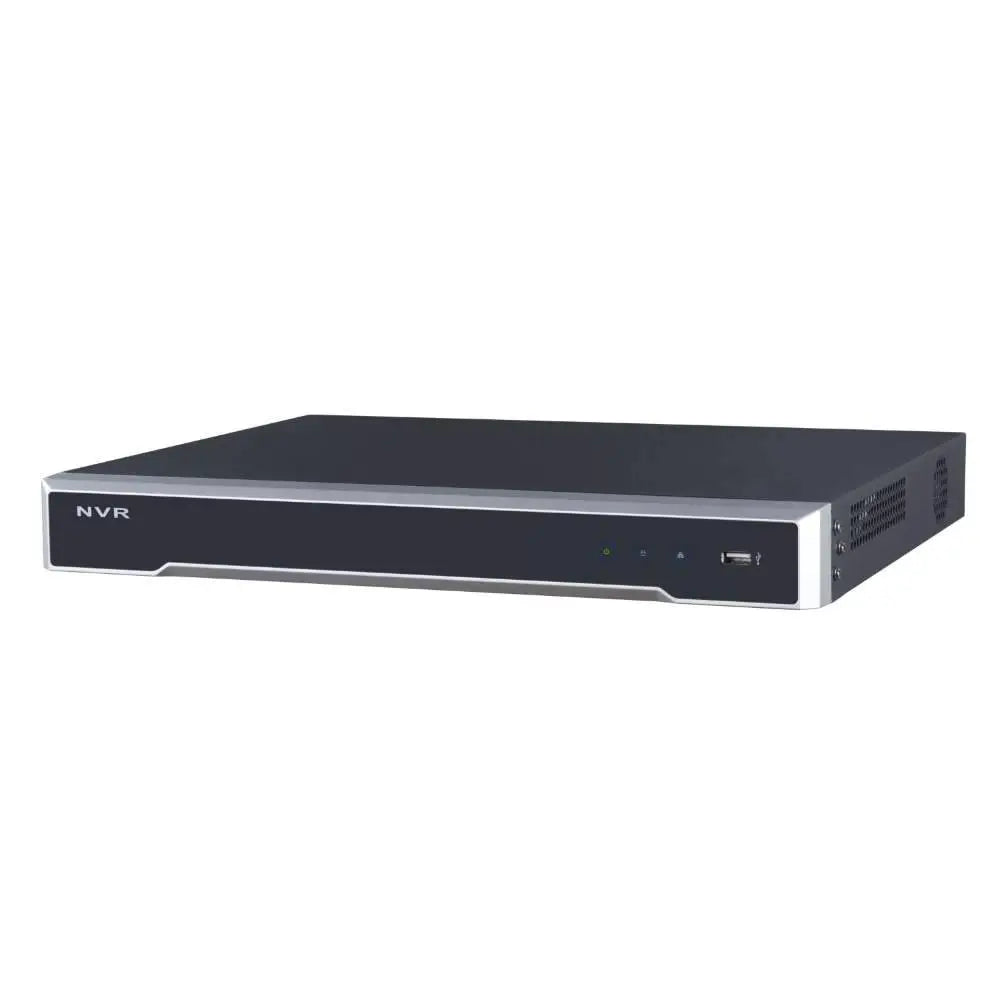

Hikvision DS-7604NI-M1/4P - 4-Channel PoE Network Video Recorder (NVR)

• 4-Channel IP Camera Inputs: Supports up to 32 MP resolution.

• Advanced Video Compression: H.265+/H.265/H.264+/H.264 for efficient storage.

• High Decoding Capacity: 4-ch @ 8 MP, 8-ch @ 4 MP, 16-ch @ 1080p.

• Bandwidth Management: 40 Mbps incoming, 80 Mbps outgoing.

• Secure Data Transmission: TLS encryption ensures reliable video transmission.

• High-Resolution Outputs: HDMI output supports up to 8K resolution.

• Ample Storage: 1 SATA interface, supporting up to 16 TB per HDD.

• PoE Ports: 4 independent PoE ports for simplified installation.

• Power: 48 VDC, 1.875 A

• Dimensions: 320 × 240 × 48 mm

• Weight: ≤ 1.2 kg (without HDD)

What’s Included in the Box?

• 4 × Hikvision DS-2CD2367G2H-LISU/SL ColorVu Cameras

• 1 × Hikvision DS-7604NI-M1/4P 4-Channel NVR

• 1 × 4TB Hard Drive (Pre-installed)

• Power Adapter

• Mounting Hardware

• Installation Guide & Warranty Documentation

Warranty

• 3-Year Limited Warranty on all components, ensuring long-term reliability.

Practical Use Scenarios

• Retail & Small Businesses: Monitor entrances, exits, and point-of-sale areas with high-definition clarity.

• Offices & Corporate Buildings: Protect assets and personnel with 24/7 surveillance.

• Warehouses & Storage Facilities: Track inventory and prevent unauthorized access.

• Residential Properties: Keep an eye on driveways, hallways, and common areas for enhanced safety.

• Educational Institutions: Ensure a secure environment for students and staff.

Excellence for the Australian and New Zealand Market

• Optimized for Australia & NZ Conditions: Designed for harsh weather and low-light environments.

• Certified Quality: Complies with Australian and New Zealand security standards.

• Authorized Sourcing: Only sourced from official Hikvision distributors for genuine products.

• Local Support & Warranty Handling: Direct communication with Hikvision-authorized service centers.

Technical Documents & Datasheets

• Data Sheet


  Quick Start Guide


  User Manual

FAQs

1. How does ColorVu technology improve night surveillance?

ColorVu ensures full-color images 24/7 by using advanced sensors and smart supplemental lighting, even in near-total darkness.

2. Can I access my Hikvision cameras remotely?

Yes! The cameras and NVR are compatible with Hik-Connect and iVMS-4200, allowing you to monitor footage from anywhere via mobile or PC.

3. Does this system support AI-powered security features?

Absolutely. It features deep learning algorithms for human and vehicle detection, reducing false alarms and improving efficiency.

4. What storage options are available?

This kit includes a 4TB HDD, supports microSD cards up to 512 GB, and can integrate with NAS for extended recording.

5. Is installation simple?

Yes, the PoE (Power over Ethernet) system allows easy setup with a single cable for both power and data.

This Hikvision CCTV Kit offers an all-in-one security solution with cutting-edge AI detection, full-color night vision, and remote monitoring capabilities, making it ideal for homes, businesses, and commercial properties.
