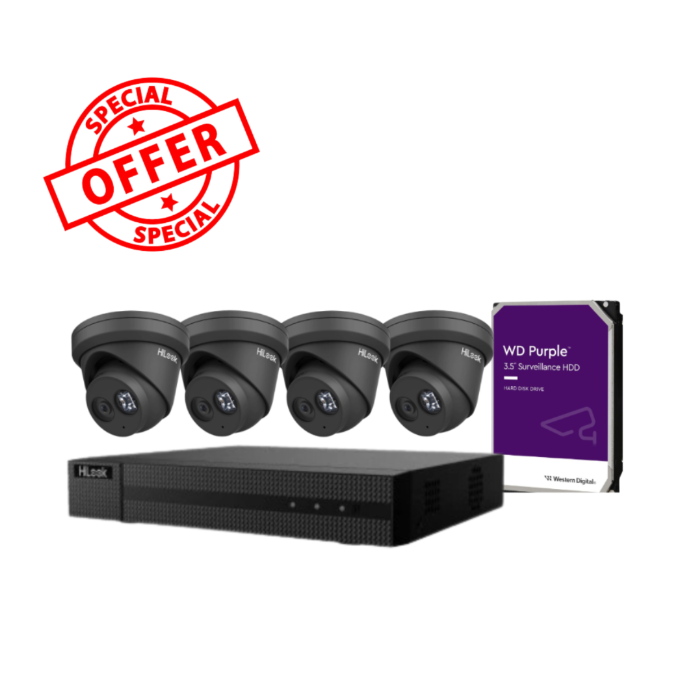

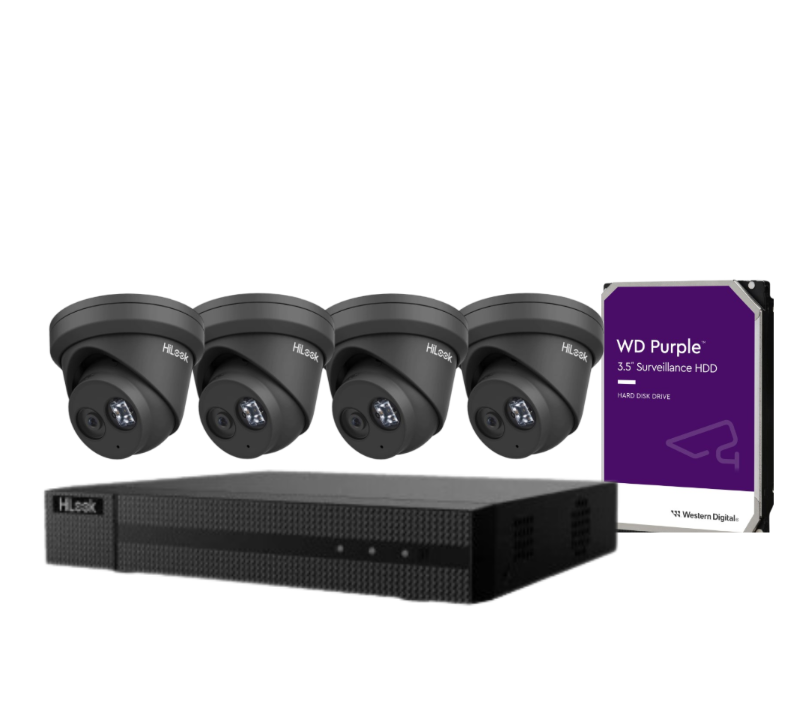

The IPC‑T261H‑MU‑BLK 4CH Kit is a complete surveillance solution bundle combining 4 black 6 MP fixed turret network cameras, a 4‑channel NVR (Network Video Recorder), and a 2 TB HDD for recording. Each camera is built on the powerful IPC‑T261H‑MU platform: advanced imaging, H.265+ compression, 120 dB true WDR, deep‑learning analytics (human/vehicle classification), and rugged protection (IP67). The kit simplifies deployment by integrating PoE power/data, local storage, and full system integration in one package. Ideal for shops, offices, warehouses, and property monitoring where both video quality and intelligent alerts matter.

What’s in the Box

• 4 × IPC‑T261H‑MU‑BLK Cameras (4 mm lens by default, unless otherwise specified)

• 1 × 4‑Channel NVR (compatible with included cameras)

• 1 × 2 TB Surveillance‑grade HDD (preinstalled in NVR)

• Power adapter / PSU for NVR

• Ethernet / PoE cabling or adapters (as needed)

• Mounting templates, screws, anchors for 4 cameras

• Quick Start Guide / User Manual

• Warranty / service card

Main Features

Detailed Specifications

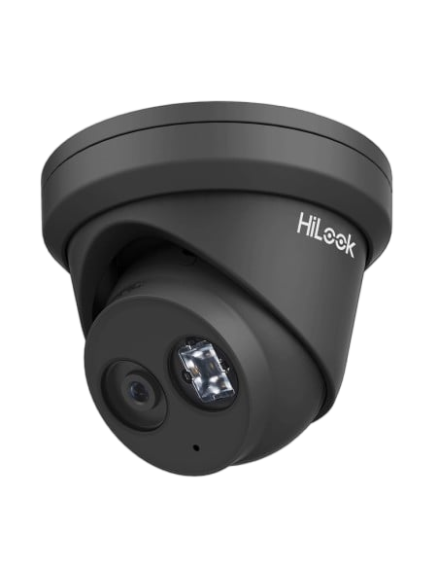

Cameras (×4)

(Specifications same as standalone IPC‑T261H‑MU series; see previous document for full details)

• Sensor: 1/2.8" Progressive Scan CMOS

• Min Illumination: 0.005 Lux (color) / 0 Lux with IR

• Shutter: 1/3 s to 1/100,000 s

• WDR: 120 dB

• Lens: fixed 4 mm (horizontal 87°, vertical 46°, diagonal 105°)

• IR Range: up to 30 m

• Compression: H.265 / H.264 / H.265+ / H.264+

• Analytics: human & vehicle classification, perimeter (line crossing, intrusion)

• Protection: IP67

• Power: 12 V DC or PoE (802.3af)

• Storage: microSD (up to 256 GB)

• Body: aluminum alloy

• Operating Temp: –30 °C to +60 °C

NVR & Storage

• Channels: 4 inputs (plus possible expansion)

• HDD: 2 TB, surveillance‑grade

• Recording Modes: continuous, motion/event, schedule

• Network: RJ45, standard Ethernet

• Protocols / Compatibility: ONVIF, RTSP, etc.

• User / Access: multi-user, admin / operator / viewer levels

• Output: HDMI / VGA to monitor (if applicable)

• Remote Access: via client software / mobile apps

• Redundancy / Backup: export via USB or network

Warranty & Support

• Standard manufacturer warranty (e.g. 2 years) — confirm with your supplier

• Local technical support / RMA via authorised distributor

• Firmware updates via manufacturer / region portal

• Replacement / repair managed through authorised channels

Brand Description

This kit is based on the IPC‑T261H‑MU camera platform from a trusted surveillance brand with global presence. The brand emphasizes high performance, robust design, and ongoing firmware support. Products are distributed via authorised channels to assure authenticity and warranty validity.

SKU / Model Code

SKU / Model: IPC‑T261H‑MU‑BLK‑KIT4

Practical Use Scenarios

• Retail stores — monitor entrances, aisles, and exits with high resolution and analytics

• Small office / shop front — full coverage kit with integrated NVR and storage

• Warehouses / storerooms — durable design for indoor / semi-outdoor use

• Residential estates — cover multiple points (front, back, side) with central recording

• School / campus buildings — simple multi-camera system for perimeter and interior zones

• Multi‑unit buildings / small complexes — centralised monitoring for multiple areas

Datasheets / Downloadable Resources

 official kit datasheet / PDF

Excellence for the Australian and New Zealand Market

This IPC‑T261H‑MU‑BLK 4CH Kit is tailored for the ANZ region, with full compliance to RCM / AS/NZS EMC standards, and all relevant safety certifications (UL, CB, CE‑LVD). Sourced through authorised regional distributors, ensuring that warranties and support claims are valid locally. Firmware and technical support align with ANZ regulatory requirements, and power / voltage compatibility is suited to local supply.

SEO‑Friendly FAQs

Q1: What is included in IPC‑T261H‑MU‑BLK‑KIT4?
A1: The IPC‑T261H‑MU‑BLK‑KIT4 includes 4 × IPC‑T261H‑MU‑BLK (6 MP turret cameras), 1 × 4‑channel NVR, and 1 × 2 TB surveillance HDD.

Q2: Does IPC‑T261H‑MU‑BLK‑KIT4 support PoE?
A2: Yes, each camera in IPC‑T261H‑MU‑BLK‑KIT4 supports 802.3af PoE, enabling power and data over a single Ethernet cable.

Q3: Is the IPC‑T261H‑MU‑BLK‑KIT4 suitable for outdoor deployment?
A3: Yes, the cameras in IPC‑T261H‑MU‑BLK‑KIT4 are rated IP67, making them resistant to water and dust in outdoor environments.

Q4: Can IPC‑T261H‑MU‑BLK‑KIT4 detect humans vs vehicles?
A4: Yes, IPC‑T261H‑MU‑BLK‑KIT4 employs deep learning analytics to classify human and vehicle targets, reducing false alarms.

Q5: What storage is in IPC‑T261H‑MU‑BLK‑KIT4?
A5: The IPC‑T261H‑MU‑BLK‑KIT4 includes a 2 TB surveillance‑grade HDD preinstalled in the NVR for video storage.

Q6: What video compression does IPC‑T261H‑MU‑BLK‑KIT4 use?
A6: The IPC‑T261H‑MU‑BLK‑KIT4 supports H.265, H.264, H.265+, H.264+, enabling efficient use of bandwidth and storage.

Q7: What warranty does IPC‑T261H‑MU‑BLK‑KIT4 come with?
A7: IPC‑T261H‑MU‑BLK‑KIT4 is sold with a manufacturer’s warranty (typically 2 years); details depend on your reseller or distributor.

Q8: Can you expand storage or channels in IPC‑T261H‑MU‑BLK‑KIT4 later?
A8: Many NVRs supporting the IPC‑T261H‑MU‑BLK‑KIT4 allow channel expansion (if available) and external backup/USB export. Please confirm with your specific NVR model.
