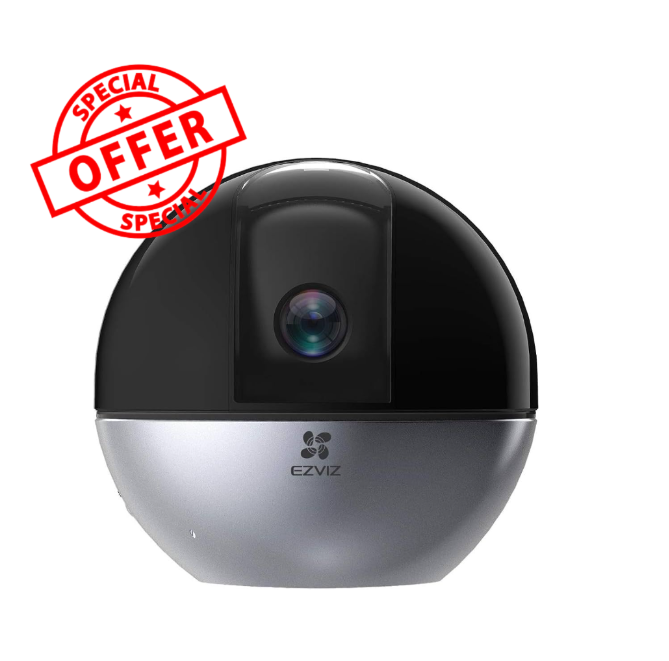

The EZVIZ CS-C6W-A0-3H4WF is a compact yet powerful indoor Wi-Fi camera designed for smart home security. Offering 2K Quad HD resolution (2560 × 1440), full pan and tilt functionality, and AI-powered person detection, this advanced camera ensures you never miss a moment inside your home or office.

With the ability to pan 340° and tilt 75°, the C6W gives you complete room coverage from a single mounting point. Its integrated IR night vision delivers clear black-and-white images up to 10 meters, even in complete darkness. Seamlessly access live and recorded footage using the EZVIZ App, with two-way audio built-in for remote communication.

Enjoy local storage on a MicroSD card (up to 256GB) or opt for EZVIZ CloudPlay for encrypted cloud backup. Whether you’re watching over pets, children, or valuables, the C6W provides unmatched flexibility and security.

Key Features

• 2K Quad HD Video (2560 × 1440) for crystal-clear monitoring

• Pan & Tilt Coverage: 340° horizontal pan + 75° vertical tilt

• AI Human Detection minimizes false alarms

• Two-Way Talk via built-in mic and speaker

• True WDR + 3D DNR ensures clear images in any lighting

• 10m IR Night Vision with automatic day/night switching

• MicroSD Card Support up to 256GB

• Secure Dual-Band Wi-Fi or Wired Ethernet (RJ45) connection

• Encrypted EZVIZ Cloud Storage Option

• Mobile App Control via EZVIZ (iOS/Android)

What’s in the Box

• 1 × EZVIZ C6W Camera

• 1 × 3m Power Cable

• 1 × Power Adapter

• 1 × Mounting Base

• 1 × Screw Kit

• 1 × Drill Template

• 1 × Regulatory Information Sheet

• 1 × Quick Start Guide

Technical Specifications

Model Number

• CS-C6W-A0-3H4WF

Camera

• Image Sensor: 1/2.7" Progressive Scan CMOS

• Lens: 4mm @ F2.0

• Field of View:

  • Horizontal: 83°

  • Vertical: 57°

  • Diagonal: 104°

• Pan Range: 0°–340°

• Tilt Range: 0°–75°

• Minimum Illumination: 0.5 Lux (Color), 0 Lux (with IR)

• Night Vision: IR up to 10m

• Lens Mount: M12

• Day/Night Switching: IR-cut filter auto-switch

• WDR: True-WDR

• DNR: 3D DNR

• BLC: Supported

Video & Audio

• Max Resolution: 2560 × 1440

• Max Frame Rate: 25 fps

• Video Compression: H.265 / H.264

• Audio Compression: Self-Adaptive

• Max Bitrate: 4 Mbps

• Two-Way Audio: Supported

Smart Features

• AI Person Detection

• Custom Motion Detection Zones

• Privacy Shutter & Password Protection

• EZVIZ App Control

Storage

• Local Storage: MicroSD card (up to 256GB)

• Cloud: EZVIZ Cloud Storage (subscription-based)

Network

• Wi-Fi: IEEE 802.11 b/g/n, 2.4 GHz

• Wired: 1 × RJ45 (10/100 Mbps Ethernet)

• Protocols: EZVIZ proprietary protocol

• Pairing Method: AP pairing

General

• Power Supply: DC 5V / 2A

• Power Consumption: Max 8W

• Operating Temperature: –10°C to 45°C

• Humidity: ≤ 95% (non-condensing)

• Dimensions: 95.8 × 95.8 × 90.6 mm

• Packaging Dimensions: 126 × 126 × 160 mm

• Net Weight: 252 g

• Gross Weight: 513 g

Certifications

• CE / FCC / UL / WEEE / REACH / RoHS

Warranty

2-Year EZVIZ Warranty through authorized AU/NZ distributors.

Practical Use Scenarios

• Baby or Child Monitoring in nurseries or playrooms

• Pet Surveillance at home while you’re away

• Elderly Care with two-way talk and 360° view

• Office or Study Room Security

• Retail or Front Desk Indoor Monitoring

Excellence for the Australian and New Zealand Market

• Meets Australian and New Zealand electrical safety and performance standards

• Supplied through authorized local distributors for full warranty support

• NDIS and NDSS-compliant usage support for assisted living applications

• Backed by EZVIZ’s global support team and local representation

• Compatible with regional power specifications and regulatory requirements

FAQs – CS-C6W-A0-3H4WF

Q: Does the CS-C6W-A0-3H4WF support pan and tilt remotely?
Yes, it offers 340° horizontal pan and 75° vertical tilt via the EZVIZ app.

Q: What resolution does this model record in?
The camera supports up to 2K Quad HD (2560 × 1440) resolution.

Q: Can I store footage without a subscription?
Yes, you can insert a MicroSD card (up to 256GB) for local recording.

Q: Does it work with both Wi-Fi and Ethernet?
Yes, the C6W supports dual connectivity: Wi-Fi and RJ45 Ethernet.

Q: Is AI person detection included in the CS-C6W-A0-3H4WF model?
Yes, it features AI-based human detection to reduce unwanted alerts.

Q: Is this camera suitable for outdoor use?
No, the C6W is designed for indoor use only.

Q: What is the maximum night vision range?
The camera supports infrared night vision up to 10 metres.
