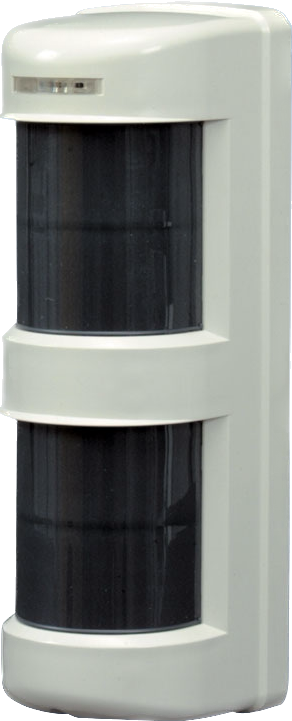

The TAKEX MS-12FE is a dual-zone outdoor PIR motion sensor engineered for high-reliability perimeter and area protection. Featuring two dual-zone sensors with variable angle coverage up to 180°, it offers precise detection while minimising false alarms from small animals, moving foliage, or vehicles.
The dual-zone system ensures an alarm is triggered only when both the horizontal and downward zones are activated simultaneously, greatly improving accuracy in outdoor environments. The unit’s rainproof housing makes it suitable for all-weather installations, and it can be mounted on walls or poles. Sensitivity is adjustable from 30% to 170%, and detection areas can be customised using the supplied area masking sheet for perimeter, wall, or window security.
With its robust design, versatile mounting options, and advanced detection logic, the MS-12FE is ideal for professional security installations in residential, commercial, and industrial environments.
What’s Included in the Box
-
TAKEX MS-12FE Dual Zone Outdoor PIR Sensor
-
Mounting hardware (wall & pole options)
-
Area masking sheet
-
Installation manual
-
Manufacturer’s Warranty Applied
Main Features
-
Dual-zone detection system for reduced false alarms
-
180° wide coverage with two dual-zone sensors (upper & lower OR mode)
-
Adjustable detection range: 2–12m
-
Weatherproof, rainproof housing for outdoor use
-
Wall or pole mounting capability
-
Sensitivity adjustment: 30%–170%
-
Selectable detection patterns: perimeter, wall, or window coverage
-
Durable white plastic housing
Detailed Specifications
| Specification |
Details |
| Brand |
TAKEX |
| Model |
MS-12FE |
| Device Type |
PIR Motion Sensor |
| Detection Range |
2–12m |
| Coverage Angle |
Up to 180° |
| Mounting Type |
Wall or pole |
| Colour |
White |
| Housing Material |
Plastic |
| IP Rating |
Weatherproof |
| Power Supply |
Multi-voltage 12VDC / 24VDC |
| Current Consumption |
<10mA |
| Sensitivity Adjustment |
30% – 170% |
| Operating Temperature |
-20°C to +50°C |
| Warranty |
Manufacturer’s Warranty Applied (5 Years) |
Warranty Information
Manufacturer’s Warranty Applied – 5 Years
Covers manufacturing defects and workmanship, with support from TAKEX-authorised distributors.
Brand Description
TAKEX is a leading manufacturer of professional-grade security sensors, offering advanced detection solutions for demanding applications worldwide. Renowned for precision and durability, TAKEX products are trusted in high-security, commercial, and residential projects.
Practical Use Scenarios
-
Perimeter Protection: Monitoring property boundaries with reliable detection.
-
Entry/Exit Security: Covering approaches to doors, gates, or garages.
-
Window Monitoring: Using masking sheets for focused zone coverage.
-
Industrial Sites: Detecting movement in restricted outdoor areas.
Datasheets / Downloads
TAKEX MS-12FE
Excellence for the Australian and New Zealand Market
The MS-12FE is designed for harsh Australian and New Zealand climates, ensuring reliable performance in extreme temperatures and wet conditions. It meets local quality and compliance standards, with warranty and service handled directly by authorised TAKEX representatives.
FAQs (Product Code: MS-12FE)
-
What is the main advantage of the TAKEX MS-12FE?
Its dual-zone detection system significantly reduces false alarms from pets, wildlife, or environmental factors.
-
Can it be installed outdoors?
Yes, it has a weatherproof and rainproof housing suitable for all outdoor conditions.
-
What is the maximum detection range?
Up to 12 metres with adjustable sensitivity.
-
Can it cover more than one detection zone?
Yes, it can monitor two perimeters or two windows simultaneously.
-
What warranty is provided?
The unit comes with a Manufacturer’s Warranty Applied – 5 Years.
