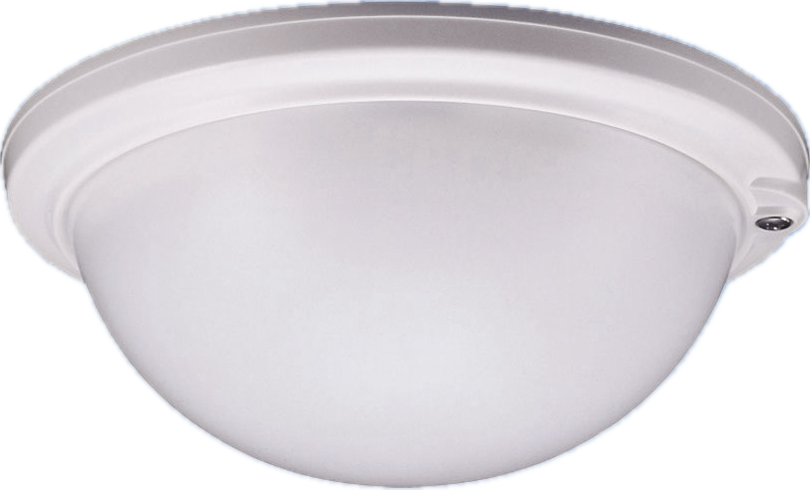

The TAKEX PA‑6412PI is a professional-grade hardwired Passive Infrared (PIR) motion sensor designed for pet-friendly indoor security environments. With a mirror lens for enhanced detection accuracy, this sensor covers up to 12 m while reliably ignoring pets up to 18 kg, reducing false alarms in homes and businesses.
Built with TAKEX’s precision engineering, the PA‑6412PI combines quiet operation, multi-voltage support, and a compact design, making it ideal for modern intrusion detection systems. The sensor also includes SPST dry contact output, selectable for Normally Open (N.O.) or Normally Closed (N.C.), and supports ceiling or wall mounting.
What’s Included in the Box
Main Features
-
Pet Immunity up to 18 kg: Accurately detects human motion while filtering out small animals.
-
12 m Wide-Angle Detection: Provides reliable coverage for rooms, hallways, and open spaces.
-
Mirror Optic Lens: Increases detection precision and zone sharpness while maintaining compact size.
-
SPST Dry Contact Output: Configurable as N.C. or N.O. for compatibility with most alarm panels.
-
Multi-Voltage Support: Operates on 10–18 VDC, suitable for 12VDC systems.
-
Compact, Low-Profile Design: White plastic housing for discreet indoor installation.
-
Silent Operation: Uses solid-state switching for noise-free relay activation.
-
Ceiling or Wall Mounting: Versatile mounting options with accessories available for installation flexibility.
-
Hardwired Reliability: Consistent, maintenance-free performance for long-term deployments.
Detailed Specifications
| Specification |
Details |
| Model |
PA‑6412PI |
| Product SKU |
TAKPA-6412PI |
| Supplier SKU |
PA‑6412PI |
| Detection Type |
Passive Infrared (PIR) – Wide Angle |
| Detection Range |
Up to 12 m |
| Pet Immunity |
Ignores pets up to 18 kg |
| Lens Type |
Mirror Lens |
| Output Type |
SPST dry contact (Selectable N.O. / N.C.) |
| Power Supply |
10–18 VDC (Multi-voltage, 12VDC compatible) |
| Mounting Height |
Ceiling or Wall (varies by environment) |
| Mounting Accessories |
Optional brackets for ceiling/wall mounting |
| Contact Rating |
30V AC/DC, 0.3A (resistive load) |
| Material |
Plastic (ABS Body and PE Cover) |
| Colour |
White |
| Wiring Type |
Hardwired |
| Weight |
Approx. 110 g |
| Operating Environment |
Indoor use only |
| Device Type |
Motion Detector / PIR |
Warranty Information
3-Year Limited Warranty – Covers defects in materials or workmanship under standard use. Warranty excludes misuse, incorrect wiring, or tampering.
Brand Description
TAKEX, developed by Japan’s Takenaka Engineering Co., Ltd., is a global leader in advanced sensing technology. Their security-grade sensors are known for performance, precision optics, and long-term reliability. The PA‑6412PI reflects TAKEX’s dedication to quality intrusion detection systems trusted worldwide.
SKU Field
Categories
ALARM / INTRUSION PIRS
Practical Use Scenarios
-
Residential Homes with Pets: Prevent false alarms in living rooms, hallways, and garages.
-
Retail Environments: Accurately monitor motion without disruption from pets or cleaning bots.
-
Smart Alarm Systems: Integrate with hardwired control panels for precise motion-based alerts.
-
Low-Mount Security: Wall-mount capability makes it suitable for under-window detection.
-
Pet-Friendly Offices or Showrooms: Maintain a secure but animal-tolerant environment.
Datasheets / Downloads
Excellence for the Australian and New Zealand Market
-
Designed to meet Australian and New Zealand indoor installation standards.
-
Compatible with 12VDC systems commonly used in ANZ security panels.
-
Supplied through authorized TAKEX channels with full regional support.
-
Warranty and technical support are locally available for fast issue resolution.
-
Built to perform reliably in homes, shops, and commercial sites across Australia and New Zealand.
Frequently Asked Questions (FAQs)
Q1: Is the PA‑6412PI truly pet-friendly?
A1: Yes, the sensor is designed to ignore pets weighing up to 18 kg, preventing false triggers from small dogs or cats.
Q2: What is the detection range of the PA‑6412PI?
A2: The sensor provides a wide-angle detection range up to 12 m, suitable for most standard indoor rooms.
Q3: Can the PA‑6412PI be wall-mounted?
A3: Yes. It supports both ceiling and wall mounting, with optional accessories available for easier installation.
Q4: What type of output does the sensor use?
A4: The PA‑6412PI uses a SPST dry contact, which can be set as Normally Open or Normally Closed based on your system.
Q5: Is the PA‑6412PI compatible with 12V alarm systems?
A5: Absolutely. It supports 10–18 VDC, making it fully compatible with standard 12VDC alarm panels used across ANZ.
Q6: What kind of lens does this sensor use?
A6: It uses a precision mirror lens, which enhances detection clarity and accuracy.
