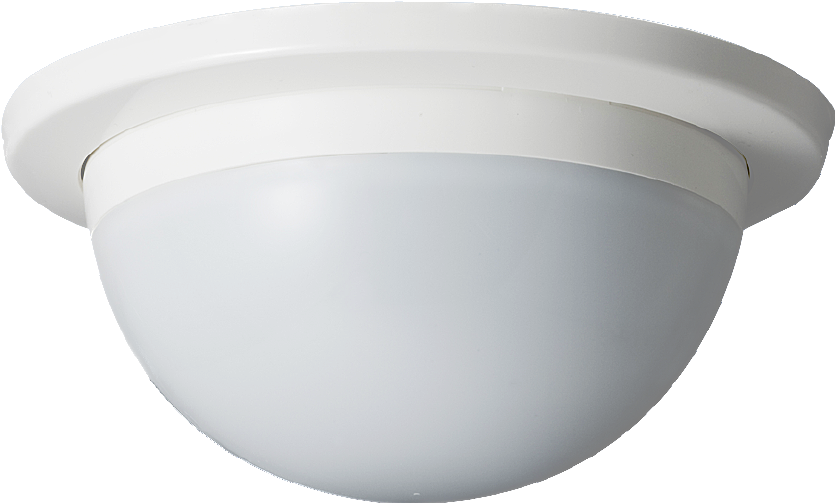

The TAKEX PA‑6614E is a high-performance hardwired Passive Infrared (PIR) sensor designed for ceiling mounting in large indoor spaces requiring high-level detection accuracy. With its advanced mirror lens technology, this sensor offers precision motion detection up to 14 metres, making it ideal for commercial, retail, or institutional security installations.
Built to operate between 2.5 and 6 metres mounting height, the PA‑6614E supports multi-voltage input (9VDC, 12VDC, 24VDC) and features a reliable SPST dry contact output for integration into modern alarm or automation systems. The sensor is engineered with TAKEX’s robust PIR technology, ensuring exceptional performance, stability, and reliability.
What’s Included in the Box
Main Features
-
14 m Detection Coverage: Wide area protection ideal for lobbies, warehouses, and large open indoor spaces.
-
Mirror Optics: Precision mirror lens enhances sensitivity and zone definition.
-
SPST Output: Single output via dry contact relay (normally open or closed based on system setup).
-
Ceiling Mount Design: Supports mounting heights between 2.5 to 6 metres.
-
Multi-Voltage Operation: Compatible with 9VDC, 12VDC, and 24VDC systems.
-
White Plastic Housing: Clean and discreet design blends into ceiling environments.
-
Hardwired Installation: Reliable and secure wiring ideal for long-term, fixed installations.
-
Compact & Lightweight: Easy to install and service.
Detailed Specifications
| Specification |
Details |
| Model |
PA‑6614E |
| Detection Method |
Passive Infrared with Mirror Lens |
| Detection Range |
Up to 14 m |
| Mounting Height |
2.5 to 6 m (ceiling mount only) |
| Output Type |
SPST dry contact (single output) |
| Power Supply |
9VDC, 12VDC, or 24VDC (multi-voltage support) |
| Wiring |
Hardwired |
| Material |
Plastic |
| Colour |
White |
| Device Type |
PIR Motion Detector |
| Mounting Method |
Ceiling Mount |
| Lens Type |
Mirror Lens |
| Alarm I/O |
1 Output |
| Warranty |
12 Months |
Warranty Information
12-Month Warranty – Covers defects in materials or manufacturing under normal use and proper installation. Warranty excludes power surges, misuse, or non-compliant installation.
Brand Description
TAKEX, a leading manufacturer under Takenaka Engineering Co., Ltd. (Japan), is known worldwide for precision-engineered sensors in the security and automation industry. TAKEX products are built to deliver long-term performance with superior detection accuracy and installation flexibility.
SKU Field
Product SKU: PA‑6614E
Supplier SKU: Not provided
Categories
ALARM / INTRUSION → PIR Sensors
Practical Use Scenarios
-
Commercial Entrances & Lobbies: High ceiling mounts with wide detection zones.
-
Warehouses & Storage Areas: Accurate motion sensing in large, open indoor environments.
-
Retail Security: Monitor foot traffic or unauthorized access in ceiling-dense settings.
-
Public Buildings & Institutions: Ideal for hallways, stairwells, or reception zones.
Datasheets / Downloads
Excellence for the Australian and New Zealand Market
-
Designed for compliance with ANZ security and electrical installation standards.
-
Fully compatible with 12VDC and 24VDC alarm systems commonly used in ANZ.
-
Distributed via authorized Australian and New Zealand TAKEX partners.
-
Local technical and warranty support available across ANZ regions.
-
Trusted by professional installers and system integrators throughout Australia and New Zealand.
Frequently Asked Questions (FAQs)
Q1: What is the detection range of the PA‑6614E?
A1: The PA‑6614E provides motion detection coverage of up to 14 m, depending on mounting height and environment.
Q2: Can the PA‑6614E be wall-mounted?
A2: No. This model is specifically designed for ceiling mounting only, with recommended heights between 2.5 to 6 metres.
Q3: What type of output contact does the PA‑6614E have?
A3: It features a single SPST dry contact output, suitable for connection to most alarm control panels.
Q4: What voltages does the PA‑6614E support?
A4: The unit operates on 9VDC, 12VDC, or 24VDC, making it flexible for integration into multi-voltage systems.
Q5: Is the PA‑6614E suitable for pet-friendly environments?
A5: No, this model is not pet-tolerant. It is designed for human motion detection only.
Q6: What is the warranty coverage?
A6: The PA‑6614E is backed by a 12-month manufacturer warranty against defects under normal use.
