Enhance your security infrastructure with the TP-Link InSight S485 8MP CCTV Kit, a comprehensive surveillance solution featuring eight high-performance 4K full-color turret cameras and an 8-channel PoE+ NVR (VIGI NVR1008H-8P) with a massive 6TB HDD pre-installed. This powerful kit combines advanced video analytics, durable hardware, and smart management tools to deliver professional-grade monitoring for homes, offices, retail stores, warehouses, and more.
Each InSight S485 camera offers 8MP Ultra HD resolution, 24/7 full-color night vision, AI-based object recognition, and Active Defense capabilities such as white light and sound alerts. Paired with the NVR1008H-8P, you can simultaneously record and playback up to 8 video streams in real time with smart detection and efficient H.265+ compression for optimized storage and bandwidth use.
Whether you're monitoring a multi-entrance commercial facility or securing a large residential estate, this kit is engineered to withstand harsh Australian and New Zealand conditions, delivering unbeatable clarity and peace of mind with reliable, locally supported hardware.

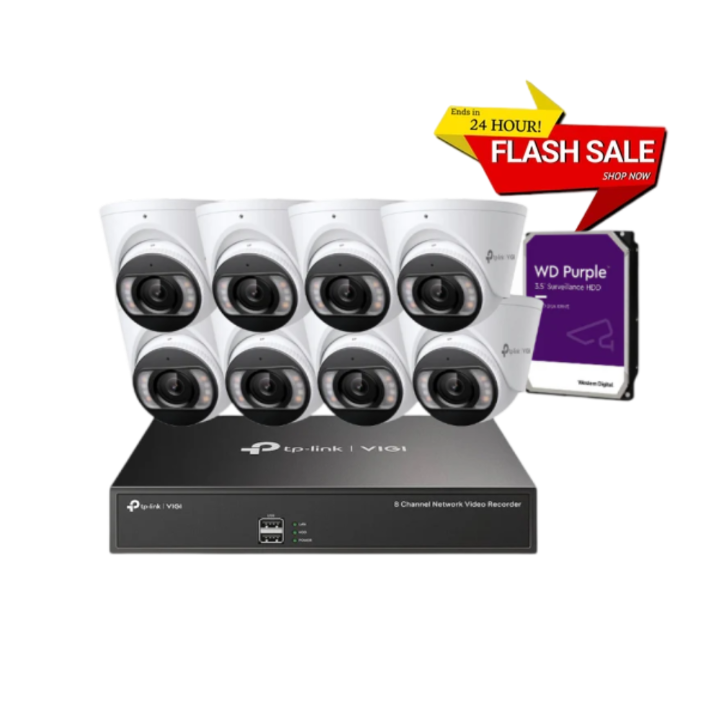

What's Included in the Box
-
8 × TP-Link VIGI InSight S485 8MP Full-Color Turret Cameras
-
1 × TP-Link VIGI NVR1008H-8P 8-Channel PoE+ Network Video Recorder
-
1 × 6TB Surveillance-Grade Hard Drive
Main Features
-
8MP (4K) Ultra HD Cameras: Capture ultra-sharp images with 3840 × 2160 resolution.
-
24/7 Full-Color Monitoring: Advanced white LED illumination enables vibrant color video at night.
-
People & Vehicle Analytics: AI distinguishes humans and vehicles for smarter alerts.
-
Smart Detection Features: Includes line-crossing, loitering, region entry/exit, and scene change alerts.
-
Active Defense: Uses sound and flashing light to deter intruders in real-time.
-
Two-Way Audio: Communicate directly via built-in microphone and speaker.
-
IP67 Weatherproofing: Designed for tough outdoor environments.
-
H.265+ Compression: Maximizes video storage while minimizing bandwidth usage.
-
PoE+ Support: Single cable for power and data per camera—streamlined installation.
-
4K HDMI Output on NVR: View and playback up to 8 channels simultaneously in ultra-HD.
-
ONVIF Compatibility: Works seamlessly with other ONVIF-compliant IP cameras.
Detailed Specifications
Cameras (TP-Link InSight S485)
-
Image Sensor: 1/2.7” Progressive Scan CMOS
-
Illumination: 0.005 Lux (color), 0 Lux with white LED/IR
-
Lens: 2.8mm or 4mm, F1.6 aperture
-
Field of View:
-
2.8mm: H111.4°, V58.8°, D134°
-
4mm: H91.5°, V46.1°, D109.6°
-
Max Resolution: 3840 × 2160 @ 25fps
-
Compression: H.265+/H.265/H.264+/H.264
-
Audio: Built-in mic and speaker (G.711 a-law)
-
Power: PoE (802.3af/at) or 12V DC
-
Protection: IP67 rated, -30°C to 60°C operating temp
-
Storage: MicroSD slot up to 512GB
NVR (TP-Link VIGI NVR1008H-8P)
-
Channels: 8 IP video input channels
-
Video Output: HDMI up to 4K (3840x2160 @ 30Hz), VGA up to 1080p
-
Compression: H.265+/H.265/H.264+/H.264
-
Playback: 8-channel synchronous playback
-
Decoding: Up to 8-ch @ 2MP or 4-ch @ 4MP
-
Storage: 1 × SATA, supports up to 16TB (6TB included)
-
PoE Ports: 8 × RJ-45 10/100 Mbps (802.3af/at), 53W total PoE budget
-
Audio In/Out: 1 in, 1 out
-
Remote Access: VIGI app for iOS/Android, browser access
-
Dimensions: 294 × 180 × 44 mm
-
Operating Temp: -10°C to 55°C
Warranty Information
Brand Description
TP-Link is a globally trusted name in networking and security technology. With a focus on innovation, durability, and ease of use, TP-Link's VIGI product line delivers cutting-edge surveillance systems trusted by professionals and homeowners around the world.
SKU
SKU: INSIGHT-S485-8KIT
Practical Use Scenarios
-
Retail Stores: Monitor entrances, aisles, and checkouts with full-color night vision and intrusion alerts.
-
Construction Sites: Rugged IP67-rated cameras perform reliably in outdoor, dusty environments.
-
Large Residences: Get complete perimeter and interior coverage across multiple entry points.
-
Commercial Buildings: 8-channel capacity supports expansive coverage with central monitoring.
-
Car Parks & Public Venues: AI object tracking and active defense features help deter vandalism and theft.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
This TP-Link CCTV Kit is fully optimized for deployment across Australian and New Zealand environments. The IP67-rated turret cameras are built to handle extreme weather, and the NDSS certification ensures compliance with national safety and performance standards. Hardware is sourced through official Australian/NZ TP-Link channels, with full warranty support and customer service handled locally, ensuring a fast and secure ownership experience.
FAQs
Q1: How many cameras can the TP-Link VIGI NVR1008H-8P support? (Product Code: INSIGHT-S485-8KIT)
A1: The NVR supports up to 8 IP cameras simultaneously, perfect for full-property coverage in larger installations.
Q2: Does this kit include everything needed for setup? (Product Code: INSIGHT-S485-8KIT)
A2: Yes, it includes 8 cameras, a pre-installed 6TB hard drive in the NVR, mounting accessories, cables, and power supply.
Q3: Can the system be monitored remotely via a smartphone? (Product Code: INSIGHT-S485-8KIT)
A3: Absolutely. Use the TP-Link VIGI mobile app to access live feeds, review footage, and receive alerts from anywhere.
Q4: What happens when the hard drive is full? (Product Code: INSIGHT-S485-8KIT)
A4: The NVR automatically overwrites the oldest footage, ensuring continuous recording without manual intervention.
Q5: Can I mix third-party IP cameras with this system? (Product Code: INSIGHT-S485-8KIT)
A5: Yes, the NVR is ONVIF-compliant and supports integration with compatible third-party IP cameras.
Q6: How long can 6TB store footage for 8 cameras? (Product Code: INSIGHT-S485-8KIT)
A6: With H.265+ compression, the 6TB drive can store weeks of continuous 8-camera footage, depending on resolution and recording settings.
Q7: Are the cameras suitable for coastal or high-humidity environments? (Product Code: INSIGHT-S485-8KIT)
A7: Yes, the IP67 rating ensures full protection from water and dust, making them ideal for coastal and humid regions in Australia and NZ.
