Meet the TP-Link Omada ES205GP — the ultimate compact networking solution for small offices, retail spaces, home workspaces, and security installations. This 5-Port Gigabit Easy Managed Switch combines silent fanless operation with powerful PoE+ capabilities, delivering enterprise-grade networking in a highly compact footprint.

With 4 PoE+ ports delivering up to 65W of total power budget, the ES205GP efficiently powers IP cameras, wireless access points, and VoIP phones directly through Ethernet cabling, eliminating the need for extra power supplies and simplifying installations. Despite its small size, the ES205GP offers robust features like VLAN support, IGMP Snooping, QoS for smooth voice and video traffic, and PoE Auto Recovery for intelligent network self-healing.

Seamlessly integrated into TP-Link’s Omada Software Defined Networking (SDN) platform, the ES205GP provides unified cloud management, zero-touch provisioning, and streamlined monitoring via the Omada app or web-based controller. It’s an ideal choice for users who demand reliable, intelligent networking in tight spaces.

What's in the Box

• TP-Link Omada ES205GP Easy Managed Switch

• Power Adapter

• Power Cord

• Rubber Feet

• Installation Guide

Main Features

✅ 4 PoE+ Ports with 65W Budget – Power up to 4 PoE devices like cameras, APs, or VoIP phones with a combined 65W budget and up to 30W per port.

✅ Silent, Compact Fanless Design – Operates quietly and fits in small spaces for unobtrusive installations in noise-sensitive environments.

✅ Extended PoE Reach – Supports PoE transmission distances of up to 250m, perfect for remote cameras or access points.

✅ Omada Cloud Management – Integrates into the Omada SDN for unified cloud management, zero-touch provisioning, and streamlined monitoring.

✅ Advanced L2 Features – VLAN support, port isolation, IGMP Snooping, and QoS ensure secure, high-performance network segmentation.

✅ Robust Surge Protection – ±6kV surge protection protects sensitive network equipment.

✅ Flexible Mounting – Compact enough for desktop use yet easily wall-mounted for flexible deployment.

Detailed Specifications

Interfaces:

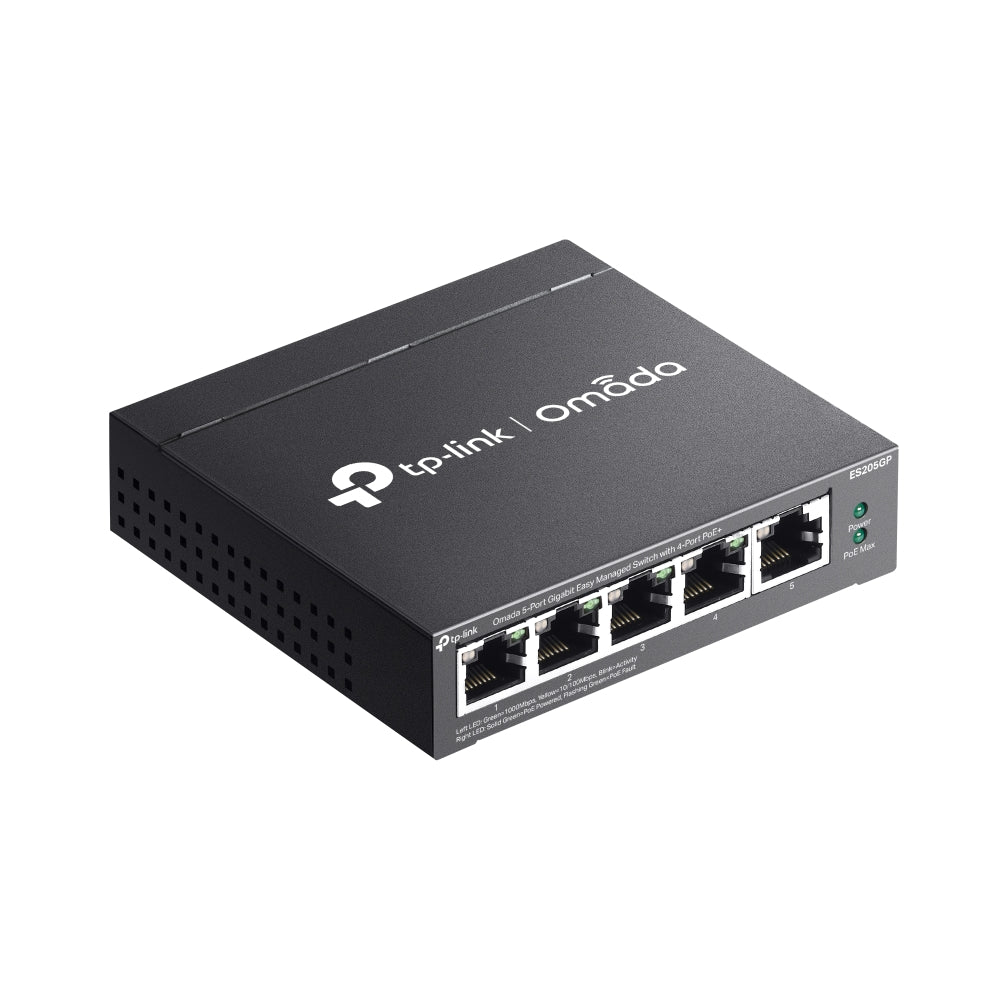

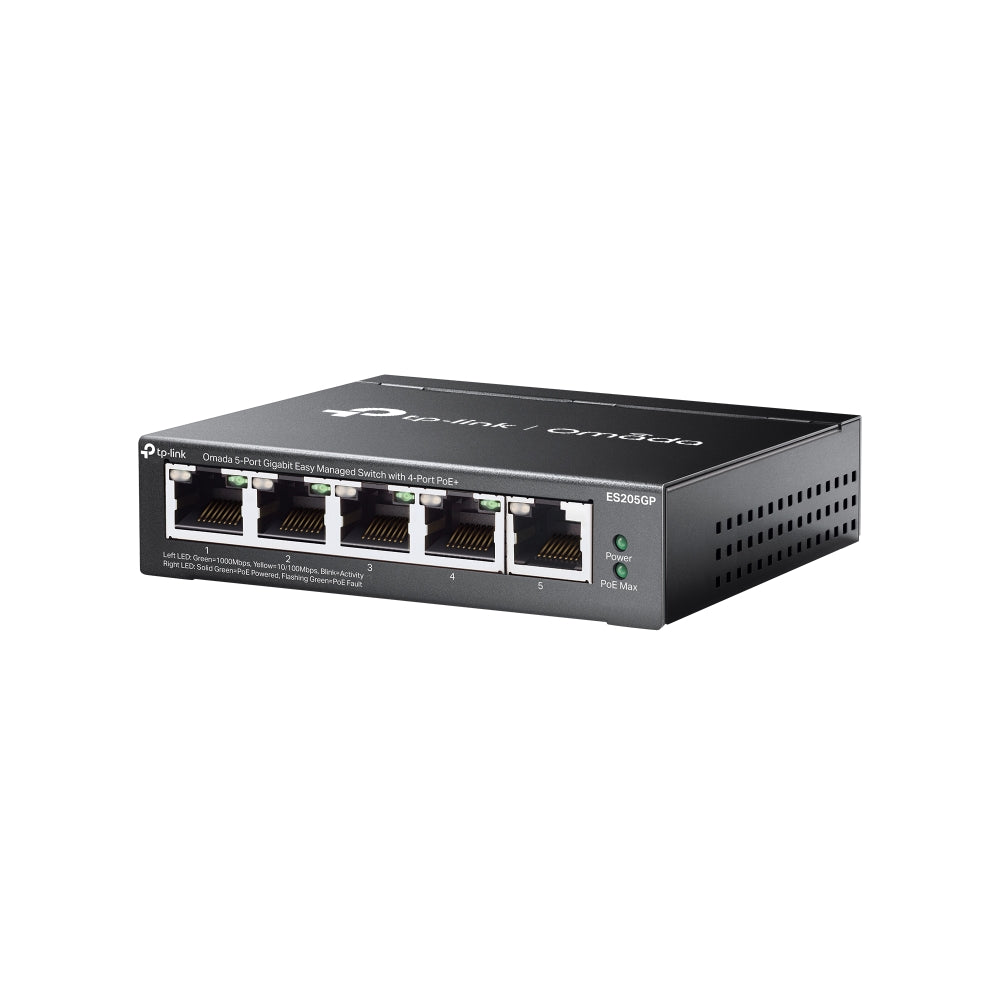

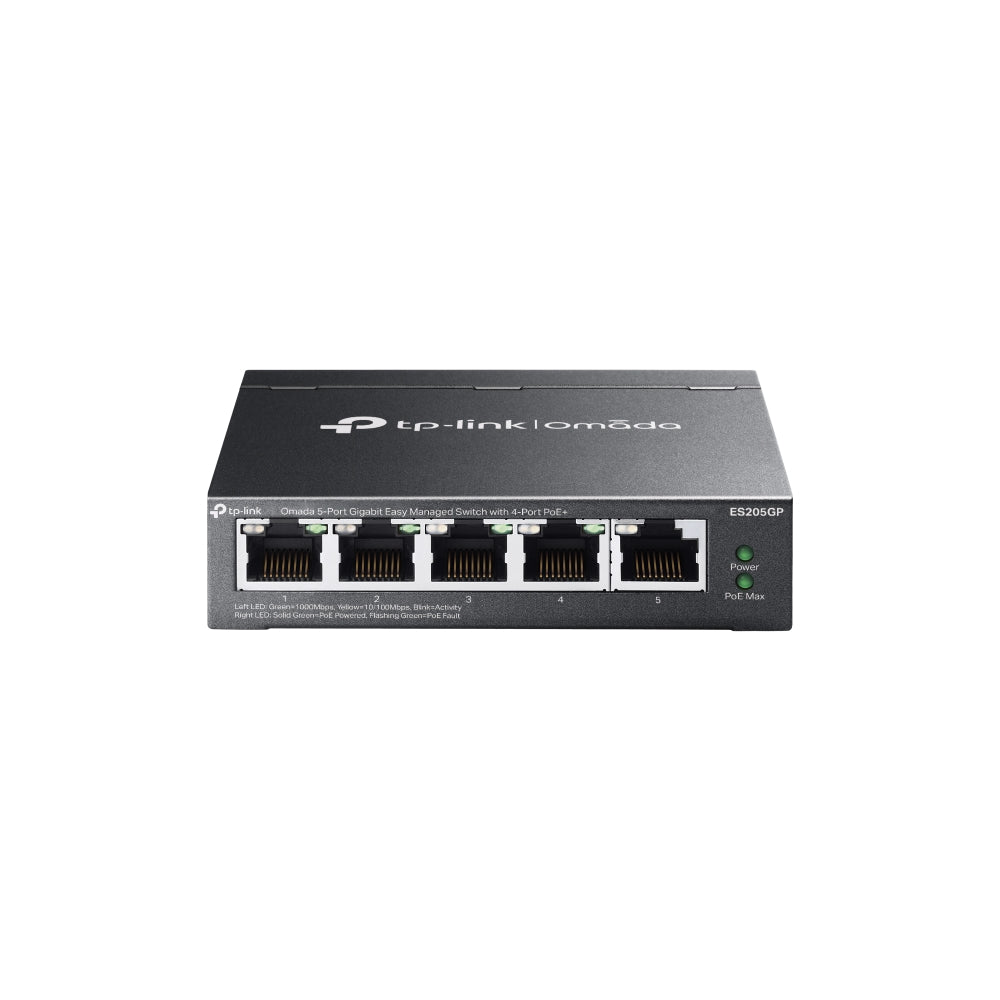

• 5 × 10/100/1000 Mbps RJ45 Ports

  • Ports 1–4 support IEEE 802.3af/at PoE+

• Auto-Negotiation / Auto MDI/MDIX

PoE Budget:

• Total: 65W

• Per Port: Up to 30W

• Features: PoE Auto Recovery, Fast PoE, Perpetual PoE

• Max Transmission Distance: 250m

Switching Capacity: 10 Gbps
Forwarding Rate: 7.4 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame Support: Up to 15 KB

Management Features:

• Centralised Omada Cloud management

• Web-based GUI

• DHCP client

• Cable diagnostics

• Automatic device discovery

• Batch configuration and firmware upgrading

• Unified configuration

Quality of Service (QoS):

• Port-based, 802.1p, and DSCP prioritisation

• 8 priority queues

• Weighted Round Robin scheduling

• Bandwidth control per port

• Storm control for traffic management

Layer 2 Features:

• Static link aggregation

• Loop prevention / loopback detection

• 802.3x flow control

• Port mirroring

• Port statistics and mirror status

• 802.1ab LLDP support

L2 Multicast:

• IGMP Snooping (v1/v2/v3)

• Fast Leave

VLAN:

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

• Up to 32 VLAN groups, supporting 4,000 VIDs

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 100 × 98 × 25 mm (3.9 × 3.9 × 1.0 in)

• Fan Quantity: Fanless

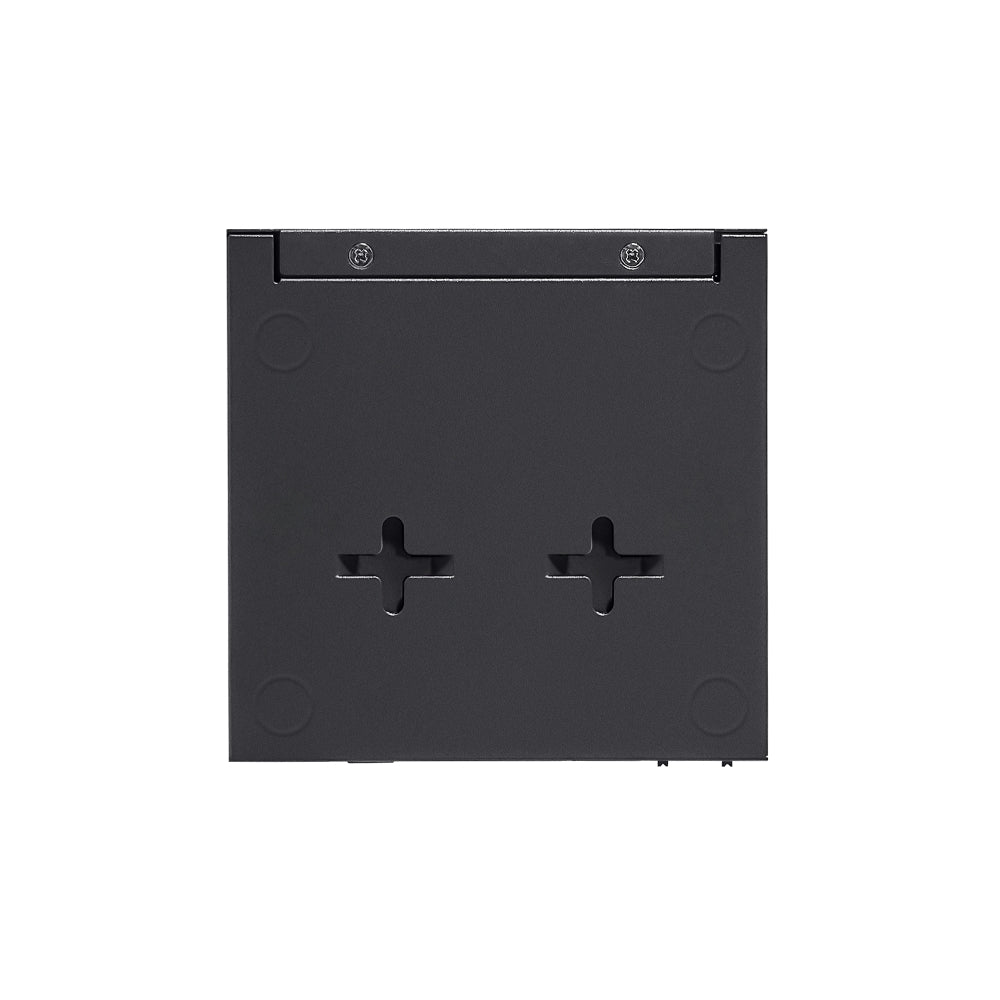

• Mounting: Desktop or wall-mountable

• Surge Protection: ±6kV

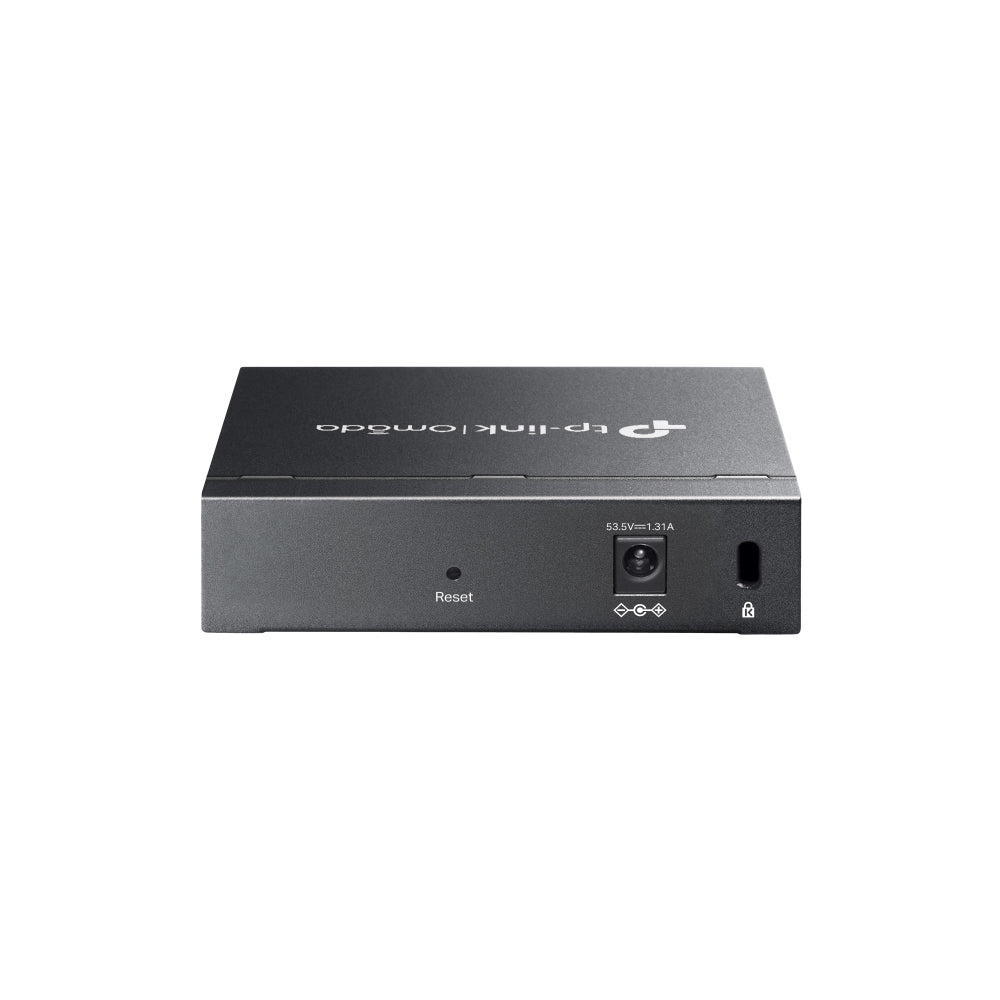

Power Supply: DC Power Adapter (53.5V DC / 1.31A)

Certifications: FCC, CE, RoHS

Environmental Specifications:

• Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®

Warranty Information

The TP-Link Omada ES205GP is protected by a limited manufacturer warranty. Customers in Australia and New Zealand can access local support and warranty services through authorised TP-Link channels, ensuring reliable assistance and peace of mind.

Brand Description

TP-Link is a global leader in networking solutions, trusted by millions worldwide for high-performance, reliable networking hardware. The Omada line embodies TP-Link’s commitment to enterprise-grade features, simplified management, and robust network security—all integrated into a scalable cloud-managed platform for modern business networks.

SKU

ES205GP

Practical Use Scenarios

• Small Surveillance Networks – Connect and power up to 4 IP cameras with long-range PoE, perfect for small shops or offices.

• Retail & POS Systems – Power Wi-Fi access points, cameras, and payment terminals while maintaining a silent, clutter-free installation.

• Home Offices & Studios – Bring professional-grade networking and PoE capability to compact workspaces without noise.

• Remote Installations – Ideal for wall-mount deployments in tight spaces where silent operation and PoE are critical.

• Small Business Networking – Connect essential devices with advanced L2 features, VLANs, and secure network segmentation.

Datasheets / Downloadable Resources

Download TP-Link Omada ES205GP Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link Omada ES205GP fully complies with Australian and New Zealand standards, holding certifications like FCC, CE, and RoHS. Exclusively sourced through authorised channels, this model ensures genuine hardware and complete warranty coverage, backed by local support. Designed for reliability and robust performance under diverse regional conditions, the ES205GP is an excellent choice for business and professional deployments across Australia and New Zealand.

 FAQs

Q1. How many devices can the ES205GP power via PoE? (ES205GP)
The ES205GP can power up to 4 PoE or PoE+ devices simultaneously, delivering a total power budget of 65W and up to 30W per port.

Q2. Does the ES205GP support long-distance PoE transmission? (ES205GP)
Yes! The ES205GP supports PoE transmission distances of up to 250 meters, perfect for remote cameras or wireless access points.

Q3. Can the ES205GP be managed through the Omada Cloud Controller? (ES205GP)
Absolutely. The ES205GP integrates with TP-Link’s Omada SDN platform for centralised cloud-based management, monitoring, and zero-touch provisioning.

Q4. Is the ES205GP suitable for silent operation in offices? (ES205GP)
Yes! The ES205GP is fanless and operates silently, making it perfect for quiet work environments, retail spaces, or home offices.

Q5. Does the ES205GP support VLANs for network segmentation? (ES205GP)
Yes. The ES205GP supports advanced VLAN features, including MTU VLAN, port-based VLAN, and 802.1Q tag VLAN, allowing for secure network segmentation.
