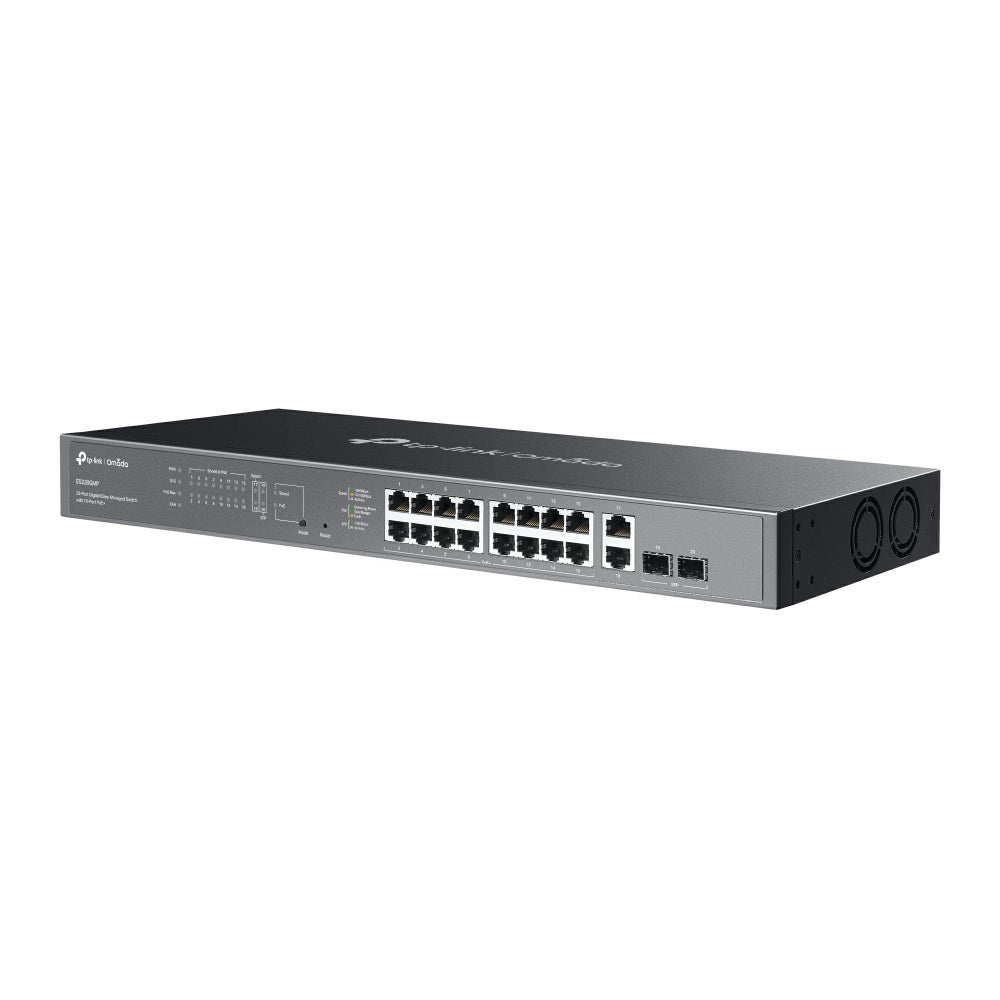

Step up your network infrastructure with the powerful TP-Link Omada ES220GMP, a feature-rich 20-Port Gigabit Easy Managed Switch designed for professional environments demanding reliability, performance, and simplified management. Equipped with 16 PoE+ ports offering a generous 250W power budget, this switch powers a wide range of devices including IP cameras, wireless access points, and VoIP phones—all through a single Ethernet cable.

The ES220GMP supports advanced networking capabilities like PoE Auto Recovery, up to 250m PoE transmission, VLAN segmentation, IGMP Snooping, and robust QoS for optimising critical voice and video applications. Its seamless integration with TP-Link’s Omada Software Defined Networking (SDN) platform ensures unified cloud management, zero-touch provisioning, and intuitive configuration for multi-site deployments.

Housed in a durable, rack-mountable metal enclosure, the ES220GMP delivers enterprise-grade performance and flexibility, making it a perfect solution for businesses, campuses, hospitality, and surveillance installations.

What's in the Box

• TP-Link Omada ES220GMP Easy Managed Switch

• Power Adapter

• Installation Guide

• Rubber Feet

Main Features

✅ 16-Port PoE+ with 250W Budget – Power multiple devices with up to 30W per port, eliminating the need for separate power supplies for devices like cameras and APs.

✅ Extended PoE Reach – Support up to 250 metres of PoE transmission, ideal for connecting distant IP cameras or access points.

✅ Gigabit Connectivity – Features 16 gigabit PoE+ ports, plus 2 gigabit RJ45 and 2 gigabit SFP uplink ports for flexible, high-speed connectivity.

✅ Omada Cloud Management – Centralised cloud-based management, monitoring, and zero-touch provisioning through the Omada SDN platform.

✅ Advanced Security and QoS – VLAN, port isolation, storm control, and 8 priority queues deliver reliable network performance and protection.

✅ Robust Build and Rack Mountable – Durable metal housing with ±6kV surge protection for industrial-grade reliability.

Detailed Specifications

Interfaces:

• 16 × 10/100/1000 Mbps PoE+ RJ45 Ports (IEEE 802.3af/at compliant)

• 2 × 10/100/1000 Mbps RJ45 Ports

• 2 × Gigabit SFP Slots

• Auto-Negotiation / Auto MDI/MDIX

PoE Budget:

• Total: 250W

• Per Port: Up to 30W

• Features: Fast PoE, Perpetual PoE, PoE Auto Recovery

• Max Transmission Distance: 250m

Switching Capacity: 40 Gbps
Forwarding Rate: 29.76 Mpps
MAC Address Table: 8K entries
Packet Buffer Memory: 4 Mbit
Jumbo Frame Support: Up to 15 KB

Management Features:

• Centralised Omada Cloud management

• Web-based GUI

• DHCP client

• Cable diagnostics

• Automatic device discovery

• Batch configuration and firmware upgrades

• Unified configuration

Quality of Service (QoS):

• Port-based, 802.1p, and DSCP prioritisation

• 8 priority queues

• Weighted Round Robin scheduling

• Bandwidth control per port

• Storm control

Layer 2 Features:

• Static link aggregation

• Loop prevention / loopback detection

• 802.3x flow control

• Port mirroring

• Port statistics and mirror status

• 802.1ab LLDP support

L2 Multicast:

• IGMP Snooping (v1/v2/v3)

• Fast Leave

VLAN:

• MTU VLAN

• Port-based VLAN

• 802.1Q Tag VLAN

• Up to 32 VLAN groups, supporting 4,000 VIDs

Transmission Method: Store-and-Forward

Physical:

• Dimensions: 440 × 180 × 44 mm (17.3 × 7.1 × 1.7 in)

• Fan Quantity: 2

• Mounting: Rackmountable

• Surge Protection: ±6kV

Power Supply: 100–240V AC, 50/60Hz

Certifications: FCC, CE, RoHS

Environmental Specifications:

• Operating Temperature: -5°C ~ 50°C (23°F ~ 122°F)

• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)

• Operating Humidity: 10% ~ 90% RH non-condensing

• Storage Humidity: 5% ~ 90% RH non-condensing

System Requirements: Compatible with Windows®, macOS®, Linux®, NetWare®, UNIX®

Warranty Information

The TP-Link Omada ES220GMP is backed by a limited manufacturer warranty. Customers in Australia and New Zealand benefit from local support and warranty services through authorised TP-Link channels, ensuring fast assistance and peace of mind.

Brand Description

TP-Link is a global leader in networking technology, trusted worldwide for delivering innovative, high-performance solutions for homes and businesses. The Omada series epitomises TP-Link’s dedication to professional-grade networking, integrating robust hardware with advanced cloud-managed control for streamlined, scalable, and secure networks.

SKU

ES220GMP

Practical Use Scenarios

• IP Surveillance Systems – Power and connect multiple high-resolution cameras across larger distances without additional power injectors.

• Wireless Access Point Networks – Deliver reliable gigabit speeds and PoE power for access points in large buildings, campuses, and retail spaces.

• VoIP Deployments – Simplify network infrastructure by powering VoIP phones directly over Ethernet.

• Enterprise Edge Networks – Perfect as a core or edge switch in SMB environments demanding advanced Layer 2 features and centralised management.

• Hospitality & Retail – Create stable, segmented networks with VLANs and QoS to support customer Wi-Fi, POS systems, and security devices.

Datasheets / Downloadable Resources

Download TP-Link Omada ES220GMP Datasheet

Excellence for the Australian and New Zealand Market

The TP-Link Omada ES220GMP is engineered to comply with all relevant Australian and New Zealand standards and is certified under FCC, CE, and RoHS. Sourced exclusively through authorised distribution channels, this switch guarantees genuine hardware and full warranty coverage locally. Designed for the demanding conditions and regulatory requirements of the Australian and New Zealand markets, the ES220GMP delivers the perfect balance of high performance, flexibility, and reliability for business-critical applications.

FAQs

Q1. How many PoE devices can the ES220GMP support at once? (ES220GMP)
The ES220GMP can power up to 16 PoE/PoE+ devices simultaneously, delivering a total PoE budget of 250W with up to 30W per port.

Q2. Does the ES220GMP support long-distance PoE connections? (ES220GMP)
Yes! The ES220GMP supports PoE transmission distances of up to 250 metres, ideal for remote cameras or access points.

Q3. Can the ES220GMP be managed through Omada Cloud? (ES220GMP)
Absolutely. The ES220GMP integrates with TP-Link’s Omada SDN for centralised cloud management, monitoring, and zero-touch provisioning.

Q4. Does the ES220GMP support VLANs for network segmentation? (ES220GMP)
Yes. The ES220GMP offers VLAN support including MTU VLAN, port-based VLAN, and 802.1Q tag VLANs for secure, organised networks.

Q5. Is the ES220GMP rack-mountable? (ES220GMP)
Yes! The ES220GMP features a rackmountable design, making it ideal for structured installations in network racks or cabinets.
