The TP-Link Omada FUSION-G+ Gateway combines a high-performance VPN gateway and built-in Omada controller in one compact business networking solution. Featuring 2.5GbE WAN, four Gigabit WAN/LAN ports, up to 4-WAN load balancing, automatic failover, full-mesh SD-WAN, 2.1Gbps-class IDS/IPS and license-free cloud management, the FUSION-G+ is designed for small offices, clinics, restaurants, retail locations and multi-site business networks.
By integrating the gateway and Omada controller into a single device, the FUSION-G+ reduces the number of separate networking components required while providing centralised management of compatible Omada infrastructure. It supports up to 30 managed Omada devices and up to 300 connected clients, making it well suited to growing small-business deployments.
Deployment is streamlined through the Omada App, with Bluetooth-guided onboarding, automatic device discovery and bulk adoption of compatible Omada networking devices. Administrators can manage the network through cloud, local and Omada App interfaces without a device licence for the built-in controller.
Main Features
-
Gateway and Controller in One – Integrated Omada gateway and controller simplifies network infrastructure and centralised management.
-
License-Free Cloud Management – Remote cloud management through web and app without a device licence for the built-in controller.
-
2.5GbE WAN Connectivity – One 2.5G WAN interface for high-speed internet services.
-

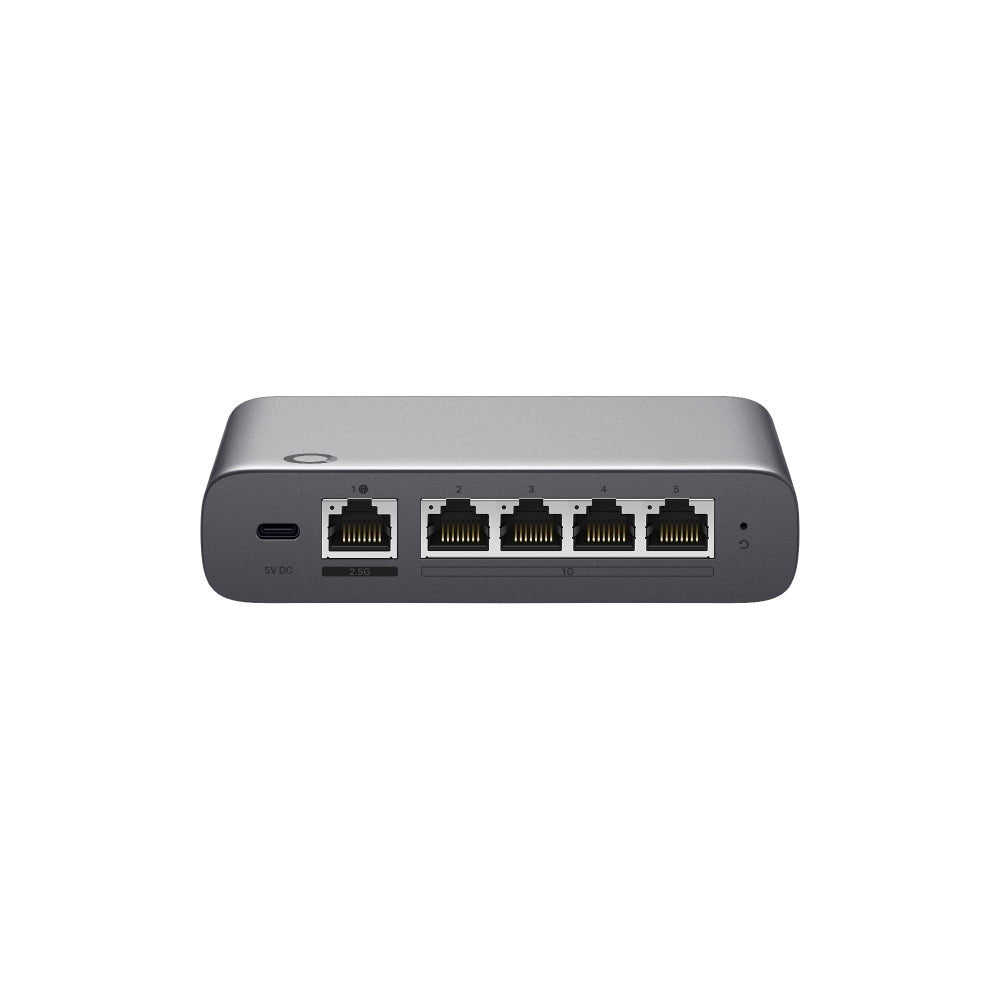

4× Gigabit WAN/LAN Ports – Flexible interfaces for LAN connectivity and multi-WAN deployments.
-
Up to 4-WAN Load Balancing – Distribute connectivity across multiple WAN services.
-
Automatic Multi-WAN Failover – Helps maintain connectivity if a WAN connection becomes unavailable.
-
2.1Gbps-Class IDS/IPS – Rated IDS/IPS throughput of 2,183Mbps under stated laboratory test conditions.
-
1,023Mbps Site-to-Site VPN Throughput – Performance figure based on IPsec VPN.
-

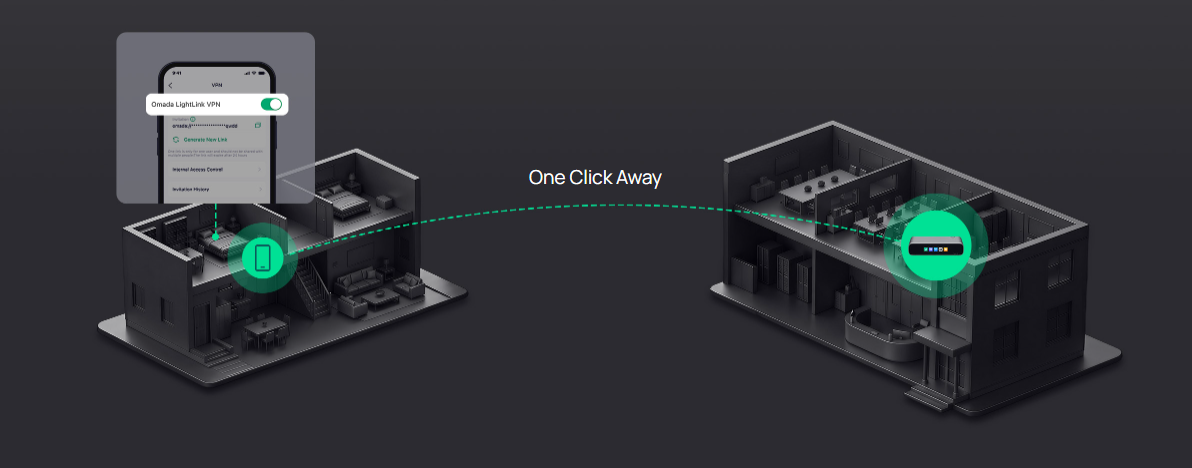

Omada LightLink VPN – One-click secure remote network access with Smart Split Tunneling.
-
Full-Mesh SD-WAN – Supports direct inter-site connectivity for up to 20 sites.
-
2.51" Touchscreen – Enables convenient on-device monitoring and troubleshooting.
-
Quad-Core Processor – Designed for stable gateway and controller processing.
-
2GB DDR4 Memory – Supports integrated gateway and network-management workloads.
-
Up to 300 Connected Clients – Suitable for small-to-medium business environments.
-
Manage Up to 30 Omada Devices – Centralised control of compatible Omada networking equipment.
-
Bluetooth Setup – App-guided onboarding simplifies initial deployment.
-
Bulk Device Adoption – Automatically discover and adopt compatible Omada devices.
-
App-Based ACL & DPI – Provides application-aware visibility and access policies.
-
Auto QoS & Bandwidth Control – Prioritise important network traffic.
-
Content Filtering & Ad Blocking – Additional controls for business internet access.
-
Fanless Cooling – Silent thermal design without a cooling fan.
-

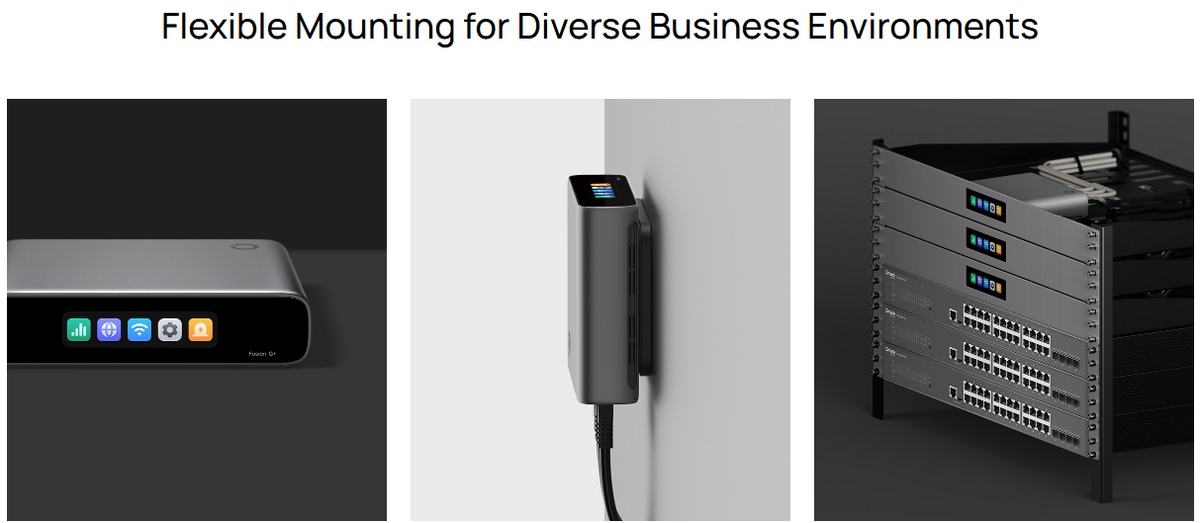

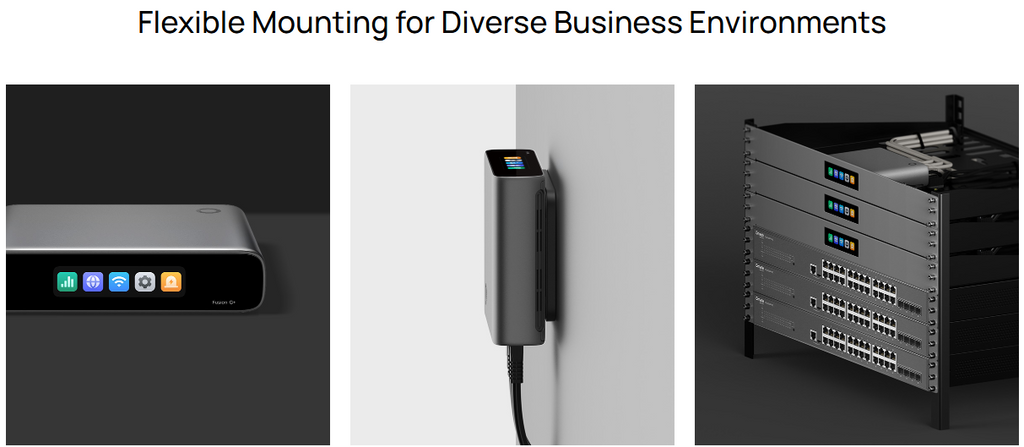

Flexible Installation – Supports desktop, optional wall-mount and optional rack-mount deployment.
Detailed Specifications
| Specification |
TP-Link Omada FUSION-G+ |
| Product Code / SKU |
FUSION-G+ |
| Product Description |
Omada Fusion G+ Gateway |
| Device Type |
VPN Gateway |
| Controller |
Built-in Omada Controller |
| Processor |
High-Performance Quad-Core CPU |
| Memory |
2GB DDR4 |

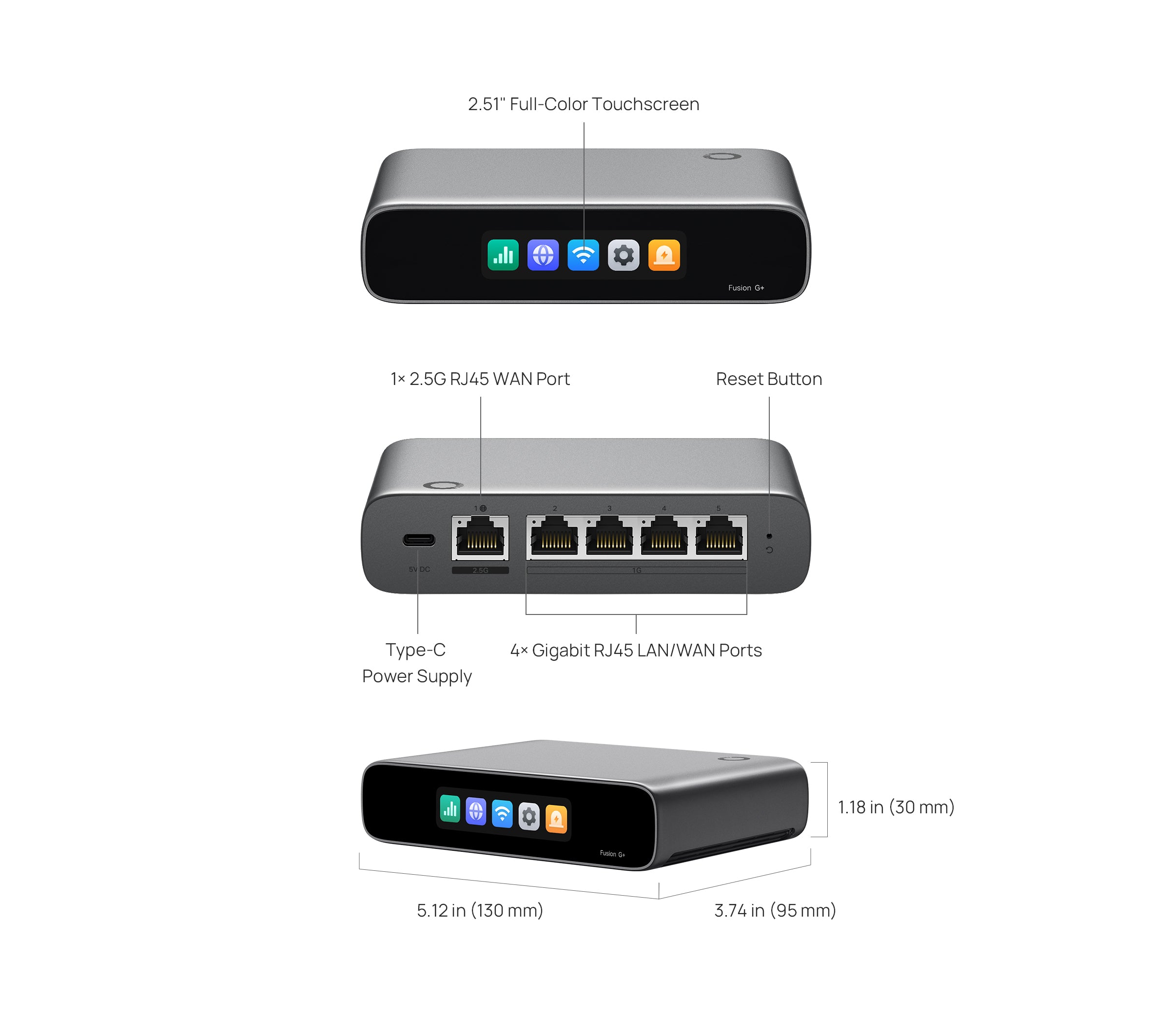

| WAN Interface |
1× 2.5GbE WAN |
| Additional Ethernet Interfaces |
4× Gigabit WAN/LAN |
| Maximum WAN Configuration |
Up to 4-WAN Load Balancing |
| Multi-WAN Failover |
Yes |
| IDS/IPS Throughput |
2,183Mbps* |
| Site-to-Site VPN Throughput |
1,023Mbps† |
| Managed Omada Devices |
Up to 30§ |
| Connected Client Capacity |
Up to 300§ |
| SD-WAN |
Full-Mesh SD-WAN |
| SD-WAN Site Support |
Up to 20 Sites |
| Omada LightLink VPN |
Yes |
| VPN Support |
WireGuard VPN / IPsec VPN |
| Firewall |
Yes |
| Content Filtering |
Yes |
| Ad Blocking |
Yes |
| DPI |
Yes |
| Access Control |
App-Based ACL |
| QoS |
Auto QoS |
| Bandwidth Control |
Yes |
| NAT / Routing Functions |
Port Forwarding, Virtual Server, DMZ, ALG, UPnP, One-to-One NAT, Disable NAT |
| Display |
2.51" Touchscreen |
| Management |
Cloud, Local and Omada App |
| Setup |
Bluetooth App-Guided Onboarding |
| Cooling |
Fanless |
| Dimensions |
167 × 190 × 91 mm |
| Installation |
Desktop; optional wall or rack mounting |
| Warranty |
5 Years |

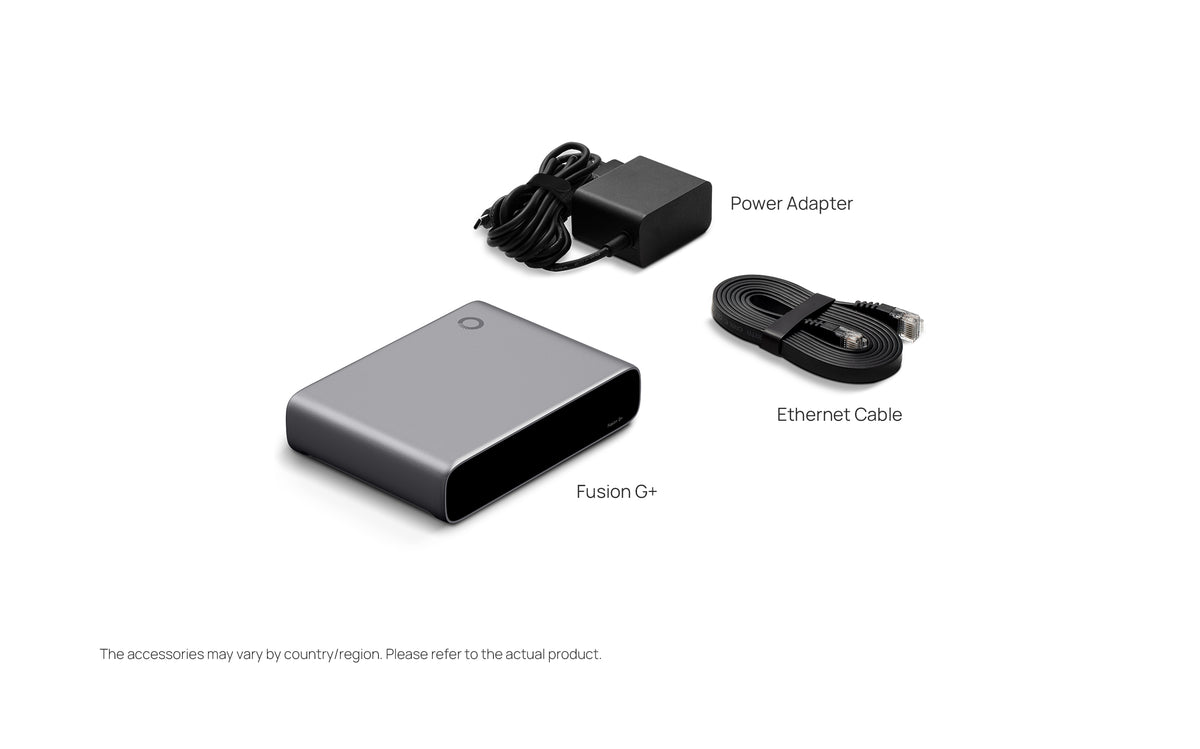

What's Included in the Box
Note: Magnetic wall-mount plate and rack-mount hardware are sold separately.
Advanced Networking & Security
The FUSION-G+ provides a broad range of networking capabilities for business deployments, including firewall protection, IDS/IPS, WireGuard VPN, IPsec VPN, Omada LightLink VPN, content filtering, ad blocking, DPI, application-based access control, QoS and bandwidth management.
For organisations operating across multiple locations, full-mesh SD-WAN can connect up to 20 sites with direct inter-site links. Multi-WAN load balancing and automatic failover provide additional flexibility where multiple internet services are available.
Practical Use Scenarios

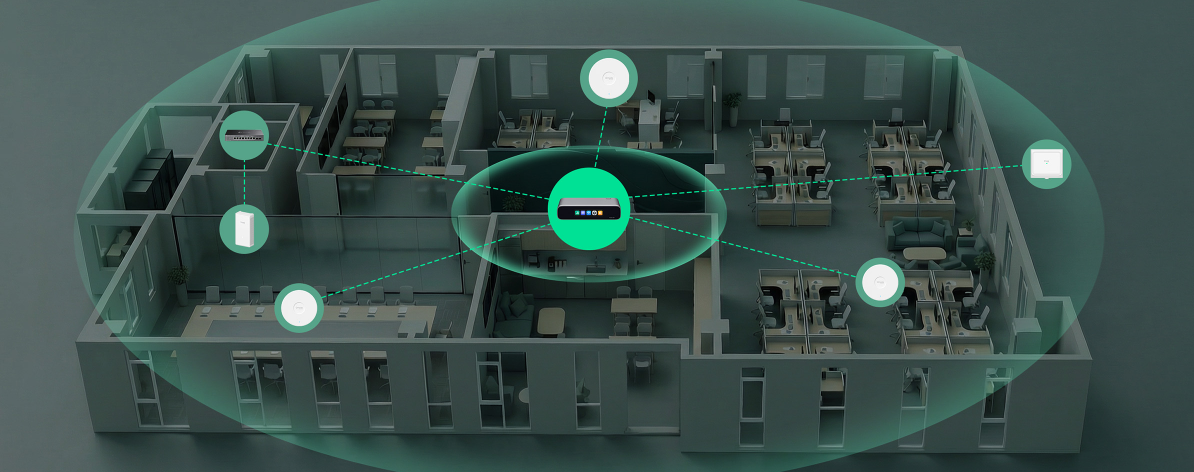

Small Offices: Deploy the FUSION-G+ as the central gateway and Omada controller for business internet connectivity, VPN access, security policies and management of compatible Omada switches and access points.
Retail & Small Chain Stores: Centralise visibility across multiple locations while using SD-WAN, VPN and remote cloud management to simplify administration.
Restaurants & Hospitality: Manage business and network infrastructure while applying bandwidth controls, application-based policies, content filtering and QoS.
Medical Clinics: Centralise network administration and use firewall, VPN and access-control capabilities to manage business network connectivity.
Multi-Site Businesses: Full-mesh SD-WAN, LightLink VPN and multi-site cloud visibility make the FUSION-G+ suitable for organisations operating multiple small locations.
Warranty Information
The TP-Link Omada FUSION-G+ includes a 5-year warranty,
Warranty claims and eligibility remain subject to the applicable supplier/manufacturer warranty terms and conditions.
About TP-Link Omada
TP-Link Omada provides business networking solutions spanning gateways, switches, wireless access points and centralised network management. The Omada ecosystem is designed to provide unified management across compatible networking infrastructure.
Datasheets & Downloadable Resources
TP-Link Omada Australia – FUSION-G+ Product Information
Excellence for the Australian and New Zealand Market
The TP-Link Omada FUSION-G+ is positioned as a professional networking solution for Australian and New Zealand business environments, with features particularly useful for small offices, retail locations, restaurants, clinics and distributed business networks.
For compliance, certification, authorised sourcing and warranty eligibility, customers should verify the specific AU/NZ supplied product and applicable documentation at the time of purchase. This avoids making assumptions about regulatory approvals or warranty arrangements that can vary by region, supplier and hardware version.
Performance Notes
* The stated IDS/IPS performance is based on laboratory testing using one WAN port and three LAN ports. Actual performance can vary according to traffic conditions, enabled functions and the network environment.
† Site-to-site VPN performance data is based on IPsec VPN.
§ Controller features and management capacity can vary depending on connected Omada devices, software versions, deployment mode and network conditions. Stated management capacity is based on laboratory testing.
FAQs
What is the TP-Link Omada FUSION-G+ Gateway?
The FUSION-G+ is an integrated TP-Link Omada business VPN gateway and controller featuring a 2.5GbE WAN port, four Gigabit WAN/LAN ports, cloud management, SD-WAN, VPN, security and centralised Omada device management.
Does the TP-Link Omada FUSION-G+ require a cloud management licence?
The FUSION-G+ provides license-free cloud management for its built-in Omada controller, enabling remote web and app management without a device licence.
How many Omada devices can the TP-Link Omada FUSION-G+ manage?
The FUSION-G+ is specified to manage up to 30 compatible Omada devices, subject to deployment conditions, device types and software versions.
How many clients can the TP-Link Omada FUSION-G+ support?
The FUSION-G+ has a stated capacity of up to 300 connected clients, with actual capacity and performance dependent on the network configuration and workload.
Does the TP-Link Omada FUSION-G+ support 2.5GbE?
Yes. The FUSION-G+ features one 2.5GbE WAN port together with four Gigabit WAN/LAN Ethernet ports.
Does the TP-Link Omada FUSION-G+ support multiple WAN connections?
Yes. The FUSION-G+ supports up to four-WAN load balancing and automatic multi-WAN failover.
What is the IDS/IPS throughput of the TP-Link Omada FUSION-G+?
The FUSION-G+ has a stated IDS/IPS throughput of 2,183Mbps under the manufacturer's specified laboratory test conditions.
Does the TP-Link Omada FUSION-G+ support SD-WAN?
Yes. The FUSION-G+ supports full-mesh SD-WAN for up to 20 sites, providing direct inter-site connectivity for multi-location networks.
Does the TP-Link Omada FUSION-G+ support WireGuard and IPsec VPN?
Yes. The FUSION-G+ supports WireGuard VPN and IPsec VPN, along with Omada LightLink VPN for convenient secure remote network access.
Does the TP-Link Omada FUSION-G+ have a built-in controller?
Yes. The FUSION-G+ combines an Omada controller and gateway in one device, reducing the need for a separate controller in supported deployments.
Does the TP-Link Omada FUSION-G+ have a touchscreen?
Yes. The FUSION-G+ includes a 2.51-inch touchscreen designed to provide convenient on-device monitoring and troubleshooting.
Can the TP-Link Omada FUSION-G+ be rack mounted?
Yes. The FUSION-G+ supports rack mounting with compatible rack-mount accessories sold separately. It can also be used on a desktop or wall mounted with the appropriate optional mounting hardware.
What warranty does the TP-Link Omada FUSION-G+ include?
The supplied product information specifies a 5-year warranty for the FUSION-G+. Applicable warranty conditions should be confirmed for the specific AU/NZ supply channel.
