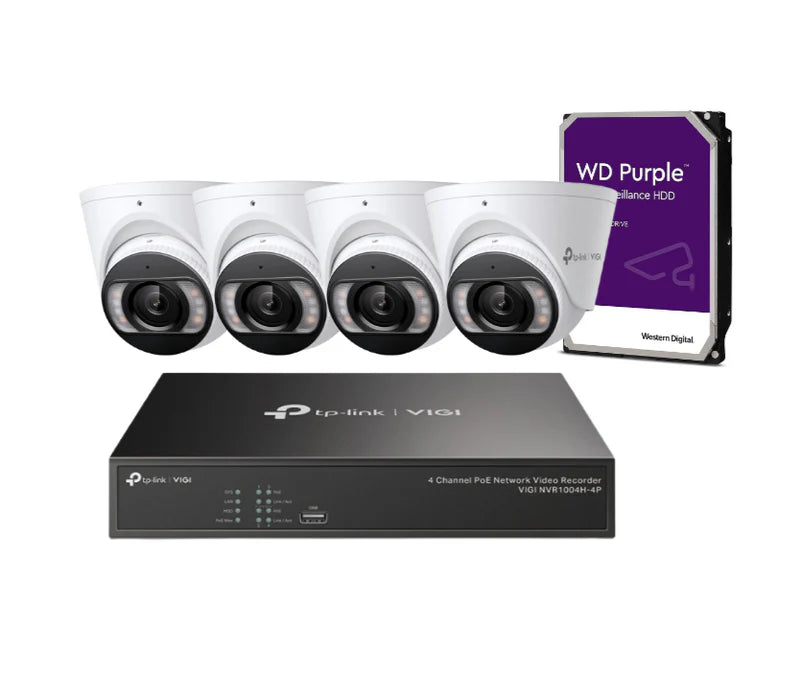

Experience unparalleled surveillance performance with theTP-Link 4x Camera Security Kit, combining fourInSight S485 8MP Full-Color Turret Network Camerasand the powerfulVIGI NVR1004H-4P 4-Channel PoE+ Network Video Recorder. Capture every detail in4K Ultra HD clarity, day and night, with24/7 full-color visibility,People & Vehicle Analytics, andSmart Detection Technologies. The robust IP67 waterproof cameras, paired with an NVR featuringPoE+ convenience,4K video output,H.265+ compression, andremote monitoring, make this a complete solution ideal for Australian and New Zealand conditions.
Built for reliability and precision, this all-in-one surveillance kit is perfect for homes, small businesses, retail outlets, offices, and outdoor sites requiring uncompromised security and operational simplicity.
What's Included in the Box
4 × VIGI Network Cameras (InSight S485)
1 × VIGI NVR1004H-4P Network Video Recorder
1 × Quick Start Guide (per device)
4 × Waterproof Cable Attachments
4 × Sets of Mounting Accessories
1 × NVR Power Adapter
1 × 2TB HDD
1 × Mouse for NVR Control
Main Features

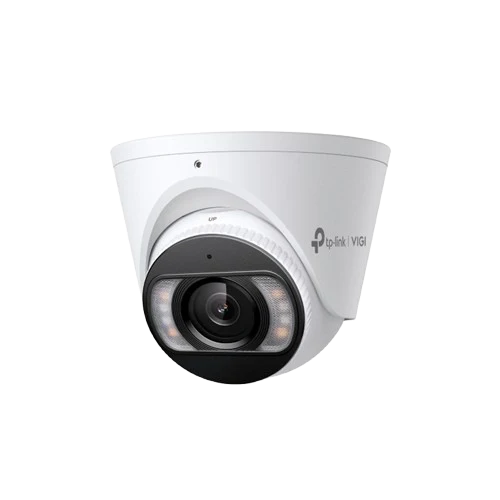

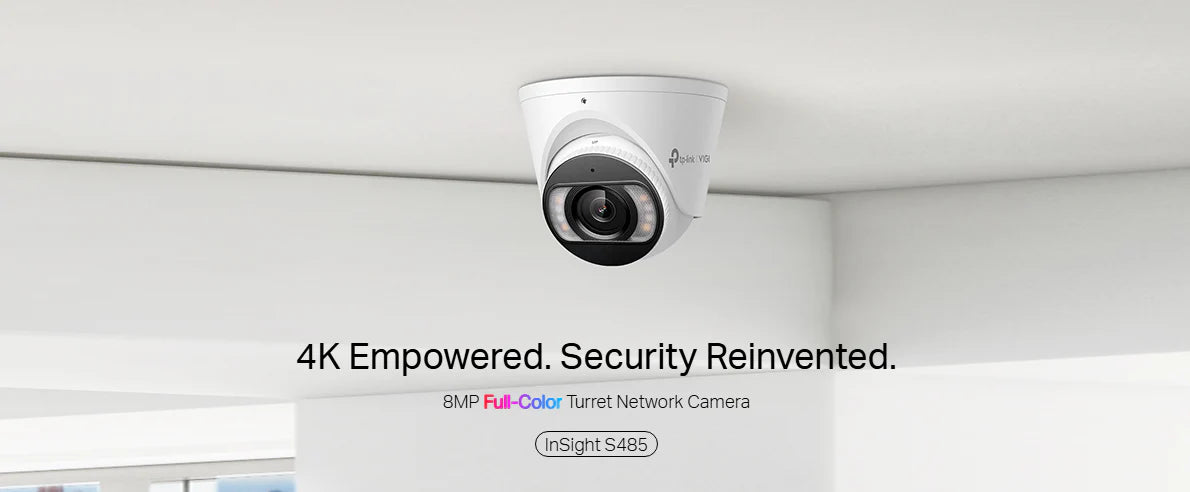

Cameras (TP-Link InSight S485)
8MP 4K Ultra HD Resolution(3840×2160)
24/7 Full-Color Monitoringwith White LED Illumination
Smart Detection: Intrusion, Line-Crossing, Loitering, and more
People & Vehicle Analyticsfor faster, smarter event filtering
Two-Way Audiowith Built-In Mic and Speaker
Active Defense: Siren and Flashlight Alerts
Smart Video Enhancements: True WDR, Smart IR, 3D DNR
IP67 Waterproof Ratingfor harsh environments
Flexible Powervia PoE or 12V DC

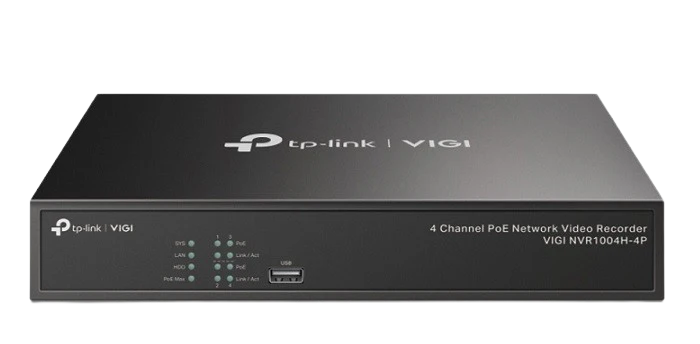

Network Video Recorder (TP-Link VIGI NVR1004H-4P)
4K HDMI Outputand16MP Decoding Capacity
4 PoE+ Portswith 53W Total Power Budget
4-Channel Playbackwith Smart Search Functions
H.265+ Compressionfor Storage Efficiency
Supports up to 10TB HDD(HDD included or optional)
Remote Monitoringvia VIGI App and VIGI Security Manager
Auto Initializationfor Quick Setup
Motion, Human/Vehicle Detection, and Event Alerts
Detailed Specifications
Cameras (InSight S485)
Image Sensor: 1/2.7” Progressive Scan CMOS
Lens Options: 2.8mm or 4mm Fixed Lens
Min Illumination: 0.005 Lux (Color), 0 Lux with IR
FOV: 2.8mm (H111.4°), 4mm (H91.5°)
Video Compression: H.265+/H.265/H.264+/H.264
Audio: G.711 a-law Two-Way Audio
Storage: Supports MicroSD Card up to 512GB
Power: PoE (802.3af/at) or 12V DC
Operating Temp: -30°C to 60°C
Material: Metal Housing, IP67 Rated
Network Video Recorder (VIGI NVR1004H-4P)
Video Input: 4 IP Channels
Output: HDMI 4K / VGA 1080p
Storage: 1 SATA Port (Up to 10TB HDD)
PoE: 4 Ports, Max 30W Per Port
Recording Modes: Manual, Scheduled, Event-Based
Remote Viewing: VIGI App (iOS, Android) and VIGI Manager Software
Operating Temp: -10°C to 55°C
Dimensions: 246.2 × 148.2 × 45 mm
Warranty Information
Manufacturer Warranty: 3 Years Limited Warranty
Support: Warranty and technical services handled locally through TP-Link Australia and New Zealand authorized centers.
Brand Description
TP-Link is a globally trusted leader in networking and smart surveillance technologies. With over two decades of innovation, TP-Link's products ensure reliable, high-quality security, enhancing the connected experience across homes, businesses, and industries worldwide.
SKU
SKU: INSIGHT-S485-4KIT
Practical Use Scenarios
Retail Stores and Offices: Ensure full visibility and smart event detection with real-time alerts.
Residential Security: Capture full-color images even at night for ultimate peace of mind.
Outdoor Facilities: Weatherproof and durable cameras handle extreme outdoor conditions.
Industrial Sites: Rugged construction ensures long-term performance in demanding locations.
Excellence for the Australian and New Zealand Market
TheTP-Link 4x Camera Security Kit with HDDmeets stringent Australian and New Zealand quality and compliance standards. Featuring IP67 weatherproofing, NDSS certification, and exclusive sourcing through authorized brand representatives, it’s fully optimized for local conditions. All warranty claims and technical support are managed directly through TP-Link Australia and New Zealand support centers, ensuring quick and efficient service.
FAQs
Q1: Does the TP-Link InSight S485 Kit support PoE installation? (Product Code: INSIGHT-S485-4KIT) A1:Yes, each camera in the kit supports 802.3af/at PoE, and the included NVR provides PoE+ ports for simple, streamlined installation.
Q2: What is the storage capacity included in the TP-Link Security Kit? (Product Code: INSIGHT-S485-4KIT) A2:The NVR supports up to a 10TB hard drive (pre-installed models vary); each camera also supports a MicroSD card up to 512GB.
Q3: Can the TP-Link Security Kit operate in extreme outdoor conditions? (Product Code: INSIGHT-S485-4KIT) A3:Absolutely. The IP67-rated cameras are built to withstand temperatures from -30°C to 60°C, ideal for Australian and New Zealand environments.
Q4: How does the TP-Link VIGI system optimize storage and bandwidth usage? (Product Code: INSIGHT-S485-4KIT) A4:Both the cameras and NVR use H.265+ compression technology, which significantly reduces file size and bandwidth needs while preserving video quality.
Q5: Is remote monitoring possible with this TP-Link Kit? (Product Code: INSIGHT-S485-4KIT) A5:Yes! You can monitor your system remotely via the VIGI mobile app or VIGI Security Manager software for total peace of mind.
