The TP‑Link VIGI NK4P‑T4425‑2T is an all-in-one, plug‑and‑play surveillance solution designed for small businesses, shops, or residential use. It includes four 4MP full-colour turret IP cameras and a smart 4-channel PoE+ NVR with a pre‑installed 2 TB HDD. Featuring 24/7 colour imaging with dual IR and white LEDs, intelligent human/vehicle detection, and robust weatherproofing, this kit ensures non-stop, reliable monitoring in any environment.

📦 What’s Included
-

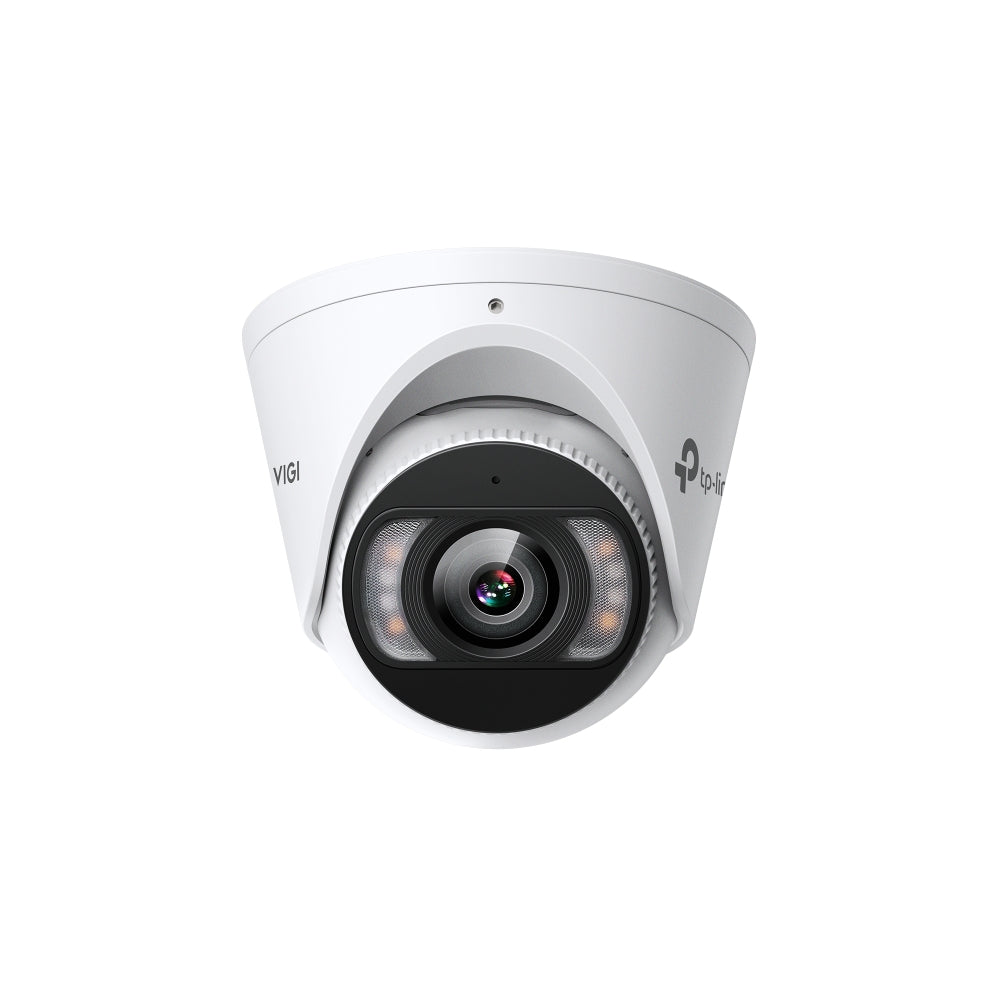

4 × 4MP Full‑Color VIGI C445 Turret IPCs (2.8 mm fixed lens)
-
1 × VIGI NVR1004H‑4P PoE+ NVR with 2 TB HDD
-
4 × Ethernet cables with PoE power
-
1 × Power adapter for NVR
-
Quick-start manual and mounting hardware

🔑 Key Features
4 MP Full‑Color Imaging
-
2688×1520 resolution, F1.6 aperture for crisp day/night footage
-
Dual lighting: 4 × IR + 4 × white LEDs, 30 m range each, switchable
Smart Detection & AI Alerts
-
Human/vehicle classification to reduce false alarms
-
Supports area intrusion, line crossing, and tampering alerts
Resilient Outdoor Performance
Simple PoE+ Plug‑and‑Play Setup
-
NVR with 4 PoE+ ports delivering up to 53 W total (30 W per port max)
-
One cable for video, power, and data per camera
High-Definition NVR Performance
-
80 Mbps input and 60 Mbps output bandwidth
-
4K HDMI output and 4-channel synchronous playback
-
Supports up to 10 TB HDD (2 TB pre-installed)
Efficient Video Compression

🛠 Specifications
Camera (C445)
-
Sensor: 1/2.7″ CMOS
-
Shutter: 1/3–1/10000 s; slow shutter mode
-
Lens: 2.8 mm (F1.6), M12 mount
-
Field of View: 100° H / 54° V / 118° diag
-
Min Illumination: 0.005 Lux (color), 0 Lux with IR/white light
Lighting
Network & Power
NVR (NVR1004H‑4P)
-
Inputs: 4 channels, 80 Mbps ingress, 60 Mbps egress
-
Outputs: HDMI 4K@30 Hz, VGA 1080p
-
Recording support: up to 8MP
-
Playback: 4-ch @4 MP or 2-ch @8 MP; 2TB preinstalled, expandable to 10TB
-
PoE budget: 53 W total, max 30 W per port
-
Operating temp: NVR –10 °C to 55 °C; adapter 0 °C to 40 °C

🏢 Brand Overview - TP‑Link VIGI
TP‑Link’s VIGI series delivers professional-grade surveillance tailored for easy deployment and smart functionality. With a focus on PoE convenience, AI-driven alerts, and high reliability, the NK4P‑T4425‑2T kit suits small business and residential needs.
✅ Use-Case Scenarios
-
Retail stores, offices & workshops needing seamless 24/7 surveillance
-
Outdoor areas (driveways, entrances) requiring weatherproof color imaging
-
Properties needing smart detection with minimal false alarms
-
Quick-deploy setups where cable simplicity and fast installation are key
🛡 Warranty & Support
-
Comes with TP‑Link’s standard 1-year limited hardware warranty
-
Remote monitoring and notification via the VIGI app (iOS/Android)
-
Firmware updates and support via TP‑Link’s technical platform
Datasheet
- Manual
-

🇦🇺 Excellence for the Australian and New Zealand Market
The TP-Link VIGI NK4P‑T4425‑2T is sourced through authorized TP-Link representatives in Australia and New Zealand. It is fully compliant with local voltage, safety, and emissions standards, and backed by local warranty support. Built to perform reliably in harsh regional environments, it's ideal for both urban and remote security setups.
❓FAQs
Q: Does the NK4P‑T4425‑2T kit include HDD?
A: Yes—the NVR includes a pre-installed 2 TB hard drive and supports up to 10 TB via SATA. (SKU: NK4P-T4425-2T)
Q: What detection does NK4P‑T4425‑2T support?
A: It features AI-based human and vehicle detection plus intrusion, line-crossing, and tamper alerts. (SKU: NK4P-T4425-2T)
Q: Are the cameras weatherproof?
A: Yes, the turret IPCs are rated IP67 and operate in temperatures down to –30 °C. (SKU: NK4P-T4425-2T)
Q: Can it deliver constant colour imaging at night?
A: Absolutely—the kit has both IR and white LEDs for 30 m full-colour night vision. (SKU: NK4P-T4425-2T)
Q: Is it easy to install?
A: Yes—just plug Ethernet cables into the NVR’s PoE+ ports and you're ready to go. (SKU: NK4P-T4425-2T)
