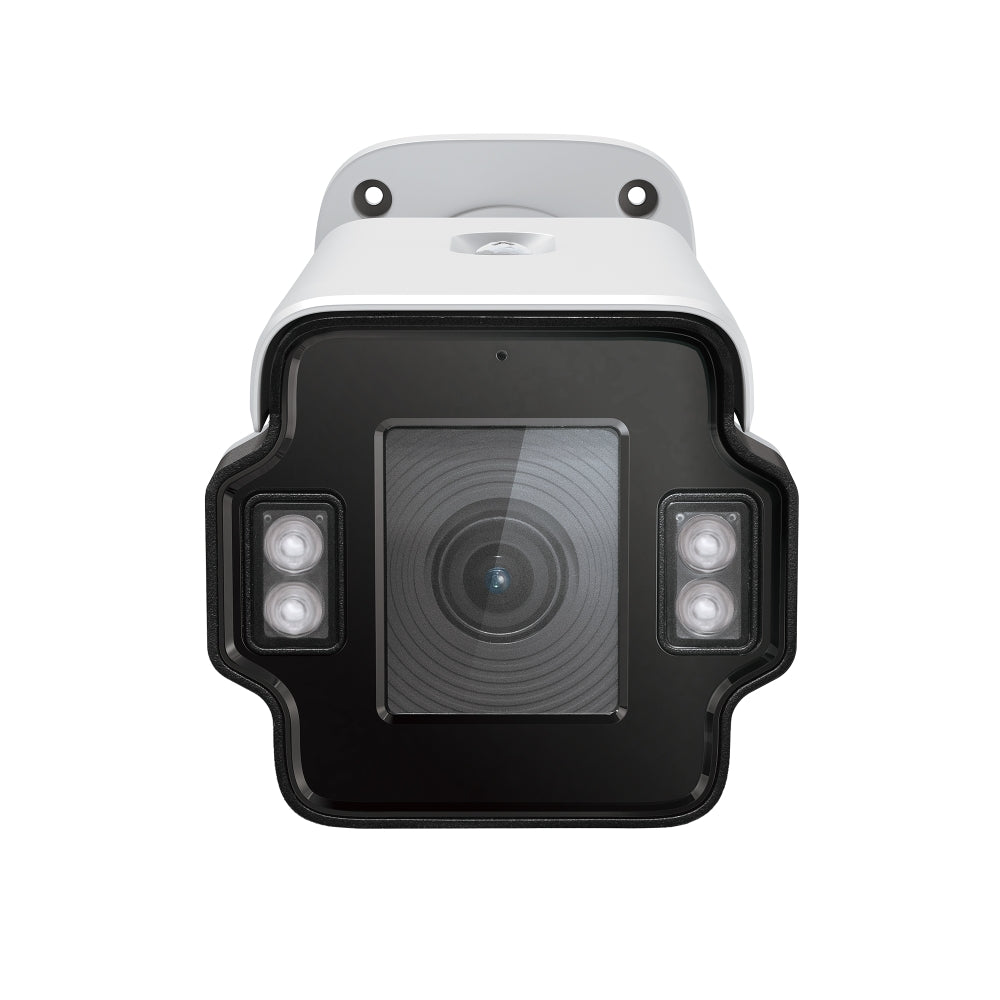

The TP-Link VIGI S345ZI is a high-performance 4MP outdoor bullet camera featuring a motorised varifocal lens with 5X optical zoom for dynamic field of view adjustment and zoom precision. Designed for critical surveillance zones like entrances, perimeters, parking lots, and construction sites, it delivers remarkable clarity and control in both installation and live monitoring.

With 4MP Super HD resolution and IR night vision up to 60 meters, this camera ensures excellent visibility at all times. It employs advanced AI-enhanced detection features such as Human & Vehicle Classification, reducing false alarms by identifying relevant movement. Flexible audio and alarm integration, H.265+ compression, and rugged IP67/IK10-rated protection make it a reliable solution for any demanding environment.

This model’s True WDR, Smart IR, and 3D DNR technologies adapt to lighting variations, maintaining image integrity across day and night shifts. Integrated microphone, microSD storage up to 512GB, and support for the VIGI app and cloud platform provide complete control from installation to remote monitoring.

What’s in the Box

• TP-Link VIGI S345ZI 4MP Bullet Camera
• Mounting Accessories
• Waterproof Cable Attachments
• Quick Start Guide

Main Features

• Motorised Varifocal Lens (2.7–13.5mm) with 5X Optical Zoom
• 4MP Super HD Resolution (2688 × 1520) with IR range up to 60m (197 ft)
• Human & Vehicle Classification for more accurate smart alerts
• Smart Video Enhancements: True WDR, 3D DNR, Smart IR
• H.265+ Video Compression for bandwidth and storage savings
• Audio and Alarm Integration: Audio In/Out and Alarm In/Out
• Built-in Microphone for two-way audio communication
• Weatherproof & Vandal-Proof: IP67 and IK10 certified
• Edge Storage: MicroSD slot supporting up to 512GB
• Remote Access via VIGI App, VMS, and Cloud Platform

Detailed Specifications

Camera

• Image Sensor: 1/2.9” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000s
• Minimum Illumination: 0.005 Lux; 0 Lux with IR
• Day/Night: IR Cut Filter, Auto/Scheduled/Unified Switch
• IR LEDs: 4 LEDs, Range: 60m (197ft), 850nm Wavelength

Lens & FOV

• Type: Motorised Varifocal (2.7–13.5mm)
• Aperture: F1.6
• Field of View:
  • Horizontal: 29.6°–102.0°
  • Vertical: 16.8°–53.8°
  • Diagonal: 34.1°–122.8°
• DORI Distances:
  • Detect: 66–207m
  • Observe: 28–86m
  • Recognize: 13–41m
  • Identify: 7–21m

Video

• Max Resolution: 2688 × 1520
• Main Stream: Up to 30fps
• Sub-Stream: Up to 30fps
• Compression: H.265+/H.265/H.264+/H.264
• Bitrate: Main – 256 Kbps to 6 Mbps; Sub – 512 Kbps to 1024 Kbps

Image Settings

• WDR (120 dB), Smart IR, BLC, 3D DNR
• Adjustable: Brightness, Contrast, Sharpness, Saturation, Exposure
• Privacy Mask: Up to 4 Zones
• ROI: 1 Region
• OSD Overlay: Yes

Audio

• Two-Way Audio: Supported
• Audio In/Out: 1 Interface Each
• Compression: G.711 alaw (64 Kbps), 8KHz Sampling Rate
• Environmental Noise Filtering: Yes
• Built-in Microphone: 15-ft range

Network

• Interface: 1× RJ45 10/100M Ethernet, PoE (802.3af/at)
• Protocols: IPv4/IPv6, HTTPS, RTSP, FTP, UPnP, ONVIF
• ONVIF Profile: S/T/G
• Remote Access: VIGI App, Web UI, VIGI VMS, Cloud VMS
• Simultaneous Viewing: 3 Main Streams + 3 Sub-streams

Smart Detection & Alarm Management

• AI Detection: Human & Vehicle Classification
• Smart Events: Intrusion, Line-Crossing, Object Removal, Loitering, Scene Change
• Basic Events: Motion, Video Tampering, Abnormal Sound, Illegal Login
• Alarm Integration: 1 Input / 1 Output
• Notifications: Push Alerts, FTP Upload, Email, Audible Warning

Storage

• Onboard: MicroSD Slot (up to 512GB)

General

• Operating Temp: -30°C to 60°C
• Power: 12V DC ±5% (10.8W) or PoE (Max. 12W)
• Dimensions: 256 × 100 × 101 mm
• Material: Metal
• Certifications: CE, FCC, ONVIF, VCCI, KC, BSMI
• Protection: IP67 Weatherproof, IK10 Vandal Proof

Warranty Information

The TP-Link VIGI S345ZI comes with a 3-year manufacturer warranty, supported by TP-Link’s authorized partners and service centers across Australia and New Zealand for reliable and prompt assistance.

Brand Description

TP-Link is a globally trusted brand in networking and surveillance technology, offering enterprise-grade performance at an accessible price point. The VIGI line brings cutting-edge features and dependable quality to commercial and industrial security environments worldwide.

SKU

VIGI-S345ZI

Practical Use Scenarios

• Construction Sites: Dynamically adjust zoom to monitor materials, equipment, and perimeters
• Warehouse Entrances: Capture wide and narrow FOVs to track entry/exit activities in detail
• Corporate Parking Lots: Track vehicle movements with AI classification and high-clarity imaging
• Schools & Campuses: Secure large outdoor areas while focusing on vulnerable entry points
• Public Infrastructure: Install on highways or utility hubs with strong vandal and weather resistance

Datasheets & Resources

• Download VIGI S345ZI Datasheet (PDF)


Excellence for the Australian and New Zealand Market

The TP-Link VIGI S345ZI is tailored for professional surveillance across Australia and New Zealand, with certifications including CE, FCC, ONVIF, IP67, and IK10. Sourced exclusively via authorized ANZ distributors, this camera ensures local power compatibility and complies with regional data protection and quality assurance standards. With dedicated warranty support and VIGI software platforms optimized for the local market, it is a future-ready solution for demanding outdoor security installations.

FAQs – TP-Link VIGI-S345ZI

Q1: What makes the VIGI-S345ZI different from standard fixed-lens cameras?
A1: The VIGI-S345ZI features a 5X motorised varifocal lens, allowing remote zoom and focus adjustments to adapt to various monitoring needs. (SKU: VIGI-S345ZI)

Q2: How far can this camera see in darkness?
A2: With its 4 built-in IR LEDs, the camera offers clear night vision up to 60 meters (197 feet). (SKU: VIGI-S345ZI)

Q3: Can I receive alerts only for human or vehicle movements?
A3: Yes, the VIGI-S345ZI supports Human & Vehicle Classification to reduce false alarms caused by irrelevant motion. (SKU: VIGI-S345ZI)

Q4: Is this camera compatible with PoE?
A4: Absolutely. It supports 802.3af/at PoE, simplifying installation without the need for separate power cables. (SKU: VIGI-S345ZI)

Q5: Does this camera support audio?
A5: Yes, it includes one audio input and one output port, plus a built-in microphone for two-way audio capability. (SKU: VIGI-S345ZI)

Q6: Can I manage this camera remotely?
A6: Yes, you can access it through the VIGI App, VIGI Cloud VMS, or VIGI Security Manager for full remote monitoring and control. (SKU: VIGI-S345ZI)
