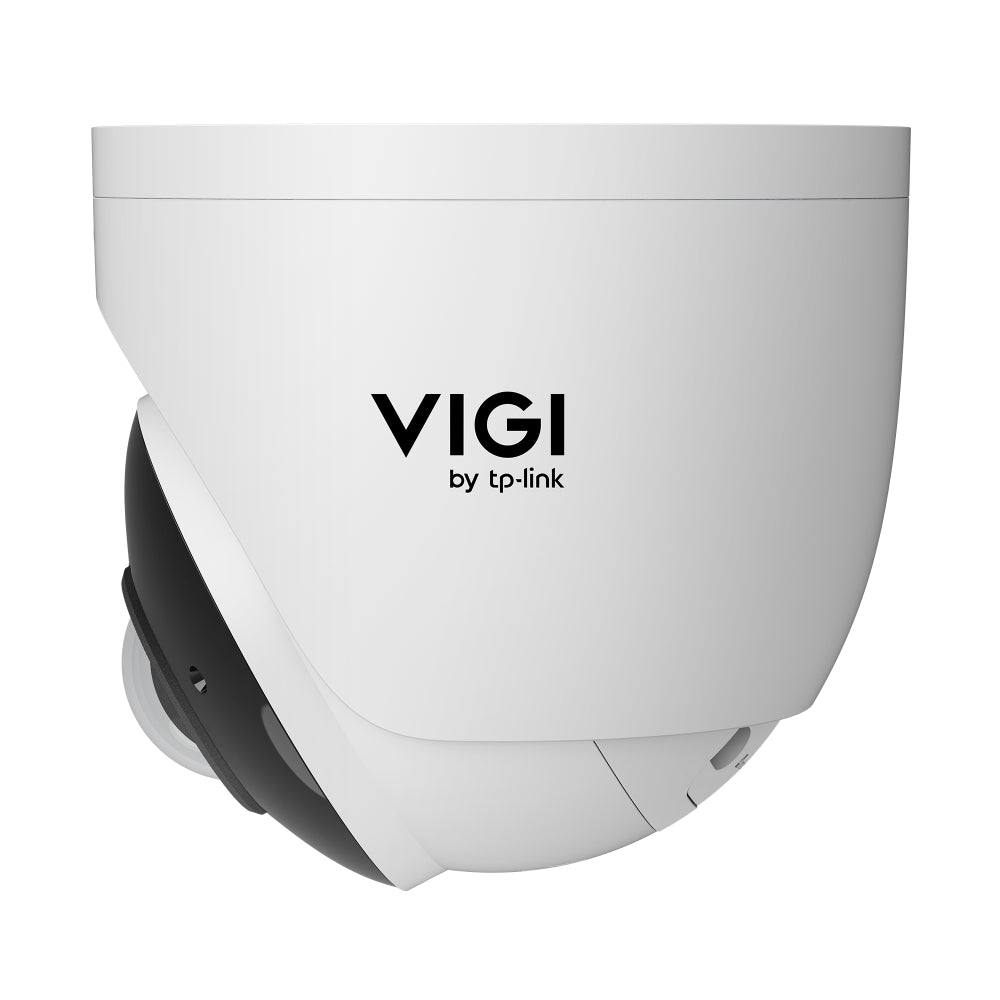

The TP-Link VIGI S485PI offers a powerful blend of panoramic surveillance and advanced deterrence in one compact turret-style network camera. Engineered with an 8MP 4K Ultra HD sensor and 180° panoramic field of view, this professional-grade security solution ensures wide-angle monitoring with minimal blind spots, making it ideal for intersections, commercial building entrances, playgrounds, and warehouses.

Unlike standard cameras that require multiple units to achieve full coverage, the VIGI S485PI provides complete scene visibility with a single unit—dramatically reducing deployment and maintenance costs. Its AI-enhanced smart detection with Human and Vehicle Classification, People & Vehicle Analytics, and real-time red-blue warning lights help prevent incidents before they escalate.

Enhanced with True WDR, Smart IR, and 3D DNR, this turret camera adapts seamlessly to dynamic lighting environments. With two-way audio, microSD card support (up to 512GB), and IP67/IK10-rated protection, the VIGI S485PI is ready to perform in any condition, day or night.

What’s in the Box

• TP-Link VIGI S485PI 8MP IR Network Camera
• Mounting Accessories
• Waterproof Cable Attachments
• Quick Start Guide

Main Features

• 180° Panoramic Coverage in crisp 8MP (3840×2160) Ultra HD resolution
• IR Night Vision up to 20m (65.6 ft) with 4 IR LEDs
• Red-Blue Warning Lights and Audio Alarms for active deterrence
• Smart AI Detection: Human/Vehicle classification, scene change, loitering, and more
• Smart Video Enhancements: True WDR (120dB), Smart IR, 3D DNR, BLC
• Two-Way Audio Communication via built-in microphone and speaker
• Flexible Integration: 1 Alarm In / 1 Alarm Out, Audio In/Out interfaces
• Robust Build: IP67 weatherproof and IK10 vandal-proof
• Storage Options: Supports up to 512GB microSD
• Power Options: 12V DC or 802.3at PoE (up to 21W)

Detailed Specifications

Camera

• Image Sensor: 1/2.7” Progressive Scan CMOS
• Shutter Speed: 1/3 to 1/10000s
• Minimum Illumination: 0.005 Lux (Color); 0 Lux with IR
• IR Range: 20m (65.6 ft)
• Lens: 1.65mm Fixed Focal, F2.0 Aperture
• Field of View: H: 180° / V: 86° / D: 180°
• Manual Adjustment: Pan 0–360°, Tilt 0–75°, Rotation 0–360°

DORI Range

• Detect: 44m | Observe: 18.33m | Recognize: 8.8m | Identify: 4.4m

Video

• Max Resolution: 3840 × 2160 (4K UHD)
• Main Stream Frame Rate: Up to 30fps
• Compression: H.265+/H.265/H.264+/H.264
• Bitrate: 256 Kbps to 8 Mbps (Main); 64 Kbps to 1024 Kbps (Sub)

Image Enhancement

• WDR (120dB), Smart IR, BLC, 3D DNR, HLC
• Adjustable Settings: Brightness, Contrast, Sharpness, White Balance, Mirror, Privacy Mask (4 zones), ROI (4 regions)

Audio

• Audio In/Out Interfaces + Built-in Mic & Speaker
• Audio Bitrate: 64Kbps (G.711 alaw), 8KHz Sampling Rate
• Environment Noise Filtering: Yes
• Two-Way Audio: Supported

Network & Protocols

• Interface: RJ45 10/100M Ethernet, PoE
• Protocols: TCP/IP, HTTPS, FTP/SFTP, RTSP, UPnP, NTP, ONVIF, IPv4/IPv6
• ONVIF Profile: S/T/G
• Client Software: VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
• Simultaneous Streams: 3 Main + 3 Sub-streams

Smart Detection & Analytics

• AI-Powered Detection: Human, Vehicle, Loitering, Intrusion, Line Crossing, Scene Change
• People & Vehicle Analytics: Filter post-event by appearance traits
• Alarm: 1 Input / 1 Output
• Instant Alerts: Push notifications, Email, FTP Upload, Audio/Light Alarm

Storage

• Onboard Slot: Supports microSD up to 512GB

General

• Operating Temp: -30°C to 60°C
• Power: 12V DC or PoE (802.3at, Max 21W)
• Material: Metal
• Dimensions: 112.3 × 112.3 × 110.2 mm
• Weight: 0.76kg
• Protection: IP67, IK10
• Certifications: CE, FCC, ONVIF, VCCI, KC, BSMI

Warranty Information

The TP-Link VIGI S485PI is covered under TP-Link’s 3-year manufacturer warranty. Customers in Australia and New Zealand are fully supported by local service centers and authorized distribution channels, ensuring quick and efficient warranty handling.

Brand Description

As a global leader in networking and surveillance innovation, TP-Link offers the VIGI series to meet the high standards of commercial and enterprise-grade security. Trusted for quality, performance, and intuitive system integration, TP-Link solutions are built for modern security professionals.

SKU

VIGI-S485PI

Practical Use Scenarios

• Playgrounds & Public Parks: Monitor wide outdoor areas with fewer cameras and proactive deterrence
• Commercial Storefronts: Detect suspicious behavior and deliver alerts before incidents escalate
• School Grounds & Entrances: Cover gates and parking areas with AI analytics and real-time alerts
• Warehouse Yards: Reduce equipment costs while maintaining high-resolution visibility in large spaces
• Security Checkpoints: Combine facial recognition, motion detection, and analytics in a single device

Datasheets & Resources

• Download Datasheet (PDF)


Excellence for the Australian and New Zealand Market

The TP-Link VIGI S485PI is fully compliant with Australian and New Zealand quality and safety standards, including CE, FCC, ONVIF, IP67, and IK10 certifications. Each unit is sourced through authorized TP-Link distributors in the region, ensuring authenticity and eligibility for local warranty support. Its electrical compatibility, firmware localization, and support resources are tailored to ANZ market requirements, making it a reliable choice for professionals across the security sector.

FAQs – TP-Link VIGI-S485PI

Q1: What makes the VIGI-S485PI turret design different from bullet cameras?
A1: The turret form factor offers discreet installation with the same panoramic coverage, making it ideal for locations requiring both visibility and subtlety. (SKU: VIGI-S485PI)

Q2: Can I use this camera in coastal or high-moisture environments?
A2: Yes, the VIGI-S485PI is IP67 rated, making it fully resistant to water and dust—ideal for outdoor and coastal installations. (SKU: VIGI-S485PI)

Q3: What AI capabilities are included with the VIGI-S485PI?
A3: It supports People & Vehicle Analytics, Human/Vehicle Classification, Object Removal, and Loitering Detection, improving real-time alerts and search functions. (SKU: VIGI-S485PI)

Q4: Does the VIGI-S485PI support integration with external alarms?
A4: Yes, it features dedicated Alarm In/Out and Audio In/Out interfaces for integration with external sensors, buzzers, and access control systems. (SKU: VIGI-S485PI)

Q5: How is storage handled if I don’t want to use cloud services?
A5: The camera supports microSD cards up to 512GB for local storage, reducing dependency on cloud storage options. (SKU: VIGI-S485PI)

Q6: Can I view and manage the camera remotely?
A6: Absolutely. Use the VIGI App, VMS, or Cloud VMS platform for full remote access and real-time monitoring. (SKU: VIGI-S485PI)
