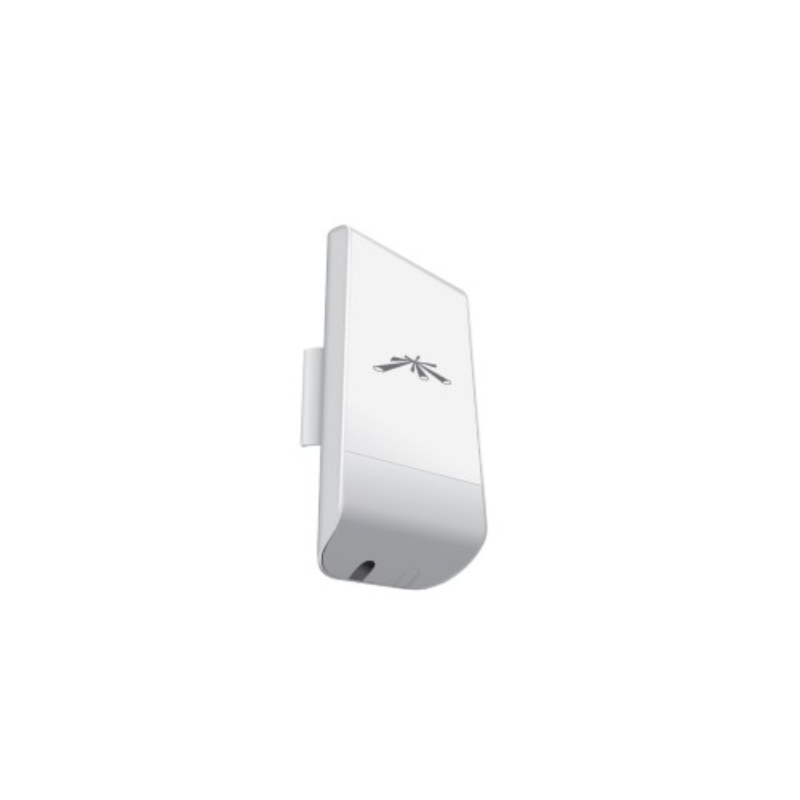

The Ubiquiti NanoStation Loco M5 (UB-LOCOM5) is a compact, high-performance 5GHz outdoor wireless bridge and access point featuring a built-in 13dBi dual-polarised MIMO antenna, airMAX TDMA technology and passive PoE support. Designed for reliable point-to-point (PtP) wireless bridging and point-to-multipoint (PtMP) network applications, it provides an economical solution for extending wireless connectivity between buildings, commercial premises and remote network locations.
Developed by Ubiquiti Networks, the NanoStation Loco M5 combines advanced wireless networking technology with an efficient, space-saving design. Its integrated airMAX MIMO TDMA protocol improves wireless airtime management, helping deliver efficient data transmission and more consistent network performance in compatible airMAX deployments.
Featuring an integrated 13dBi directional antenna, the Loco M5 eliminates the need for a separate external antenna, simplifying installation and reducing deployment costs. The weather-resistant, UV-stabilised enclosure makes it suitable for outdoor installations, while the included pole-mounting hardware offers flexible positioning.
The device operates in the 5GHz wireless spectrum and supports a 10/100Mbps Ethernet interface, making it suitable for wireless network extensions, outdoor CPE installations, building-to-building connectivity and compatible wireless surveillance networks.
With a maximum power consumption of just 5.5W and an included 24V passive PoE adapter, the Ubiquiti Loco M5 provides a practical, energy-efficient networking solution for residential, commercial and industrial applications.
Main Features
-
5GHz Wireless Connectivity: Designed for outdoor wireless broadband links and network extensions.
-
Integrated 13dBi MIMO Antenna: Dual-polarised directional antenna for efficient wireless signal transmission.
-
airMAX TDMA Technology: Enhances wireless airtime efficiency and helps reduce contention in compatible networks.
-
Point-to-Point (PtP) Bridging: Supports wireless connectivity between buildings and network locations.
-
Point-to-Multipoint (PtMP) Applications: Suitable for customer premises equipment and compatible airMAX wireless networks.
-
Compact, Lightweight Design: Weighing approximately 180g, the unit is easy to position and install.
-
Outdoor-Ready Housing: UV-stabilised enclosure designed for outdoor operating environments.
-
Passive Power over Ethernet: Supports 24V passive PoE for convenient power and data delivery through Ethernet cabling.
-
Low Power Consumption: Maximum power requirement of only 5.5W.
-
10/100Mbps Ethernet Port: Single RJ45 networking interface for wired connectivity.
-
Pole-Mount Installation: Includes mounting hardware for practical outdoor deployment.
-
Cost-Effective Networking: Integrated antenna and compact form factor help reduce equipment and installation complexity.
Technical Specifications
| Specification |
Details |
| Brand |
Ubiquiti Networks |
| Product Model |
NanoStation Loco M5 |
| Product Code / SKU |
UB-LOCOM5 |
| Manufacturer Model |
locoM5 |
| Product Type |
Outdoor Wireless CPE / Bridge / AP |
| Wireless Frequency Band |
5GHz |
| Operating Frequency |
5470–5825MHz (supplied listing; available frequencies depend on region and configuration) |
| Antenna Gain |
13dBi |
| Antenna Type |
Integrated Directional MIMO |
| Antenna Polarisation |
Dual Linear |
| Wireless Technology |
airMAX MIMO TDMA |
| Network Configuration |
Point-to-Point / Point-to-Multipoint |
| Networking Interface |
1 × 10/100Mbps RJ45 Ethernet Port |
| Power Supply |
24V, 0.5A Passive PoE Adapter |
| Power Method |
Passive PoE, Pairs 4, 5 (+), 7, 8 (Return) |
| Maximum Power Consumption |
5.5W |
| Dimensions |
161 × 31 × 80mm (current manufacturer specification) |
| Weight |
180g |
| Operating Temperature |
-30°C to +75°C |
| Operating Humidity |
5–95%, Non-Condensing |
| Enclosure Material |
Outdoor UV-Stabilised Polycarbonate |
| Mounting Method |
Pole Mount |
| Listed Certifications |
FCC, IC, CE, RoHS |
| Manufacturer |
Ubiquiti Inc. |
What's Included in the Box?
Package contents may vary by supplied product revision or distributor packaging.
Practical Applications and Use Scenarios
1. Building-to-Building Wireless Connectivity
Establish a wireless network link between two buildings without installing a continuous Ethernet cable between them. Suitable for offices, warehouses and commercial properties with appropriate line-of-sight conditions.
2. Outdoor Wireless Network Extensions
Extend network connectivity to detached buildings, workshops, storage facilities and other locations where conventional network cabling may be difficult or expensive.
3. Wireless CCTV Network Backhaul
Provide a wireless network connection for compatible IP surveillance equipment installed in remote areas. Actual performance depends on network traffic, installation conditions and link configuration.
4. Rural and Agricultural Networking
Support wireless networking applications connecting farm buildings, sheds, workshops and other rural facilities within a properly designed wireless network.
5. Wireless Internet Service Provider (WISP) Installations
Use the NanoStation Loco M5 as customer premises equipment in compatible 5GHz airMAX networks to deliver last-mile wireless broadband connectivity.
6. Commercial and Industrial Networking
Support network extensions between operational areas, storage facilities and industrial buildings where a practical outdoor wireless bridge is required.
Warranty Information
The Ubiquiti NanoStation Loco M5 is covered by the applicable manufacturer's warranty terms and any relevant Australian Consumer Law guarantees.
Warranty conditions and eligibility depend on the purchase channel, product condition and applicable manufacturer terms.
About Ubiquiti Networks
Ubiquiti Networks is a global networking technology company specialising in wireless connectivity, networking infrastructure and network management solutions. Its product portfolio includes wireless bridges, access points, routing equipment, switching devices and surveillance networking systems.
Ubiquiti's airMAX product family is developed for wireless broadband connectivity, including point-to-point and point-to-multipoint networking applications.
Product Code / SKU
UB-LOCOM5
Manufacturer Model: locoM5
Datasheets and Downloadable Resources
For detailed installation information, wireless specifications and configuration guidance, refer to the following resources:
Excellence for the Australian and New Zealand Market
At Globlelink, we recognise the importance of dependable networking equipment for Australian and New Zealand businesses, installers and network infrastructure projects.
Australian and New Zealand Network Applications
The Ubiquiti NanoStation Loco M5 offers flexible outdoor wireless connectivity for commercial, rural, industrial and residential networking applications throughout Australia and New Zealand.
Quality and Regulatory Considerations
The manufacturer lists FCC, IC, CE and RoHS certifications for the Loco M5. These do not independently establish Australian RCM or New Zealand regulatory compliance. The applicable local approval status, permitted wireless channels and transmission power requirements should be verified for the specific supplied unit and installation.
Product Sourcing and Authenticity
Globlelink can assist customers with product identification, sourcing enquiries and confirmation of the available supply channel. Authorised distribution status should be confirmed for the specific supplied product.
Warranty and Manufacturer Communication
Globlelink can assist customers with warranty enquiries and applicable manufacturer communication. Warranty handling remains subject to the manufacturer's conditions, supply-channel requirements and relevant consumer protection legislation.
Practical Networking Solutions
With its integrated 13dBi antenna, energy-efficient power requirements and compact outdoor construction, the Loco M5 is an economical option for compatible 5GHz wireless networking deployments across Australia and New Zealand.
FAQs
1. What is the Ubiquiti NanoStation Loco M5 UB-LOCOM5 used for?
The Ubiquiti NanoStation Loco M5 UB-LOCOM5 is an outdoor 5GHz wireless networking device designed for point-to-point bridging, point-to-multipoint client connections and wireless network extensions. Typical applications include building-to-building networking, rural broadband connections and wireless surveillance backhaul.
2. Does the Ubiquiti UB-LOCOM5 support point-to-point wireless bridging?
Yes. The UB-LOCOM5 can be configured for compatible point-to-point wireless bridge applications, allowing network connectivity between two locations. A suitable compatible wireless device is required at the other end of the link.
3. What antenna gain does the Ubiquiti NanoStation Loco M5 UB-LOCOM5 provide?
The UB-LOCOM5 features an integrated 13dBi dual-polarised directional MIMO antenna, helping provide focused wireless coverage for compatible 5GHz outdoor connections.
4. Does the Ubiquiti UB-LOCOM5 support Power over Ethernet?
Yes. The UB-LOCOM5 supports 24V passive Power over Ethernet, using pairs 4 and 5 for positive power and pairs 7 and 8 for return. A 24V, 0.5A PoE adapter is included. It should not be assumed compatible with standard 802.3af/at PoE supplies.
5. Can the Ubiquiti UB-LOCOM5 be installed outdoors?
Yes. The UB-LOCOM5 has an outdoor UV-stabilised enclosure and supports pole mounting. Its specified operating temperature range is -30°C to +75°C.
6. Is the Ubiquiti NanoStation Loco M5 UB-LOCOM5 suitable for CCTV networks?
Yes. The UB-LOCOM5 may be used to provide wireless network connectivity for compatible IP CCTV systems, provided sufficient wireless capacity, suitable visibility between endpoints and an appropriate network design are available.
7. What Ethernet connection does the Ubiquiti UB-LOCOM5 feature?
The UB-LOCOM5 includes one 10/100Mbps RJ45 Ethernet port for wired network connectivity and passive PoE power delivery.
8. Does the Ubiquiti UB-LOCOM5 support airMAX technology?
Yes. The UB-LOCOM5 incorporates Ubiquiti airMAX MIMO TDMA technology, which is designed to improve airtime efficiency and wireless network performance in compatible deployments.
9. What is the power consumption of the Ubiquiti UB-LOCOM5?
The UB-LOCOM5 has a maximum power consumption of 5.5W, making it suitable for outdoor networking applications where low device power consumption is desirable.
10. Is the Ubiquiti UB-LOCOM5 compatible with standard home Wi-Fi devices?
The UB-LOCOM5 is primarily designed for dedicated wireless bridge and airMAX networking applications. It should not be treated as a direct replacement for a modern dual-band home Wi-Fi router. Compatibility depends on its operating mode and the connecting equipment.
11. Can the Ubiquiti UB-LOCOM5 be used in Australia and New Zealand?
The UB-LOCOM5 is used in outdoor wireless networking applications, but deployment in Australia or New Zealand requires compliance with applicable local radio regulations, permitted operating frequencies and transmit power limits. Verify the regulatory suitability of the specific unit before installation.
12. What is the warranty for the Ubiquiti NanoStation Loco M5 UB-LOCOM5?
Warranty coverage for the UB-LOCOM5 depends on the applicable manufacturer terms and purchase channel. Customers should confirm the warranty duration with Globlelink when purchasing. Applicable statutory consumer guarantees are additional to manufacturer warranty arrangements.
