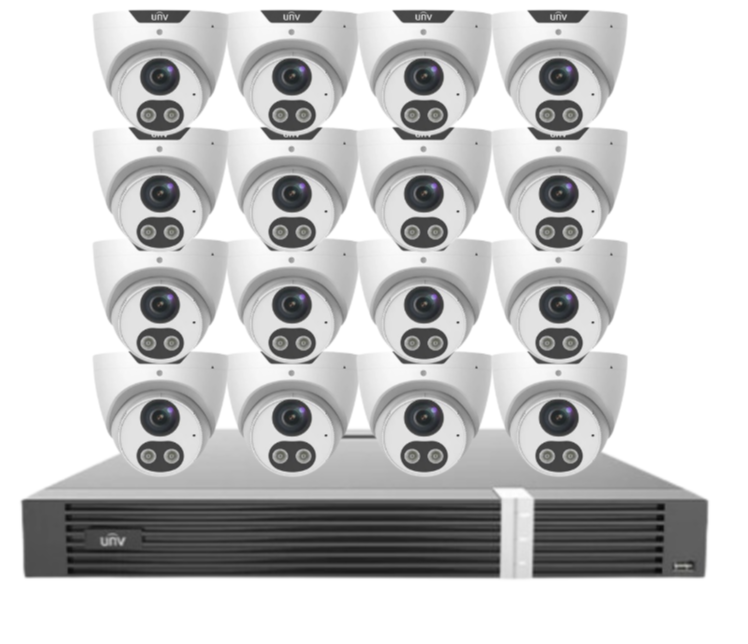

Secure your premises with professional-grade surveillance using the Uniview 16-Camera CCTV Kit, featuring 5MP HD Prime-I 'Triguard' Eyeball Network Cameras and a 16-channel Uniview AI NVR. Engineered for intelligent monitoring and deterrence, this all-in-one kit provides state-of-the-art video resolution, AI-enhanced threat detection, and unmatched reliability. Perfect for businesses, warehouses, or large homes, this kit ensures comprehensive coverage with smart alerts, sound and light deterrents, and real-time video analytics.

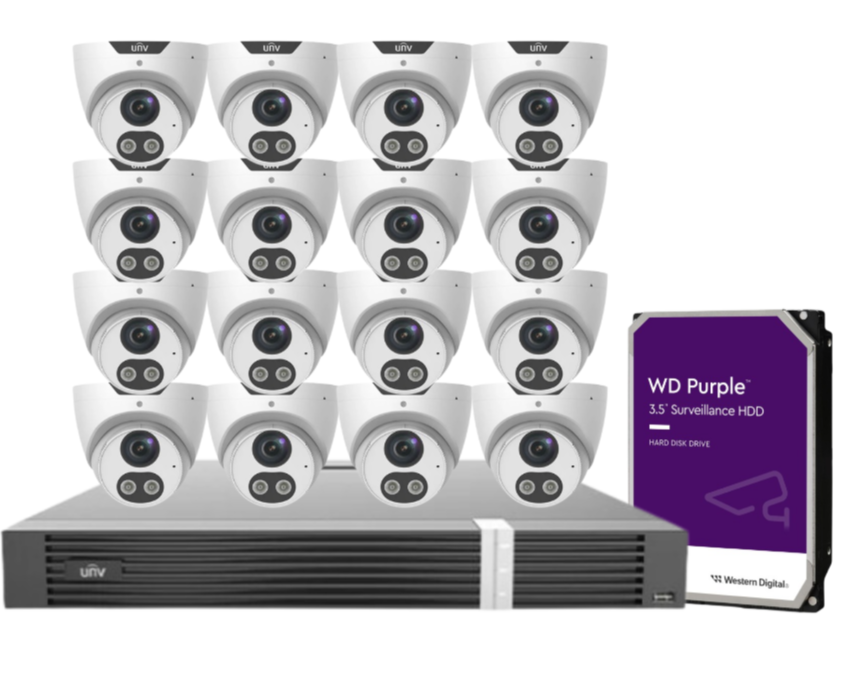

What’s Included in the Box:

• 16x Uniview Prime-I IPC3615SB-ADF28KMC-I0 5MP Eyeball Network Cameras

• 1x Uniview NVR302-16E2-P16-IQ 16CH AI Network Video Recorder

• Surveillance-Grade HDD (Capacity configurable)

• 16x Camera Mounting Kits

• 1x Power Cable and Accessories

• Quick Start Guide & Documentation

Main Features:

Uniview IPC3615SB-ADF28KMC-I0 Camera:

• 5MP HD Resolution (2880x1620) at 30fps

• Smart Intrusion Prevention: Cross Line, Intrusion, Enter/Leave Area Detection

• Intelligent Light and Audible Alarm Linkage

• Built-in Mic & Speaker for Two-Way Audio

• Smart IR with up to 30m Night Vision

• People Counting & Crowd Monitoring

• 120dB True WDR for challenging lighting

• IP67 Weatherproof & PoE Support

Uniview NVR302-16E2-P16-IQ Recorder:

• 16-Channel Input with AI Analytics Support

• Up to 12MP Recording Resolution

• 2x SATA Ports – Supports up to 10TB per HDD

• 16x PoE Ports with Plug & Play Camera Support

• HDMI (4K) and VGA Output

• Triple Stream Recording with Ultra 265 Compression

• ONVIF Profile S/G/T Compatibility

• Advanced AI Capabilities with Facial Detection, Smart Search, and Perimeter Protection

Detailed Specifications:

Camera (IPC3615SB-ADF28KMC-I0):

• Sensor: 1/2.7" 5MP Progressive Scan CMOS

• Minimum Illumination: 0.002 Lux (Color) / 0 Lux with IR

• Lens: 2.8mm Fixed (Field of View H: 101.1°)

• IR Range: Up to 30m

• Audio: Built-in Mic & Speaker

• Network: ONVIF, IPv4/6, HTTPS, RTSP, SNMP

• Storage: Up to 256GB Micro SD

• Housing: IP67, Metal + Plastic

• Power: 12V DC or PoE (Max 7.5W)

Recorder (NVR302-16E2-P16-IQ):

• Channels: 16 IP Channels

• PoE Ports: 16 Independent Ports

• Decoding Capability: Up to 12MP

• Live View/Playback: Up to 4K HDMI Output

• Recording Formats: Ultra 265/H.265/H.264

• AI Bandwidth Input: 160Mbps

• HDD: 2x SATA Ports (Up to 10TB each)

• USB: 2x USB2.0, 1x USB3.0

• Dimensions: 440 x 400 x 52mm

• Power Consumption: ≤20W (without HDDs)

Warranty Information:

• Cameras: 3-Year Manufacturer Warranty

• Recorder: 2-Year Manufacturer Warranty

Brand Overview:

Uniview is a global leader in video surveillance, pioneering AI-driven security solutions. Known for innovation and performance, Uniview delivers commercial-grade products ideal for both residential and enterprise applications. Trusted worldwide, the brand ensures all systems meet strict quality and cybersecurity standards.

SKU:
UNVIPC3615SB-ADF28KMC-I0-SED
NVR302-16E2-P16-IQ 0235C6QW

Practical Use Scenarios:

• Retail Stores: Detect and deter shoplifting with real-time intrusion alerts.

• Warehouses: Monitor loading zones with high-resolution clarity and people counting.

• Office Buildings: Track visitor flow and unauthorized entries through AI motion tracking.

• Schools & Campuses: Ensure student safety with full-area coverage and proactive threat alerts.

• Residential Homes: Deter break-ins using smart lighting and audible alarms.

Datasheets & Downloads:

• IPC3615SB-ADF28KMC-I0 Datasheet (PDF)

• NVR302-16E2-P16-IQ Datasheet (PDF)

Excellence for the Australian and New Zealand Market:

This Uniview CCTV kit is fully optimized for the Australian and New Zealand markets. All components comply with local safety and electromagnetic compatibility regulations, and the cameras meet IP67 weatherproof standards—ideal for Australian outdoor conditions. The NVR supports NDSS-compliant features and is sourced directly through authorized Australian Uniview partners, ensuring genuine components and full warranty support. Local warranty claims are handled directly with the brand for efficient service and peace of mind.

FAQs (Product Code: UNVIPC3615SB-ADF28KMC-I0-SED):

Q1: What is included in the Uniview 16-camera CCTV kit? (UNVIPC3615SB-ADF28KMC-I0-SED)
A1: The kit includes 16x 5MP Uniview Triguard Eyeball Cameras, a 16-channel AI NVR, a pre-installed HDD, camera accessories, and installation guides.

Q2: Does the Uniview CCTV system support smart intrusion detection? (UNVIPC3615SB-ADF28KMC-I0-SED)
A2: Yes, it features smart detection modes like line crossing, intrusion, and area entry/exit with false alarm reduction.

Q3: Is the Uniview NVR capable of recording in 4K? (UNVIPC3615SB-ADF28KMC-I0-SED)
A3: Yes, the NVR302-16E2-P16-IQ supports recording up to 12MP and outputs via HDMI in 4K resolution.

Q4: How is audio handled on the Uniview cameras? (UNVIPC3615SB-ADF28KMC-I0-SED)
A4: Each camera includes a built-in microphone and speaker for real-time two-way audio communication.

Q5: Are these cameras suitable for outdoor installation? (UNVIPC3615SB-ADF28KMC-I0-SED)
A5: Absolutely. With an IP67 rating and -30°C to 55°C temperature range, they are built for harsh weather conditions.
