Secure your property with the advanced Uniview 5MP CCTV Kit, a professional-grade surveillance solution designed for small to medium installations. This complete system includes up to four Uniview IPC3615SB-ADF28KMC-I0 Triguard Fixed Eyeball Cameras and the Uniview NVR301-04B-P4-IQ 4-Channel PoE Network Video Recorder, delivering exceptional clarity, intelligent intrusion prevention, and real-time deterrence.

With 5MP resolution, smart light and sound alarm, integrated microphone and speaker, and true WDR for challenging lighting environments, this system ensures no moment goes unnoticed. The NVR supports Ultra 265 compression, plug-and-play PoE ports, remote viewing, and up to 12MP recording—offering professional-level features in a user-friendly package.
What’s Included in the Box
-

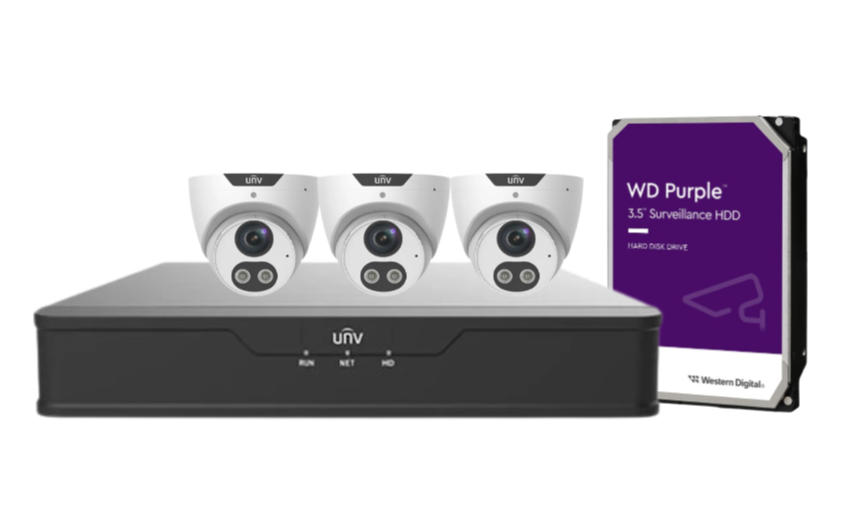

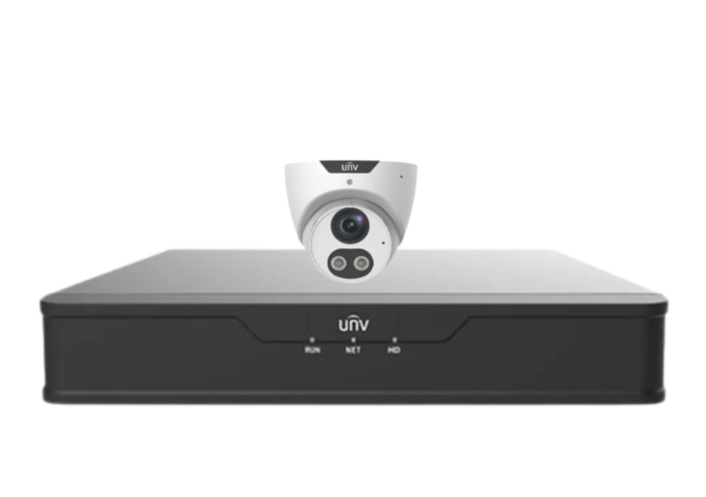

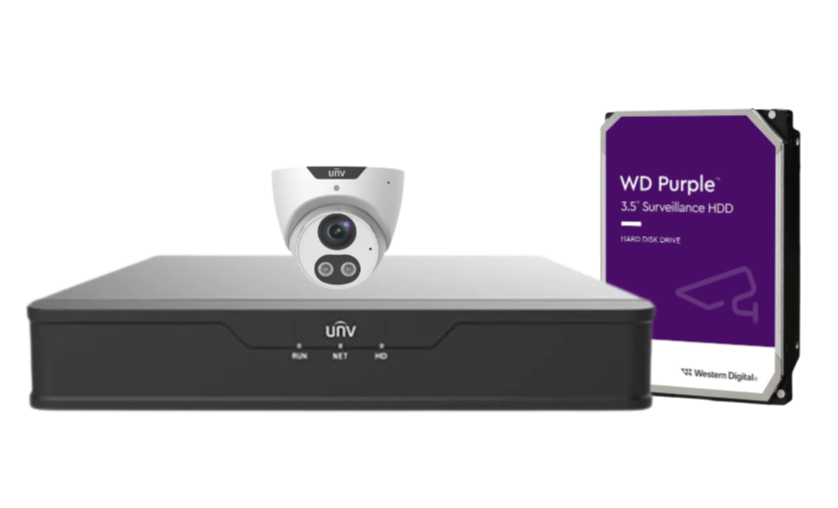

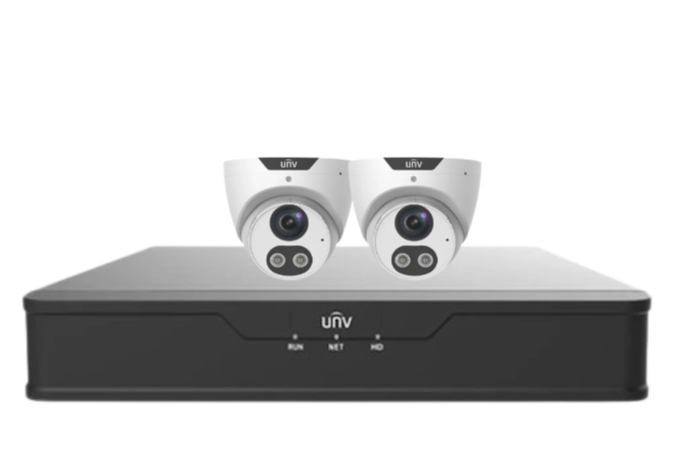

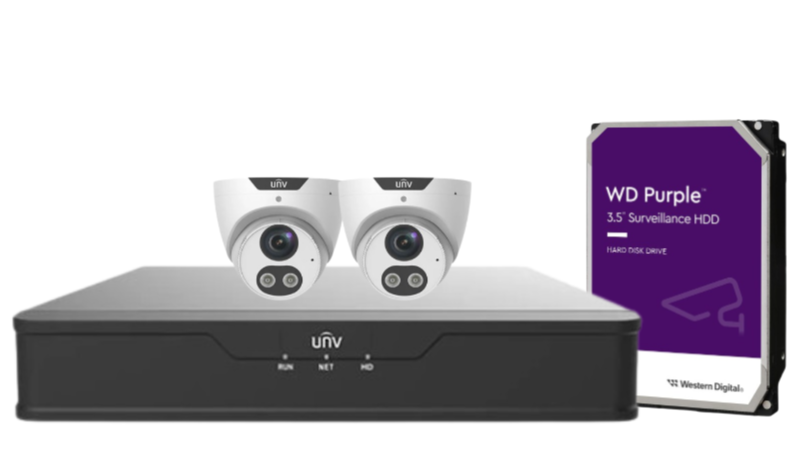

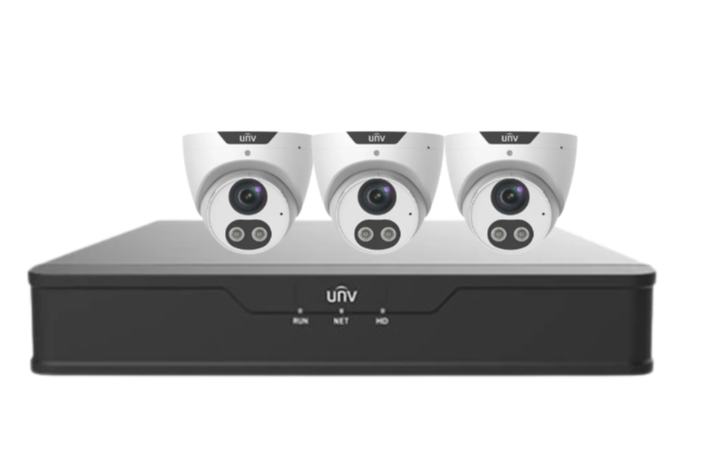

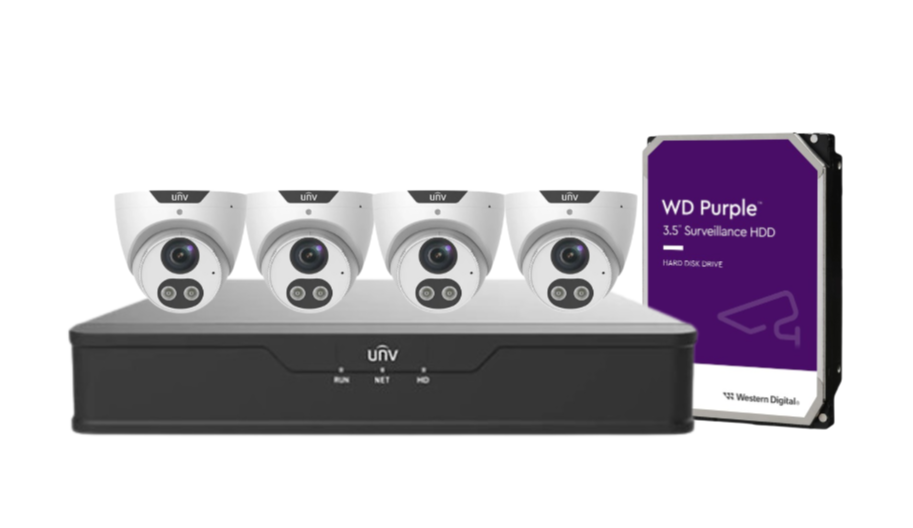

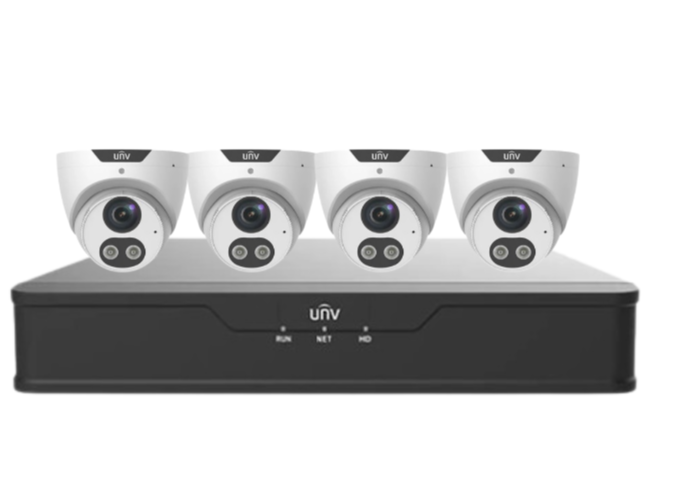

Up to 4 × Uniview IPC3615SB-ADF28KMC-I0 5MP Fixed Eyeball Network Cameras (2.8mm or 4.0mm lens options)
-
1 × Uniview NVR301-04B-P4-IQ 4-Channel PoE NVR
-
1 × HDD for recording storage (capacity based on configuration)
-
Mounting kits and waterproof accessories
-
Quick installation guide
-
Ethernet cables for PoE connection
-
Power cables and accessories
Main Features
✅ 5MP High-Definition Imaging – Clear and detailed 2880 × 1620 resolution
✅ Smart Intrusion Prevention – Detects human, vehicle, and non-motor objects with reduced false alarms
✅ Triguard Light & Sound Alarm – Built-in speaker and flashing light deter intruders proactively
✅ Two-Way Audio – Built-in mic and speaker enable live communication
✅ 120dB True WDR – Balanced exposure in high contrast lighting
✅ Smart IR Up to 30m – Night vision with automatic IR adjustment
✅ Corridor Mode (9:16) – Ideal for hallways and vertical installations
✅ IP67 Weatherproof – Built for outdoor use in all weather conditions
✅ Ultra 265/H.265 Compression – Efficient storage and high-quality playback
✅ PoE Power Supply – Simplifies setup with one cable for data and power
✅ DORI Distance:

Technical Specifications
Camera (IPC3615SB-ADF28KMC-I0):
-
Image Sensor: 1/2.7" 5MP Progressive CMOS
-
Frame Rates: Up to 30fps at 5MP, 4MP, 3MP, 1080p
-
Lens: 2.8mm (H:101.1°) or 4.0mm (H:83.7°)
-
Audio: Built-in mic and speaker, two-way communication
-
IR Range: Up to 30m Smart IR
-
Video Compression: Ultra 265 / H.265 / H.264 / MJPEG
-
Storage: Supports MicroSD up to 256GB
-
IP Rating: IP67
-
Power: DC12V ±25% or PoE (IEEE 802.3af)
-
Operating Temp: -30°C to +55°C
NVR (NVR301-04B-P4-IQ):
-
Video Inputs: 4 IP channels
-
Max Decoding: 2 × 12MP / 4 × 4MP
-
Compression: Ultra 265 / H.265 / H.264
-
PoE Ports: 4 independent ports
-
Max Bandwidth: 80 Mbps incoming/outgoing
-
Resolution Support: Up to 12MP recording and 4K output
-
Interfaces: HDMI, VGA, 1 SATA HDD port
-
Remote Users: Up to 128
-
Smart Features: Face Detection, Intrusion Detection, People Counting
-
Power Consumption: ≤12W (excluding HDD)
-
Operating Temp: -10°C to +55°C
Warranty Information
✅ 3-Year Warranty on all Uniview cameras
✅ 2-Year Warranty on Uniview NVR (NVR301-04B-P4-IQ)
✅ Warranty serviced through official Uniview ANZ partners
Brand Overview – Uniview
Uniview is a globally recognized leader in IP video surveillance, renowned for innovative solutions in AI, cloud computing, and intelligent analytics. Uniview products are engineered for performance and reliability, offering excellent value and long-term durability for residential, commercial, and industrial security needs.

SKU Options
-
UNVIPC3615SB-ADF28KMC-I0-SED (2.8mm lens)
-
UNVIPC3615SB-ADF40KMC-I0 (4.0mm lens)
-
NVR301-04B-P4-IQ-SED (4-channel PoE NVR)
Practical Use Scenarios
🏠 Home Security: Monitor entryways, driveways, and outdoor areas with motion-triggered alerts
🏢 Retail Stores: Prevent theft and crowding, and monitor foot traffic in real-time
🏭 Warehouses: Track vehicle movement and prevent unauthorized access
🏨 Apartment Complexes: Protect residents with intelligent, tamper-resistant cameras
🚧 Construction Sites: Capture high-resolution evidence with built-in audio and light deterrents
Datasheets and Resources
Excellence for the Australian and New Zealand Market
✔️ Fully certified with CE, FCC, UL, and RoHS for ANZ compliance
✔️ IP67-rated cameras built for coastal, rural, and urban ANZ environments
✔️ Local technical support and fulfillment via official Uniview distributors
✔️ Product sourced through authorized ANZ Uniview partners
✔️ Meets electrical and electromagnetic compatibility (EMC) standards in AU/NZ
Frequently Asked Questions (FAQs)
Q1: What is the resolution of the Uniview IPC3615SB-ADF28KMC-I0 (SKU: UNVIPC3615SB-ADF28KMC-I0-SED)?
The camera delivers 5MP resolution at 2880×1620 with support for 30fps real-time recording.
Q2: Does the Uniview IPC3615SB-ADF28KMC-I0 (SKU: UNVIPC3615SB-ADF28KMC-I0-SED) support sound and light alarm?
Yes, it includes a built-in speaker and light, which activate on smart intrusion detection.
Q3: Can I use corridor mode with the IPC3615SB-ADF28KMC-I0 (SKU: UNVIPC3615SB-ADF28KMC-I0-SED)?
Yes, it supports 9:16 vertical video orientation for hallway and stairwell monitoring.
Q4: What’s the DORI distance for the 2.8mm lens (SKU: UNVIPC3615SB-ADF28KMC-I0-SED)?
Detect: 63m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m.
Q5: Is the NVR301-04B-P4-IQ (SKU: NVR301-04B-P4-IQ-SED) plug-and-play with Uniview cameras?
Yes, its 4 PoE ports provide power and data for Uniview IP cameras out of the box.
Q6: What is the maximum recording resolution on the NVR301-04B-P4-IQ (SKU: NVR301-04B-P4-IQ-SED)?
Up to 12MP per channel, ensuring crystal-clear playback.
Q7: Does the system support remote access via mobile app?
Yes, you can view live and recorded footage via Uniview’s EZView and EZStation apps.
Q8: What’s the warranty on the Uniview IPC3615SB-ADF28KMC-I0 (SKU: UNVIPC3615SB-ADF28KMC-I0-SED)?
The camera comes with a 3-year warranty, while the NVR includes a 2-year warranty.
