The Uniview 6MP Smart Dual Light PoE CCTV Security Camera Kit combines the intelligent NVR501-04B-P4-IQ 4-channel PoE Network Video Recorder with your choice of 1, 2, 3 or 4 × IPC3616LE-ADF28KM-DL 6MP turret cameras. Featuring 6MP high-resolution surveillance, human and vehicle Ultra Motion Detection, 30m Smart IR, 30m warm-light illumination, built-in microphones, 120dB WDR, IP67 weather protection and direct PoE camera connectivity, this flexible UNV security system is ideal for homes, shops, offices, warehouses and commercial premises.

Choose the number of cameras required for your installation while retaining the ability to expand the system to a maximum of four directly connected PoE cameras. The NVR501-04B-P4-IQ provides four independent IEEE 802.3af/at PoE interfaces, allowing compatible cameras to receive network connectivity and power through the Ethernet connection.

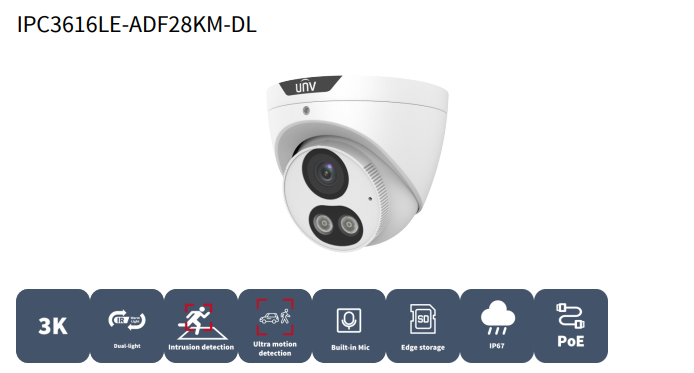

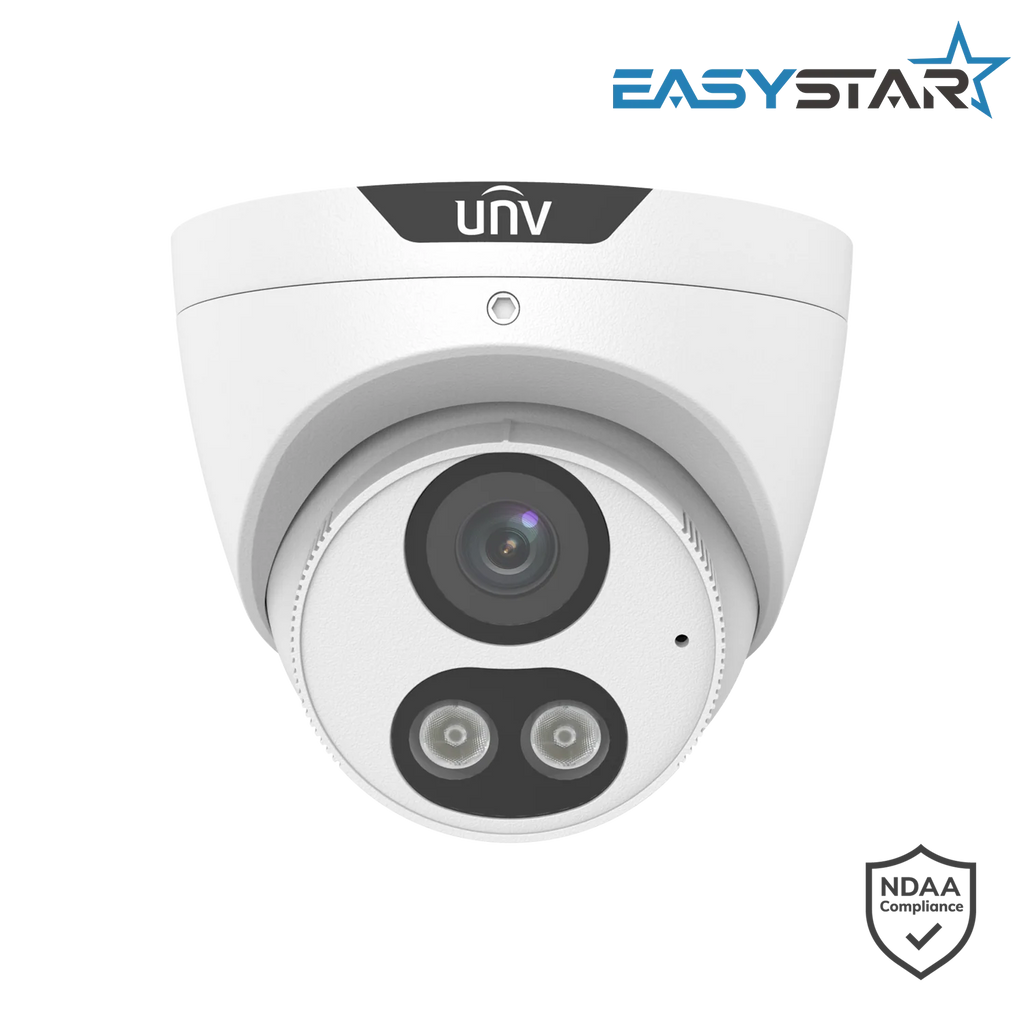

Each IPC3616LE-ADF28KM-DL camera uses a 1/2.4-inch CMOS sensor and records at up to 3200 × 1800 6MP resolution at 25fps. The fixed 2.8mm F1.6 lens provides a wide 102.73° horizontal field of view, while 120dB WDR, digital noise reduction, HLC, BLC and digital defog help maintain useful image quality across challenging lighting conditions.
The dual-light design combines Smart IR and warm-light illumination, each rated to 30 metres. Ultra Motion Detection can distinguish human and vehicle activity, while human-based cross-line and intrusion detection provide additional intelligent event monitoring. A built-in microphone enables audio capture alongside surveillance footage.

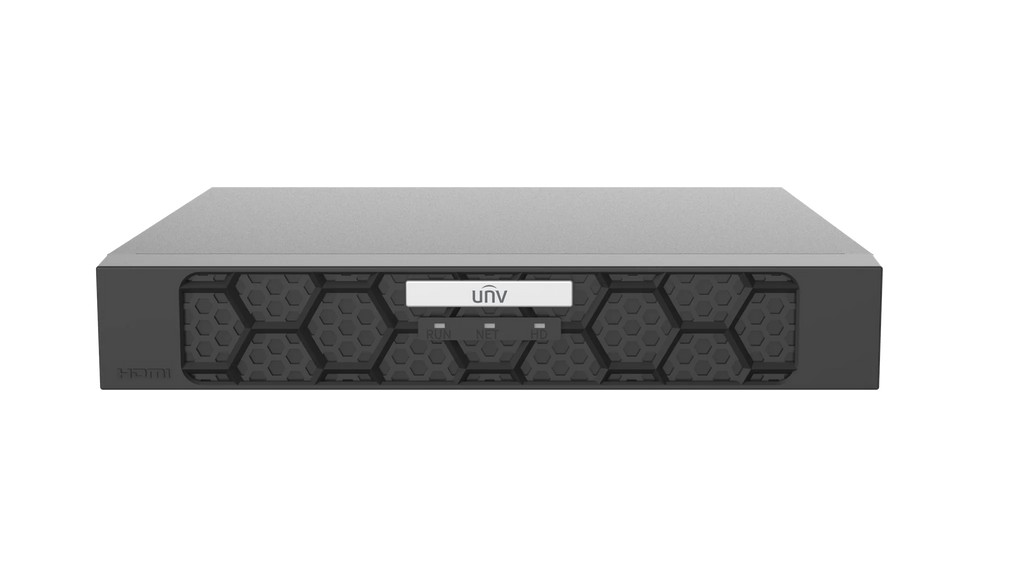

At the centre of the system, the NVR501-04B-P4-IQ supports Ultra 265, H.265 and H.264 decoding, recording resolutions up to 16MP, HDMI output up to 4K, simultaneous HDMI/VGA display, intelligent search functions and ANR technology for supported camera storage recovery scenarios.
Product Codes / SKU
NVR Product Code: NVR501-04B-P4-IQ
Camera Product Code: IPC3616LE-ADF28KM-DL
Brand: Uniview / UNV
Maximum Camera Capacity: 4 channels
Camera Options: Choose 1, 2, 3 or 4 cameras

Kit Configuration Options
| Kit Option |
NVR |
Cameras |

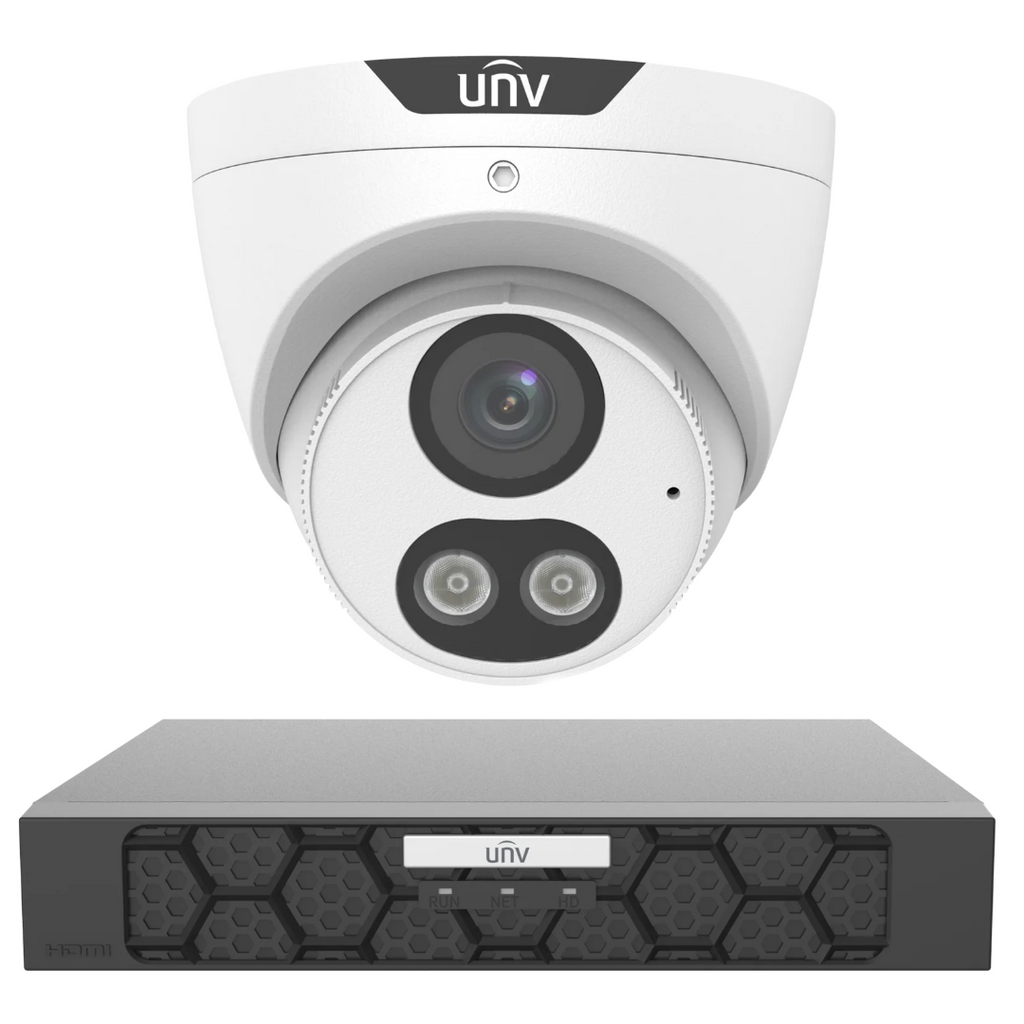

| 1 Camera Kit |
1 × NVR501-04B-P4-IQ |
1 × IPC3616LE-ADF28KM-DL |

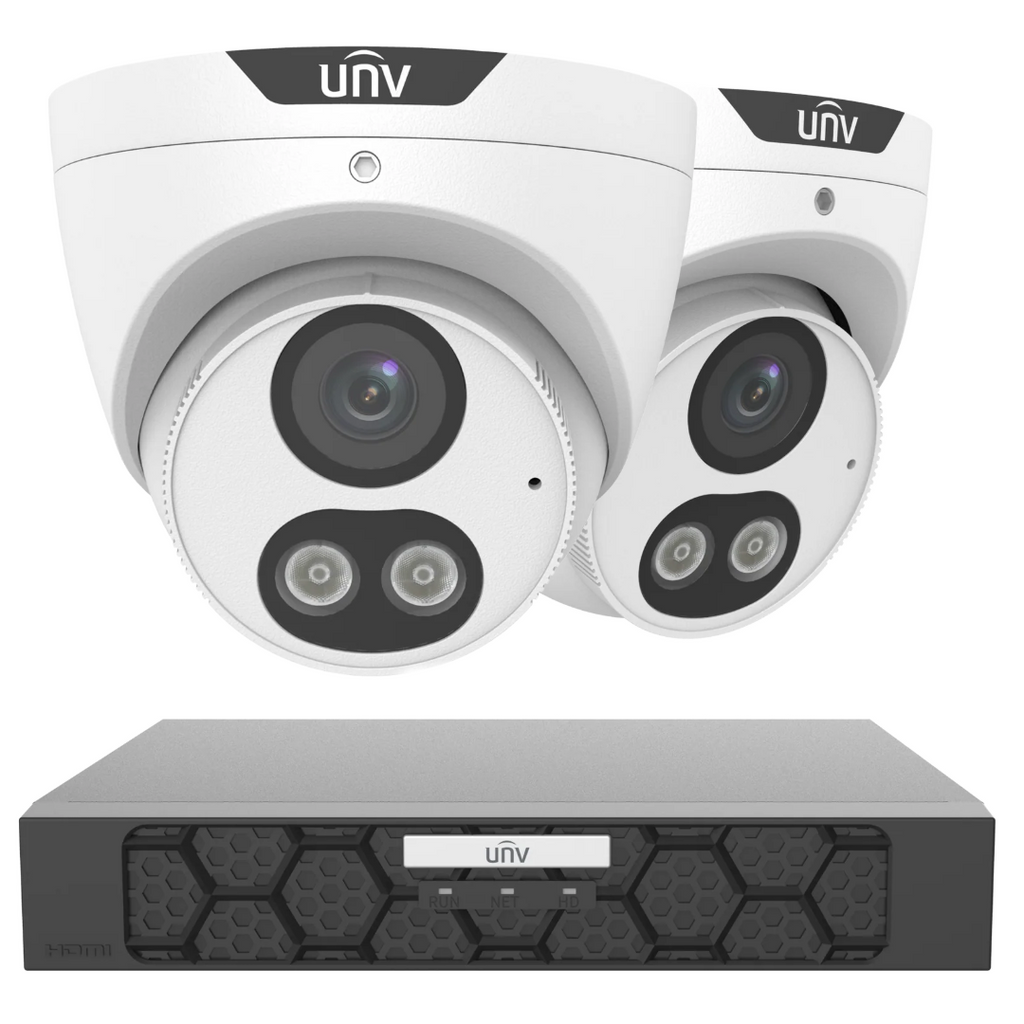

| 2 Camera Kit |
1 × NVR501-04B-P4-IQ |
2 × IPC3616LE-ADF28KM-DL |

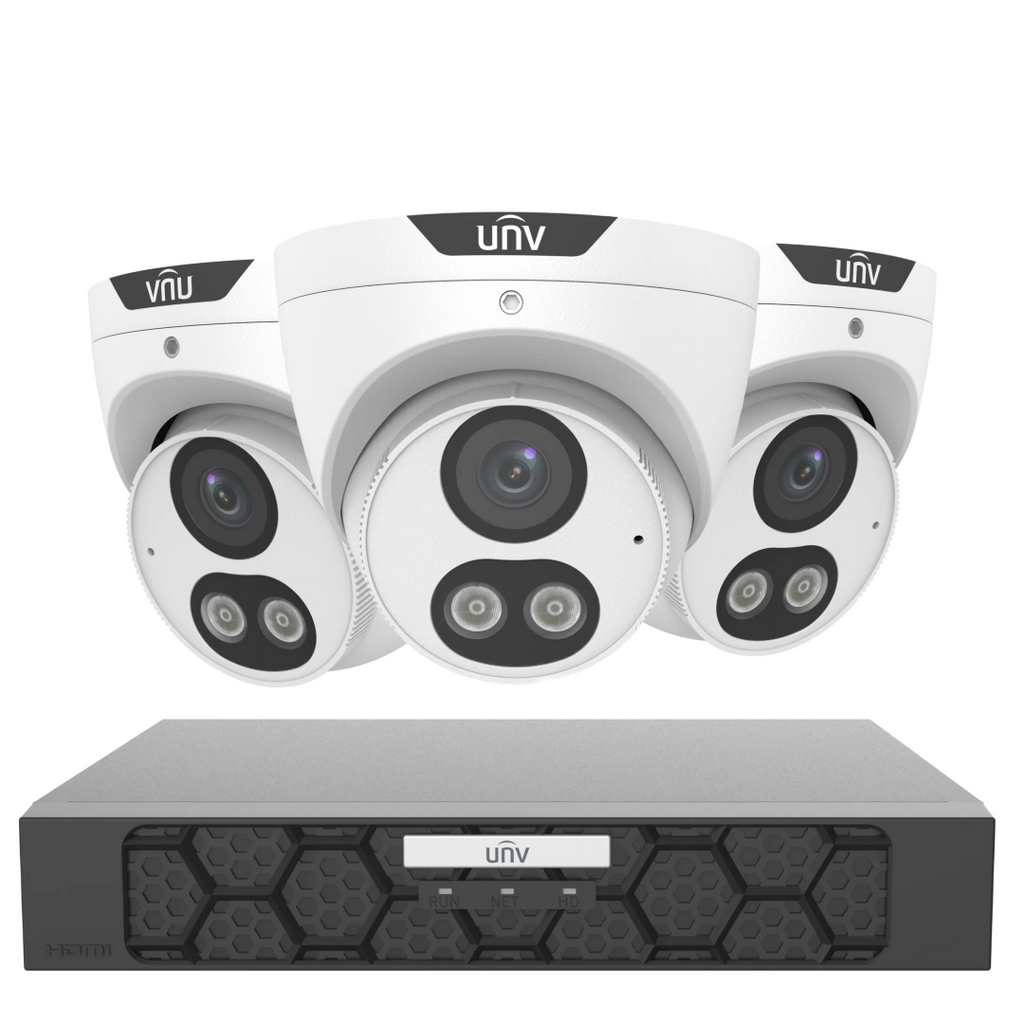

| 3 Camera Kit |
1 × NVR501-04B-P4-IQ |
3 × IPC3616LE-ADF28KM-DL |

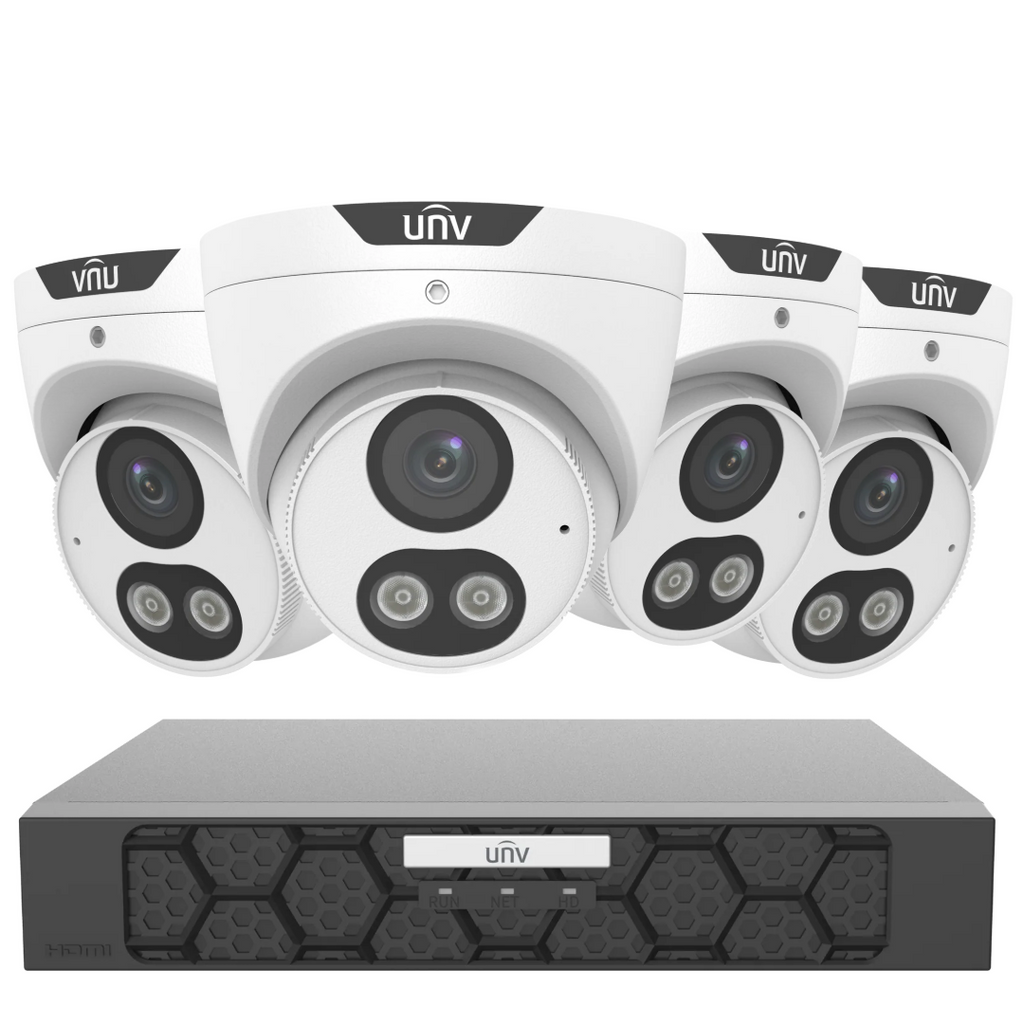

| 4 Camera Kit |
1 × NVR501-04B-P4-IQ |
4 × IPC3616LE-ADF28KM-DL |
What's Included in the Kit
- 1 × Uniview NVR501-04B-P4-IQ 4-Channel PoE Network Video Recorder
- Your selected quantity of 1, 2, 3 or 4 × Uniview IPC3616LE-ADF28KM-DL 6MP Dual-Light Turret Network Cameras
Important Inclusion Note
HDD, monitor, Ethernet cabling or optional camera mounting brackets not included as part of this combined kit.

Main Kit Features
-
Choose 1, 2, 3 or 4 cameras
- 4-channel Uniview PoE NVR
- Four independent PoE camera ports
- 6MP camera resolution
- 2.8mm wide-angle fixed lenses
- 120dB WDR
- Smart human and vehicle Ultra Motion Detection
- Human-based intrusion detection
- Human-based cross-line detection
- 30m Smart IR illumination
- 30m warm-light illumination
- Built-in microphones
- IP67-rated cameras
- MicroSD support up to 512GB per camera
- Ultra 265 / H.265 / H.264 video technologies
- NVR recording support up to 16MP
- HDMI output up to 4K
- HDMI and VGA simultaneous output
- Four-port PoE Plug & Play connectivity
- ONVIF camera interoperability support
- ANR network recovery technology
- Intelligent NVR search and analytics functions
- Cloud upgrade support
The NVR and camera specifications are published on Uniview's current official product pages.

IPC3616LE-ADF28KM-DL Camera Specifications
Imaging
| Specification |
Details |
| Maximum Resolution |
6MP |
| Image Sensor |
1/2.4" CMOS |
| Maximum 6MP Resolution |
3200 × 1800 |
| Maximum 6MP Frame Rate |
25fps |
| Minimum Illumination |
Colour: 0.003 Lux at F1.6, AGC ON |
| Illumination with Light |
0 Lux |
| WDR |
120dB |
| S/N Ratio |
>52dB |
| Shutter |
Auto / Manual, 1s–1/100000s |
Lens
| Specification |
Details |
| Lens Type |
Fixed |
| Focal Length |
2.8mm |
| Aperture |
F1.6 |
| Horizontal Field of View |
102.73° |
| Vertical Field of View |
53.95° |
| Diagonal Field of View |
106.97° |
DORI Reference Distances
| Function |
Distance |
| Detect |
63.1m |
| Observe |
25.2m |
| Recognise |
12.6m |
| Identify |
6.3m |
DORI figures are reference values and actual identification performance varies according to installation height, lighting, subject positioning and environmental conditions.
Dual-Light Night Surveillance
-
Smart IR: up to 30m
-
Warm light: up to 30m
-
IR wavelength: 850nm
- Smart illumination supported
- Smart IR supported
Camera Smart Detection
- Ultra Motion Detection based on human and vehicle detection
- Cross-line detection based on human-body detection
- Intrusion detection based on human-body detection
- Standard motion detection
- Tampering alarm
- Audio detection
Camera Video Compression
- Ultra 265
- H.265
- H.264
- MJPEG
- Dual video streams
- Video bitrate: 128Kbps–16Mbps
- ROI support
- Up to four OSDs
- Up to four privacy-mask areas
Camera Audio
| Specification |
Details |
| Built-in Microphone |
Yes |
| Audio Compression |
G.711U / G.711A |
| Audio Bitrate |
64Kbps |
| Sampling Rate |
8kHz |
| Built-in Speaker |
No |
| Two-Way Audio |
No |
Camera Storage
-
MicroSD edge storage up to 512GB
- NAS via NFS
- ANR support
Camera Networking & Integration
- 1 × RJ45 10/100Mbps Ethernet
- ONVIF Profile S
- ONVIF Profile G
- ONVIF Profile T
- API and SDK integration
- HTTPS
- RTSP
- IPv4
- DHCP
- RTP
- RTMP
- NTP
- FTP
- SMTP
- SSL/TLS
- SNMP
Camera Power & Construction
| Specification |
Details |
| Power |
12V DC ±25% or PoE |
| PoE Standard |
IEEE 802.3af |
| Maximum Consumption |
5.1W |
| Weather Protection |
IP67 |

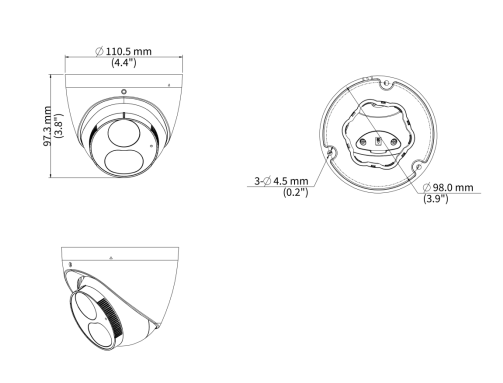

| Dimensions |
Ø110.5 × 98mm |
| Weight |
0.46kg |
| Material |
Metal + Plastic |
| Operating Temperature |
-30°C to +60°C |
| Surge Protection |
4kV |
| Adjustment |
3-axis |
NVR501-04B-P4-IQ Recorder Specifications
Channels & PoE
| Specification |
Details |
| IP Camera Channels |
4 |
| Built-in PoE Ports |
4 |
| PoE Interface |
4 × RJ45 10/100Mbps |
| PoE Standards |
IEEE 802.3af / IEEE 802.3at |
| Maximum Per-Port PoE |
30W |
| Total PoE Budget |
50W |
| Incoming Bandwidth |
80Mbps |
| Outgoing Bandwidth |
80Mbps |
The IPC3616LE-ADF28KM-DL has a maximum stated power consumption of 5.1W, placing up to four of these cameras comfortably within the NVR's stated 50W total PoE budget under the supplied specifications.
Recording & Decoding
- Ultra 265 / H.265 / H.264
-
Recording resolutions:
- 16MP
- 12MP
- 8MP
- 6MP
- 5MP
- 4MP
- 3MP
- 1080P
- 960P
- 720P
- D1
- 2CIF
- CIF
- Smart Off decoding: up to 2 × 16MP@30, 2 × 12MP@30 or 4 × 4K@30
- Smart On decoding: up to 2 × 12MP@30, 2 × 4K@30 or 4 × 4MP@30
Video Output
| Output |
Supported Resolution |
| HDMI |
Up to 3840 × 2160 4K at 30Hz |
| VGA |
Up to 1920 × 1080 |
| Simultaneous HDMI + VGA |
Supported |
Smart NVR Functions
The NVR501-04B-P4-IQ supports intelligent functions including:
- Ultra Motion Detection
- Smart Intrusion Prevention
- Face detection
- Human-body search
- Motor-vehicle search
- Non-motor-vehicle search
- General search
- People-counting reports
- Heat-map functions
- AcuSearch / AcuTrack functions where supported by compatible devices and firmware
Feature availability depends on camera capability, configuration and the NVR's selected smart operating mode.
NVR Storage
- 1 × SATA HDD interface
-
up to 16TB
NVR Interfaces
- 1 × RJ45 network interface
- 4 × independent PoE RJ45 ports
- 1 × HDMI
- 1 × VGA
- 1 × RCA audio input
- 1 × RCA audio output
- 1 × front USB 2.0
- 1 × rear USB 3.0
NVR Physical Specifications
| Specification |
Details |
| Form Factor |
1U |
| Dimensions |
260 × 215 × 46.6mm |
| Weight Without HDD |
≤1kg |
| Operating Temperature |
-10°C to +50°C |
| Operating Humidity |
≤90% RH, non-condensing |
| Power Consumption Without HDD |
≤8W |
Why Choose a 1–4 Camera Kit?
1 Camera Kit
Ideal for monitoring a single high-priority location such as a driveway, entrance, loading door, reception area or shop front while retaining three spare NVR channels for future expansion.
2 Camera Kit
Suitable for smaller homes and businesses requiring front-and-rear coverage, two entrances or internal and external surveillance.
3 Camera Kit
Provides broader coverage for properties with multiple access points while retaining one free PoE channel for future expansion.
4 Camera Kit
Uses all four direct PoE channels of the NVR501-04B-P4-IQ and provides complete four-camera coverage without requiring an additional PoE switch for these four cameras.
Practical Use Scenarios
Residential Security: Cover driveways, entrances, yards, garages and side passages with wide-angle 6MP surveillance and human/vehicle filtering.
Retail Shops: Monitor entrances, checkout areas, stock rooms and sales floors while using built-in camera microphones for audio recording where lawful.
Offices: Provide surveillance around reception areas, hallways, entrances, car parks and storage rooms.
Warehouses: Position cameras around loading docks, warehouse entrances, restricted areas and internal workspaces.
Small Commercial Sites: Build a straightforward PoE CCTV system with up to four directly connected cameras and centralised NVR recording.
Compatible Camera Mounting Accessories
The IPC3616LE-ADF28KM-DL datasheet lists compatible accessories including:
-
TR-JB03-G-IN – Junction box
-
TR-JB07/WM03-G-IN – Wall-mount assembling bracket
-
TR-WM03-D-IN – Wall-mount bracket
-
TR-UM06-E-IN – Slant mounting bracket
-
TR-A01-IN – NPT 3/4" waterproof cable gland
-
TR-UP06-IN – Universal pole-mount bracket
-
TR-UC08-C – Corner-mount bracket
-
TR-SE24-IN – 200mm pendant mounting pole
-
TR-SE24-A-IN – 500mm pendant mounting pole
-
TR-CM24-IN – Indoor pendant mounting bracket
These are optional accessories unless specifically added to the kit.
Certifications & Compliance
The supplied documentation lists the IPC3616LE-ADF28KM-DL with CE-EMC, CE-LVD, CE-RoHS, WEEE and IP67 certification to IEC 60529.
The NVR501-04B-P4-IQ datasheet lists CE, FCC, UL, RoHS and WEEE certifications.
In addition, Uniview's current official NDAA compliance list specifically includes both the NVR501-04B-P4-IQ and IPC3616LE-ADF28KM-DL.
NDAA should not be confused with NDSS. The supplied manufacturer documents do not state NDSS approval for these products.
Brand Description – Uniview
Uniview (UNV) is a manufacturer of IP video surveillance and AIoT security products, including network cameras, NVRs, video management platforms and related security technologies. The NVR501-04B-P4-IQ is part of Uniview's intelligent NVR range, while the IPC3616LE-ADF28KM-DL is a 6MP dual-light network camera designed for professional IP surveillance applications.
Warranty Information
2 year warrenty
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL 6MP PoE CCTV Kit offers a practical feature set for Australian and New Zealand residential and commercial surveillance installations, including IP67-rated cameras, PoE connectivity, wide operating temperatures, 6MP imaging, intelligent human/vehicle detection and dual-light night surveillance.
Both exact product models are included on Uniview's current official NDAA compliance list.
The manufacturer also provides an Oceania-specific product presence and support resources for the NVR and camera.
However, the supplied datasheets do not establish an Australian RCM/ACMA approval claim, New Zealand RSM compliance claim, exclusive authorised-representative sourcing arrangement or a specific local warranty period. Those claims should only be added to the store listing after confirmation from the actual Australian or New Zealand supplier.
This approach ensures the listing remains accurate while allowing verified local warranty, certification and authorised-distribution information to be added when available.
FAQs
Can I choose 1, 2, 3 or 4 cameras with the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL CCTV kit?
Yes. The NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit can be configured with your choice of one, two, three or four IPC3616LE-ADF28KM-DL cameras. The NVR has four IP channels and four independent PoE camera interfaces.
Does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit support 6MP recording?
Yes. Each IPC3616LE-ADF28KM-DL camera supports 6MP video at up to 3200 × 1800, while the NVR501-04B-P4-IQ supports 6MP recording as part of its supported recording-resolution range.
Does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit require a separate PoE switch?
Not when using up to four directly connected cameras. The NVR501-04B-P4-IQ has four independent PoE ports, allowing up to four IPC3616LE-ADF28KM-DL cameras to connect directly to the recorder.
Does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit detect people and vehicles?
Yes. The IPC3616LE-ADF28KM-DL supports Ultra Motion Detection based on human and vehicle detection, while the NVR501-04B-P4-IQ also supports intelligent UMD and Smart Intrusion Prevention functions.
How far can the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL cameras see at night?
Each IPC3616LE-ADF28KM-DL camera provides Smart IR illumination up to 30m and warm-light illumination up to 30m. Actual useful surveillance distance depends on the monitored scene and installation conditions.
Does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit have built-in microphones?
Yes. Each IPC3616LE-ADF28KM-DL camera includes a built-in microphone. The camera does not include a built-in speaker, so it does not provide camera-level two-way audio.
Are the cameras in the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit weatherproof?
The IPC3616LE-ADF28KM-DL cameras are rated IP67 to IEC 60529 and have a specified operating range of -30°C to +60°C, making them suitable for appropriately installed indoor and outdoor surveillance applications.
What lens is supplied with the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit?
Each IPC3616LE-ADF28KM-DL camera uses a fixed 2.8mm F1.6 lens with a 102.73° horizontal field of view.
Can the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit display on a 4K monitor?
Yes. The NVR501-04B-P4-IQ provides HDMI output at up to 3840 × 2160 4K at 30Hz and also supports simultaneous HDMI and VGA output.
Does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit support local camera storage?
Yes. Each IPC3616LE-ADF28KM-DL supports a MicroSD card of up to 512GB, in addition to central NVR recording and supported NAS/ANR functionality.
What video compression does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit use?
The IPC3616LE-ADF28KM-DL supports Ultra 265, H.265, H.264 and MJPEG, while the NVR501-04B-P4-IQ supports Ultra 265, H.265 and H.264 decoding.
Is the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit NDAA compliant?
Uniview's current official NDAA compliance product list specifically includes both the NVR501-04B-P4-IQ and IPC3616LE-ADF28KM-DL product codes.
Does the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit include a hard drive?
The information supplied for the NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL combination does not specify an HDD as part of the kit. The selected HDD capacity should therefore be stated separately in the final store configuration if storage is bundled.
Can I expand the Uniview NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit later?
Yes. If the NVR501-04B-P4-IQ + IPC3616LE-ADF28KM-DL kit is initially purchased with fewer than four cameras, the unused NVR channels and PoE ports can accommodate additional compatible cameras up to the recorder's four-channel limit.
