Description
Empower your surveillance with crystal-clear imaging and intelligent deterrence using the Uniview IPC3638SS-ADF28(40)KMC-I1. This 8MP smart eyeball dome camera combines advanced analytics, real-time warning lights, and two-way audio to deliver a proactive, all-in-one solution for residential, commercial, and public infrastructure protection.
Product Description

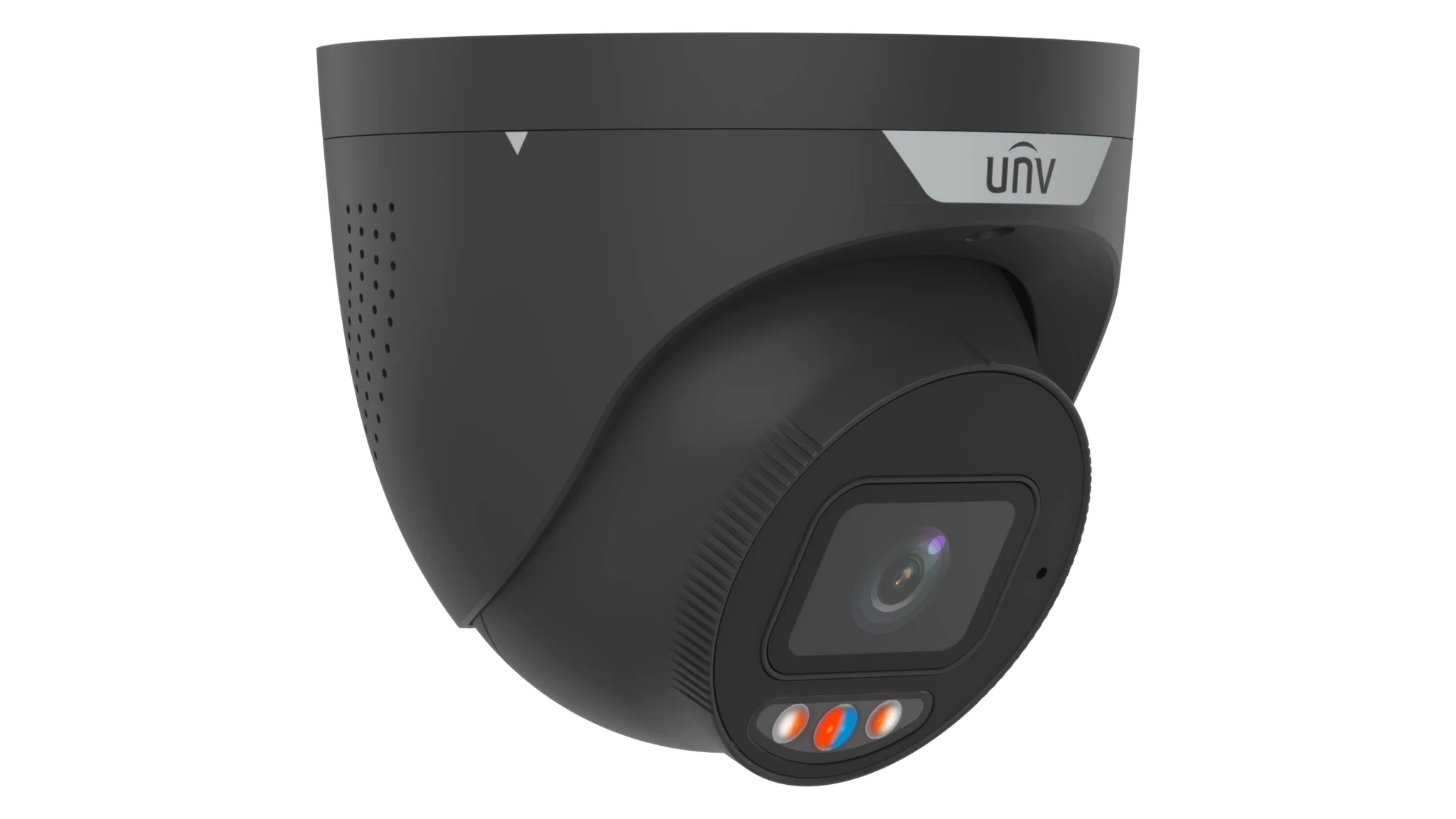

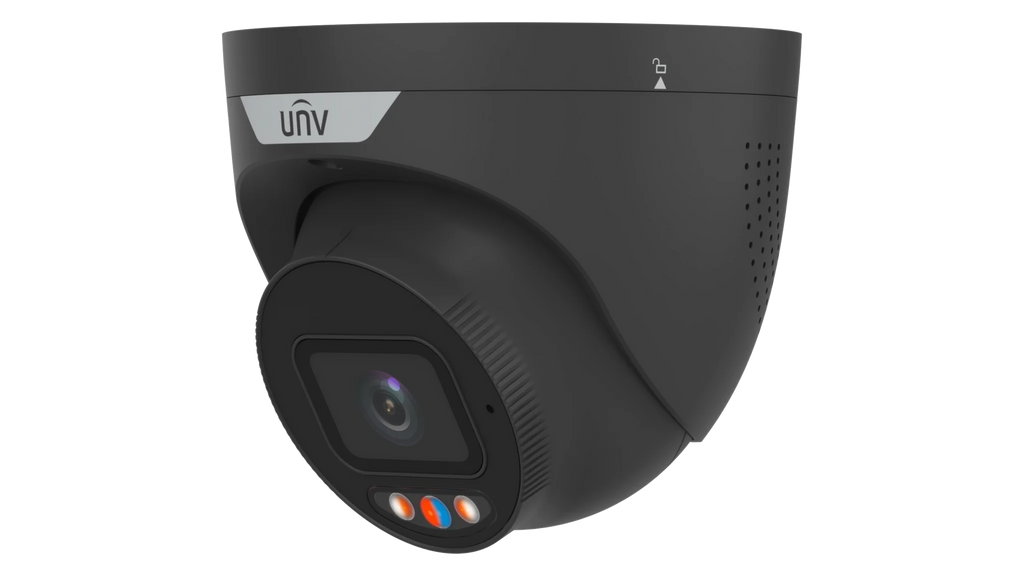

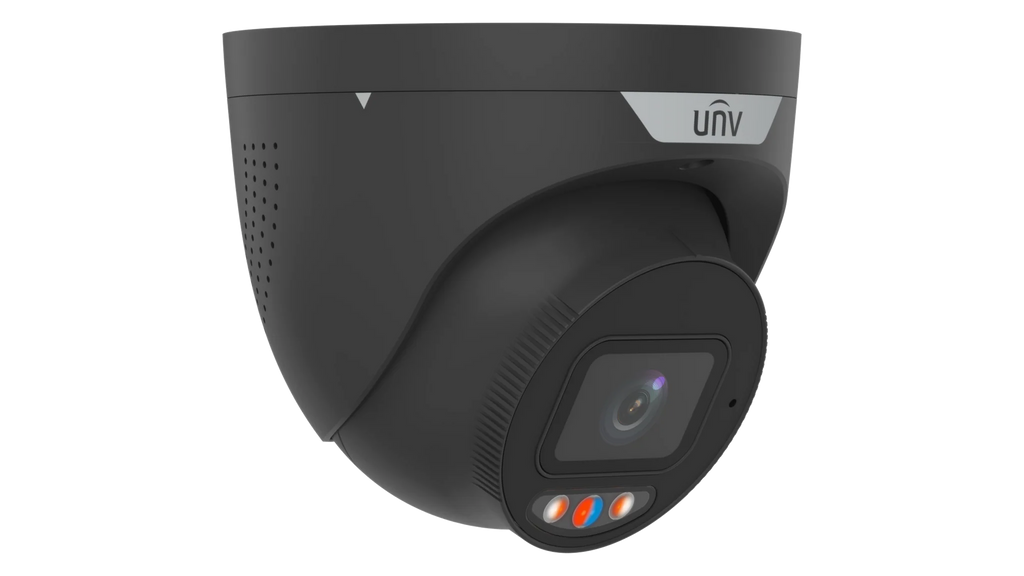

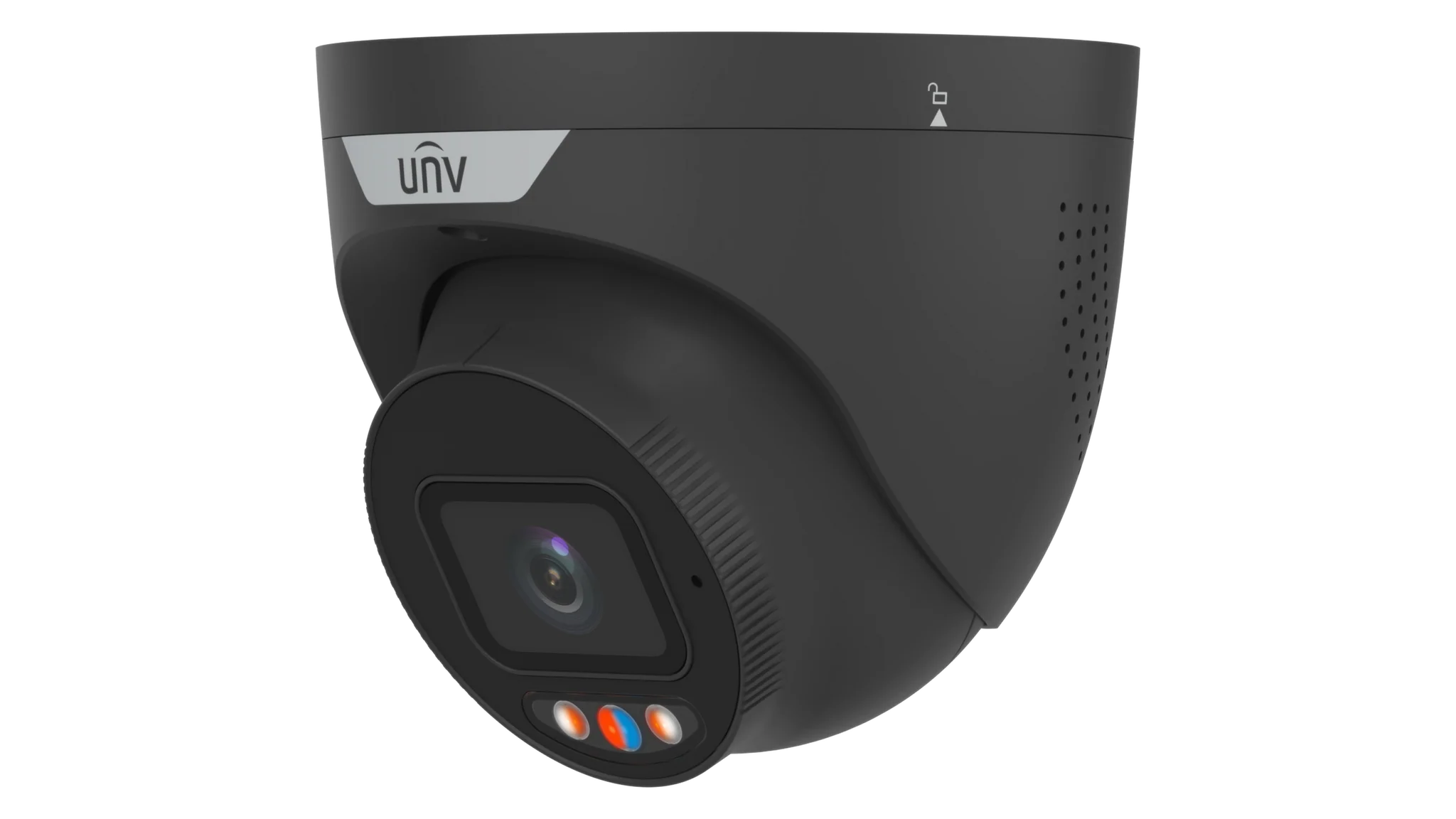

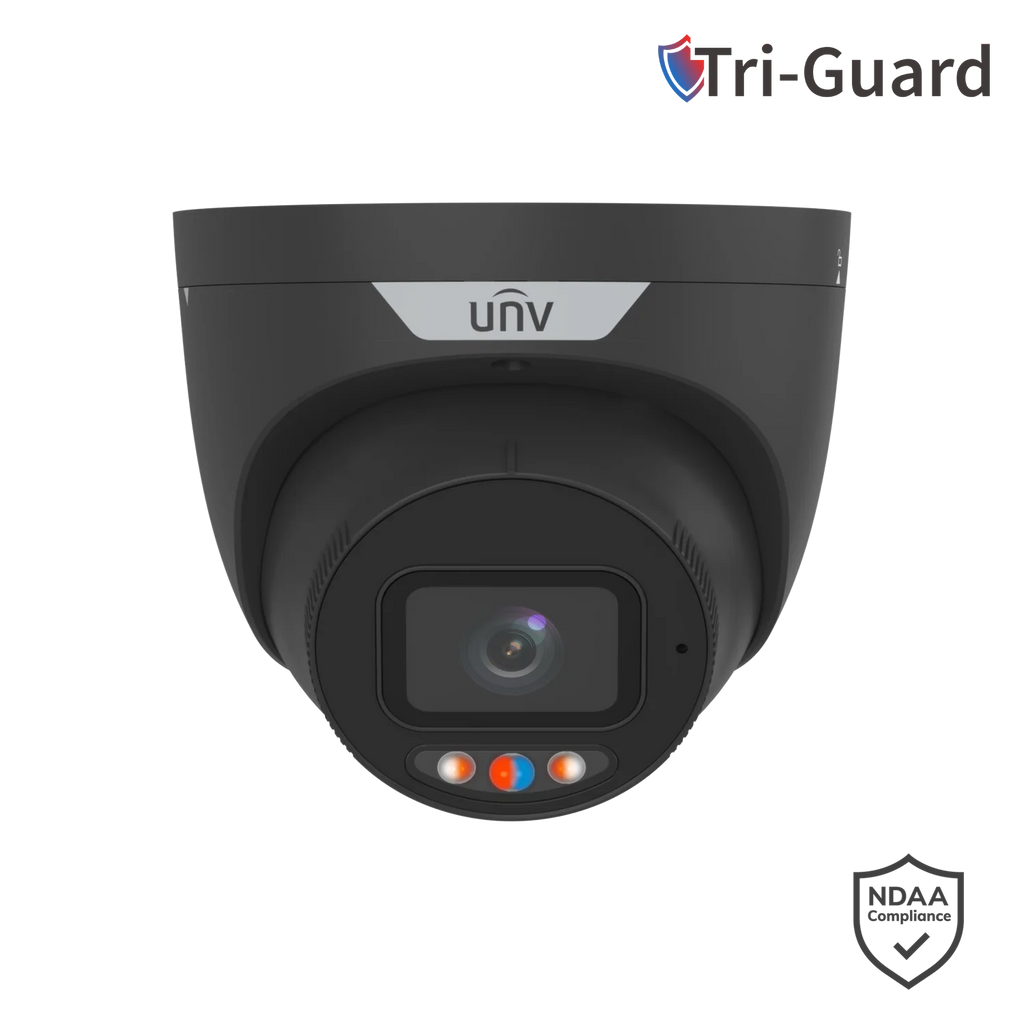

The Uniview IPC3638SS-ADF28(40)KMC-I1 is an advanced 8MP fixed dome network camera designed for intelligent monitoring and perimeter protection. With 3840 × 2160 Ultra HD resolution and smart IR + warm light up to 30 meters, it offers excellent performance both day and night. Featuring Auto Scene Match (ASM), 130 dB True WDR, and 2D/3D noise reduction, this camera ensures clear, optimized images even in extreme lighting conditions.
Its smart intrusion prevention system leverages target classification, significantly reducing false alarms by identifying humans, vehicles, and non-motorized objects. It also supports color retrieval, people counting, and crowd density analysis, making it ideal for modern security deployments in urban or indoor environments.
With built-in red and blue warning lights, audible alerts, and support for two-way audio, the IPC3638SS-ADF28KMC-I1 acts not just as a detector—but as a deterrent.
What's in the Box
-
1 × Uniview IPC3638SS-ADF28KMC-I1
-
1 × Cable gland (waterproof)
-
1 × Quick start installation guide
-
1 × Mounting screws & accessories
-
1 × Reset pin tool
Main Features
-
8MP Ultra HD (3840×2160) at 30 fps for precision surveillance
-
Smart analytics: intrusion detection, enter/leave area, object detection
-
Advanced false alarm filtering via human, vehicle & object classification
-
Built-in speaker and mic with red/blue warning lights
-
IR and warm light illumination up to 30m (98.4 ft)
-
People counting and crowd density monitoring
-
Supports MicroSD card up to 512 GB for edge recording
-
Triple video stream, Ultra 265/H.265/H.264/MJPEG compression
-
9:16 corridor mode & ONVIF (S/G/T) support
-
IP67 weatherproof housing for outdoor/indoor use
Detailed Specifications
| Feature | Specification |
|---|---|
| Model | IPC3638SS-ADF28KMC-I1 / IPC3638SS-ADF40KMC-I1 |
| Max Resolution | 8MP (3840 × 2160) @ 30fps |
| Sensor | 1/2.8" CMOS |
| Lens Options | 2.8 mm (106.5° HFOV) / 4.0 mm (92° HFOV) |
| Illumination | IR + Warm Light up to 30m |
| WDR | 130 dB True WDR |
| Smart Detection | Intrusion, cross line, enter/leave, object removal |
| Audio I/O | 1 input / 1 output + built-in mic & speaker |
| Alarm I/O | 1 input / 1 output |
| Storage | MicroSD up to 512 GB, NAS, ANR |
| Compression | Ultra 265 / H.265 / H.264 / MJPEG |
| Power Supply | 12V DC ±25%, PoE (802.3af) |
| Dimensions | Ø129 × 118 mm |
| Weight | 0.69 kg (1.53 lb) |
| Protection | IP67 |
Warranty Information
The IPC3638SS-ADF28(40)KMC-I1 comes with a standard manufacturer warranty from Uniview. Warranty coverage and service duration may vary by region. Contact your authorized reseller or distributor for details.
About Uniview
Uniview is a global leader in intelligent video surveillance, providing high-performance, reliable, and AI-enabled security solutions. Known for innovation and quality, Uniview products are deployed across industries worldwide for smarter and safer environments.
Product Code / SKU
IPC3638SS-ADF28(40)KMC-I1
Use Case Scenarios
-
Corporate Entrances: Use facial-height positioning with active alerts to deter intruders.
-
Warehouses & Loading Bays: 8MP clarity helps monitor goods movement and prevent unauthorized access.
-
Retail Stores: People flow counting assists in foot traffic analysis and staffing optimization.
-
Apartment Buildings & Parking Areas: Smart intrusion alerts and warning lights enhance resident safety.
Datasheets and Downloadable Resources

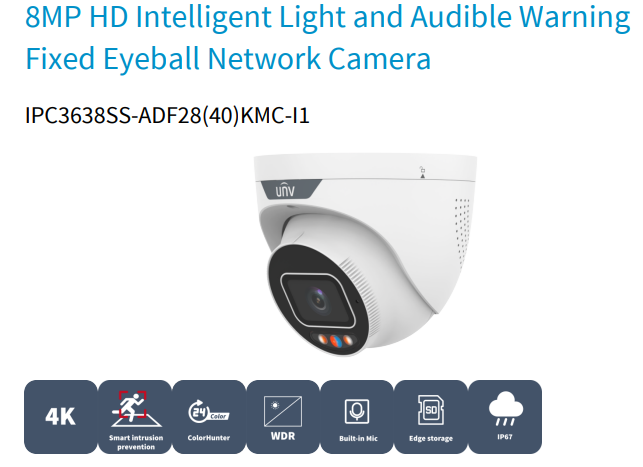

Datasheet - UNV IPC3638SS-ADF28(40)KMC-I1
-
IPC3638SS-ADF28KMC-I1_Dimensions_1
Excellence for the Australian and New Zealand Market
The Uniview IPC3638SS-ADF28(40)KMC-I1 is fully NDSS-compliant and optimized for ANZ environments, meeting regional quality and performance benchmarks. With robust IP67 protection, this camera is ideal for harsh weather and high humidity zones. It is distributed via authorized Australian and New Zealand partners, ensuring local support, warranty handling, and compliance. Perfect for government, education, and enterprise sectors across Australia and New Zealand.
FAQs – IPC3638SS-ADF28(40)KMC-I1
Q1: What resolution does the IPC3638SS-ADF28(40)KMC-I1 support?
This model supports 8MP (3840 × 2160) at up to 30 fps, with fallback options for 5MP, 4MP, and 2MP.Q2: Is there a built-in microphone and speaker on IPC3638SS-ADF28(40)KMC-I1?
Yes, it features a built-in mic and speaker for two-way audio communication and alerts.Q3: What kind of storage options does IPC3638SS-ADF28(40)KMC-I1 offer?
Supports microSD cards up to 512 GB, as well as NAS and ANR network recording.Q4: Is IPC3638SS-ADF28(40)KMC-I1 weather-resistant for outdoor use?
Yes, it is IP67-rated, protecting against dust, rain, and harsh climates.Q5: Can IPC3638SS-ADF28(40)KMC-I1 filter out false alarms?
Yes, it uses target classification to accurately detect humans, vehicles, and non-motor vehicles, reducing false alerts.Q6: What's the difference between the 2.8mm and 4.0mm models of IPC3638SS-ADF28(40)KMC-I1?
The 2.8mm lens offers a wider view (106.5°), while the 4.0mm provides a narrower, more focused image (92°) for distance capture.Q7: Is IPC3638SS-ADF28(40)KMC-I1 compatible with ONVIF systems?
Yes, it supports ONVIF Profiles S, G, and T for integration into third-party VMS platforms
