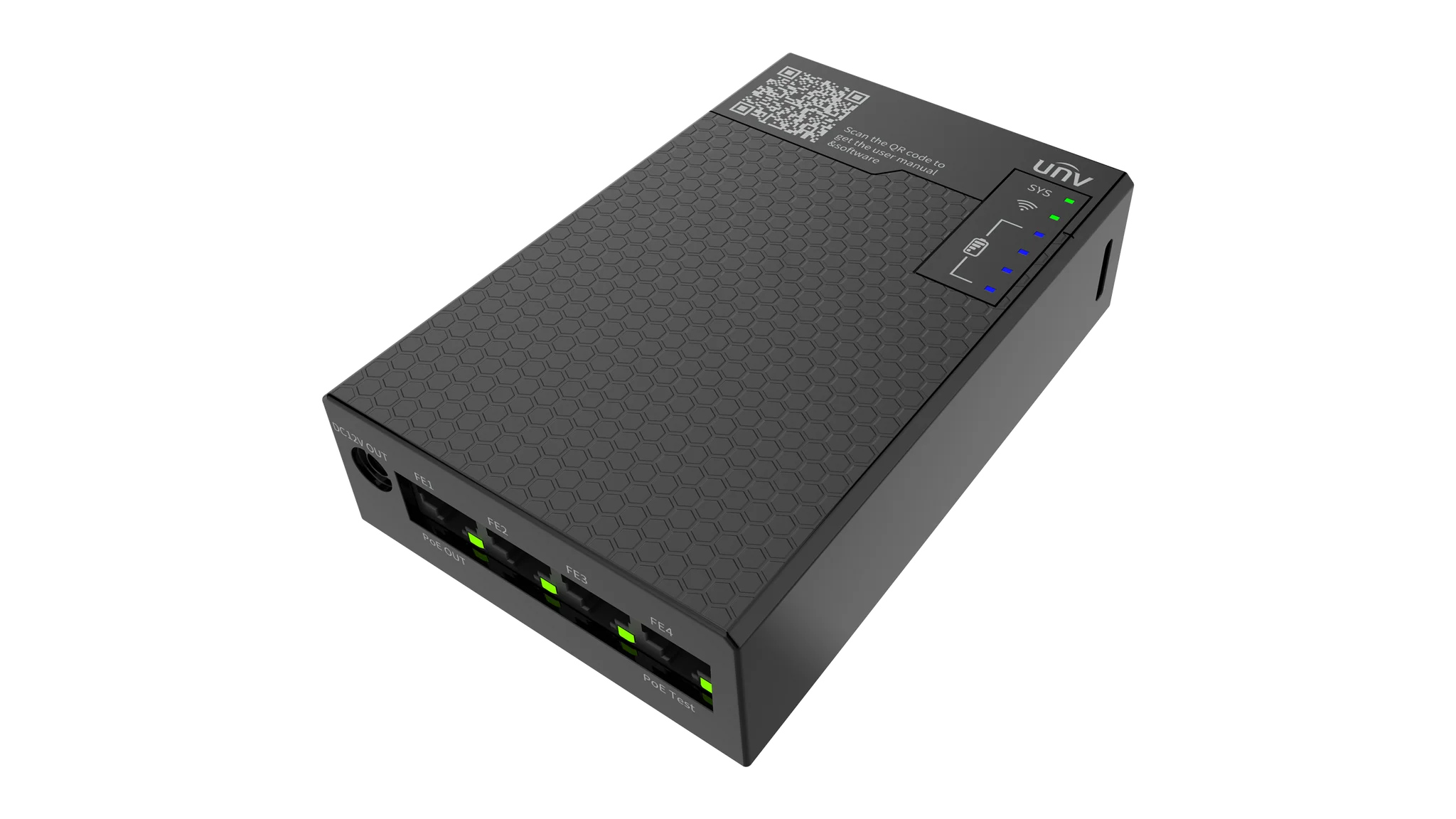

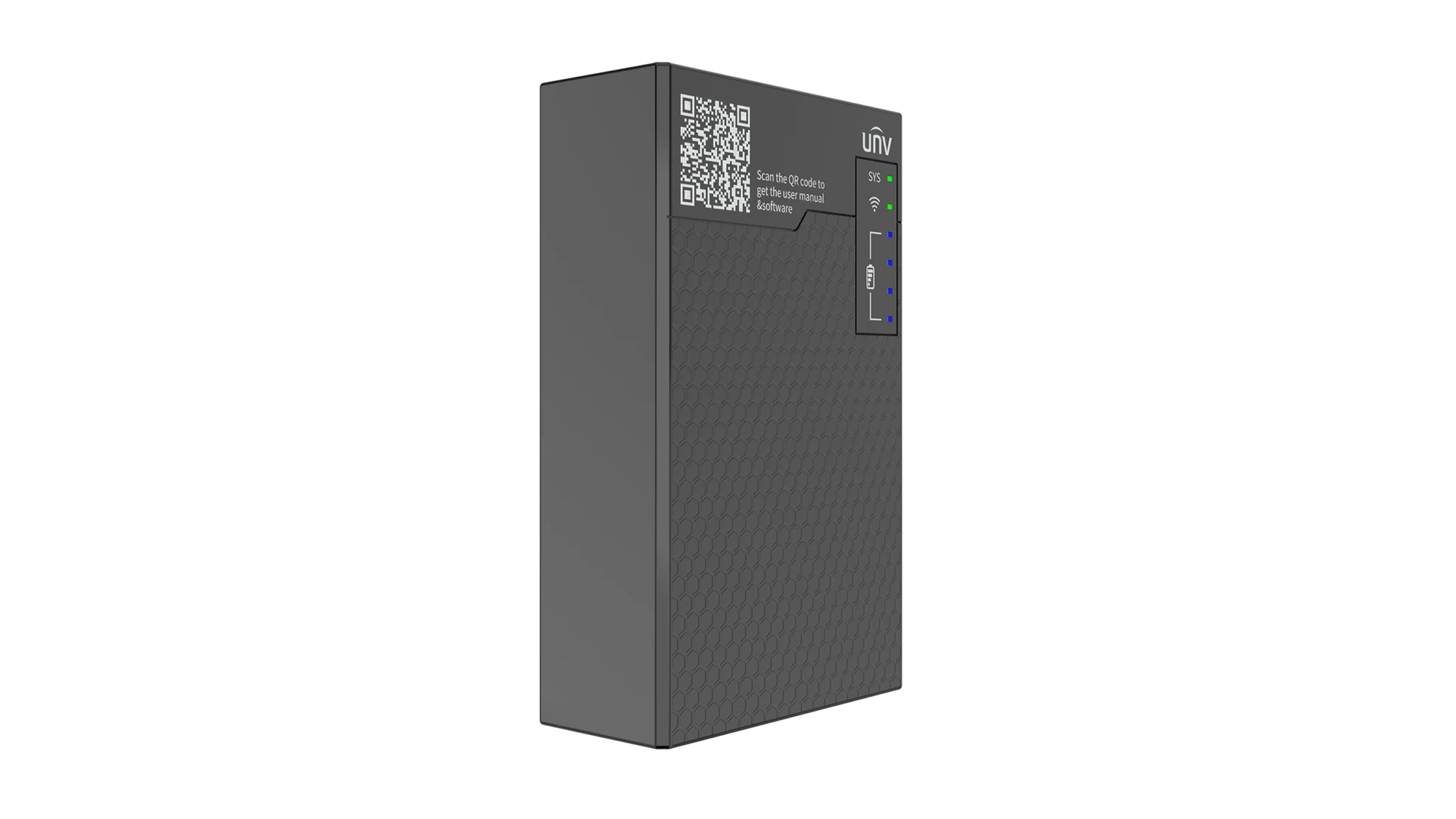

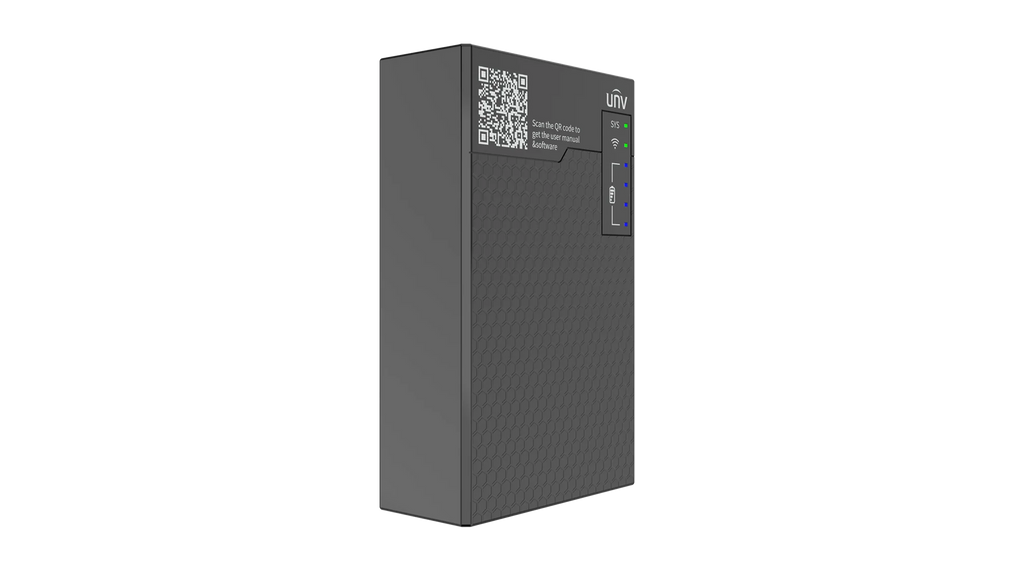

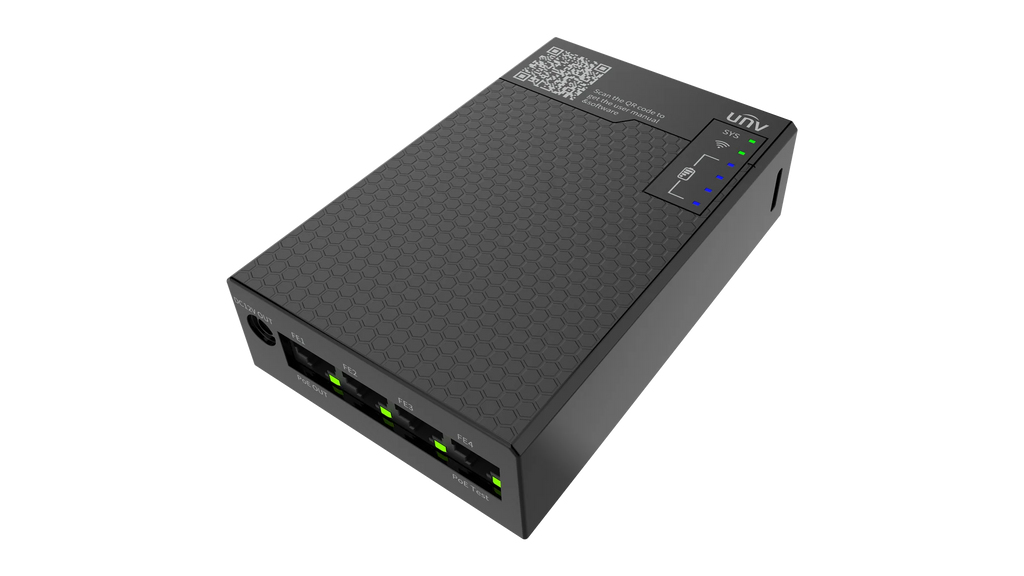

The Uniview GCB01-B7 UNV-Link Pro Connect Box is a compact and powerful portable network installation and testing tool designed for CCTV technicians, installers, and network professionals. Engineered to simplify the setup and diagnostics of IP surveillance devices, this versatile connect box allows installers to power PoE cameras, test network connections, detect PSE voltage, and connect via Wi-Fi directly on-site.
With four Ethernet ports, PoE support, built-in battery power, and voltage detection capabilities, the GCB01-B7 provides a reliable field tool for configuring IP cameras, testing PoE output, and troubleshooting network infrastructure. The integrated 7500mAh lithium battery ensures extended operation during installations, while the compact handheld design makes it ideal for use in ceilings, rooftops, or difficult installation locations.
Designed specifically for professional surveillance installations, the UNV-Link Pro Connect Box significantly improves efficiency when deploying or servicing Uniview IP cameras and other network devices.
What's Included
-
1 × Uniview GCB01-B7 UNV-Link Pro Connect Box
-
USB Type-C charging cable
-
User guide
Main Features
-
Portable IP camera installation and testing tool
-
4 × RJ45 Ethernet ports (10/100 Mbps) for flexible connectivity
-
PoE support (IEEE 802.3af) for powering IP cameras during setup
-
PSE Voltage Detection for PoE testing and diagnostics
-
Built-in 2.4GHz Wi-Fi connectivity
-
DC voltage detection (1V – 56V range)
-
Integrated 7500mAh rechargeable lithium battery
-
Multiple power outputs (DC 12V and USB 5V)
-
Compact and lightweight design for field installations
-
LED indicators for system status, Wi-Fi, and battery level
Detailed Specifications
Network Interfaces
-

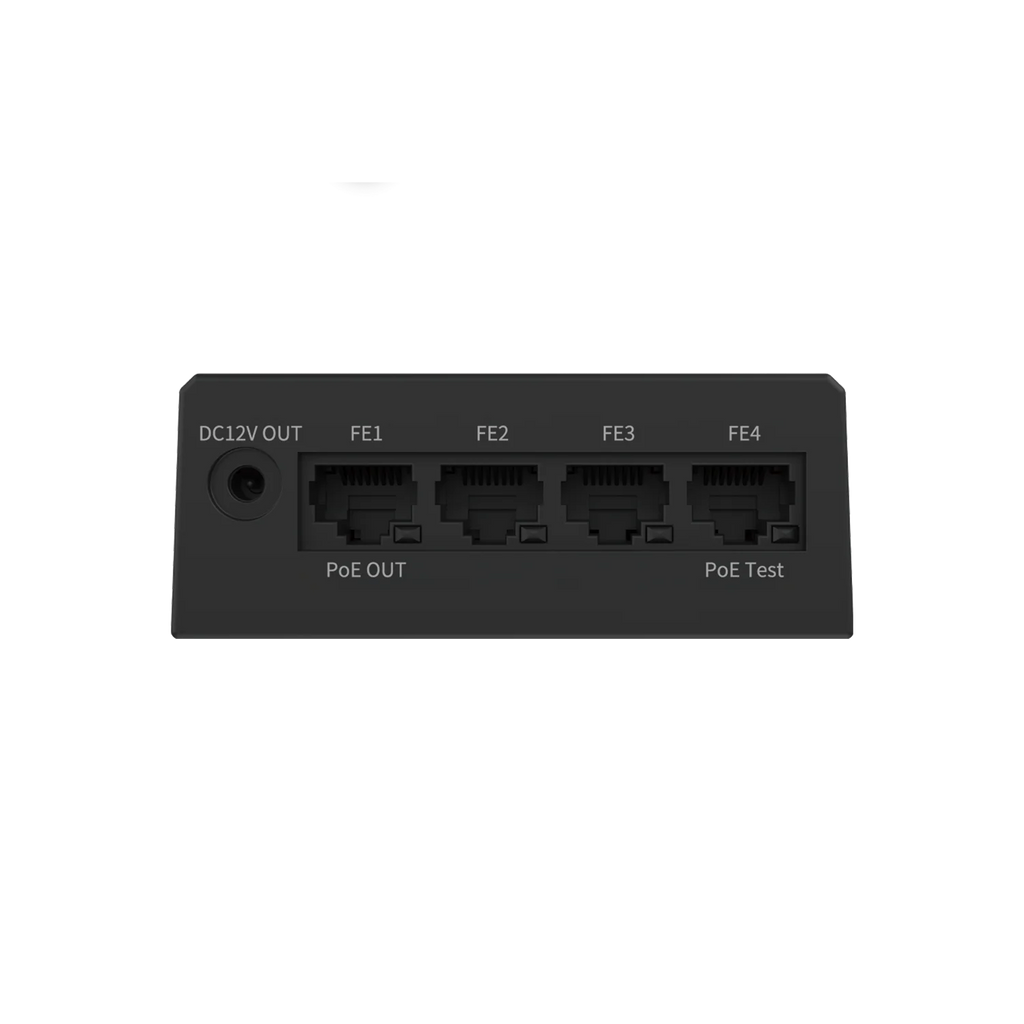

Ethernet Ports: 4 × RJ45 10/100 Mbps Base-TX
-
PoE Support: Port 1 supports PoE (IEEE 802.3af)
-
Output Port: Port 4 supports PSE voltage testing
Voltage Testing
-
PSE Voltage Detection Range: 1V – 56V
-
Supported Standards: IEEE 802.3af / IEEE 802.3at / IEEE 802.3bt
-
DC Voltage Detection Range: 1V – 56V
Wireless Connectivity
-
Wi-Fi: 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)
Power System
-
Battery Type: 18650 Lithium Battery
-
Battery Capacity: 7500 mAh
-
Power Input: DC 5V / 2A (USB Type-C)
-
Power Output:
-
DC 12V / 1A output
-
USB 5V / 1A output (Type-A)
-
Indicators & Controls
-

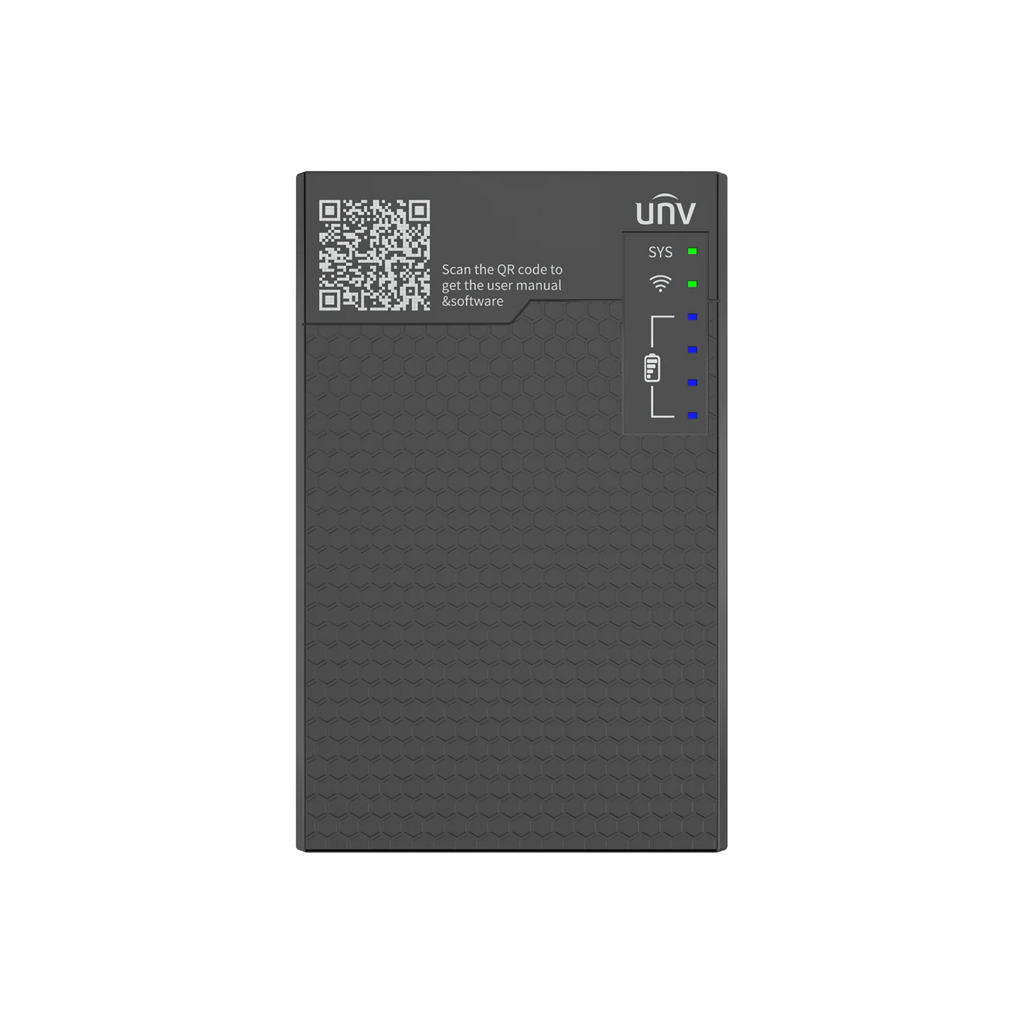

LED Indicators: System, Wi-Fi, Battery status
-
Reset Button: Supported
Physical Specifications
-
Dimensions: 130 × 85 × 33 mm (L × W × H)
Environmental
-
Operating Temperature: -20°C to 60°C
-
Operating Humidity: ≤95% RH (non-condensing)
Warranty Information
The Uniview GCB01-B7 UNV-Link Pro Connect Box is supplied with a manufacturer-backed warranty, ensuring reliability and professional support when sourced through authorized Uniview distributors.
About the Brand – Uniview
Uniview (UNV) is a globally recognized manufacturer of advanced IP surveillance and network security solutions. Known for innovation and reliability, Uniview develops professional hardware and software solutions widely used in commercial security, infrastructure projects, industrial monitoring, and smart city deployments worldwide.
Practical Use Scenarios
-
IP camera installation and configuration
-
PoE troubleshooting and diagnostics
-
Network connectivity testing during CCTV deployment
-
On-site setup of surveillance systems
-
Powering cameras temporarily during installation
-
Wireless connection to cameras for configuration
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The Uniview GCB01-B7 UNV-Link Pro Connect Box is sourced through authorized distribution channels serving Australia and New Zealand, ensuring genuine hardware and reliable firmware support. Designed for professional security installers, the device integrates seamlessly with Uniview surveillance systems commonly deployed across commercial and industrial sites in the region. Warranty service and technical support are handled through direct communication with authorized Uniview partners, providing dependable after-sales support and long-term reliability.
FAQs – Uniview GCB01-B7
What is the Uniview GCB01-B7 UNV-Link Pro Connect Box used for?
The Uniview GCB01-B7 is a portable network installation tool used by technicians to power, configure, and test IP cameras and PoE network connections during surveillance system installations.
Does the Uniview GCB01-B7 support PoE camera testing?
Yes, the Uniview GCB01-B7 supports PoE (IEEE 802.3af) and includes PSE voltage detection for testing PoE-enabled network devices.
Can the Uniview GCB01-B7 test PoE voltage output?
Yes, the Uniview GCB01-B7 includes PSE voltage detection with a range of 1V to 56V, supporting IEEE 802.3af, 802.3at, and 802.3bt standards.
Does the Uniview GCB01-B7 include Wi-Fi connectivity?
Yes, the Uniview GCB01-B7 features 2.4GHz Wi-Fi (IEEE 802.11 b/g/n) to allow wireless configuration and connection during installations.
What battery capacity does the Uniview GCB01-B7 have?
The Uniview GCB01-B7 includes a 7500mAh rechargeable lithium battery, providing portable power for field installation work.
Can the Uniview GCB01-B7 power other devices?
Yes, the Uniview GCB01-B7 provides DC 12V output and USB 5V output, allowing it to power cameras or other small devices during installation.
Is the Uniview GCB01-B7 suitable for CCTV installers?
Yes, the Uniview GCB01-B7 is specifically designed for CCTV technicians and network installers to simplify the installation and troubleshooting of IP surveillance systems.
