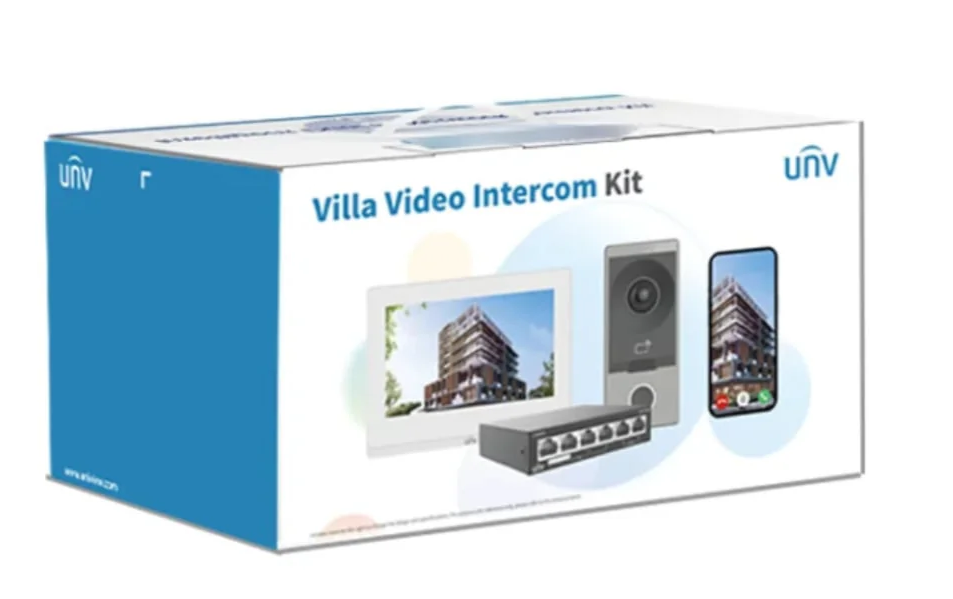

The UNV KIT/201S/372S/NSW2020 is a complete IP intercom kit that includes a robust outdoor door station, touchscreen indoor station, and a secure 6-port PoE switch. Designed for modern access control and security, this kit supports remote unlocking, live video monitoring, tamper detection, and mobile app connectivity — perfect for homes, apartments, villas, and offices.

Product Description

The UNV IP Intercom Kit (KIT/201S/372S/NSW2020) combines three essential components for a smart video intercom solution: a vandal-resistant metal door station (OEU-201S-HMK-W), a 7” touchscreen indoor monitor (OEI-372S-H-W), and a reliable 6-port PoE switch (NSW2020-6T-POE-IN). Together, they form a seamless access control system, supporting two-way communication, live video streaming, IC card access, remote unlocking, and alarm integration. This all-in-one bundle is plug-and-play ready and scalable for both residential and commercial installations.

What’s Included

• 1 × OEU-201S-HMK-W Outdoor Door Station

• 1 × OEI-372S-H-W Indoor 7” Touchscreen Station

• 1 × NSW2020-6T-POE-IN PoE Network Switch

• 1 × 32GB TF Card

• Mounting accessories & documentation

Main Features

OEU-201S-HMK-W (Outdoor Door Station)

• Heavy-duty metal casing with IP65 and IK08 protection

• 2MP camera with IR light for night vision

• Wide-angle lens (147.2° diagonal FOV)

• Two-way audio with echo cancellation and noise suppression

• Supports IC card access and mobile app connectivity

• Built-in alarm integration (tamper, door sensor, IR)

• PoE or 12V DC power input

• Wi-Fi and 100Mbps Ethernet support

OEI-372S-H-W (Indoor Touchscreen Monitor)

• 7-inch ultra-thin capacitive touchscreen

• 1024 × 600 HD resolution

• Supports video intercom, camera monitoring, remote door unlocking

• Two-way audio with AGC and echo cancellation

• Built-in Wi-Fi, PoE, and TF card slot

• Batch configuration and monitoring support

• Connects up to 19 extensions and 20 total devices

NSW2020-6T-POE-IN (PoE Switch)

• 6×100Mbps ports (4 PoE, 2 uplink)

• Supports Default, VLAN, and Extend modes

• VLAN port isolation for security

• 250m long-distance support in Extend mode

• Priority and flow control for traffic optimization

• Fanless design with metal housing for reliability

• Max power: 65W total, 30W per port

Detailed Specifications

OEU-201S-HMK-W

• Camera: 2MP, FOV: H 124.3°, V 67.5°, D 147.2°

• Audio: Two-way, noise suppression, echo cancellation

• Power Supply: 12V DC ±25%, IEEE802.3af PoE

• Operating Temp: –30°C ~ +60°C

• Card Capacity: 10,000 IC cards

• Interfaces: Power ×1, Network ×1, RS485, Door Lock ×2, IO Input ×4

• Mounting: Wall-mounted, flush installation

• Dimensions: 79mm × 171mm × 34mm

• Casing: IP65 (with sealant), IK08 vandal resistant

• Weight: 0.267 kg

OEI-372S-H-W

• Screen: 7″ TFT LCD, 1024×600 resolution

• Power: 12V DC ±25%, IEEE802.3af PoE

• Audio: AGC, echo cancellation, noise suppression

• Interfaces: Power ×1, Network ×1, RS485 ×1, IO Out ×2, IO In ×8, TF Slot ×1

• Wi-Fi: 2.4GHz (Wi-Fi 4)

• Dimensions: 193mm × 143mm × 25mm

• Weight: 360g

• Capacity: 20 connected devices, 19 extension stations

NSW2020-6T-POE-IN

• Ports: 6 RJ45 (4 PoE, 2 uplink)

• Speed: 100Mbps

• PoE: IEEE802.3af/at, Max 30W/port, 65W total

• Modes: Default, VLAN, Extend (250m)

• Switching Capacity: 1.2 Gbps

• Power Input: 48–51V DC (via AC adapter)

• Weight: 0.19 kg

• Dimensions: 107 × 101 × 25 mm

• Operating Temp: 0°C ~ 40°C

Warranty Information

This intercom kit includes standard Uniview manufacturer warranty. Warranty support is provided through authorized distributors and installation partners. Product registration and compliance with installation guidelines are required for warranty validation.

Datasheet

Brand Overview

Uniview (UNV) is a globally recognized leader in professional surveillance and smart security technologies. Known for high-reliability IP systems and intelligent solutions, Uniview offers premium products like intercoms, cameras, and network switches tailored for scalable, real-world deployments across residential and commercial sectors.

Practical Use Scenarios

• Smart Homes & Villas – Control gate access, view live video feeds, and remotely unlock doors.

• Apartments & Residential Complexes – Centralized, secure two-way communication between tenants and visitors.

• Office Buildings – Integration with NVRs and access control systems for enhanced workplace security.

• Gated Communities – Scalable multi-device support with app notifications and alarm integration.

Excellence for the Australian and New Zealand Market

The KIT/201S/372S/NSW2020 is ideal for professional installations across Australia and New Zealand, designed to meet region-specific requirements in smart access control and IP intercom deployment. All components are sourced directly from authorized Uniview representatives, ensuring genuine product authenticity, compliance with PoE and IP networking standards, and local warranty support. System installers benefit from easy integration into existing infrastructure, and end users enjoy reliable functionality with localized service options.

FAQs – Product Code KIT/201S/372S/NSW2020

1. What components are included in the KIT/201S/372S/NSW2020?
The KIT/201S/372S/NSW2020 includes an outdoor door station (OEU-201S-HMK-W), an indoor monitor (OEI-372S-H-W), a PoE switch (NSW2020-6T-POE-IN), and a 32GB TF card.

2. Is the KIT/201S/372S/NSW2020 suitable for apartments or gated communities?
Yes, the KIT/201S/372S/NSW2020 is ideal for multi-tenant applications such as apartments and gated communities due to its support for multiple connected devices and extensions.

3. Does the KIT/201S/372S/NSW2020 support remote unlocking?
Yes, this kit supports remote and one-touch unlocking from the indoor station or compatible mobile apps.

4. What is the power method for KIT/201S/372S/NSW2020 devices?
All devices in the KIT/201S/372S/NSW2020 support IEEE802.3af PoE, and some also support DC power options.

5. Is the PoE switch in KIT/201S/372S/NSW2020 suitable for long cable runs?
Yes, the NSW2020-6T-POE-IN switch supports Extend Mode, allowing cable runs up to 250 meters at 10Mbps.

6. Can the KIT/201S/372S/NSW2020 be expanded with more indoor monitors?
Yes, the OEI-372S-H-W indoor station supports up to 19 extension stations and 20 total connected devices.

7. Is the outdoor door station in KIT/201S/372S/NSW2020 weatherproof?
Yes, the OEU-201S-HMK-W is IP65-rated and IK08 impact-resistant, making it ideal for outdoor use.
