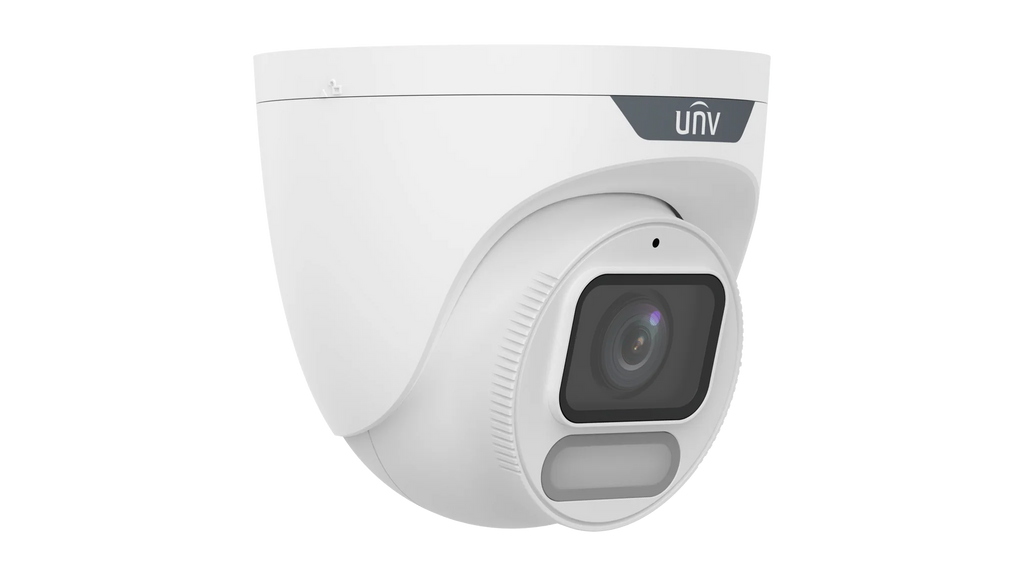

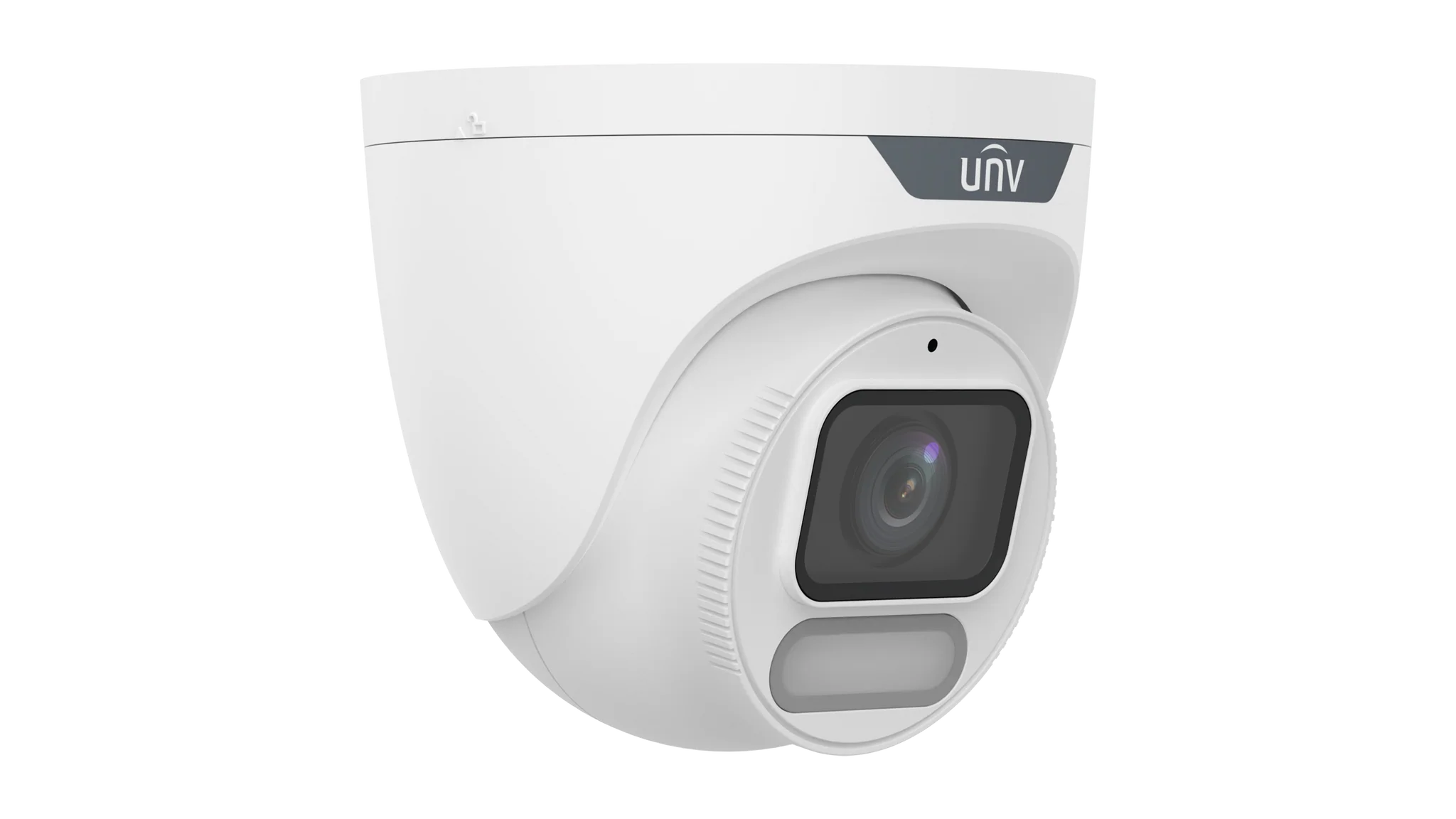

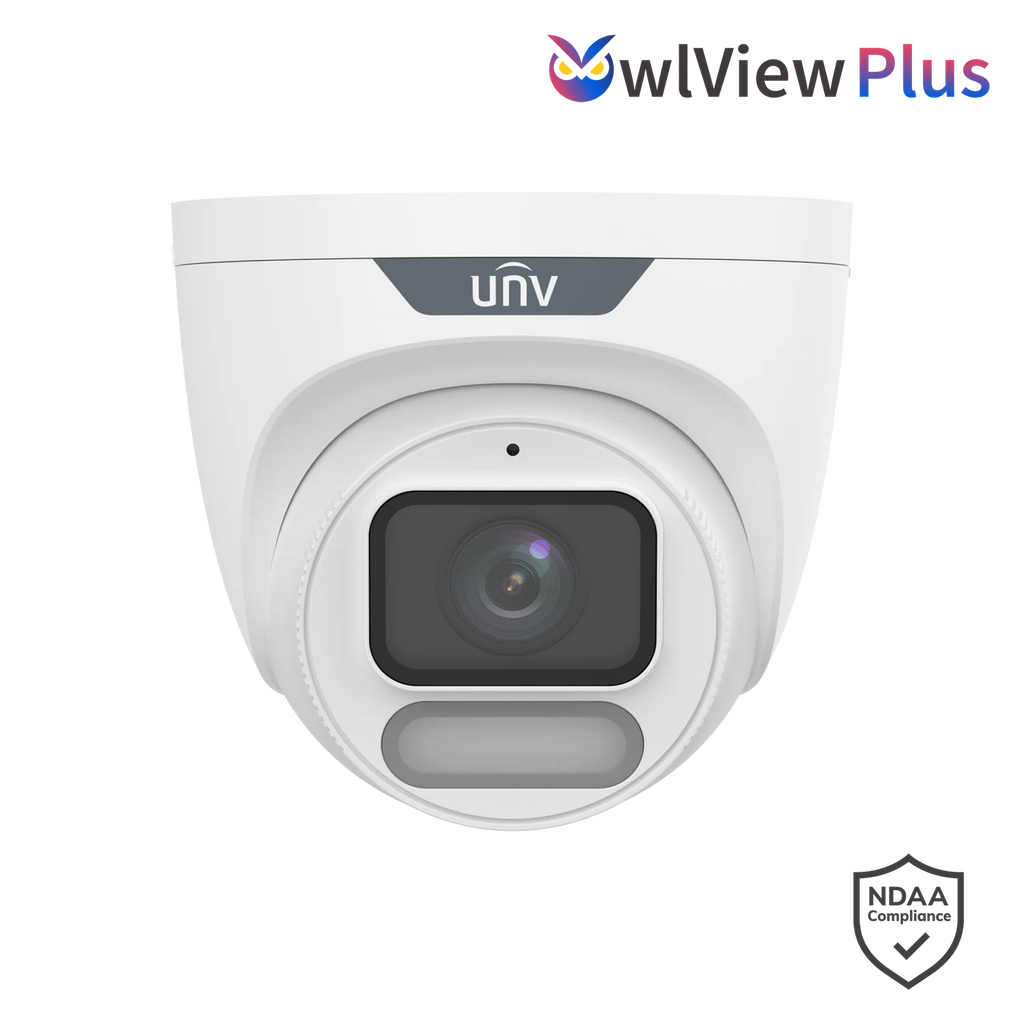

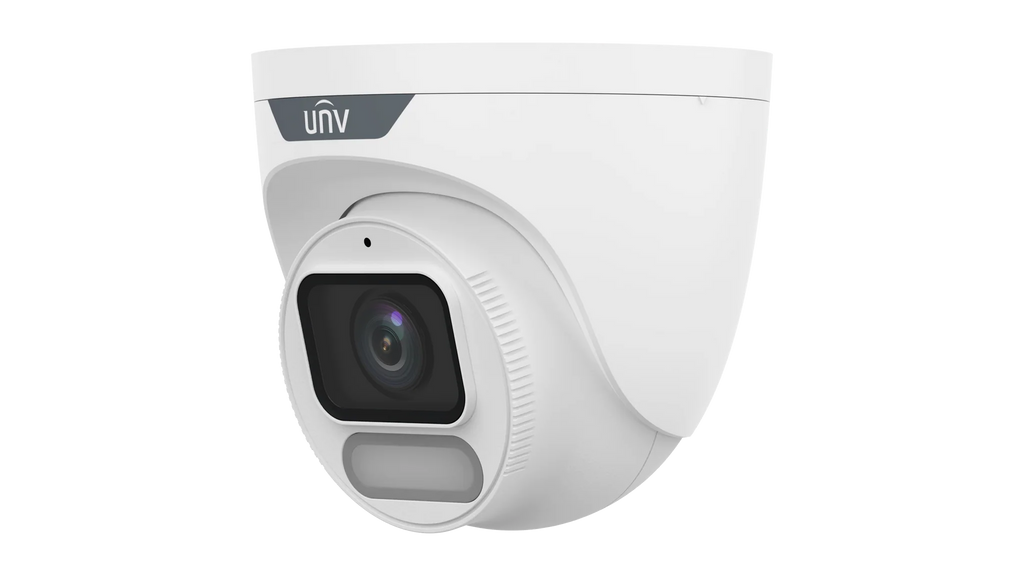

The Uniview IPC3636SE-ADF28K-WP-I1 6MP OwlView Plus Fixed Turret Network Camera delivers advanced AI-powered surveillance with 24/7 full-colour imaging using ColorHunter with Wise-ISP technology. Featuring a large 1/1.8" CMOS sensor, 130dB True WDR, and a powerful F1.0 aperture, this professional-grade IP camera captures ultra-clear footage even in extremely low-light conditions. With smart intrusion prevention, people flow counting, and intelligent perimeter protection, it provides accurate monitoring for homes, businesses, retail stores, warehouses, and commercial premises.

Designed for reliability and durability, the camera includes IK10 vandal resistance, IP67 weather protection, and warm light illumination up to 30 metres. It also supports Ultra 265 compression for efficient storage, two-way audio capability, and edge storage up to 512GB microSD, making it a powerful solution for modern security systems.

What’s Included in the Box

• 1 × Uniview IPC3636SE-ADF28K-WP-I1 6MP Turret Network Camera

• Mounting Kit

• Installation Guide

• Waterproof Connector Kit

Main Features

• 6MP (3072 × 2048) high-resolution imaging

• ColorHunter with Wise-ISP technology for 24/7 full colour video

• 1/1.8" CMOS sensor for superior low-light performance

• F1.0 large aperture lens for enhanced night visibility

• 2.8mm fixed lens with 110.4° wide viewing angle

• Warm light illumination up to 30 metres

• 130 dB True WDR for high-contrast scenes

• AI-based smart intrusion prevention with human/vehicle classification

• Cross line, intrusion, enter area and leave area detection

• People flow counting and crowd density monitoring

• Smart intrusion prevention with colour retrieval

• Triple video streams

• Ultra 265 / H.265 / H.264 / MJPEG compression

• Built-in microphone with audio input/output

• Alarm input/output (1 in / 1 out)

• Edge storage up to 512GB MicroSD

• IP67 weatherproof and IK10 vandal-resistant housing

• PoE or DC 12V power support

Detailed Specifications

Camera

• Maximum Resolution: 6MP

• Sensor: 1/1.8" CMOS

• Minimum Illumination: 0.0003 Lux (F1.0, AGC ON)

• Shutter Speed: 1 – 1/100000s

• WDR: 130 dB True WDR

• Signal-to-Noise Ratio: >56 dB

Lens

• Lens Type: Fixed

• Focal Length: 2.8mm

• Iris: F1.0

• Field of View:

  • Horizontal: 110.4°

  • Vertical: 60.5°

  • Diagonal: 115.2°

DORI Distance (2.8mm Lens)

• Detect: 43.4 m

• Observe: 17.4 m

• Recognise: 8.7 m

• Identify: 4.3 m

Illumination

• Supplemental Light: Warm Light

• Illumination Distance: Up to 30 m

• Light Control: Auto / Manual

Video

• Compression: Ultra 265, H.265, H.264, MJPEG

• Max Frame Rate: 30 fps

• Bit Rate: 128 Kbps – 16 Mbps

• Streams: Triple Stream

Image Functions

• 2D/3D Digital Noise Reduction

• Auto Scene Match (ASM)

• Privacy Mask (4 areas)

• Digital Defog

• HLC / BLC Support

• 9:16 Corridor Mode

Smart Features

• Cross Line Detection

• Intrusion Detection

• Enter / Leave Area Detection

• Smart False Alarm Filtering

• Human / Vehicle / Non-motor Vehicle Classification

• People Flow Counting

• Crowd Density Monitoring

• Smart Intrusion Prevention with Colour Retrieval

Audio

• Compression: G.711U / G.711A

• Built-in Microphone

• Two-Way Audio Support

Storage

• Edge Storage: MicroSD up to 512GB

• Network Storage: NAS (NFS), ANR

Network

• Ethernet: 1 × RJ45 (10/100 Mbps)

• Supported Protocols: IPv4, IPv6, TCP, UDP, DHCP, RTSP, HTTPS, FTP, NTP, SMTP, SNMP, SSL/TLS, SSH

• ONVIF Profiles: S, G, T, M

Protection & Durability

• Weather Protection: IP67

• Vandal Resistance: IK10

• Surge Protection: 4KV

Power

• Power Supply: DC 12V ±25% or PoE (802.3af)

• Maximum Consumption: 4.5W

Physical

• Dimensions: Ø129 × 110 mm

• Weight: 0.67 kg

• Housing Material: Metal

Operating Conditions

• Temperature: -30°C to 60°C

• Humidity: ≤95% RH (non-condensing)

Warranty Information

This product includes a 3-Year Manufacturer Warranty, ensuring reliable performance and long-term protection for your surveillance investment.

Brand Overview – Uniview

Uniview (UNV) is a global leader in professional video surveillance and AIoT solutions. Known for innovative technologies such as ColorHunter, OwlView, and Ultra 265 compression, Uniview products deliver high-performance security solutions trusted by businesses, governments, and installers worldwide.

Practical Use Scenarios

• Retail store surveillance and theft prevention

• Warehouse and logistics monitoring

• Commercial building security

• Parking lots and outdoor perimeter protection

• Office and corporate security systems

• Residential property monitoring

• School and campus security

Datasheets / Downloads

SKU

IPC3636SE-ADF28K-WP-I1

Excellence for the Australian and New Zealand Market

This Uniview security camera is sourced through authorised distribution channels, ensuring genuine hardware and reliable firmware compatibility for the Australian and New Zealand security industry.

Key advantages include:

• Designed to meet Australian installation and compliance standards

• Professional-grade surveillance hardware suitable for AU/NZ environments

• Support for local installers, integrators, and security professionals

• Warranty support handled through direct authorised brand channels

• Optimised compatibility with modern NVR systems used across Australia and New Zealand

FAQs

What resolution does the IPC3636SE-ADF28K-WP-I1 camera support?

The IPC3636SE-ADF28K-WP-I1 supports up to 6MP (3072 × 2048) resolution, delivering highly detailed surveillance footage suitable for professional security monitoring.

Does the IPC3636SE-ADF28K-WP-I1 support full colour night recording?

Yes. The IPC3636SE-ADF28K-WP-I1 features ColorHunter with Wise-ISP technology, allowing it to capture 24/7 full-colour images, even in extremely low-light conditions.

What night illumination distance does the IPC3636SE-ADF28K-WP-I1 provide?

The IPC3636SE-ADF28K-WP-I1 includes built-in warm light illumination with a range of up to 30 metres, ensuring clear nighttime visibility.

Does the IPC3636SE-ADF28K-WP-I1 support AI detection?

Yes. The IPC3636SE-ADF28K-WP-I1 supports AI-powered intrusion detection, including human, vehicle, and non-motor vehicle classification, reducing false alarms.

Can the IPC3636SE-ADF28K-WP-I1 record audio?

Yes. The IPC3636SE-ADF28K-WP-I1 includes a built-in microphone and audio input/output, enabling two-way audio support.

Is the IPC3636SE-ADF28K-WP-I1 suitable for outdoor installation?

Yes. The IPC3636SE-ADF28K-WP-I1 features IP67 weatherproof protection and IK10 vandal resistance, making it ideal for both indoor and outdoor security installations.

Does the IPC3636SE-ADF28K-WP-I1 support SD card storage?

Yes. The IPC3636SE-ADF28K-WP-I1 supports MicroSD cards up to 512GB, allowing local edge recording without requiring an NVR.
