Description

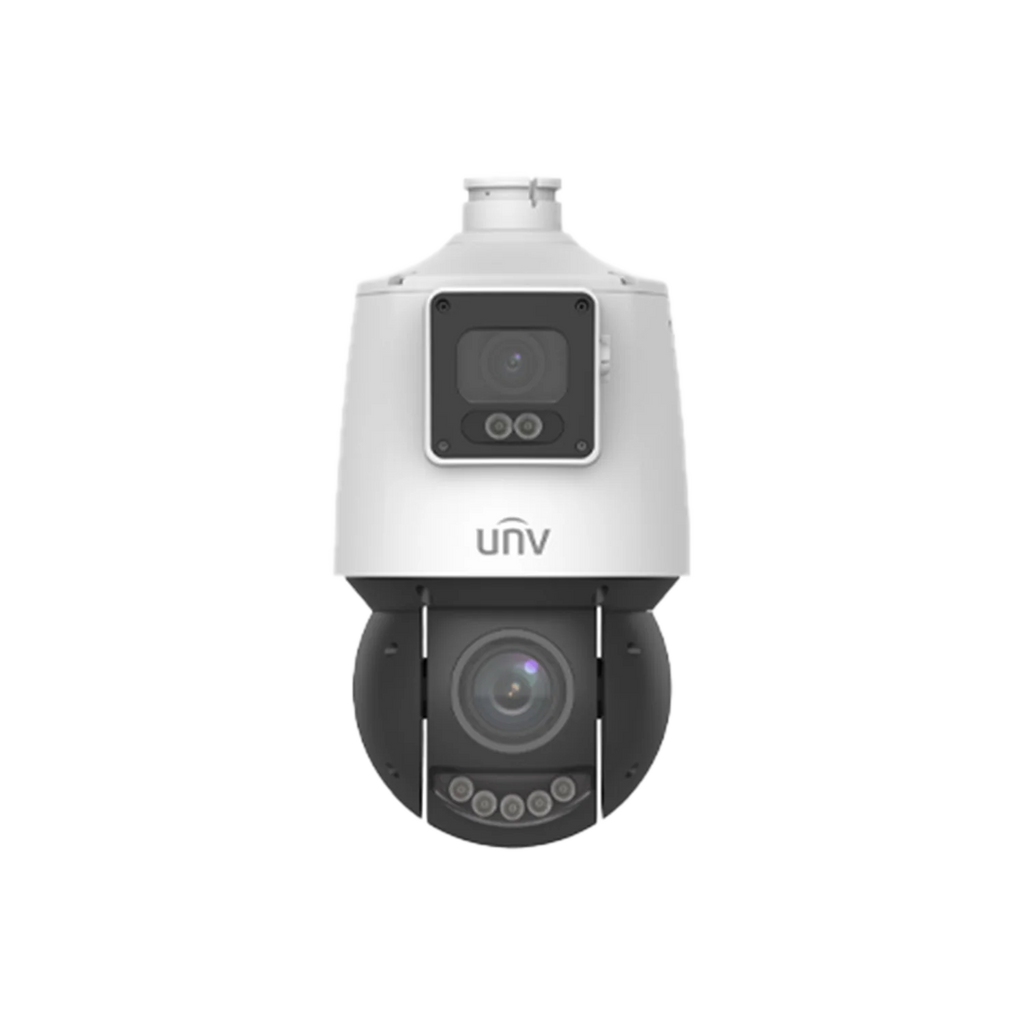

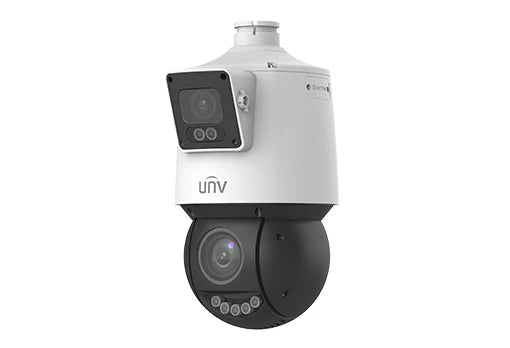

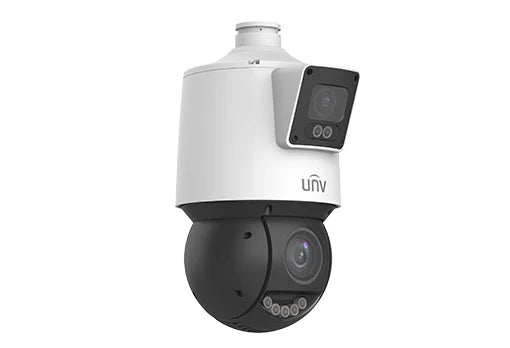

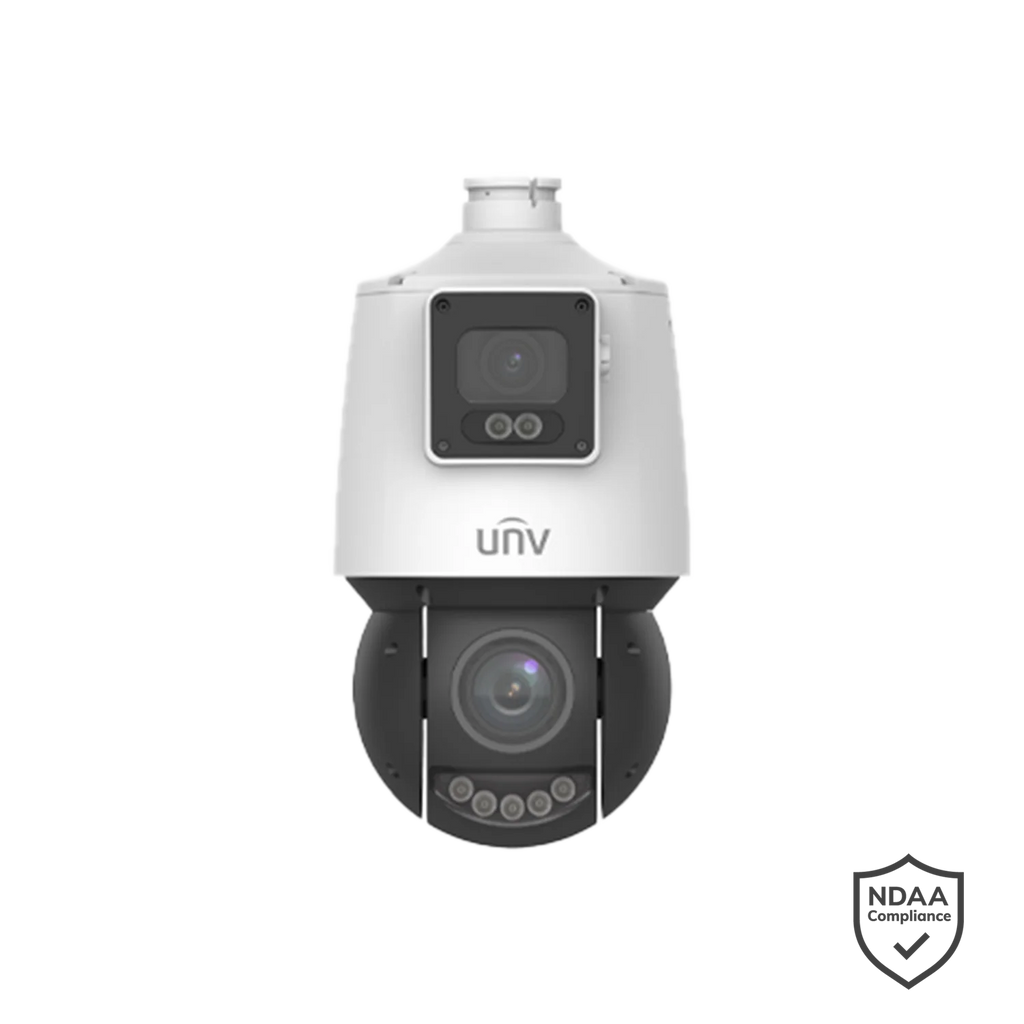

Get the best of panoramic surveillance and focused detail with the Uniview IPC94144SFW-X25-F40C, a cutting-edge dual-lens PTZ network camera combining a fixed panoramic view and a powerful 25x optical zoom PTZ. With LightHunter technology, IR & warm light illumination, and smart tracking, it’s the ideal security solution for comprehensive monitoring in both wide and targeted scenes.
Product Description
The Uniview IPC94144SFW-X25-F40C revolutionizes video surveillance by integrating dual 4MP sensors—a panoramic fixed lens and a zoom-enabled PTZ lens—into a single device. This intelligent dual-lens setup allows users to monitor wide areas continuously while zooming in on specific activities without losing overall situational awareness.
Equipped with 25x optical zoom, Smart IR up to 100m, warm light up to 30m, and Ultra 265 compression, this camera also supports linked smart intrusion tracking, where the PTZ lens automatically follows events triggered in the panoramic field. With robust IP66 weather resistance and support for PoE+ or 12V DC, this model is purpose-built for high-demand environments.
What's in the Box
-
1 × Uniview IPC94144SFW-X25-F40C Dual-lens PTZ Camera
-
Wall Mount Bracket (TR-WE45-IN)
-
Mounting Screws & Fixings
-
Quick Start Guide
Main Features
-
Dual 4MP lenses (Panorama + PTZ) with independent streams
-
25x optical zoom motorized PTZ lens
-
Fixed panoramic lens with F1.0 large aperture
-
LightHunter technology for ultra-low-light performance
-
IR up to 100m and warm light up to 30m
-
Linked auto-tracking between panorama and PTZ
-
Ultra 265 / H.265 / H.264 / MJPEG compression
-
IP66 weatherproof protection
-
Triple-stream video, 256GB local storage support
-
Intelligent event detection and tracking
Detailed Specifications
| Specification | Panorama Camera | PTZ Camera |
|---|---|---|
| Sensor | 1/1.8", 4MP CMOS | 1/2.7", 4MP CMOS |
| Min. Illumination | 0.0005 Lux (F1.0), 0 Lux w/ warm light | 0.003 Lux (F1.5), 0 Lux w/ IR |
| Lens | 4mm, Fixed F1.0 | 4.8–120mm motorized, F1.5–F3.8 |
| Optical Zoom | N/A | 25x |
| IR Range | Warm Light: 30m | IR: 100m |
| Resolution | 2688×1520 @ 30fps | 2688×1520 @ 30fps |
| Video Streams | Triple | Triple |
| DORI Distance (Max Zoom) | Identify: 6.2m | Identify: 247.5m |
| Auto Tracking | No | Yes |
| Storage | Up to 256GB MicroSD | |
| Audio/Alarm I/O | 1 in / 1 out | 2 alarm in / 1 out |
| Protection | IP66 | |
| Power | DC12V ±25% / PoE+ (IEEE 802.3at) | |

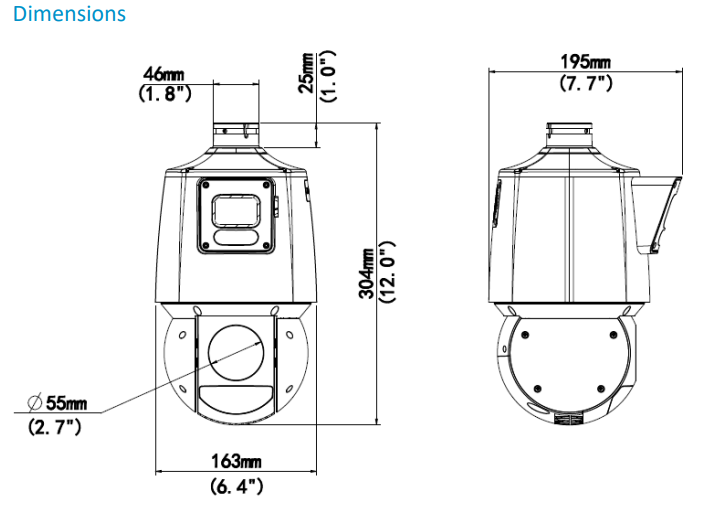

| Dimensions | Φ163 x 304mm | |
| Weight | 2.27kg |
Warranty Information
Backed by a 3-year manufacturer warranty, the Uniview IPC94144SFW-X25-F40C is supported by authorized Australian and New Zealand distribution channels. Warranty support includes local RMA handling, ensuring rapid and reliable service.
Brand Description
Uniview is a global leader in video surveillance solutions, known for developing innovative security technologies like dual-lens design, LightHunter low-light imaging, and smart tracking. Trusted in over 150 countries, Uniview sets the standard in proactive security intelligence and robust design.
SKU
IPC94144SFW-X25-F40C
Practical Use Scenarios
-
Airports & Transport Hubs: Simultaneous area overview and zoom-in detail
-
Retail & Malls: Track shoplifters while keeping wide store coverage
-
Warehouses: Use panoramic view to monitor lanes and PTZ to zoom into loading docks
-
Perimeter Security: Auto-track intruders across wide fences or barriers
-
Campus Monitoring: Capture both crowd flow and individuals of interest
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
The IPC94144SFW-X25-F40C meets and exceeds quality expectations in the Australia and New Zealand region, featuring rugged IP66 protection, wide temperature tolerance, and compliance with CE, FCC, and RoHS certifications. All units are distributed via authorized regional partners, with local warranty support and technical assistance available to ensure full lifecycle service reliability.
FAQs (Product Code: IPC94144SFW-X25-F40C)
Q1: What makes the IPC94144SFW-X25-F40C a “dual-lens” camera?
A1: It features a fixed panoramic 4MP lens and a 4MP PTZ lens with 25x zoom, enabling simultaneous wide and detailed views.
Q2: Does the IPC94144SFW-X25-F40C support auto-tracking?
A2: Yes, the PTZ lens can auto-track objects triggered in the fixed panoramic view using smart intrusion detection.
Q3: How far can IPC94144SFW-X25-F40C identify a person?
A3: The PTZ lens can identify a person at distances up to 247.5m (812 ft).
Q4: Can this camera operate in total darkness?
A4: Yes, it uses IR for PTZ (up to 100m) and warm light for panoramic (up to 30m) to ensure visibility even at 0 Lux.

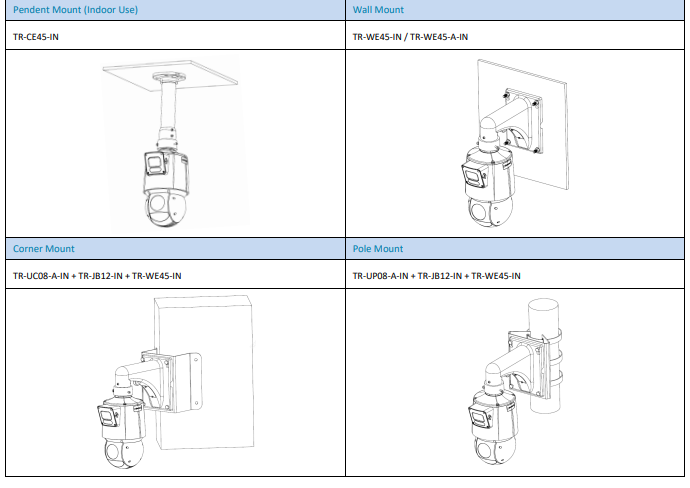

Q5: What mounting options are available for IPC94144SFW-X25-F40C?
A5: It supports a wide range of mounts: wall, pendant, corner, and pole via accessories like TR-WE45-IN, TR-JB12-IN, and TR-UP08.
Q6: How is the IPC94144SFW-X25-F40C powered?
A6: It supports DC12V or PoE+ (IEEE 802.3at) for flexible deployment.
