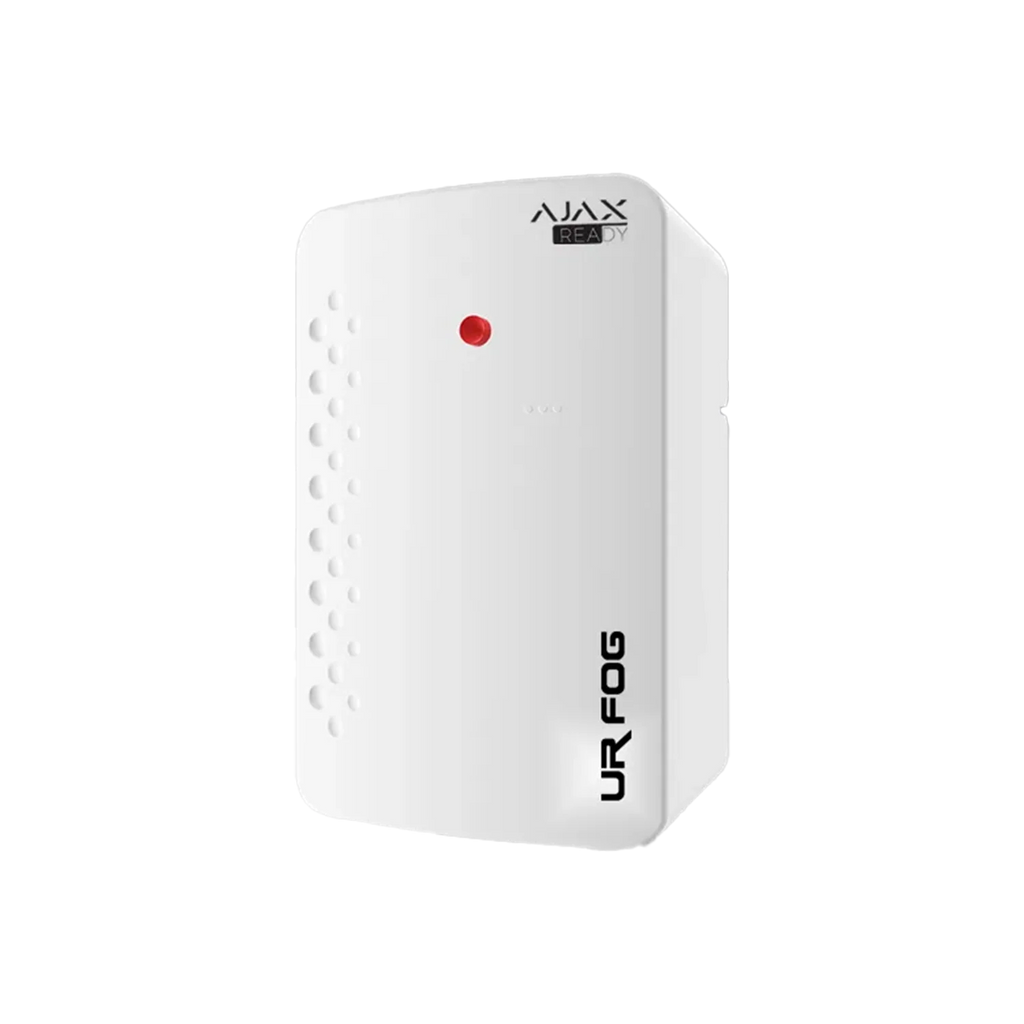

The URFBAT300A UR Fog BAT 300 AJAX Ready Security Fogging System is an advanced battery-powered anti-intrusion fog generator designed to provide immediate active protection against theft, robbery, and unauthorized access. Compact, lightweight, and fully mobile, this innovative fogging system can rapidly fill up to 100 cubic metres with dense zero-visibility fog in less than 60 seconds, helping prevent criminals from locating valuables or remaining inside protected areas. Designed for seamless integration with Ajax alarm systems, the BAT 300 is ideal for garages, homes, offices, ATMs, safes, armoured vehicles, boats, caravans, and other small to medium-sized spaces requiring reliable standalone security protection.
Featuring patented Tempest Technology, ultra-low power consumption, built-in battery charging, and up to 100 hours autonomy in absence of power, the BAT 300 offers one of the most flexible and energy-efficient security fogging solutions available for professional installations across Australia and New Zealand.
What’s Included in the Box
- UR Fog BAT 300 AJAX Ready Fogging System
- 2 × 12V 9Ah Batteries
- 125 ml Fog Fluid Cartridge
- Window Warning Sticker
- Installation Manual
Main Features
Rapid Zero-Visibility Fog Protection
- Covers up to 100m³ with dense fog
- Creates zero visibility in less than 60 seconds
Battery Powered Security System
- Operates independently without mains power
- Up to 100 hours autonomy depending on operating mode
- Up to 6 months standby capability without external charging
AJAX Ready Integration
- Compatible with Ajax alarm systems
- Supports wired and wireless triggering methods
Compact & Portable Design
- Lightweight and mobile installation
- Ideal for small and high-risk environments
Fog, Not Smoke Technology
- Non-toxic certified fog fluid
- Safe for use around people, animals, and food products
- No permanent residue left after activation
Flexible Installation
- Vertical wall or shelf mounting
- Optional orientable wall bracket available
Advanced Power Management
- Built-in charger supports:
- 10–16V / 350mA charging
- 10–16V / 1A fast charging
- Immediate heating at time of activation
Professional Alarm Integration
- ARM, TRIG, and PIR/Panic inputs
- Fault, low battery, and empty fluid outputs
- RS232 serial communication support
Technical Specifications
| Specification |
Details |
| Product Code |
URFBAT300A |
| Product Name |
UR Fog BAT 300 AJAX Ready |
| Fog Coverage |
100m³ |
| Visibility Standard |
Less than 1 metre |
| Deployment Time |
Up to 60 seconds |
| Fog Fluid Capacity |
125 ml |
| Shot Options |
25m³ / 50m³ / 100m³ |
| Battery Type |
2 × 12V 9Ah VRLA Batteries |
| Battery Autonomy |
Up to 6 months standby |
| Power Consumption |
2–3mW low power / 1.2W always-on |
| Charging Input |
10–16V DC |
| Charging Modes |
Slow & Fast Charging |
| Heating System |
Immediate activation |
| Communication |
RS232 Serial |
| Inputs |
ARM / TRIG / PIR-Panic |
| Outputs |
Empty Fluid / Fault / Low Battery |
| Mounting Type |
Vertical Wall / Shelf |
| Dimensions |
300 × 200 × 150 mm |
| Weight |
7.6 kg |
| Operating Temperature |
-10°C to +50°C |
| Colour |
Pure White RAL 9010 |
Technical specifications sourced from the official BAT 300 datasheet and installation manual.
Practical Use Scenarios
Residential Security Protection
Ideal for garages, homes, and storage areas requiring rapid active intrusion deterrence.
Commercial & Retail Security
Protects offices, small retail stores, safes, and stockrooms against theft and robbery.
Vehicle & Mobile Security Applications
Suitable for armoured vans, campers, caravans, trucks, and boats.
ATM & Safe Protection
Provides immediate fog deployment during unauthorized access attempts.
Integrated AJAX Security Systems
Can be activated through Ajax motion detectors, panic buttons, and alarm triggers.
Warranty Information
Manufacturer Warranty:
- Fogging System: 1 Year
- Fog Fluid Cartridges: 2 Years
- Batteries: 1 Year
Warranty details according to UR Fog manufacturer documentation.
About UR Fog
UR Fog is a global manufacturer specializing in advanced anti-intrusion fogging systems designed to stop theft and protect people, property, and assets through rapid zero-visibility security technology.
Excellence for the Australian and New Zealand Market
This product is supplied through authorized distribution channels and optimized for professional security installations throughout Australia and New Zealand.
Key benefits include:
- Genuine UR Fog product
- AJAX Ready compatibility
- Certified food-grade fog fluid
- Professional installer-friendly integration
- Non-toxic fog certified for occupied environments
- Reliable support and warranty handling through authorized suppliers
This ensures customers receive a safe, compliant, and highly effective security fogging solution suitable for residential, commercial, and mobile security applications across Australia and New Zealand.
Datasheets & Resources
FAQs – URFBAT300A
1. What area can the URFBAT300A UR Fog BAT 300 protect?
The URFBAT300A UR Fog BAT 300 can protect areas up to 100 cubic metres with dense zero-visibility fog.
2. Is the URFBAT300A compatible with Ajax alarm systems?
Yes, the URFBAT300A is fully AJAX Ready and designed for integration with Ajax security systems.
3. How long can the URFBAT300A operate without mains power?
The URFBAT300A can remain operational for up to 6 months in standby mode without external power while still being capable of a full fog shot.
4. Is the fog generated by the URFBAT300A safe?
Yes, the URFBAT300A uses certified non-toxic fog fluid that is safe for people, animals, and food products when used correctly.
5. Can the URFBAT300A be installed in vehicles or mobile applications?
Yes, the URFBAT300A is suitable for armoured vehicles, trucks, caravans, boats, and mobile security applications.
6. Does the URFBAT300A require permanent mains power?
No, the URFBAT300A is battery-powered and can operate independently without permanent mains power.
