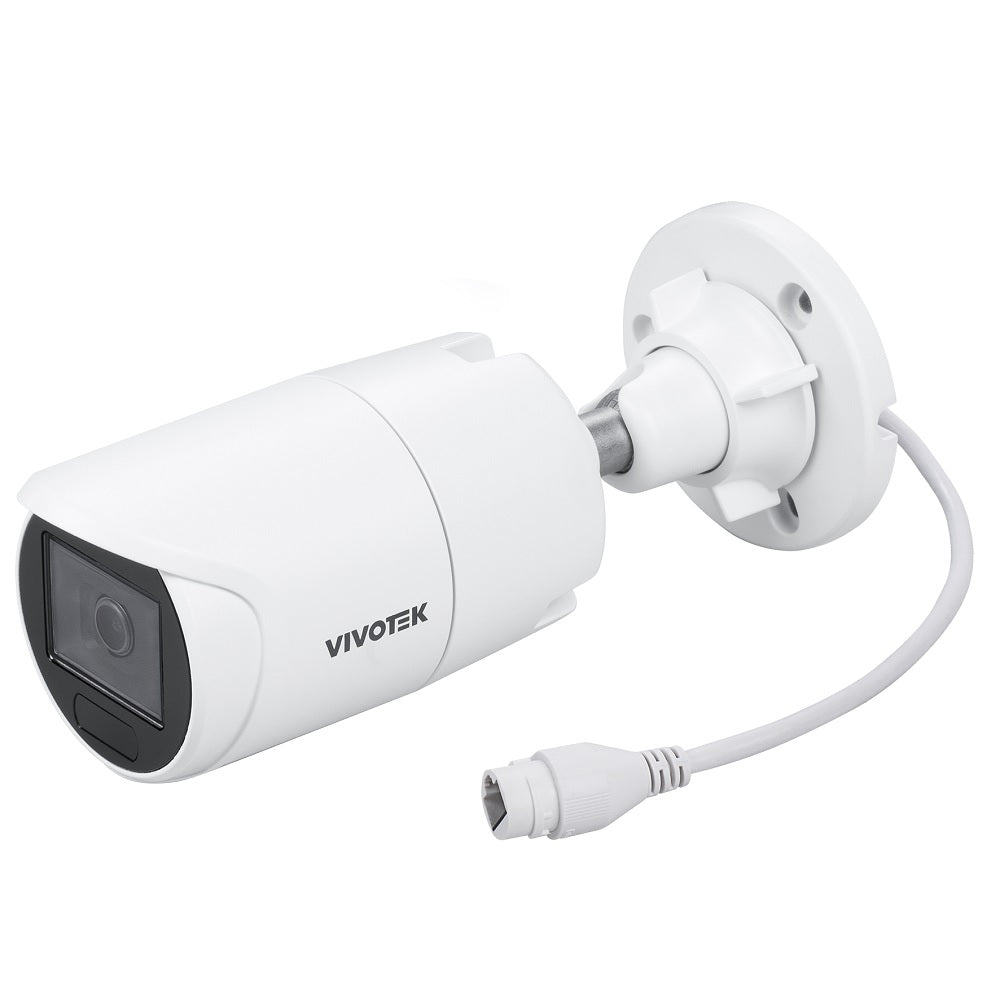

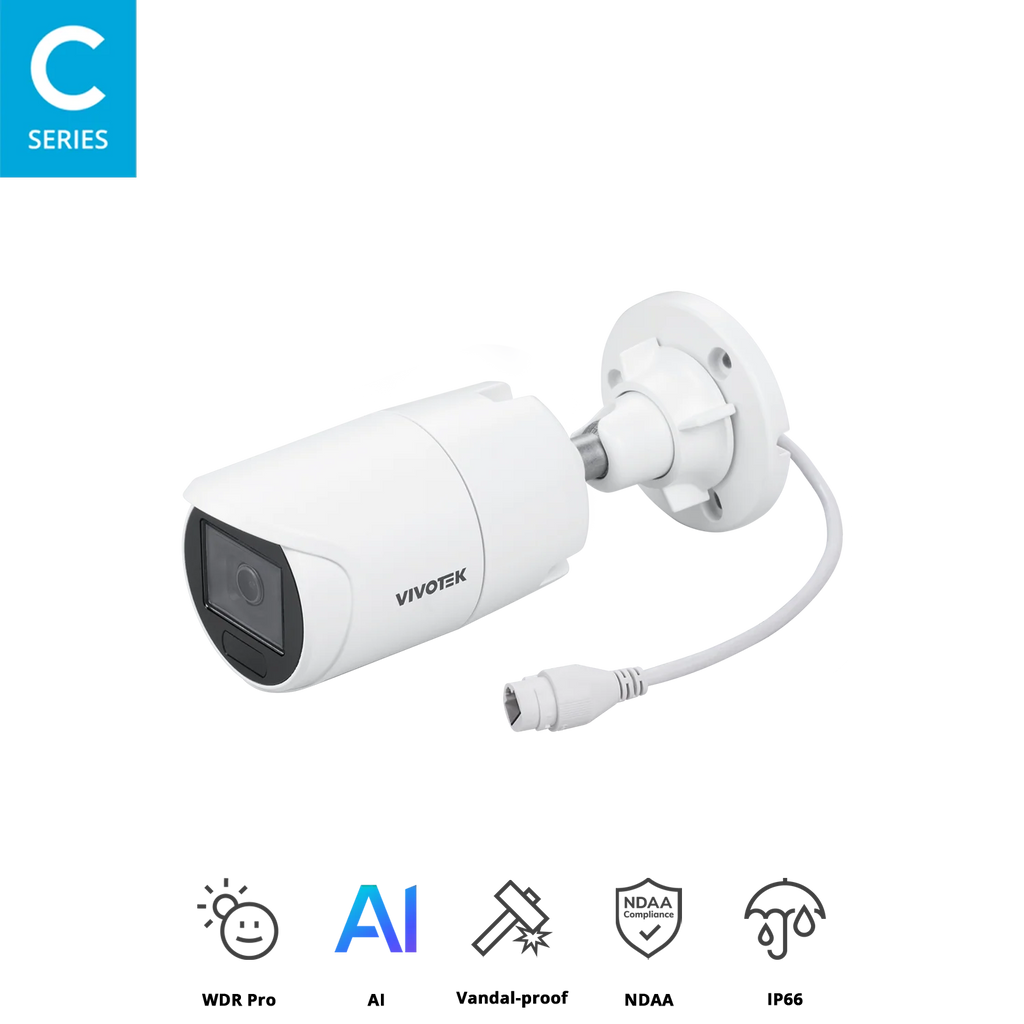

The VIVOTEK IB9383-HV is a next-generation 5MP fixed bullet network camera engineered with AI-powered analytics, exceptional image clarity, and rugged reliability for both indoor and outdoor security applications. Delivering real-time 30fps at 2560x1920 resolution, this camera integrates WDR Pro (120dB), Smart Stream III, and advanced Deep Learning Video Content Analytics (VCA) for proactive detection and incident response.

Its weatherproof (IP66) and vandal-resistant (IK10) housing makes it a perfect fit for exposed environments like parking lots, school campuses, critical infrastructure, retail perimeters, and transportation hubs. With Smart IR up to 30 meters, AI-driven object detection, and built-in Trend Micro cybersecurity, the IB9383-HV stands as a cutting-edge surveillance solution optimized for smart cities and modern enterprises.

What's in the Box

• VIVOTEK IB9383-HV Bullet Camera

• Quick Installation Guide

• Alignment Sticker

• Screw Pack

• Cable Gland

Main Features

• 5MP CMOS Sensor with 30fps Real-Time Video

• WDR Pro (120dB) for excellent visibility in challenging lighting

• AI-Powered Smart VCA including intrusion, loitering, and face detection

• Smart Motion Detection with object classification (people/vehicle)

• Smart IR with up to 30m Night Vision

• H.265 Compression + Smart Stream III for reduced bandwidth and storage

• IP66 Weatherproof & IK10 Vandal-proof Construction

• Built-in Microphone for One-Way Audio

• DORI Range up to 78.3m under EN 62676-4 standards

• MicroSD Card Support up to 1TB and NAS recording

• Trend Micro IoT Security built-in with 1-year free trial

Technical Specifications

Camera:

• Image Sensor: 1/2.8" Progressive CMOS

• Resolution: 2560 x 1920 (5MP)

• Lens: Fixed focal, f = 3.6 mm, F2.0

• FOV: 79.6° (H), 57.8° (V), 105.8° (D)

• Min Illumination:

  • 0.055 lux @ F2.0 (Color)

  • 0.005 lux @ F2.0 (B/W)

  • 0 lux with IR on

• IR Range: 30 meters with Smart IR

• WDR: WDR Pro (120 dB)

• ePTZ: 48x Digital Zoom

Video:

• Compression: H.265, H.264, MJPEG

• Max Frame Rate: 30 fps @ 5MP; 60 fps @ 1080p

• Streams: 3 simultaneous, up to 8 configurable profiles

• Smart Stream III for bandwidth efficiency

• S/N Ratio: 56 dB

AI Analytics:

• Smart Motion Detection: Vehicle & People

• Smart VCA: Intrusion, loitering, line crossing, face detection

• Extended VCA Options (licensed): Crowd, Running, Parking Violation, Restricted Zone Detection

• Object Recognition: Person (gender, clothing, accessories), Vehicle (type, color)

Audio:

• Audio In: Built-in microphone

• Audio Compression: MPEG-2 AAC-LC, G.711, G.726

• Range: 5 meters

Network & Security:

• Protocols: IPv4/IPv6, HTTPS, RTSP, SNMP, FTP/SFTP, NTP, TLS 1.3, etc.

• Security: CSRF protection, IEEE 802.1x, Signed firmware, Trend Micro IoT Security

Interfaces:

• Ethernet: RJ-45, 10/100 Mbps, IEEE 802.3af PoE Class 3

• Storage: MicroSD/SDHC/SDXC (up to 1TB), NAS

Mechanical & Environmental:

• Power Consumption: Max. 10.6 W

• Operating Temp: -30°C to 55°C

• Protection: IP66, IK10

• Dimensions: Ø 91.0 x 226.6 mm

• Weight: 925 g

Certifications: CE, FCC, RCM (AS/NZS), IK10, IP66, UL, CB, BIS

Warranty Information

All VIVOTEK IB9383-HV cameras come with the manufacturer's standard warranty, managed directly through authorized VIVOTEK service partners or distributors.

Brand Description

VIVOTEK Inc., headquartered in Taiwan, is a world-renowned leader in IP surveillance. Known for innovation in AI-driven video analytics, cybersecurity integration, and advanced imaging technologies, VIVOTEK products power surveillance systems in over 100 countries. Their commitment to reliability and intelligent monitoring makes them a trusted choice across multiple industries.

SKU: IB9383-HV

Practical Use Scenarios

• Public & School Campus Security – Proactively detect loitering or intrusion

• Commercial Entrances & Parking Lots – 30m IR and AI-based object tracking

• Critical Infrastructure Monitoring – High resolution and robust environmental protection

• Retail & Industrial Sites – Real-time analytics and wide DORI detection range

• Government & Transportation Facilities – Secured against both physical and cyber threats

Downloadable Resources

• Datasheet – VIVOTEK IB9383-HV (PDF)

Excellence for the Australian and New Zealand Market

The VIVOTEK IB9383-HV meets rigorous Australian and New Zealand standards, including RCM certification (AS/NZS CISPR 32 Class A) and full compliance with IK10 and IP66 environmental protection ratings. It is sourced directly through authorized regional channels, ensuring genuine warranty support and compliance with local safety standards. Designed to endure the region’s varied climates, from arid outback zones to coastal humidity, the IB9383-HV delivers consistent performance. All warranty matters are handled locally via official VIVOTEK support, ensuring streamlined service for Australian and New Zealand customers.

FAQs – VIVOTEK IB9383-HV

Q1: What type of analytics are available with the IB9383-HV?
The camera includes AI-powered Smart Motion Detection and Smart VCA, including intrusion, loitering, line crossing, and face detection. (Product Code: IB9383-HV)

Q2: How effective is the IB9383-HV in low-light environments?
It features Smart IR up to 30 meters, 0.005 lux sensitivity in B/W mode, and WDR Pro, delivering excellent visibility in both dark and contrast-heavy scenes. (Product Code: IB9383-HV)

Q3: Does the camera support AI object classification?
Yes, it can detect and classify people and vehicles, including vehicle type and clothing color. (Product Code: IB9383-HV)

Q4: What storage options are available on the IB9383-HV?
It supports MicroSD/SDHC/SDXC cards up to 1TB and recording to NAS devices. (Product Code: IB9383-HV)

Q5: Is this camera suitable for outdoor use in extreme weather?
Absolutely. It is IP66-rated for weatherproofing and IK10-rated for vandal resistance, and operates in temperatures from -30°C to 55°C. (Product Code: IB9383-HV)
