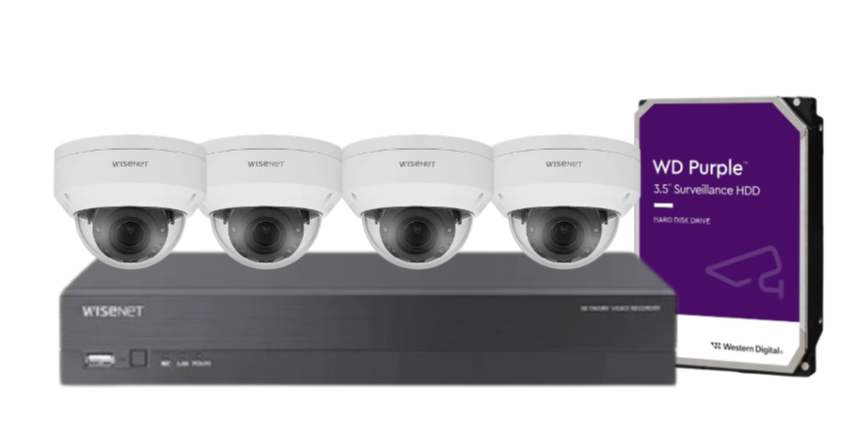

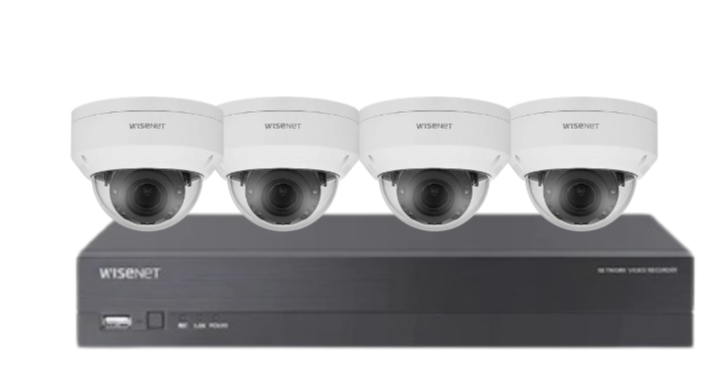

Experience comprehensive, high-resolution outdoor security with the Wisenet Hanwha 4-Camera CCTV Kit, built around the rugged performance of four CT-ANV-L7012R 4MP IR Vandal Dome Cameras and the powerful CT-ARN-410S 4-Channel 8MP NVR. This system combines advanced video analytics, robust durability, and seamless plug-and-play PoE installation. Designed for harsh outdoor conditions, this kit is ideal for small businesses, homes, cafés, or any high-risk environment requiring reliable 24/7 surveillance.
What’s Included in the Box
-
4 x Wisenet Hanwha CT-ANV-L7012R 4MP Outdoor Vandal Dome Cameras
-
1 x Wisenet Hanwha CT-ARN-410S 4CH 8MP H.265 NVR with PoE
-
1 x Surveillance-Grade HDD ( up to 6TB supported)
-
1 x Power Adapter & Cable
-
1 x USB Mouse
-
1 x Quick Installation Guide
-
Mounting Accessories
Main Features
CT-ANV-L7012R Outdoor Dome Cameras (x4)
-
4MP Resolution (2560 x 1440) at 30fps
-
3mm Fixed Lens with ultra-wide 107.5° horizontal field of view
-
Day/Night Clarity: IR LED range up to 20m and 0.1Lux color sensitivity
-
120dB Wide Dynamic Range (WDR) and Lens Distortion Correction (LDC)
-
Smart Analytics: Motion, enter/exit, directional, defocus & tampering detection
-
Hallway View (90°/270°) and WiseStream II for storage optimization
-
Built to Last: IP66 weatherproof and IK10 vandal-proof housing
-
Micro SD/SDHC/SDXC Slot for local backup recording
CT-ARN-410S 4CH AI NVR
-
Supports 4 Channels at up to 8MP each
-
Video Codecs: H.265, H.264, MJPEG
-
Recording Bandwidth: Up to 40Mbps
-
Built-in PoE Switch: 4 ports for power/data over a single cable
-
Storage Support: 1 SATA slot up to 6TB
-
Display: HDMI output up to 4K UHD
-
Remote Monitoring: QR code setup via Wisenet Mobile & Viewer
-
Two-Way Audio & PTZ Camera Control Support
Technical Specifications
Camera (CT-ANV-L7012R)
-
Sensor: 1/3” CMOS
-
Lens: 3mm Fixed, 107.5° HFoV
-
Min. Illumination: 0.1Lux (color), 0Lux with IR on
-
IR Range: 20m
-
Codec: H.265, H.264, MJPEG
-
Storage: Micro SD/SDHC/SDXC slot
-
Protection: IP66 & IK10 rated
-
Operating Temp: -30°C to +55°C
Recorder (CT-ARN-410S)
-
Channels: 4
-
Recording Bandwidth: 40Mbps
-
Storage: 1 x HDD (up to 6TB)
-
USB Ports: 2 x USB 2.0
-
Video Output: 1 x HDMI (4K)
-
Network: 4 PoE RJ45 ports, 1 WAN port
-
Operating Temp: 0°C to +40°C
-
Power Consumption: Max 52W
Warranty Information
This kit includes a 5-year warranty for both CT-ANV-L7012R cameras and the CT-ARN-410S NVR. All warranty claims are serviced directly by Hanwha Vision through authorized service centers in Australia and New Zealand.
Brand Overview
Hanwha Vision, a division of the Hanwha Group, is a global innovator in advanced video surveillance technology. With decades of expertise, their A Series cameras and NVRs are designed to provide reliable, secure, and intelligent protection for commercial and residential applications.
SKU: WISENET-KIT-4CAM-CT-ANV-L7012R-410S
Practical Use Scenarios
-
Retail & Hospitality: Secure front entries, loading areas, and customer zones
-
Residences: Monitor gates, garages, and perimeter fencing
-
Small Offices: Deter intrusion and ensure employee safety
-
Schools & Childcare: Watch play areas and access points
-
Parking Areas: Track vehicle movement and activity
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
This CCTV kit is fully RCM-certified and manufactured to meet Australian and New Zealand standards for safety and performance. It is exclusively distributed through authorized ANZ partners to ensure authenticity and optimal compatibility. With local service centers supporting full warranty and technical assistance, users in Australia and New Zealand can trust in long-term support and compliance.
Frequently Asked Questions (FAQs)
Q1: Can I expand the storage in the NVR? (Product Code: WISENET-KIT-4CAM-CT-ANV-L7012R-410S)
A1: Yes, the CT-ARN-410S supports one SATA HDD of up to 6TB capacity for video storage.
Q2: Are the cameras weatherproof for long-term outdoor use? (Product Code: WISENET-KIT-4CAM-CT-ANV-L7012R-410S)
A2: Absolutely. The CT-ANV-L7012R features IP66 weatherproofing and IK10 vandal protection for harsh outdoor conditions.
Q3: How does remote access work with this system? (Product Code: WISENET-KIT-4CAM-CT-ANV-L7012R-410S)
A3: Simply scan the QR code via Wisenet Mobile or use Wisenet Viewer on PC/Mac for live access, playback, and settings.
Q4: Do these cameras provide night vision in total darkness? (Product Code: WISENET-KIT-4CAM-CT-ANV-L7012R-410S)
A4: Yes. Each camera is equipped with IR LEDs that illuminate up to 20 meters in complete darkness.
Q5: Can I use third-party cameras with this kit? (Product Code: WISENET-KIT-4CAM-CT-ANV-L7012R-410S)
A5: Yes, the CT-ARN-410S NVR supports ONVIF Profile S for third-party camera compatibility.
