Description
Introducing the Hanwha Vision 8CH 8MP H.265 AI NVR with PoE Switch, a powerful and versatile solution for your video surveillance needs. Engineered with advanced features and user-friendly functionality, this NVR delivers exceptional performance and reliability for both residential and commercial applications.
With support for up to 8 channels and 8 megapixel resolution, this NVR ensures high-definition video capture for every camera in your system. Whether you're monitoring a small office, retail store, or home, you can trust that all critical details will be captured with clarity and precision.
Featuring H.265, H.264, and MJPEG codec support, this NVR maximizes storage efficiency without compromising on image quality. With a recording capacity of up to 60Mbps, you can rest assured that all video footage will be reliably stored and accessible when needed.
The Hanwha Vision NVR offers plug-and-play convenience with 8 Power over Ethernet (PoE+) ports, providing both power and data transmission over a single Ethernet cable. With a total power budget of 65W, this NVR can support a variety of PoE-enabled devices, simplifying installation and reducing cable clutter.
With support for up to 1 HDD (up to 6TB), this NVR provides ample storage space for your video recordings. The HDMI local monitor output allows for convenient on-site viewing and playback of footage directly from the NVR.
For seamless remote access, the Hanwha Vision NVR offers P2P service compatibility with Wisenet Viewer & Wisenet Mobile. Simply scan the QR code to connect, and you can monitor your surveillance feeds from anywhere with an internet connection, using your smartphone or tablet.
Additionally, the NVR supports dual track recording and features a 4K HDMI monitor output, allowing for simultaneous recording and high-resolution local display.
Trust the Hanwha Vision 8CH 8MP H.265 AI NVR with PoE Switch to provide reliable and comprehensive video surveillance capabilities for your home or business. With its advanced features and intuitive design, it's the perfect solution for safeguarding your property and assets.

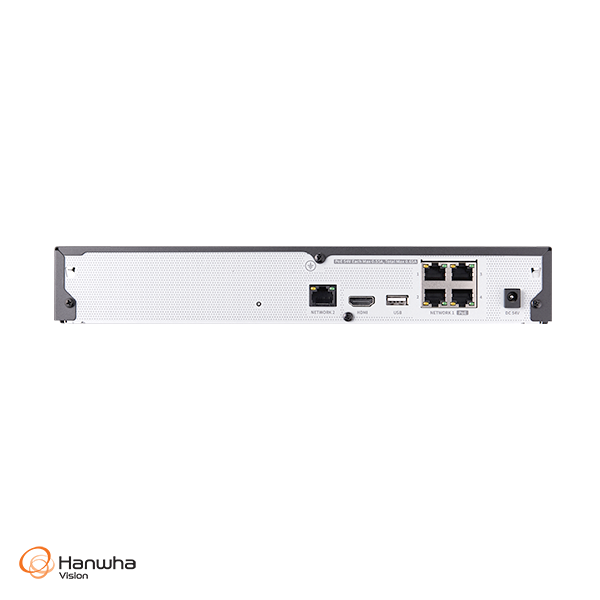

Hanwha Vision 8CH 8MP H.265 AI NVR with PoE Switch
FEATURES
- Up to 8 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 60Mbps network camera recording
- Plug & play with 8 PoE+ ports, 65W budget
- Maximum 1 HDD (up to 6TB) supported
- HDMI local monitor
- P2P service (QR code connect) for easy remote access with Wisenet Viewer & Wisenet Mobile
- Dual track recording, 4K HDMI monitor out
| Product Short Info | Hanwha Vision 8CH 8MP H.265 AI NVR with PoE Switch |
|---|---|
| Channels | 8 Channels |
| Plug & Play by PoE | Yes |
| Resolution Supported | Up to 8 Megapixel |
| MAX Internal HDDs | 1 HDDs |
| RAID Supported | No |
Datasheets
WISENET A SERIES
The Wisenet A series product line includes cost-effective camera and NVR solutions equipped with the essential functionality security professionals demand. Being affordable without sacrificing features makes it well suited to meet the needs of small to medium sized sites such as retail, banking, and commercial locations.
A Series Overview
Essential camera features, professional performance
Wisenet A series cameras offer clear and accurate imaging with a variety of options including essential form factors, 4MP and 2MP resolutions, and lens types to meet your unique security challenges and circumstances.
4MP and 2MP camera resolution
The Wisenet A series camera line is available in 4MP and 2MP resolution with a variety of fixed and motorized varifocal lens options, producing a clear and crisp image no matter what your surveillance scenario requires.
120dB True WDR
True WDR backlight compensation optimizes images captured in difficult lighting situations.
Realistic image reproduction with LDC
Lens distortion correction technology produces natural-looking images without the distortion often created by conventional camera designs equipped with wide-angle lenses.
Hallway view mode
By rotating the lens on Wisenet A series cameras by 90°, 180°, or 270°, a vertical field of view may be achieved to help better monitor long corridors or hallways
WiseStream II compression technology
Our proprietary compression technology enables storage and bandwidth savings of up to 75% when compared to the use of H.264 compression alone.
30fps real-time video transmission
Wisenet A series cameras in 4MP and 2MP resolution both provide smooth and clear real-time monitoring by transmitting streams at up to 30fps.
License-free Intelligent Video Analytics
Hanwha Vision’s license-free intelligent video analytics technology operates on the edge, alerting operators to abnormal activities in real time. This increase in situational awareness can help to prevent or
minimize damage or harm during an event by prompting a rapid and efficient response.
Intelligent Video Analytics
Motion detection - Triggers an event when
motion is detected in a designated virtual zone
Tamper detection - Triggers an event if the camera
lens is covered or an unauthorized movement that
changes the field of view is detected
Virtual line detection - Triggers an alarm when
objects are detected crossing a pre-defined virtual
line or perimeter
Enter/exit detection - Detection of objects
entering or exiting a designated area
Defocus detection - Triggers an event if loss of
focus is detected (varies by model)
Affordable high quality NVR solutions
Wisenet A series 4CH, 8CH, and 16CH NVRs support maximum camera resolutions of up to 8MP and H.265, H.264, and MJPEG codecs. The improved installation wizard and 4K resolution monitor output make system
setup simple and monitoring crystal clear. Increased accessibility options include the use of P2P connections,
the Wisenet Mobile application, and on PC or Mac with Wisenet Viewer CMS.
Wisenet Viewer CMS
Wisenet Viewer is a free standalone application that can monitor and control multiple Wisenet NVR/DVR devices on your network in real-time from your Mac or PC
Key Features:
Dynamic Drag and Drop Layout Panel: Easily arrange your surveillance layout with a user-friendly drag and drop interface, ensuring intuitive customization.
Custom Layouts and Device Grouping: Tailor your surveillance setup to fit your specific needs by creating custom layouts and grouping devices for efficient monitoring.
Search and Play Recorded Video: Quickly search through recorded video footage and seamlessly play back events for comprehensive review and analysis.
Utilize Multiple Monitors: Enhance your monitoring capabilities by utilizing multiple monitors, maximizing visibility and efficiency.
Event Trigger and Rule Management: Set up event triggers and manage rules to automate responses to detected incidents, streamlining your security operations.
Simple Remote Connection (DDNS/P2P): Easily establish remote connections for monitoring via Dynamic Domain Name System (DDNS) or Peer-to-Peer (P2P) technology, ensuring convenient access from anywhere.
Display Web Pages: Integrate additional information or resources by displaying web pages directly within the surveillance interface, enhancing situational awareness.
Play Media Files in Layout: Seamlessly incorporate media files into your surveillance layout, providing additional context or information when needed.
Log Search (Event, System, and Audit): Access comprehensive logs for events, system activities, and audits, enabling thorough analysis and accountability.
Advanced User Permission Management: Maintain control over access and permissions with advanced user management features, ensuring security and compliance.
Real-Time System Monitoring at a Glance: Keep track of system performance and status in real-time, providing instant insights into the health and operation of your surveillance infrastructure.
Built-In AI Metadata Search: Harness the power of artificial intelligence to search through metadata, enabling rapid and accurate retrieval of relevant information for enhanced security and efficiency.
